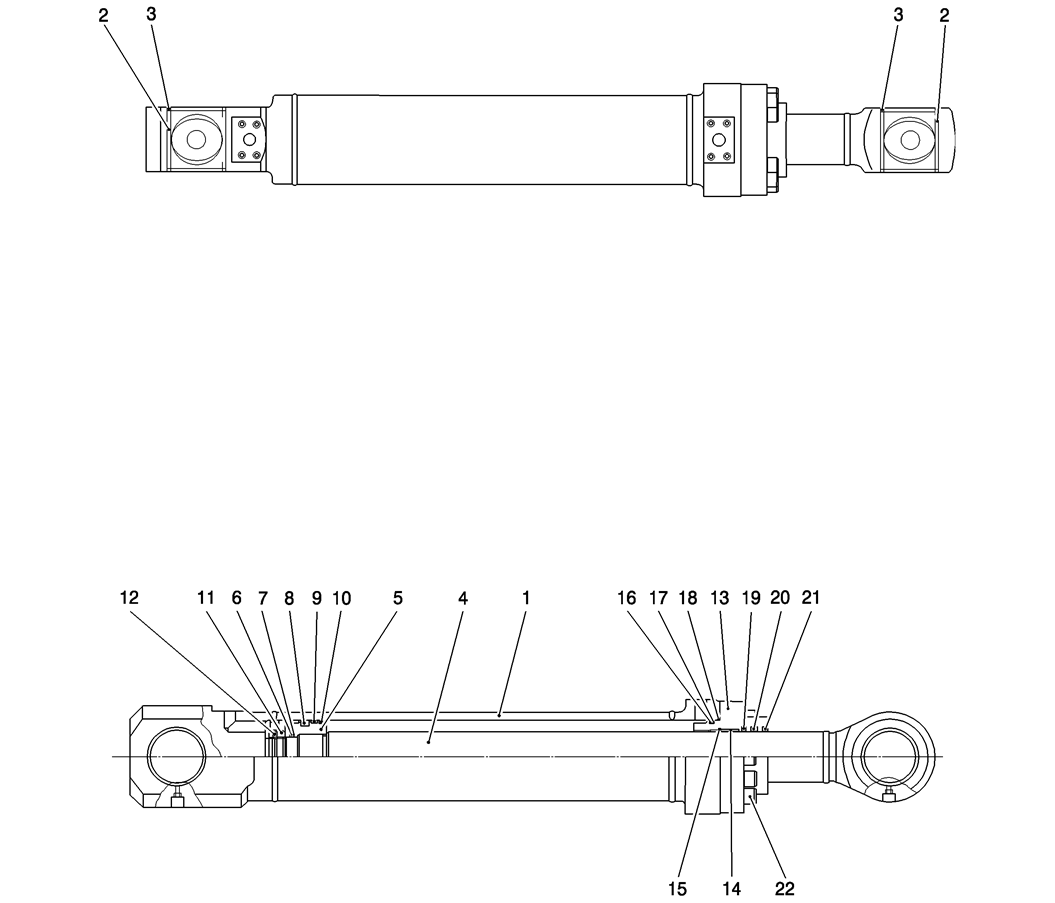

HC781-49-1 CYLINDER ASSY (CLAMP ARM)
HC781-49-1 CYLINDER ASSY (CLAMP ARM)-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals
1 YN01V00087R500 REPAIR KIT Repair Kit Consists Of Ref. 2×1, 3×2, 4×1
1 YN01V00087R400 REPAIR KIT Repair Kit Consists Of Ref. 1×1, 2×1, 3×2
1 YN01V00087R300 REPAIR KIT Repair Kit All (Rod + Piston)
1 YN01V00087R200 REPAIR KIT Repair Kit Piston Side
1 YN01V00087R100 REPAIR KIT Repair Kit Rod Side
22 10 ZS23C16065 SCREW
21 1 2438U914D1S22
20 1 2438U307S35 PACKING Rod
19 1 YN01V00052S022 SEAL Buffer
18 1 ZD12G12500 O-RING
17 1 YN01V00052S020 BACK-UP RING
16 1 ZD12G12000 GASKET O-ring
15 1 2438U278S24 CLIP Retaining
14 1 2438U1106S17 BUSHING
13 1 YN01V00087S013 COVER
12 1 2438U1280S18 SCREW Set
10 2 YN01V00052S012 SEAL RETAINER Slide
9 2 2438U1106S11 WEAR RING
8 1 YN01V00052S010 WIPER SEAL
7 2 LP01V00004S025 BACK-UP RING
6 1 ZD12G06500 O-RING
5 1 YN01V00087S005 PISTON
4 1 NSS NOT SERVICED SEPARATELY Rod, Piston
3 4 2438U1109S28 SEAL Dust
2 2 YN01V00087S002 BUSHING
1 1 NSS NOT SERVICED SEPARATELY Tube, Cylinder
AR YN01V00087F1 CYLINDER
11 1 YN01V00052S013 NUT Piston
