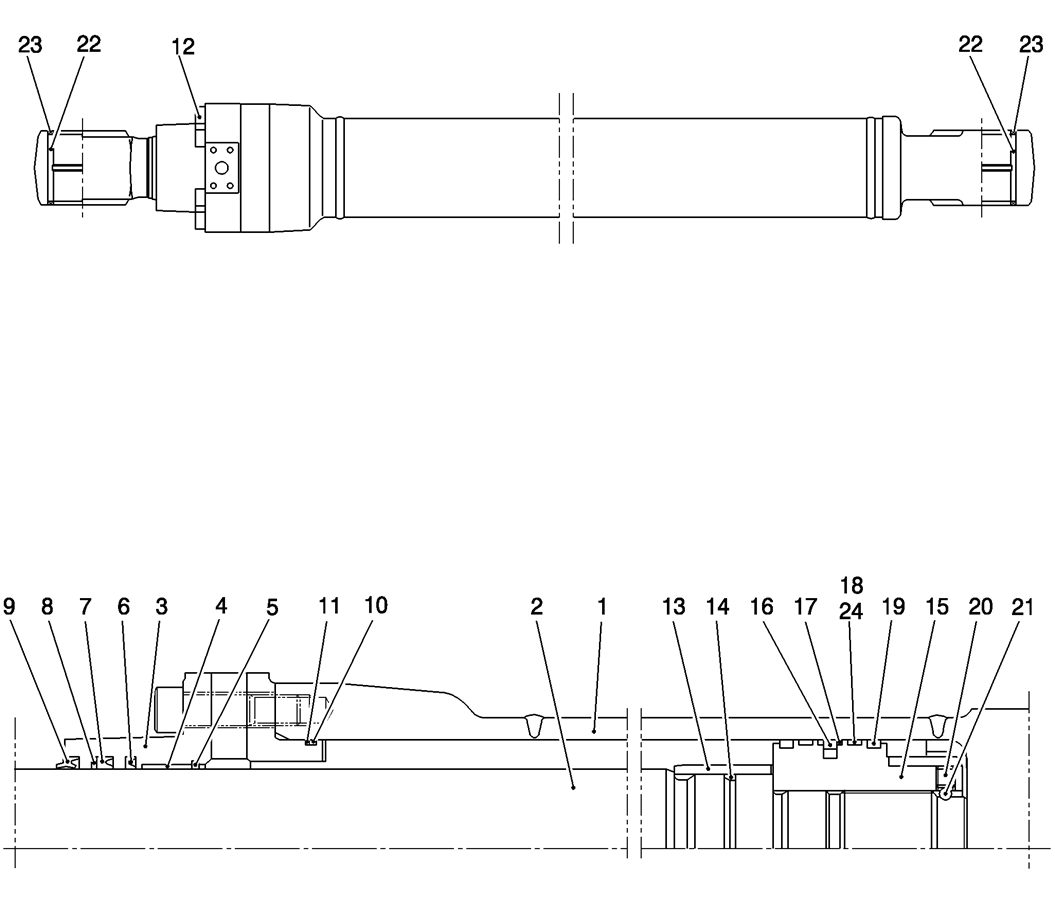

HC600-01-1 CYLINDER ASSY, BOOM

HC600-01-1 CYLINDER ASSY, BOOM-Kobelco SK200-8 SK210LC-8 SK210D-8 Excavator Parts Number Electronic Catalog EPC Manuals

1 YN01V00151R600 SEAL KIT Repair Consists Of Ref. 14×1, 16×1, 17×2, (For F2 ONLY)
1 YN01V00151R500 REPAIR KIT Consists Of Ref. 2×1, 22×4, 23×4
1 YN01V00151R400 REPAIR KIT Consists Of Ref. 1×1, 22×4, 23×4
1 YN01V00151R300 REPAIR KIT All (Rod + Piston) (For F1 ONLY)
1 YN01V00151R200 REPAIR KIT Piston Side (For F1 ONLY)
1 YN01V00151R100 REPAIR KIT Rod Side
24 2 2438U1105S17 RING Slide (For F2 ONLY)
23 4 2438U941S3 DUST CAP Seal
22 4 YN01V01109P1 BUSHING
21 1 2436U330S16 BALL
20 1 2438U999S21 SCREW Set
19 2 2438U1105S18 RING Slide
18 2 YN01V00151S018 RING Slide (For F1 ONLY)
17 2 LQ01V00004S017 BACK-UP RING
16 1 2438U1105S16 RING ASSY. Seal
15 1 YN01V00151S015 PISTON
14 1 YN01V00103S014 SEAL Cushion
13 1 YN01V00151S013 BEARING Cushion
12 12 ZS23C16075 SCREW Cap
11 1 2438U1105S12 BACK-UP RING
10 1 ZD12G11500 O-RING
9 1 LP01V00008S009 RING Wiper
8 1 2438U959S8 RING Back Up
7 1 YN01V00151S007 RING U
6 1 YN01V00151S006 RING Buffer
5 1 2438U959S5 RING Retaining
4 1 2438U1106S17 BUSHING
3 1 YN01V00151S003 CYLINDER HEAD
1 1 NSS NOT SERVICED SEPARATELY Tube, Cylinder
AR YN01V00151F2 CYLINDER Assy, Boom
AR YN01V00151F1 CYLINDER Assy, Boom
2 1 NSS NOT SERVICED SEPARATELY Rod, Piston
