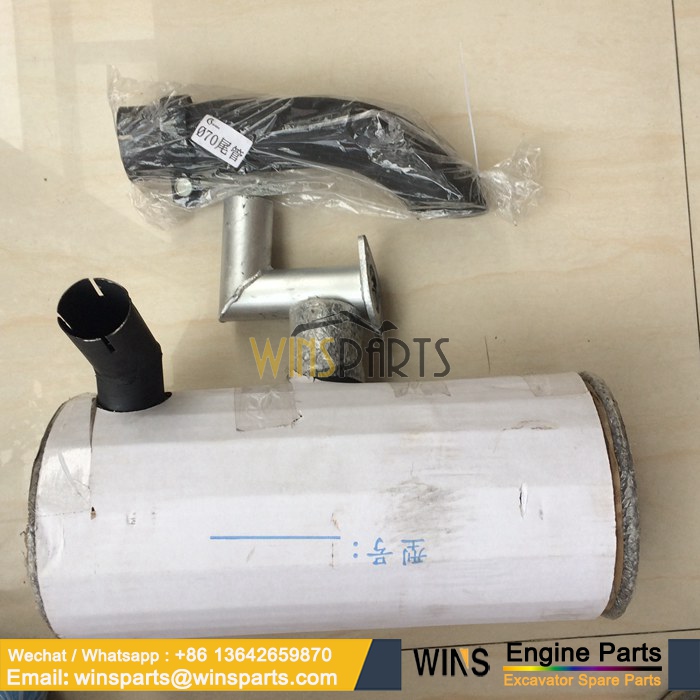

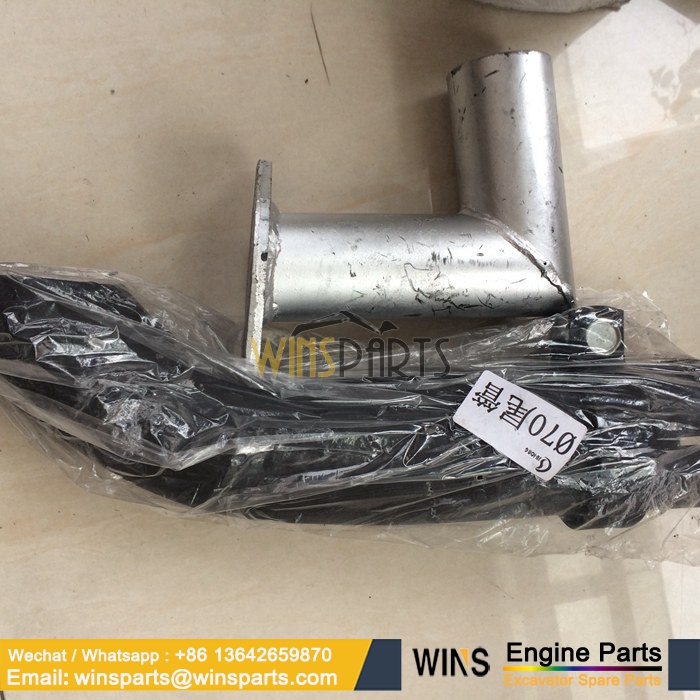

2427U1139 2432T812F1 2427T2550 ENGINE MUFFLER EXHAUST PIPE ASSY For Kobelco SK60-3 SK60-4 SK60 MARK III Excavator Spare Parts
Number:2427U1139 Type:ENGINE MUFFLER EXHAUST PIPE ASSY Utend:Kobelco SK60-3 SK60-4 SK60 MARK III Excavator Place of Origin:China/Japan Packing: Fumigate Seaworthy Packing Engine Brand: ISUZU/HINO/MISTUBISHI Excavator Brand: New.Holland/KOBELCO/HITACHI
110-2 1 2446U226S4 WING NUT
110-1 1 2446U244S1 ELEMENT INNER
110 1 2446U279F1 REWORK, AIR CLEANER
109 2 2418Z1333D4 TUBE 19.5mm ID x 23.8mm OD x 500mm Length
108 2 2418Z1333D3 TUBE 19.5mm ID x 23.8mm OD x 750mm Length, Protective Plastic
107 1 2432R226D9 CLIP
87 1 2452U424F1 SEE FIGURE 321-01
85 2 ZN18C06005 NUT M06x1.0mm
84 2 ZS31C06016 SCREW M06x1.0x16mm
83 1 ZS18C10016 SCREW M10x1.50x16mm
82 1 2444R1162D2 HOSE ASSY
81 1 2444Z3964 HYD CONNECTOR CONNECTOR
80 1 2444Z3965 CONNECTOR
79 1 2416N1457 U-BRACKET
78 1 2416P16841 BRACKET
7712416T22522
76 1 2479Z2233 INSULATOR
75 1 2479Z2231 INSULATOR
74 1 2444R2178 FLEXIBLE HOSE
73 2 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm
71 1 2479Z2197 INSULATOR
70 1 2444R2492D240 HOSE
69 1 2489U268F1 SENDER UNIT THERMO
68 2 2416P16141 BRACKET BRACKET
67 4 ZC15X07000 CLIP CLIP
66 1 2444R1106 FLEXIBLE HOSE
65 1 2420Z912D7 FLEXIBLE HOSE
64 1 2479Z2210 INSULATOR
63 1 2479Z2209 INSULATOR
62 1 2479Z2201 INSULATOR
61 1 2479Z2106 INSULATOR
60 1 2479Z2202 INSULATOR
59 3 ZN18C12010 NUT M12x1.75mm
58 1 ZW16X12000 WASHER ID 12 x OD 24 x Th 2.3mm
57 2 2420T4331D4 SCREW M12x1.75x150mm
56 1 ZS18C12040 SCREW M12x1.75x40mm
55 1 2432T2279 CLAMP
54 1 2479Z2200 INSULATOR
53 1 2479Z2203 INSULATOR
52 1 ZS18F10014 SCREW M10x1.25x14mm
51 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
50 1 2432R233D3 CLIP 50x16x60mm
49 8 2432Z290D3 CLIP Wire Ties — 154mm Long
48 3 ZS13C10020 SCREW M10x1.50x20mm
47 10 ZN18C08007 NUT M08x1.25mm
46 2 R16T0152D1 WASHER Flat — ID 13 x OD 24 x Th 3.2mm
44 4 ZN13F12010 NUT
43 2 ZN18F16013 NUT M16x1.50mm
42 2 ZS18C06012 SCREW M06x1.0x12mm
41 2 ZW22X16000 WASHER, LOCK ID 16 x OD 28.0 x Th 4.0mm
40 8 ZS13C10025 SCREW M10x1.50x25mm
39 6 ZS13C10030 SCREW M10x1.50x30mm
38 8 ZW22X12000 LOCK WASHER ID 12 x OD 21.5 x Th 3.0mm
37 2 2420Z993 NUT
36 16 ZW22X10000 LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm
35 4 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
34 4 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
33 8 ZW11X10000 WASHER ID 10 x OD 21 x Th 2.0mm
31 1 2479R546 THERMOSTAT
30 1 2444R2492D210 FLEXIBLE HOSE
28-7 1 2427U203S6 SWITCH Radiator Over Flow Level
28-6 1 2427U334S6 PIPE
28-5 1 2427U334S5 PACKING PACKING
28-4 1 2427U334S4 CAP
28-3 1 2427U203S3 LABEL
28-2 1 2427U334S2 HYD CONNECTOR CONDUCTION ASSY
28-1 1 2427U334S1 RESERVE
28 1 2427U334F1 TANK SUB
27 1 2418T17274 SPACER
26 1 2416Z519 U-BRACKET
25 1 2418R590D3 FLEXIBLE HOSE
24 4 ZC15X04000 CLIP HOSE
22 3 ZC15X01000 CLIP HOSE
20 4 ZC15X01500 CLIP
19 2 2416U23D3 RUBBER SLEEVE
18 2 2416R222 RUBBER SLEEVE
17 1 2444R1076 FLEXIBLE HOSE
16 1 2444Z3538 FLEXIBLE HOSE
15 1 2418P23742 EXHAUST SYSTEM PIPE
14 2 2416Z634 STAY
12 1 2450R163S1 ASSY
9 1 2420Z795D5 HOSE
7-5 1 2446U196S7 CAP CAP, NIPPLE
7-4 1 2446U196S8 VALVE
7-3 1 2446U226S4 WING NUT
7-2 1 2446U271S2 ELEMENT ASSY
7-1 1 2446U271S1 BODY
7 1 2446U271F1 AIR CLEANER
6 2 2420T7227 U-BOLT
312416J2041
2 1 2427U1139 MUFFLER
1 1 24100N6332F3 PUMP PUMP ASSY, CONNECT, SEE FIGURE 301-01
AR24100J14455F1POWER-PLANT ASSY
21 1 2432T812F1 CLAMP SEAL
4 1 2427T2550 EXHAUST SYSTEM PIPE
