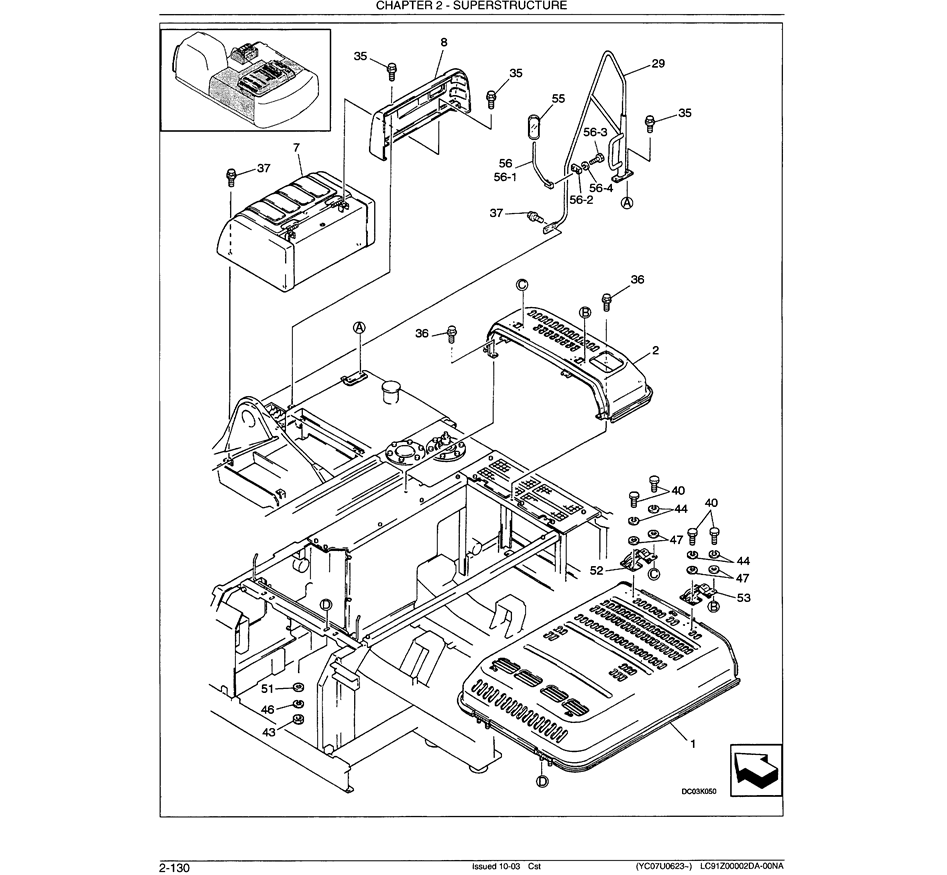

LC22C00013F1 LC22C00006F1 ENGINE HOOD COVER BONNET ASSEMBLY Kobelco SK330-6 SK330LC-6E Excavator Spare Parts
Number :LC22C00013F1 LC22C00006F1Type : ENGINE HOOD COVER BONNET ASSEMBLYUtend :Kobelco SK330-6 SK330LC-6E ExcavatorPlace of Origin :China/JapanPacking : Fumigate Seaworthy PackingEngine Brand : ISUZU/HINO/MISTUBISHIExcavator Brand : New.Holland/KOBELCO/HITACHI

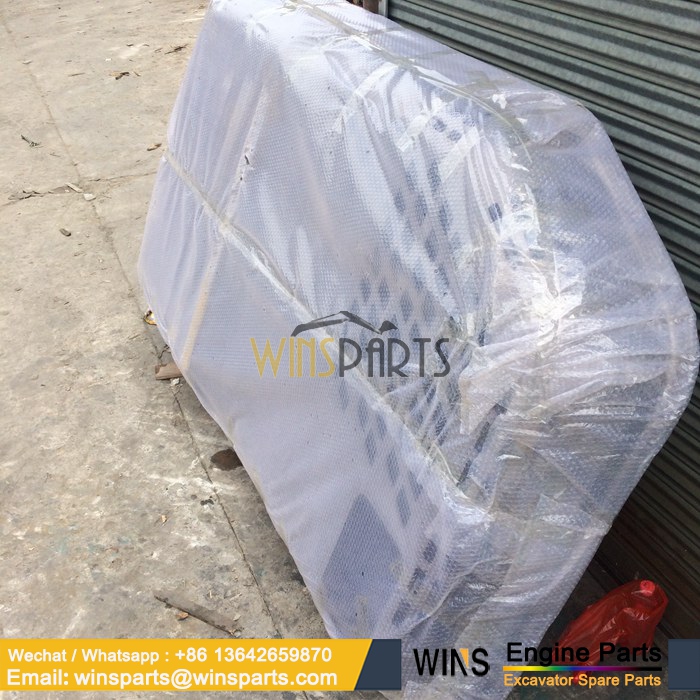

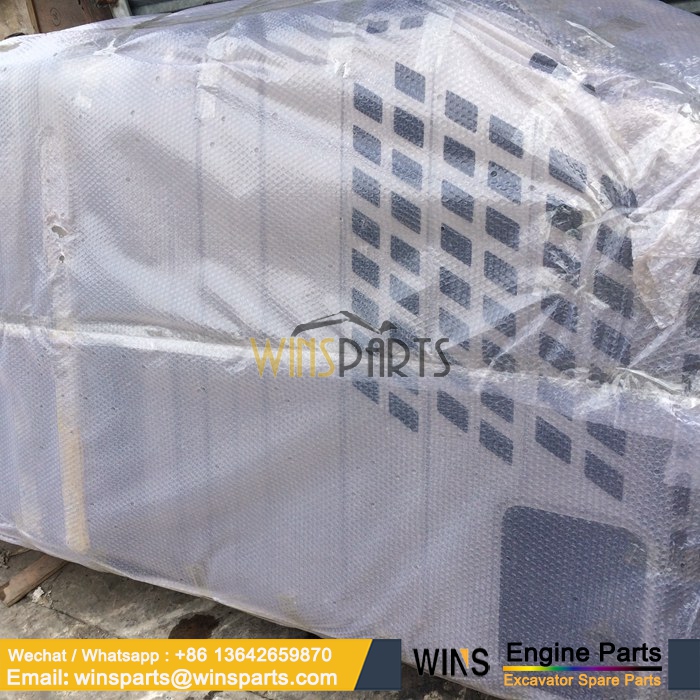

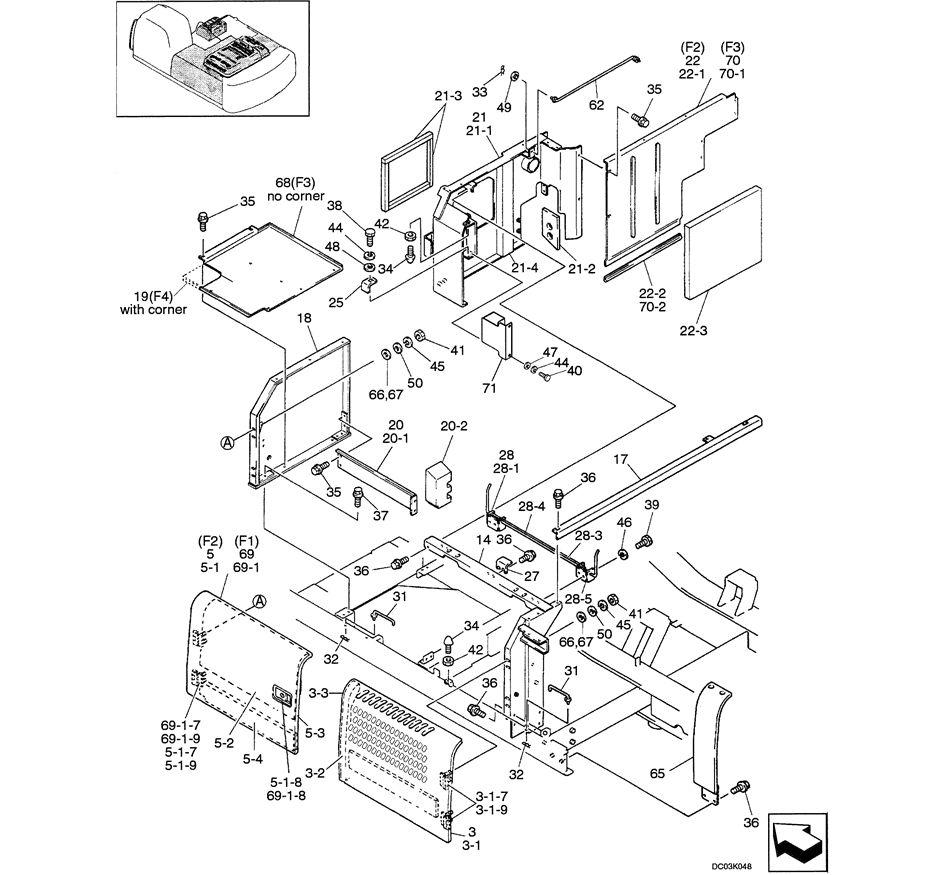

LC21C01393P2 LC21C01390F2 LC21C01394P1 LC21C01395P1 LC21C01139D1 LC21C01139D2 PANEL RUBBER BAND LC22C00013F1 LC22C00006F1 ENGINE HOOD COVER BONNET ASSEMBLY Kobelco (1) LC22C00013F1 LC22C00006F1 ENGINE HOOD COVER BONNET ASSEMBLY Kobelco (2) LC22C00013F1 LC22C00006F1 ENGINE HOOD COVER BONNET ASSEMBLY Kobelco (3) LC22C00013F1 LC22C00006F1 71 1 YM21C01162P1 PLATE (F1 Only)
70-2 1 PY01P01019DR INSULATING PANEL STRIP, WESTHER, (F3 Only)
70-1 1 LC21C01342P1 GUARD (F3 Only)
70 1 LC21C01341F2 GUARD ASSEMBLY, (F3 Only)
69-3 1 YN21C01674P1 INSULATING PANEL RUBBER, (F3 Only)
69-1-9 4 ZS11C10030 SCREW M10x1.50x30mm, (F3 Only)
69-1-8 1 2427R703F1 LOCK (F3 Only)
69-1 1 LC21C01393P2 PANEL (F3 Only)
69 1 LC21C01390F2 PANEL ASS, (F3 Only)
68 1 LC21C01167P1 GUARD (F5 Only)
67 6 YN21C01174D2 SPACER 100x40x2.3mm, (F1 Only)
66 6 YN21C01174D1 SPACER 100x40x1.6mm, (F1 Only)
65 2 LC21C01140P1 PANEL (F1 Only)
62 1 LC21C01138P1 STAY STAY, (F1 Only)
50 12 2418T12346 WASHER ID 11 x OD 30 x Th 3.2mm, (F1 Only)
49 1 ZW16X16000 WASHER ID 16 x OD 30 x Th 3.2mm, (F1 Only)
48 4 ZW16H08000 WASHER ID 08 x OD 18 x Th 3.2mm, (F1 Only)
46 8 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, (F1 Only)
45 12 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm, (F1 Only)
44 25 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm, (F1 Only)
42 6 ZN18F10008 NUT M10x1.25mm, (F1 Only)
41 12 ZN18C10008 NUT M10x1.50mm, (F1 Only)
39 4 ZS18C12030 SCREW M12x1.75x30mm, (F1 Only)
38 4 ZS18C08025 SCREW M08x1.25x25mm, (F1 Only)
37 18 YN02C01299P1 BOLT M12x1.75x35mm (Incls. Washer & Lockwasher), (F1 Only)
36 50 ZM32C12030 BOLT M12x1.75x30mm (Incls. Washer & Lockwasher), (F1 Only)
35 30 ZM32C12025 BOLT M12x1.75x25mm (Incls. Washer & Lockwasher), (F1 Only)
34 6 YN21C01321P1 STOP (F1 Only)
33 1 2419R9D6 PIN Snap — OD 16mm x 43.8mm Long, (F1 Only)
32 3 2419R9D2 COTTER PIN OD 08mm x 27.7mm Long, (F1 Only)
31 3 2416T6289D2 STAY STAY, (F1 Only)
28-5 1 LC21C01363P1 SUPPORT (F1 Only)
28-4 1 LC21C01272P1 SPRING (F1 Only)
28-3 1 LC21C01271P1 SPRING (F1 Only)
28-1 1 LC21C01034P1 SUPPORT (F1 Only)
28 1 LC21C01273F2 SPRING ASSEMBLY, (F1 Only)
27 1 YN21C01716P1 PLATE (F1 Only)
25 2 YN21C01714P1 PLATE (F1 Only)
22-3 1 LC21C01150P1 FOAM INSULATION (F2 Only)
22-2 1 PY01P01019DR INSULATING PANEL STRIP, WEATHER, (F2 Only)
22-1 1 LC21C01342P1 GUARD (F2 Only)
22 1 LC21C01341F1 GUARD ASSEMBLY, (F2 Only)
21-4 1 LC21C01080P1 INSULATING PANEL INSULATION, (F1 Only)
21-3 4 LC21C01078P1 INSULATING PANEL RUBBER, (F1 Only)
21-2 1 LC21C01116P1 INSULATING PANEL INSULATION, (F1 Only)
21-1 1 LC21C01385P1 GUARD, (F1 Only)
21 1 LC21C01386F1 GUARD ASSEMBLY, (F1 Only)
20-2 1 LC21C01152P1 FOAM INSULATION (F1 Only)
20-1 1 LC21C01114P1 GUARD (F1 Only)
20 1 LC21C01151F1 GUARD ASSEMBLY, (F1 Only)
19 1 LC21C01125P1 GUARD (F4 Only)
18 1 LB21C01082P1 BRACKET (F1 Only)
17 1 LC21C01275P1 U-BRACKET (F1 Only)
14 1 LC21C01145P1 U-BRACKET (F1 Only)
5-4 1 LC21C01395P1 FOAM INSULATION (F2 Only)
5-3 1 YN21C01674P1 INSULATING PANEL RUBBER, (F2 Only)
5-2 1 LC21C01394P1 FOAM INSULATION (F2 Only)
5-1-9 4 ZS11C10030 SCREW M10x1.50x30mm, (F2 Only)
5-1-8 1 2427R703F1 LOCK (F2 Only)
5-1-7 2 YN21C01658P1 HINGE (F2 Only)
5-1 1 LC21C01393P2 PANEL (F2 Only)
5 1 LC21C01390F1 PANEL (F2 Only)
3-3 1 LC21C01139D2 RUBBER BAND (F1 Only)
3-2 1 LC21C01139D1 RUBBER BAND (F1 Only)
3-1-9 4 ZS11C10025 CAP Screw — M10x1.50x25mm, (F1 Only)
3-1-7 2 YN21C01658P1 HINGE (F1 Only)
3-1 1 LC21C01388P1 PANEL (F1 Only)
3 1 LC21C01389F1 PANEL (F1 Only)
F5 AR LC21C00011F5 GUARD INSTALLATION (FOR MULTI)
F4 AR LC21C00011F4 GUARD INSTALLATION (FOR MULTI LESS)
F3 AR LC21C00011F3 GUARD INSTALLATION (TROPIC)
F2 AR LC21C00011F2 GUARD INSTALLATION (STD UNIT)
F1 AR LC21C00011F1 GUARD INSTALLATION (BASE UNIT)
PLATFORMS
69-1-7 2 YN21C01658P1 HINGE (F3 Only)
