LC15V00003F2 LC15V00003F3 LC15V00003F1 HYDRAULIC SWING MOTOR FINAL DRIVE MOTOR Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts (1)

LC15V00003F2 LC15V00003F1 HYDRAULIC SWING MOTOR Kobelco SK330LC-6E

$1.00

Number: LC15V00003F2 LC15V00003F1
Type: KPM KAWASAKI M2X210CHB-10A  M2X210CHB M2X210 FINAL DRIVE MOTOR
Utend: Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI

Inquiry
1 Step 1
Contact Us
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
SKU: LC15V00003F2 Categories: , , , , Tag:
Product Description

LC15V00003F2 LC15V00003F1 HYDRAULIC SWING MOTOR FINAL DRIVE MOTOR Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts KPM KAWASAKI M2X210CHB-10A  M2X210CHB M2X210 FINAL DRIVE MOTOR

Number: LC15V00003F2 LC15V00003F1
Type: KPM KAWASAKI M2X210CHB-10A  M2X210CHB M2X210 FINAL DRIVE MOTOR
Utend: Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI

LC15V00003F2 LC15V00003F3 LC15V00003F1 HYDRAULIC SWING MOTOR FINAL DRIVE MOTOR Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts (2)
LC15V00003F2 LC15V00003F3 LC15V00003F1 HYDRAULIC SWING MOTOR FINAL DRIVE MOTOR Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts (2)
LC15V00003F2 LC15V00003F3 LC15V00003F1 HYDRAULIC SWING MOTOR FINAL DRIVE MOTOR Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts (1)
LC15V00003F2 LC15V00003F3 LC15V00003F1 HYDRAULIC SWING MOTOR FINAL DRIVE MOTOR Kobelco SK330LC-6E SK330LC SK330-6 HYDRAULIC Excavator Spare Parts (1)

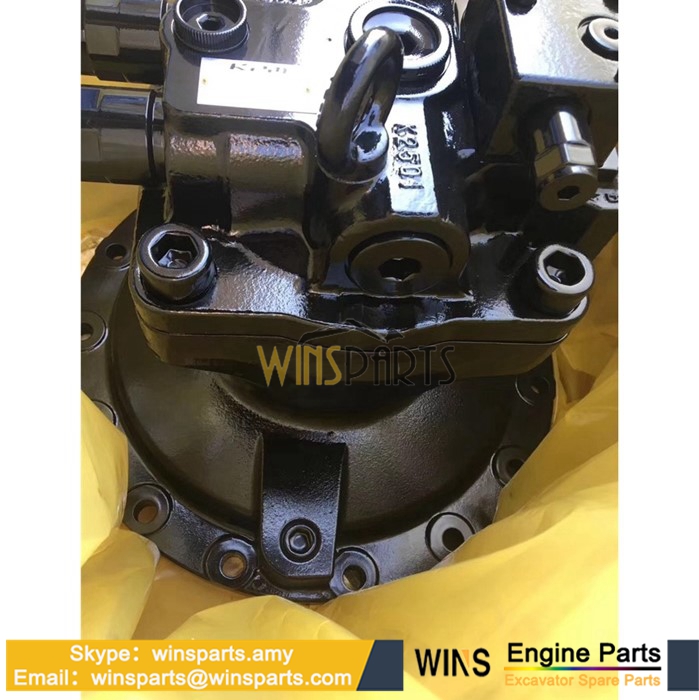

JAPAN KPM KAWASAKI M2X210CHB-10A HYDRAULIC SWING MOTOR M2X210CHB M2X210 FINAL DRIVE MOTOR Excavator Spare Parts (1)
JAPAN KPM KAWASAKI M2X210CHB-10A HYDRAULIC SWING MOTOR M2X210CHB M2X210 FINAL DRIVE MOTOR Excavator Spare Parts (1)
LC15V00006F1 [1] HYDRAULIC MOTOR KOB MOTOR ASSEMBLY, SWING (Replaced by LC15V00006F3) Superseded by part number: LC15V00006F3 20. 2420T4730D1 [1] SCREW,M16 x 190mm KOB CAPSCREW 46. LC15V00003F1 [1] HYDRAULIC MOTOR KOB MOTOR, HYDRAULIC, Remarks: See Art CR8-35 Superseded by part number: LC15V00003F2 . . LC15V00003F2R [1] REMAN-HYD MOTOR KOB SK330LC-6E ASN YC07U0623, Reman for New P/N LC15V00003F1 . . LC15V00003F2C [1] CORE-MOTOR HYDRAULIC KOB Return Number 47. 24100J16661F4 [1] HYDRAULIC MOTOR KOB REDUCTION ASSEMBLY, Remarks: See Art CR8-41 . . LC15V00006F3 [1] HYDRAULIC MOTOR KOB MOTOR ASSEMBLY, SWING (Replaced by LC15V00006F1) 45. LC15V00003F2 [1] HYDRAULIC MOTOR KOB MOTOR, HYDRAULIC, Remarks: See Art CR8-37 1 LC15V00003R300 SEAL KIT Includes 471, 472, 485, 488, 491, 706, 707 1 LC15V00003R200 HYDRAULIC VALVE CASE ASSEMBLY, VALVE - Includes 303, 451 1 LC15V00003R100 REPAIR KIT PISTON ASSEMBLY - Includes 121, 122 994 1 ZE82T12000 PLUG 3/4" PT 992 1 ZE82T08000 PLUG 1/2" PT 985 1 LQ15V00001S985 PLUG 984 1 LQ15V00001S984 PLUG 983 2 LQ15V00001S983 PLUG 982 1 LQ15V00001S982 PLUG 743 3 2441U784S743 PLATE SEPARATOR 742 2 2441U784S742 CLUTCH PLATE PLATE, FRICTION 712 18 LB15V00011S712 SPRING 707 1 2441U952S707 O-RING 706 1 2415U188S725 O-RING 702 1 YZ15V00003S702 KIT PISTON, BRAKE 491 1 2441U952S491 GASKET SEAL. OIL 488 2 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 485 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm 472 1 2441U952S472 O-RING 471 1 ZD12G11000 O-RING ID 109.4 ± 0.91 x OD 115mm 469 2 LC15V00003S469 PLUG 464 1 2441U667S466 PLUG 1/4" PF 451 2 NSS NOT SERVICED SEPARATELY PIN 444 1 2441U952S444 NEEDLE BEARING 443 1 2441U549S443 ROLLER BEARING 438 1 ZR26X06200 SNAP RING RETAINING 437 1 ZR26X11000 LOCKING RING RETAINING 433 1 LQ15V00001S013 SNAP RING 432 2 ZR16X05000 RING Retaining -- ID 50 x OD 64 x Th 2.0mm 401 4 2441U784S401 SCREW 391 2 2437U407S983 RIVET PIN 390 1 YB15V00003S390 PLATE NAME PLATE FOR THE MOTOR NOT A SERVICE PART. 355 2 LC15V00003S355 SPRING 351 2 LC15V00003S351 PLUNGER 304 1 2441U784S304 BODY COVER 303 1 NSS NOT SERVICED SEPARATELY CASE, VALVE 301 1 LC15V00003S301 CASE 131 1 LC15V00003S131 PLATE VALVE 124 1 2441U784S124 PLATE SHOE 123 1 YZ15V00003S123 PLATE SET 122 9 NSS NOT SERVICED SEPARATELY SHOE 121 9 NSS NOT SERVICED SEPARATELY PISTON 118 1 2441U784S118 SPACER 117 1 2441U784S117 SPACER 116 12 2441U784S116 PUSH ROD 114 1 2441U784S114 SPRING 113 1 2441U784S113 BUSHING 111 1 YZ15V00003S111 BLOCK CYLINDER 106 3 2441U784S106 SPACER 101 1 2441U952S101 SHAFT 052 1 YN20V00004F1 VALVE ASSEMBLY, SWING, See Page 8-37 051-1 1 ZD12G03000 O-RING ID 29.4 ± 0.29 x OD 35mm 051 2 YN22V00014F4 VALVE ASSEMBLY, RELIEF - Components Not Available 1 LC15V00003F1 HYDRAULIC MOTOR HYDRAULIC
LC15V00006F1 [1] HYDRAULIC MOTOR KOB MOTOR ASSEMBLY, SWING (Replaced by LC15V00006F3) Superseded by part number: LC15V00006F3 20. 2420T4730D1 [1] SCREW,M16 x 190mm KOB CAPSCREW 46. LC15V00003F1 [1] HYDRAULIC MOTOR KOB MOTOR, HYDRAULIC, Remarks: See Art CR8-35 Superseded by part number: LC15V00003F2 . . LC15V00003F2R [1] REMAN-HYD MOTOR KOB SK330LC-6E ASN YC07U0623, Reman for New P/N LC15V00003F1 . . LC15V00003F2C [1] CORE-MOTOR HYDRAULIC KOB Return Number 47. 24100J16661F4 [1] HYDRAULIC MOTOR KOB REDUCTION ASSEMBLY, Remarks: See Art CR8-41 . . LC15V00006F3 [1] HYDRAULIC MOTOR KOB MOTOR ASSEMBLY, SWING (Replaced by LC15V00006F1) 45. LC15V00003F2 [1] HYDRAULIC MOTOR KOB MOTOR, HYDRAULIC, Remarks: See Art CR8-37 1 LC15V00003R300 SEAL KIT Includes 471, 472, 485, 488, 491, 706, 707 1 LC15V00003R200 HYDRAULIC VALVE CASE ASSEMBLY, VALVE – Includes 303, 451 1 LC15V00003R100 REPAIR KIT PISTON ASSEMBLY – Includes 121, 122 994 1 ZE82T12000 PLUG 3/4″ PT 992 1 ZE82T08000 PLUG 1/2″ PT 985 1 LQ15V00001S985 PLUG 984 1 LQ15V00001S984 PLUG 983 2 LQ15V00001S983 PLUG 982 1 LQ15V00001S982 PLUG 743 3 2441U784S743 PLATE SEPARATOR 742 2 2441U784S742 CLUTCH PLATE PLATE, FRICTION 712 18 LB15V00011S712 SPRING 707 1 2441U952S707 O-RING 706 1 2415U188S725 O-RING 702 1 YZ15V00003S702 KIT PISTON, BRAKE 491 1 2441U952S491 GASKET SEAL. OIL 488 2 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 485 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm 472 1 2441U952S472 O-RING 471 1 ZD12G11000 O-RING ID 109.4 ± 0.91 x OD 115mm 469 2 LC15V00003S469 PLUG 464 1 2441U667S466 PLUG 1/4″ PF 451 2 NSS NOT SERVICED SEPARATELY PIN 444 1 2441U952S444 NEEDLE BEARING 443 1 2441U549S443 ROLLER BEARING 438 1 ZR26X06200 SNAP RING RETAINING 437 1 ZR26X11000 LOCKING RING RETAINING 433 1 LQ15V00001S013 SNAP RING 432 2 ZR16X05000 RING Retaining — ID 50 x OD 64 x Th 2.0mm 401 4 2441U784S401 SCREW 391 2 2437U407S983 RIVET PIN 390 1 YB15V00003S390 PLATE NAME PLATE FOR THE MOTOR NOT A SERVICE PART. 355 2 LC15V00003S355 SPRING 351 2 LC15V00003S351 PLUNGER 304 1 2441U784S304 BODY COVER 303 1 NSS NOT SERVICED SEPARATELY CASE, VALVE 301 1 LC15V00003S301 CASE 131 1 LC15V00003S131 PLATE VALVE 124 1 2441U784S124 PLATE SHOE 123 1 YZ15V00003S123 PLATE SET 122 9 NSS NOT SERVICED SEPARATELY SHOE 121 9 NSS NOT SERVICED SEPARATELY PISTON 118 1 2441U784S118 SPACER 117 1 2441U784S117 SPACER 116 12 2441U784S116 PUSH ROD 114 1 2441U784S114 SPRING 113 1 2441U784S113 BUSHING 111 1 YZ15V00003S111 BLOCK CYLINDER 106 3 2441U784S106 SPACER 101 1 2441U952S101 SHAFT 052 1 YN20V00004F1 VALVE ASSEMBLY, SWING, See Page 8-37 051-1 1 ZD12G03000 O-RING ID 29.4 ± 0.29 x OD 35mm 051 2 YN22V00014F4 VALVE ASSEMBLY, RELIEF – Components Not Available 1 LC15V00003F1 HYDRAULIC MOTOR HYDRAULIC

LC15V00006F1 [1] HYDRAULIC MOTOR KOB MOTOR ASSEMBLY, SWING (Replaced by LC15V00006F3) Superseded by part number: LC15V00006F3
20. 2420T4730D1 [1] SCREW,M16 x 190mm KOB CAPSCREW
46. LC15V00003F1 [1] HYDRAULIC MOTOR KOB MOTOR, HYDRAULIC, Remarks: See Art CR8-35 Superseded by part number: LC15V00003F2
. . LC15V00003F2R [1] REMAN-HYD MOTOR KOB SK330LC-6E ASN YC07U0623, Reman for New P/N LC15V00003F1
. . LC15V00003F2C [1] CORE-MOTOR HYDRAULIC KOB Return Number
47. 24100J16661F4 [1] HYDRAULIC MOTOR KOB REDUCTION ASSEMBLY, Remarks: See Art CR8-41
. . LC15V00006F3 [1] HYDRAULIC MOTOR KOB MOTOR ASSEMBLY, SWING (Replaced by LC15V00006F1)
45. LC15V00003F2 [1] HYDRAULIC MOTOR KOB MOTOR, HYDRAULIC, Remarks: See Art CR8-37
1 LC15V00003R300 SEAL KIT Includes 471, 472, 485, 488, 491, 706, 707
1 LC15V00003R200 HYDRAULIC VALVE CASE ASSEMBLY, VALVE – Includes 303, 451
1 LC15V00003R100 REPAIR KIT PISTON ASSEMBLY – Includes 121, 122
994 1 ZE82T12000 PLUG 3/4″ PT
992 1 ZE82T08000 PLUG 1/2″ PT
985 1 LQ15V00001S985 PLUG
984 1 LQ15V00001S984 PLUG
983 2 LQ15V00001S983 PLUG
982 1 LQ15V00001S982 PLUG
743 3 2441U784S743 PLATE SEPARATOR
742 2 2441U784S742 CLUTCH PLATE PLATE, FRICTION
712 18 LB15V00011S712 SPRING
707 1 2441U952S707 O-RING
706 1 2415U188S725 O-RING
702 1 YZ15V00003S702 KIT PISTON, BRAKE
491 1 2441U952S491 GASKET SEAL. OIL
488 2 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm
485 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
472 1 2441U952S472 O-RING
471 1 ZD12G11000 O-RING ID 109.4 ± 0.91 x OD 115mm
469 2 LC15V00003S469 PLUG
464 1 2441U667S466 PLUG 1/4″ PF
451 2 NSS NOT SERVICED SEPARATELY PIN
444 1 2441U952S444 NEEDLE BEARING
443 1 2441U549S443 ROLLER BEARING
438 1 ZR26X06200 SNAP RING RETAINING
437 1 ZR26X11000 LOCKING RING RETAINING
433 1 LQ15V00001S013 SNAP RING
432 2 ZR16X05000 RING Retaining — ID 50 x OD 64 x Th 2.0mm
401 4 2441U784S401 SCREW
391 2 2437U407S983 RIVET PIN
390 1 YB15V00003S390 PLATE NAME PLATE FOR THE MOTOR NOT A SERVICE PART.
355 2 LC15V00003S355 SPRING
351 2 LC15V00003S351 PLUNGER
304 1 2441U784S304 BODY COVER
303 1 NSS NOT SERVICED SEPARATELY CASE, VALVE
301 1 LC15V00003S301 CASE
131 1 LC15V00003S131 PLATE VALVE
124 1 2441U784S124 PLATE SHOE
123 1 YZ15V00003S123 PLATE SET
122 9 NSS NOT SERVICED SEPARATELY SHOE
121 9 NSS NOT SERVICED SEPARATELY PISTON
118 1 2441U784S118 SPACER
117 1 2441U784S117 SPACER
116 12 2441U784S116 PUSH ROD
114 1 2441U784S114 SPRING
113 1 2441U784S113 BUSHING
111 1 YZ15V00003S111 BLOCK CYLINDER
106 3 2441U784S106 SPACER
101 1 2441U952S101 SHAFT
052 1 YN20V00004F1 VALVE ASSEMBLY, SWING, See Page 8-37
051-1 1 ZD12G03000 O-RING ID 29.4 ± 0.29 x OD 35mm
051 2 YN22V00014F4 VALVE ASSEMBLY, RELIEF – Components Not Available
1 LC15V00003F1 HYDRAULIC MOTOR HYDRAULIC
