Product Description

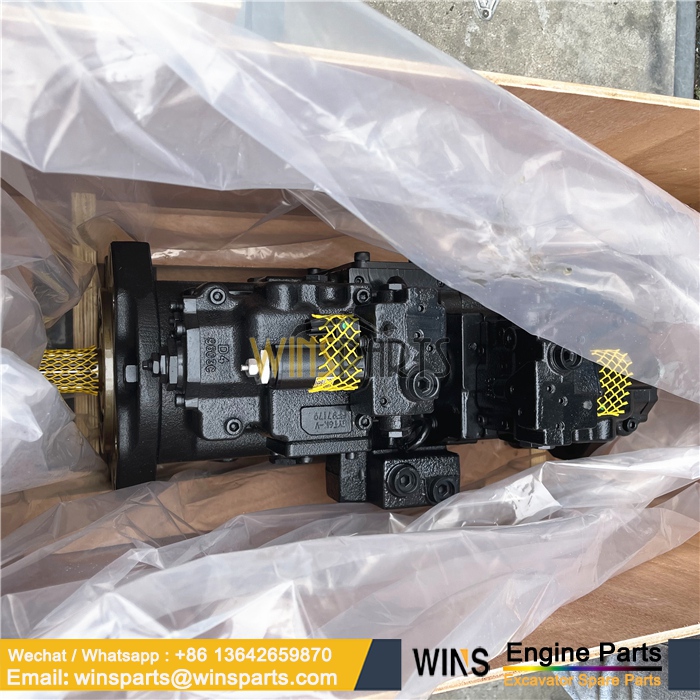

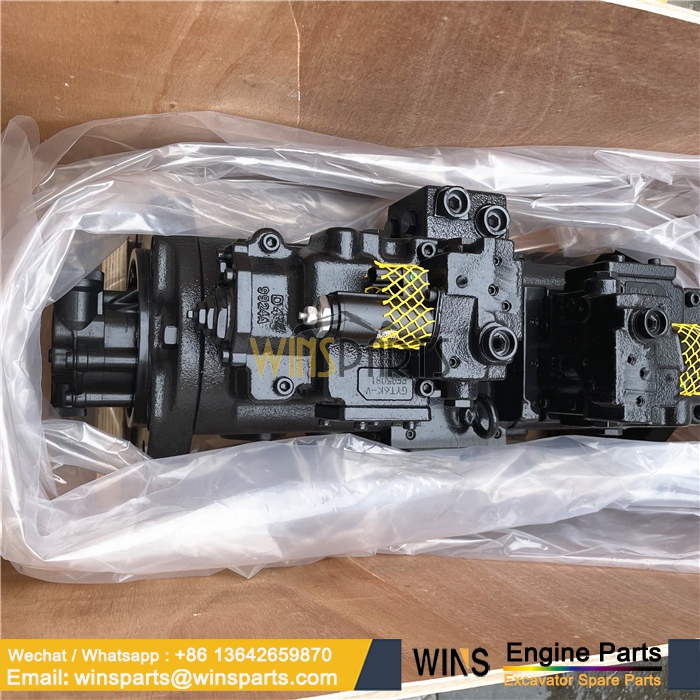

LQ10V00018F1 LQ10V00018F2 LQ10V00018F3 LQ10V00018F4 LQ10V00021F1 KPM K3V112DTP HYDRAULIC PUMP Kobelco SK260 SK295-8 New Holland E265B E265BJ Excavator Spare Parts
Number :LQ10V00018F1 LQ10V00018F2 LQ10V00018F3 LQ10V00018F4 LQ10V00021F1Type :KPM K3V112DTP HYDRAULIC PUMPUtend :Kobelco SK260 SK295-8 New Holland E265B E265BJPlace of Origin :China/JapanPacking : Fumigate Seaworthy PackingEngine Brand : ISUZU/HINO/MISTUBISHIExcavator Brand : New.Holland/KOBELCO/HITACHI

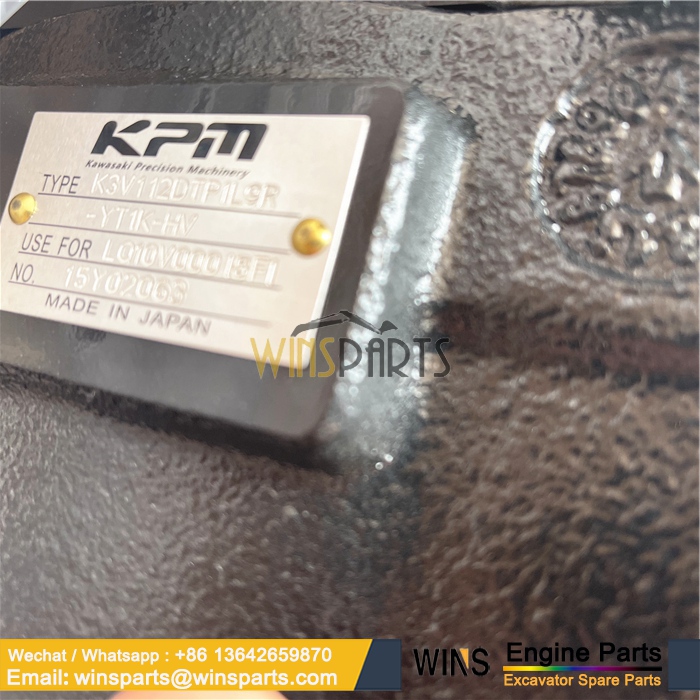

K3V112DTP1L9R KPM HYDRAULIC PUMP LQ10V00018F1 LQ10V00018F2 LQ10V00018F3 LQ10V00018F4 HYDRAULIC PUMP Kobelco LQ10V00018F1 LQ10V00021F1 KPM K3V112DTP HYDRAULIC PUMP Kobelco LQ10V00021F1 KPM K3V112DTP HYDRAULIC PUMP Kobelco SK260 SK295-8 New Holland E265B E265BJ 1. YN30P01029P1 [1] BRACKET SM
2. LB30P01002F1 [1] COUPLING KOB (Containes Items Marked With “K”)
K. LC30P01005S001 [1] Bubber, (Part of
LC30P01005S001), Not Shown
K. LB30P01002S002 [1] Hub, (Part of
LC30P01005S001), Not Shown
K. LB30P01002S003 [4] Insert, (Part of
LC30P01005S001), Not Shown
K. LB30P01002S004 [4] Insert, (Part of
LC30P01005S001), Not Shown
K. LC30P01005S005 [8] Screw, Cap, (Part of
LC30P01005S001), Not Shown
K. LC30P01005S006 [2] Screw, Set, (Part of
LC30P01005S001), Not Shown
K. ZP26D05010 [4] PIN KOB Roll — OD 05 x 10mm Long, (Part
of LC30P01005S001), Not Shown
3. ZS28C20055 [4] CAP,Hex Socket Head, M20 x
55mm
KOB M20x2.5x55mm
4. ZS18C10035 [4] SCREW,Hex, M10 x 35mm KOB M10x1.50x35mm
5. ZM73C10045 [4] BOLT,M10x45mm – Course
Thread
KOB M10x1.50x45mm (Incls. Washer)
5. ZS18C10050 [4] SCREW,Hex, M10 x 50mm KOB M10x1.50x50mm, Not Shown
. . ZW16H10000 [4] WASHER KOB Needed with ZS18C10050, ID 11 x
OD 24 x Th 3.2mm, Not Shown
6. LQ10V00018F1 [1] HYDRAULIC PUMP KOB Assembly, See Figure 08-29
Superseded by part number:
LQ10V00018F4
. . LQ10V00018F1 [1] HYDRAULIC PUMP KOB ASSY Superseded by part number:
LQ10V00018F4
1. LQ10V00021F1 [1] HYDRAULIC PUMP SM PUMP ASSY, SEE (HC405)
2. LQ10V01005F1 [2] REGULATOR KOB ASSY, SEE (HC410) Superseded by part
number: LQ10V01005F2
3. YN35V00052F1 [2] VALVE KOB ASSY, SOLENOID SEE (HC415)
Superseded by part number: YN35V00054F1
4. YN10V00014F3 [1] PUMP KOB ASSY, GEAR
5. YN10V00043S326 [1] COVER KOB Superseded by part number:
YN10V00023S009
K 1 2437U213S530 REPAIR KIT Contains Items 531 & 548
K 1 2437U213S30 REPAIR KIT Contains Items 212 & 214
K 1 YN10V00043R200 REPAIR KIT Contains Items 141 & 314
K 1 YN10V00043R100 REPAIR KIT Contains Items 141 & 313
K 1 LQ10V00021R100 PISTON & RINGS KIT Repair, Contains Items 151 & 152
983 2 2437U407S983 RIVET
981 1 NA NOT SERVICED Name Plate
954 2 2437U213S954 SCREW
953 2 2437U188S953 CAP
901 2 ZS91C01000 BOLT Eye — M10x1.50x18mm
886 4 ZP26D06014 PIN Roll — OD 06 x 14mm Long
885 2 2441U723S885 PIN
824 2 ZR16X04000 RING Retaining — ID 37 x OD 40 x Th 1.8mm
808 2 ZN18C20012 NUT M20x2.5mm
806 2 ZN18C16010 NUT M16x2.0mm
792 2 ZD85G03500 RING Back-Up — ID 35 x OD 40 x Th 1.25mm
789 2 ZD85P01800 RING Back-Up — ID 18 x OD 22 x Th 1.25mm
774 1 YN10V00032S775 OIL SEAL
732 2 YT10V00003S708 O-RING
728 4 YN10V00020S015 O-RING
727 3 YN10V01001S727 GASKET
725 9 YT10V00003S710 O-RING
724 16 YX10V00003S015 O-RING
717 4 YN10V00020S012 O-RING
710 2 YX10V00003S012 O-RING
702 2 YN10V00003S702 GASKET
548 2 NA NOT SERVICED Pin, Feedback
546 2 YN10V00043S546 SPACER
535 2 2437U213S535 STOP
534 2 LQ10V00021S534 STOP
532 2 LC10V00010S532 PISTON
531 2 NA NOT SERVICED Pin
490 32 2441U722S490 PLUG 1/16″ NPTF
468 4 2441U436S469 PLUG
467 2 2441U549S464 PLUG
466 2 2441U667S466 PLUG 1/4″ PF
407 3 ZS23C06055 SCREW M06x1.0x55mm
406 4 ZS23C08020 SCREW M08x1.25x20mm
401 8 2437U213S401 SCREW
325 1 YN10V00043S325 COVER
314 1 NA NOT SERVICED Plate, Valve
313 1 NA NOT SERVICED Plate, Valve
312 1 LC10V00010S312 BLOCK Valve
271 2 YN10V00043S271 BOX Case
261 1 2437U420S261 COVER
251 2 2437U213S251 PLATE
214 2 NA NOT SERVICED Bushing
212 2 NA NOT SERVICED Plate
211 2 2441U242S211 PLATE
157 18 2437U213S157 SPRING
156 2 YN10V00005S156 BUSHING
153 2 LC10V00010S153 PLATE Set
152 18 NA NOT SERVICED Shoe
151 18 NA NOT SERVICED Piston
141 2 NA NOT SERVICED Block, Cylinder
127 4 2441U723S127 SPACER
124 2 YN10V00011S124 NEEDLE BEARING
123 2 LC10V00002S123 BEARING
116 1 YN10V00020S116 GEAR
113 1 YN10V00013S113 SHAFT
111 1 YN10V00043S111 SHAFT
LQ10V00021F1HYDRAULIC PUMP Assembly, Page 1 of 2
6. ZS23C10020 [4] SCREW,Hex Socket
Head, M10 x 20mm
KOB M10x1.50x20mm
