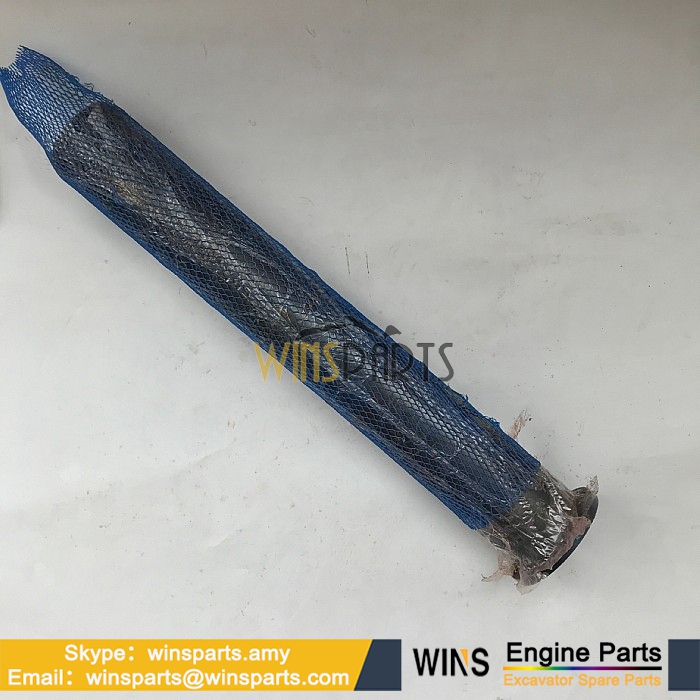

YN12B11170P1 YN12B02215P1 PIN CON Link Bucket Kobelco
$1.00
Number:YN12B11170P1 YN12B02215P1
Type:PIN CON Link Bucket
Utend:Kobelco SK200-10 SK200-8 SK210D-8 SK210LC-8
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
YN12B11170P1 YN12B02215P1 PIN CON Link Bucket Kobelco SK200-10 SK200-8 SK210D-8 SK210LC-8 Excavator Spare Parts
Number:YN12B11170P1 YN12B02215P1
Type:PIN CON Link Bucket
Utend:Kobelco SK200-10 SK200-8 SK210D-8 SK210LC-8
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
![YN12B00760F1 [1] Group A1. YN12B02175F1 [1] LINK KOB Assy, Bucket Superseded by part number: YN12B11101F1 A1-1. NSS [1] NOT SOLD SEPARAT CON Link, Bucket A1-2. YN12B02221P1 [4] BUSHING,80mm ID x 95mm OD x 47mm L KOB A1-5. LC12B01499P1 [2] BUSHING,80mm ID x 95mm OD x 89mm L KOB A2. YN12B02380P1 [1] LINK KOB A3. YN12B02423P1 [1] LINK KOB A4. YN12B02215P1 [2] PIN,80mm OD x 561mm L KOB Superseded by part number: YN12B11170P1 A5. YN12B02177P1 [1] PIN KOB A6. YN12B02178P1 [1] PIN KOB A7. HS18C16130G2 [1] BOLT,Hex, M16 x 130mm, Cl 10.9 KOB Cap A8. HS18C16140G2 [1] SCREW,M16 x 140mm, Cl 10.9 KOB Cap A9. ZN18C16013 [4] NUT KOB A10. 2445R220D4 [6] SEAL,78.7mm ID x 95mm OD x 5mm Thk KOB Dust Superseded by part number: 84499640 A13. ZG91S02000 [5] LUBE NIPPLE,1/8" NPT x 1/8" NPT KOB 1/8" PT -- Straight A14. ZG91S04000 [1] LUBE NIPPLE KOB A15. B16T0442D57 [1] SHIM,72mm ID x 130mm OD x 0.5mm Thk KOB (0.5) A16. B16T0442D44 [1] SHIM,72mm ID x 130mm OD x 0.9mm Thk KOB (0.9) A17. B16T0442D2 [1] SHIM,130mm OD x 72mm ID x 1.6mm Thk KOB (1.6) A18. YN12B01122D1 [2] SHIM,82mm ID x 140mm OD x 0.5mm Thk KOB (0.5) A19. YN12B01122D2 [2] SHIM,82mm ID x 140mm OD x 0.9mm Thk KOB (0.9) A20. YN12B01122D3 [2] SHIM,82mm ID x 140mm OD x 1.6mm Thk KOB (1.6) A21. YN12B01601D1 [4] SHIM,82mm ID x 140mm OD x 2mm Thk KOB (2.0) A22. YN12B01602D1 [2] SHIM,72mm ID x 130mm OD x 2mm Thk KOB (2.0) . . YN12B00939F1 [1] Arm, Short B1. YN12B00940F1 [1] ARM KOB Arm, Short (See Fig no 865-01-1) B2. 2445R220D4 [2] SEAL,78.7mm ID x 95mm OD x 5mm Thk KOB Dust Superseded by part number: 84499640 B3. 2445R220D3 [2] SEAL,70mm ID x 85mm OD x 5mm Thk KOB Dust B4. 2445R138D8 [2] SEAL,90mm ID x 105mm OD x 4mm Thk KOB Dust . . YN12B00737F1 [1] Instal (Arm Foot Pin) YQ11-06001 to YQ-11 06562 . . YN12B00914F1 [1] Instal (Arm Foot Pin), Start Serial: YQ11-06563 C1. YN12B02094P1 [1] PIN KOB YQ11-06001 to YQ-11 06562 Superseded by part number: YN12B02415P1 . . YN12B02415P1 [1] PIN,90mm OD x 519mm L KOB , Start Serial: YQ11-06563 C2. YN02B01414D1 [2] SHIM,92mm ID x 160mm OD x 2mm Thk KOB (2.0) C3. B16T0442D53 [1] SHIM,92mm ID x 160mm OD x 0.5mm Thk KOB (0.5) C4. B16T0442D40 [1] SHIM,92mm ID x 160mm OD x 0.9mm Thk KOB (0.9) . . YN12B00811F1 [1] Instal (Arm Cyl Rod Pin) D1. YN02B01722P1 [1] PIN,85mm OD x 277mm L KOB D2. HS18C16150G2 [1] SCREW KOB CAP D3. ZN18C16013 [2] NUT KOB D4. YN02B01415D1 [2] SHIM,87mm ID x 150mm OD x 2mm Thk KOB (2.0) D5. B16T0442D78 [1] SHIM,87mm ID x 140mm OD x 0.5mm Thk KOB (0.5) D6. B16T0442D77 [1] SHIM,87mm ID x 140mm OD x 0.9mm Thk KOB (0.9) D7. B16T0442D62 [1] SHIM,87mm ID x 140mm OD x 1.6mm Thk KOB (1.6)](https://www.winsparts.com/wp-content/uploads/2023/02/YN12B11170P1-YN12B02215P1-PIN-CON-Link-Bucket-Kobelco-4.jpg)
A1. YN12B02175F1 [1] LINK KOB Assy, Bucket Superseded by part number: YN12B11101F1
A1-1. NSS [1] NOT SOLD SEPARAT CON Link, Bucket
A1-2. YN12B02221P1 [4] BUSHING,80mm ID x 95mm OD x 47mm L KOB
A1-5. LC12B01499P1 [2] BUSHING,80mm ID x 95mm OD x 89mm L KOB
A2. YN12B02380P1 [1] LINK KOB
A3. YN12B02423P1 [1] LINK KOB
A4. YN12B02215P1 [2] PIN,80mm OD x 561mm L KOB Superseded by part number: YN12B11170P1
A5. YN12B02177P1 [1] PIN KOB
A6. YN12B02178P1 [1] PIN KOB
A7. HS18C16130G2 [1] BOLT,Hex, M16 x 130mm, Cl 10.9 KOB Cap
A8. HS18C16140G2 [1] SCREW,M16 x 140mm, Cl 10.9 KOB Cap
A9. ZN18C16013 [4] NUT KOB
A10. 2445R220D4 [6] SEAL,78.7mm ID x 95mm OD x 5mm Thk KOB Dust Superseded by part number: 84499640
A13. ZG91S02000 [5] LUBE NIPPLE,1/8″ NPT x 1/8″ NPT KOB 1/8″ PT — Straight
A14. ZG91S04000 [1] LUBE NIPPLE KOB
A15. B16T0442D57 [1] SHIM,72mm ID x 130mm OD x 0.5mm Thk KOB (0.5)
A16. B16T0442D44 [1] SHIM,72mm ID x 130mm OD x 0.9mm Thk KOB (0.9)
A17. B16T0442D2 [1] SHIM,130mm OD x 72mm ID x 1.6mm Thk KOB (1.6)
A18. YN12B01122D1 [2] SHIM,82mm ID x 140mm OD x 0.5mm Thk KOB (0.5)
A19. YN12B01122D2 [2] SHIM,82mm ID x 140mm OD x 0.9mm Thk KOB (0.9)
A20. YN12B01122D3 [2] SHIM,82mm ID x 140mm OD x 1.6mm Thk KOB (1.6)
A21. YN12B01601D1 [4] SHIM,82mm ID x 140mm OD x 2mm Thk KOB (2.0)
A22. YN12B01602D1 [2] SHIM,72mm ID x 130mm OD x 2mm Thk KOB (2.0)
. . YN12B00939F1 [1] Arm, Short
B1. YN12B00940F1 [1] ARM KOB Arm, Short (See Fig no 865-01-1)
B2. 2445R220D4 [2] SEAL,78.7mm ID x 95mm OD x 5mm Thk KOB Dust Superseded by part number: 84499640
B3. 2445R220D3 [2] SEAL,70mm ID x 85mm OD x 5mm Thk KOB Dust
B4. 2445R138D8 [2] SEAL,90mm ID x 105mm OD x 4mm Thk KOB Dust
. . YN12B00737F1 [1] Instal (Arm Foot Pin) YQ11-06001 to YQ-11 06562
. . YN12B00914F1 [1] Instal (Arm Foot Pin), Start Serial: YQ11-06563
C1. YN12B02094P1 [1] PIN KOB YQ11-06001 to YQ-11 06562 Superseded by part number: YN12B02415P1
. . YN12B02415P1 [1] PIN,90mm OD x 519mm L KOB , Start Serial: YQ11-06563
C2. YN02B01414D1 [2] SHIM,92mm ID x 160mm OD x 2mm Thk KOB (2.0)
C3. B16T0442D53 [1] SHIM,92mm ID x 160mm OD x 0.5mm Thk KOB (0.5)
C4. B16T0442D40 [1] SHIM,92mm ID x 160mm OD x 0.9mm Thk KOB (0.9)
. . YN12B00811F1 [1] Instal (Arm Cyl Rod Pin)
D1. YN02B01722P1 [1] PIN,85mm OD x 277mm L KOB
D2. HS18C16150G2 [1] SCREW KOB CAP
D3. ZN18C16013 [2] NUT KOB
D4. YN02B01415D1 [2] SHIM,87mm ID x 150mm OD x 2mm Thk KOB (2.0)
D5. B16T0442D78 [1] SHIM,87mm ID x 140mm OD x 0.5mm Thk KOB (0.5)
D6. B16T0442D77 [1] SHIM,87mm ID x 140mm OD x 0.9mm Thk KOB (0.9)
D7. B16T0442D62 [1] SHIM,87mm ID x 140mm OD x 1.6mm Thk KOB (1.6)
Gz wins contruction engineering company is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
We Provide Original Genuine Kobelco Parts,Include the following；
Kobelco Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Kobelco Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Kobelco Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.
We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts.
Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60-III SK60-5 ,SK75-8,SK120LC-III SK120-5 ,SK130LC,SK140-8 SK140SRLC ,SK150LC,SK160,SK170,SK200-3 SK200-5 SK200LC-6E? SK200SR SK200-8,SK210LC-6E SK210LC-8, SK235SR,SK250LC-6E SK250 SK250-8,SK260-8 SK260-9,SK270,SK290LC,SK300LC-2 SK300LC-3 ,SK330LC-6E SK330,SK330LC-6E SK330-8 SK330-6,SK350-8 SK350LC SK350-9 ,SK460?SK460LC-IV SK480LC-6E SK460-8 SK480-6S ,SK485LC SK485-8 .
Kobelco Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
