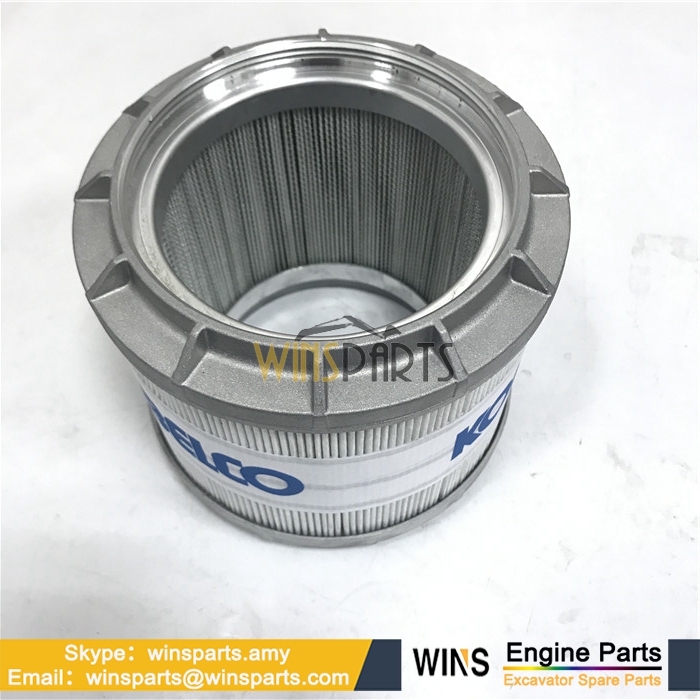

YN52V01020P1 YN52V01021P1 YN52V01016F3 HYDRAULIC OIL ELEMENT FILTER ASSY KOBELCO SK170-9 SK210-9 SK260-9 SK350-9 Excavator Parts

YN52V01020P1 YN52V01021P1 YN52V01016F3 HYDRAULIC OIL ELEMENT FILTER ASSY KOBELCO

$1.00

Number:YN52V01020P1 YN52V01021P1 YN52V01016F3
Type:HYDRAULIC OIL ELEMENT FILTER ASSY
Utend:KOBELCO SK170-9 SK210-9 SK260-9 SK350-9
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: KOBELCO/HITACHI

Inquiry
1 Step 1
Contact Us
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
SKU: YN52V01020P1 Categories: , , , , Tag:
Product Description

 YN52V01020P1 YN52V01021P1 YN52V01016F3 HYDRAULIC OIL ELEMENT FILTER ASSY KOBELCO SK170-9 SK210-9 SK260-9 SK350-9 Excavator Parts

Number:YN52V01020P1 YN52V01021P1 YN52V01016F3
Type:HYDRAULIC OIL ELEMENT FILTER ASSY
Utend:KOBELCO SK170-9 SK210-9 SK260-9 SK350-9
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: KOBELCO/HITACHI

HEAVY EQUIPMENT 140SR 140SR-3 230SR-3 260SR-3 ED160 BLADE SK170 ACERA M-9 SK170-9 SK210-9 SK260-9 SK295-9 SK350-9 SK485-9 SK485LC-9 Kobelco HYDRAULIC OIL ELEMENT FILTER ASSY

YN52V01020P1 YN52V01021P1 YN52V01016F3 HYDRAULIC OIL ELEMENT FILTER ASSY KOBELCO SK170-9 SK210-9 SK260-9 SK350-9 Excavator Parts
YN52V01020P1 YN52V01021P1 YN52V01016F3 HYDRAULIC OIL ELEMENT FILTER ASSY KOBELCO SK170-9 SK210-9 SK260-9 SK350-9 Excavator Parts



1. NSS [1] NOT SOLD SEPARAT CON Tank
2. ZS13C16040 [4] SCREW KOB
3. ZW13H16000 [4] WASHER KOB
4. LE33H01017D1 [3] SHIM,1.0mm Thk KOB (1.0)
5. NSS [1] NOT SOLD SEPARAT CON Tank
6. NSS [1] NOT SOLD SEPARAT CON
7. NSS [1] NOT SOLD SEPARAT CON
8. YN33H01283P1 [1] COVER KOB
9. YN33H01259P1 [1] COVER KOB Superseded by part number: YN33H01259P2
10. ZD11G19000 [2] O-RING,189.30mm ID x 200.70mm OD x 5.70mm KOB ID 189.30 ± 1.47 x OD 200mm
11. ZM73C10025 [12] BOLT,M10x25mm – Course Thread KOB M10x1.50x25mm (Incls. Washer)
12. YN58S00009F1 [1] GAUGE KOB Incl 13 – 18
13. NSS [2] NOT SOLD SEPARAT CON Block
14. NSS [2] NOT SOLD SEPARAT CON Capscrew M10x1.50x34mm
15. 87524750 [1] LEVEL GAUGE SM Superseded by part number: YN58S00009F1
16. NSS [4] NOT SOLD SEPARAT CON O-Ring
17. NSS [4] NOT SOLD SEPARAT CON O-Ring
18. NSS [2] NOT SOLD SEPARAT CON Washer
19. ZE72X08000 [1] PLUG KOB 1/2″ PF, (Incls. O-Ring ZD12P01800)
19. ZD12P01800 [1] O-RING KOB (Part of ZE72X08000), ID 17.8mm x OD 20.2mm, Not Shown
20. YN50V00025F1 [1] STRAINER ELEMENT KOB Assy, Incl 21- 24
21. YN50V00002S001 [1] STRAINER ASSY. KOB
22. ZN11C10008 [1] NUT KOB M10x1.50mm Superseded by part number: ZN18C10008
23. LS50V00007S003 [1] BOLT KOB
24. NSS [1] NOT SOLD SEPARAT CON
25. YN57V00005F1 [1] BREATHER KOB Assy, Incl 26 – 33 Superseded by part number: YN57V00010F1
26. NSS [1] NOT SOLD SEPARAT CON Body
27. YN57V00005S002 [1] ELEMENT KOB Filter Superseded by part number: 47640920
28. NSS [1] NOT SOLD SEPARAT CON Cover
29. YN57V00004S004 [1] SEAL KOB
30. NSS [1] NOT SOLD SEPARAT CON Nut
31. 2446U260S10 [1] NUT KOB M12x1.25mm
32. YN57V00004S004 [1] SEAL KOB
33. 2446U260S8 [1] PACKING KOB
34. ZS28C06016 [4] SCREW,Hex Socket Head, M6 x 16mm KOB M06x1.0x16mm
35. ZW26K06000 [4] LOCK WASHER KOB ID 06 x OD 11 x Th 1.5mm
36. YN52V01016F3 [1] FILTER ASSY KOB Assembly, Incl 37 – 42
37. YN52V01008S002 [1] PLATE KOB
38. YN21V00015P1 [1] CHECK VALVE KOB
39. ZD11G09000 [1] O-RING,89.40mm ID x 95.60mm OD x 3.10mm KOB ID 89.40 ± 0.77 x OD 95mm
40. YN52V01008S005 [1] PACKING KOB
41. LC33H01009P1 [1] SPRING KOB
42. YN52V01020P1 [2] ELEMENT KOB Filter Superseded by part number: YN52V01021P1
43. YN52V01016R100 [1] KIT KOB Incl 39 – 40, 42, Not Shown Superseded by part number: YN52V01016R110
44. YN52V01016R300 [1] REPAIR KIT KOB Incl 37 – 40, 42, Not Shown Superseded by part number: YN52V01016R310
45. YN52V01016R500 [1] REPAIR KIT KOB Incl 37 – 42, Not Shown Superseded by part number: YN52V01016R510
46. YN52V01016R600 [1] REPAIR KIT KOB Incl 10, 39 – 40, 42, Not Shown
47. YN52V01016R700 [1] REPAIR KIT KOB Incl 39 – 40, 42, Not Shown Superseded by part number: YN52V01016R710



Company Information

Gz wins contruction engineering company is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.

We Provide Original Genuine Kobelco Parts,Include the following,Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.

We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts

Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60,SK75,SK130,SK140,SK160,SK170,SK200-8,SK210,SK250-8,SK260,SK330LC,SK350,SK460,SK485LC.
Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
