YN58S00009F3

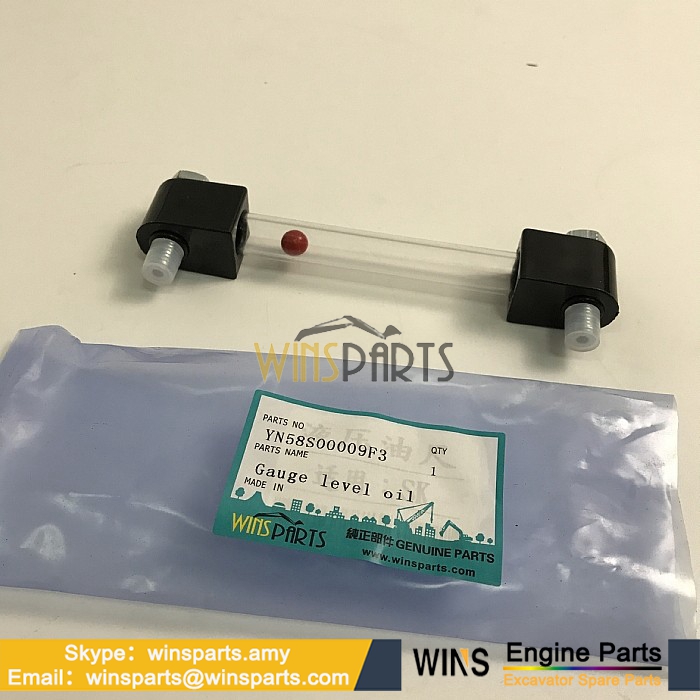

YN58S00009F3 YN58S00009F2 HYDRAULIC TANK LEVEL GAUGE ASSY Kobelco

$1.00

Number:YN58S00009F3 YN58S00009F2 YN58S00009F1
Type:HYDRAULIC TANK LEVEL GAUGE ASSY
Utend:Kobelco New Holland
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI

Inquiry
1 Step 1
Contact Us
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
SKU: yn58s00009f3 Categories: , , , , , , , Tag:
Product Description

YN58S00009F3 YN58S00009F2 YN58S00009F1 HYDRAULIC TANK LEVEL GAUGE ASSY Kobelco New Holland Excavator Parts

Number:YN58S00009F3 YN58S00009F2 YN58S00009F1
Type:HYDRAULIC TANK LEVEL GAUGE ASSY
Utend:Kobelco New Holland E30, E35B, EH35.B, E35SR, E35, E50, E55BX, EH50.B, E30B, EH30.B, E30SR, E50B, E50SR, E35BSR, E50BSR, E30BSR
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI

YN58S00009F3
YN58S00009F3 GAUGE ASSY. Kobelco parts 35SR-5 PX15-20658, 50SR, 30SR ACERA, 35SR, 30SR-3, 35SR-3 PV11, SK30SR-3, 35SR-3 PX12, SK35SR-3, 35SR-3 PX13, 35SR-3 PX14, SK40SR-3, 50SR-3, 30SR-5, SK55SRX, 35SR-5, 50SR-5, 30SR GAUGE

YN58S00009F3 YN58S00009F2 YN58S00009F1
YN58S00009F3 GAUGE ASSY. New.Holland parts
E30, E35B, EH35.B, E35SR, E35, E50, E55BX, EH50.B, E30B, EH30.B, E30SR, E50B, E50SR, E35BSR, E50BSR, E30BSR

PH33H00011F1 [1] TANK ASSY, HYD TANK ASSY,HYD
A1. PH33H00010P1 [1] TANK KOB
A2. PM50V00017F3 [1] FILTER STRAINER KOB
A3. PH50V00004F1 [1] FILTER ASSY KOB RETURN
A3-1. PH50V00005F1 [1] HYDRAULIC OIL FILTER KOB ASSY,RETURN
A3-2. PH21V00002F1 [1] VALVE KOB ASSY,BYPASS
A3-3. PH50V01001P1 [1] SPRING KOB
A6. ZD11G12500 [1] O-RING,3.1mm Thk x 124.4mm ID, 70 Duro KOB O-Ring — ID 124.4 ± 1.01 x OD 130mm
A7. PH33H01026P1 [1] COVER KOB
A8. ZS18C08020 [4] SCREW,Hex, M8 x 20mm KOB M08x1.25x20mm
A9. ZW26X08000 [8] LOCK WASHER KOB Lock — ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583
A10. YN57V00002F4 [1] BREATHER ASSY. KOB Superseded by part number: YN57V00010F1
A10-1. 2446U260S1 [1] BODY KOB
A10-2. 2446U260S5 [1] NUT KOB
A10-3. 2446U260S8 [1] PACKING KOB
A10-4. YN57V00002S007 [1] IDENTITY PLATE KOB Plate, Caution
A10-5. YN57V00002S010 [1] ELEMENT KOB Superseded by part number: 47640920
A10-6. YN57V00002S011 [1] COVER KOB
A10-7. YN57V00002S012 [1] CAP KOB
A11. ZS28C06016 [4] SCREW,Hex Socket Head, M6 x 16mm KOB M06x1.0x16mm
A12. ZW26K06000 [4] LOCK WASHER KOB ID 06 x OD 11 x Th 1.5mm
A13. ZD11G11500 [1] O-RING,114.40mm ID x 120.60mm OD x 3.10mm KOB ID 114.40 ± 0.94 x OD 120mm
A14. PH33H01025P1 [1] COVER KOB
A15. ZE72X06000 [1] PLUG KOB 3/8″ PF, (Incls. O-Ring ZD12P01400)
A16. 2489R293F2 [1] LEVEL GAUGE KOB , Serial Range: PJ03-01001–PJ03-01437 Superseded by part number: YN58S00009F2
A16-1. 2489R173S1 [1] GAUGE KOB
A16-2. 2489R174S3 [2] BOLT KOB Special — M10x1.50x40mm Long
A16-3. 2489R174S2 [2] BLOCK KOB GAUGE, LEVEL
A16-4. ZD11P01800 [4] O-RING KOB ID 17.80 ± 0.21 x OD 22mm
A16-5. ZD11P01000 [2] O-RING KOB ID 9.8 ± 0.17 x OD 13.6mm
A16-7. 2489R293S7 [2] BALL KOB Superseded by part number: YN58S00009F1
A16-1. NSS [2] NOT SOLD SEPARAT CON BLOCK
A16. YN58S00009F2 [1] GAUGE KOB LEVEL, Start Serial: PJ03-01438-
A16-2. NSS [2] NOT SOLD SEPARAT CON CAPSCREW
A16-3. NSS [1] NOT SOLD SEPARAT CON GAUGE
A16-4. NSS [4] NOT SOLD SEPARAT CON O-RING
A16-5. NSS [2] NOT SOLD SEPARAT CON O-RING
A16-6. NSS [2] NOT SOLD SEPARAT CON WASHER
A16-7. NSS [2] NOT SOLD SEPARAT CON BALL
A17. ZS18C08016 [4] SCREW,Hex, M8 x 16mm KOB M08x1.25x16mm
. . PH33H00008F1 [1] TANK INSTAL, HYD
B1. ZS18C10025 [3] SCREW,Hex, M10 x 25mm KOB M10x1.50x25mm
B2. ZW16H10000 [3] WASHER KOB ID 11 x OD 24 x Th 3.2mm

Company Information

Gz wins contruction engineering company is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.

We Provide Original Genuine Kobelco Parts,Include the following；

Kobelco Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Kobelco Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Kobelco Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.

We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts.

Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60-III SK60-5 ,SK75-8,SK120LC-III SK120-5 ,SK130LC,SK140-8 SK140SRLC ,SK150LC,SK160,SK170,SK200-3 SK200-5 SK200LC-6E? SK200SR SK200-8,SK210LC-6E SK210LC-8, SK235SR,SK250LC-6E SK250 SK250-8,SK260-8 SK260-9,SK270,SK290LC,SK300LC-2 SK300LC-3 ,SK330LC-6E SK330,SK330LC-6E SK330-8 SK330-6,SK350-8 SK350LC SK350-9 ,SK460?SK460LC-IV SK480LC-6E SK460-8 SK480-6S ,SK485LC SK485-8 .
Kobelco Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
