Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts

2437U412F1 Kawasaki KPM K3V63DTP Kobelco Hydraulic Pump

Original price was: $80.00.Current price is: $60.00.

Number: VH281002894A
Type: STARTER MOTOR ASSY
Engine: –
Utend: SK210D-8 SK215SR SK235SRLC-2
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: KOBELCO/HITACHI

Inquiry
1 Step 1
Contact Us
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
SKU: 2437U412F1   Categories: , , , , , , Tag:
Product Description

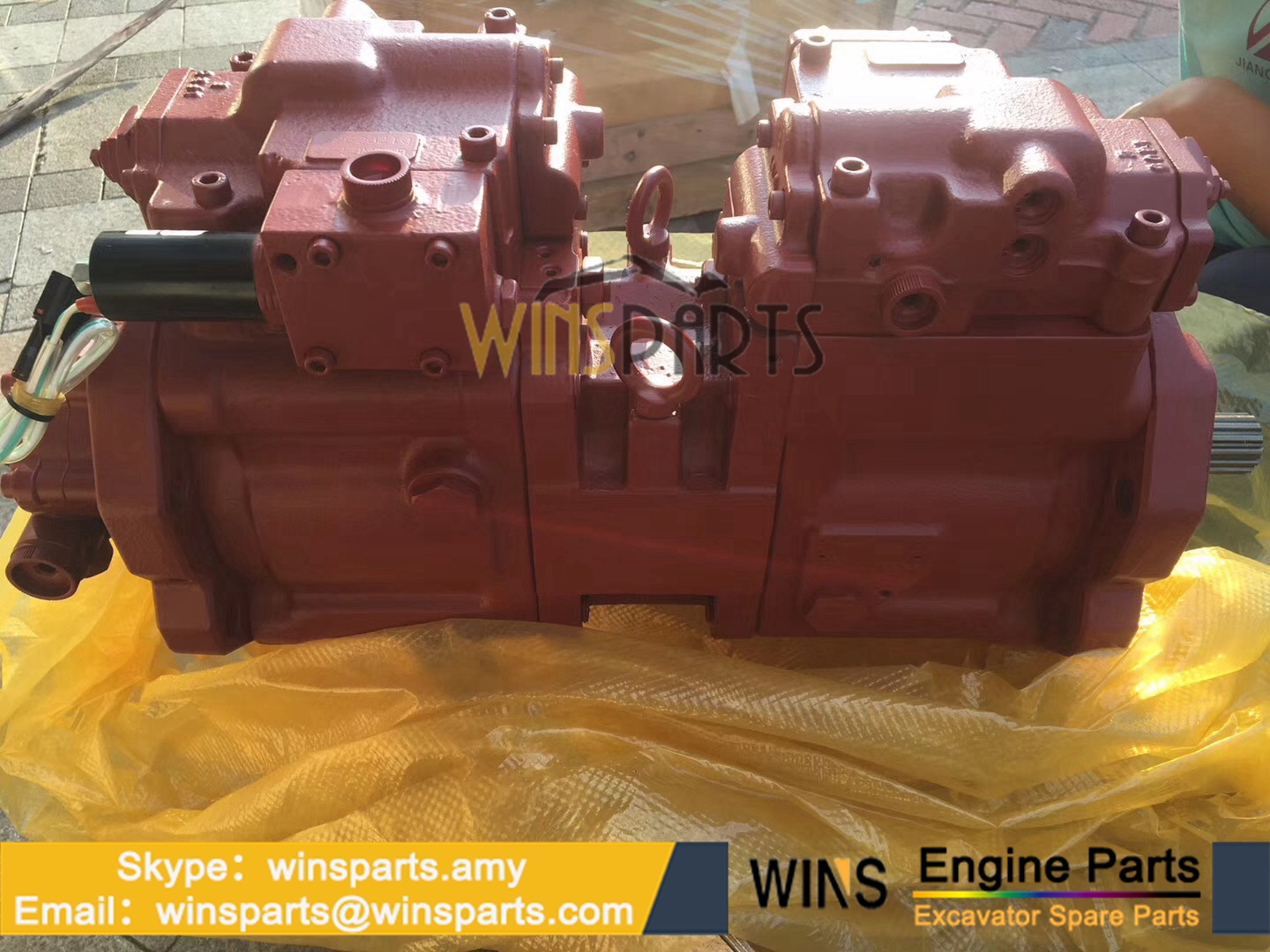

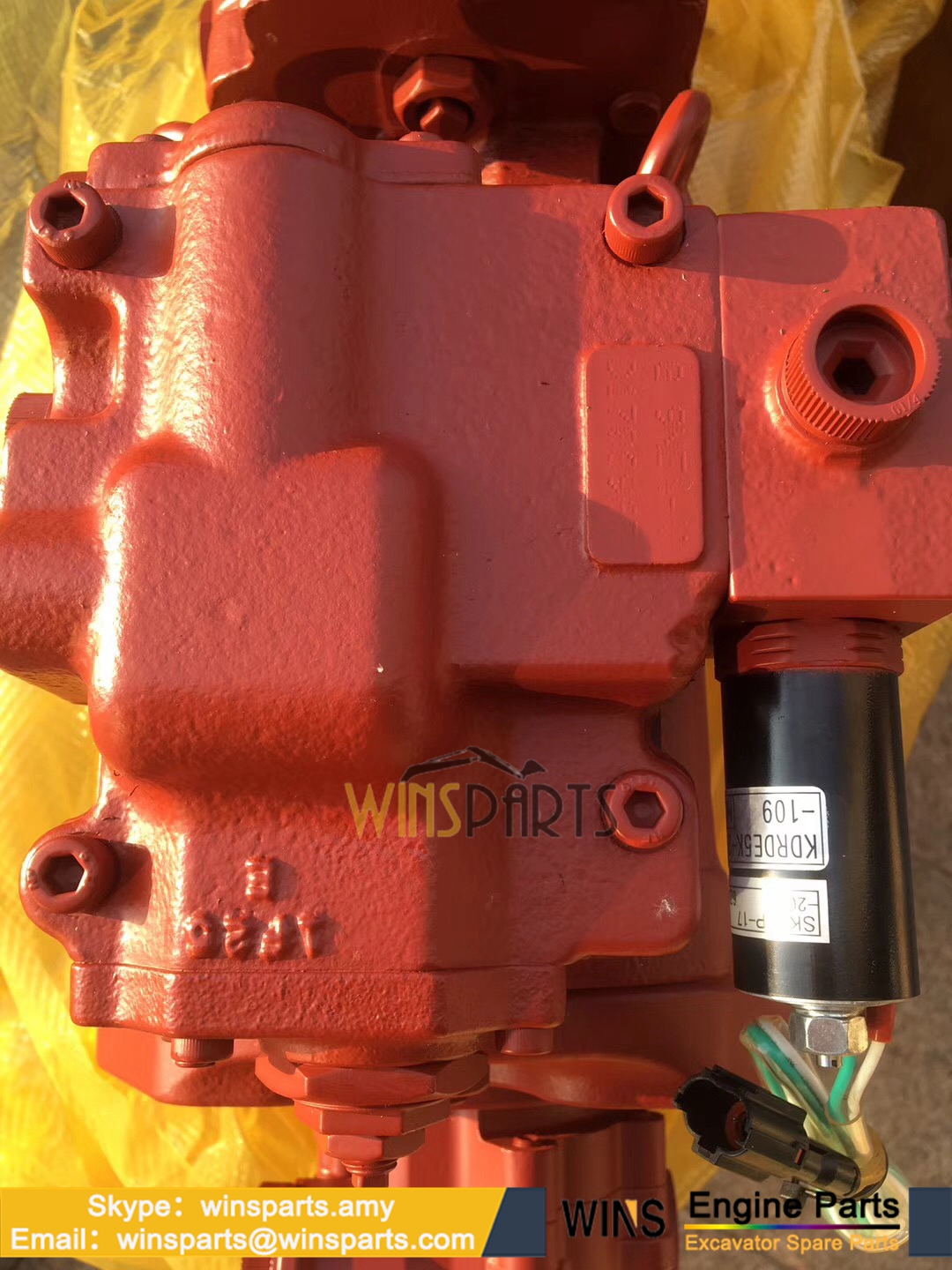

2437U412F1 Kawasaki KPM K3V63DTP Kobelco Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts

Part Number: 2437U412F1                                                              Part name: Hydraulic Pump

Utend For:  SK120-3 SK130 SK140 SK150                                       Excavator Brand: KOBELCO/KOMASTU/HITACHI

Engine Type:  J05E/J08E                                                                        Engine Brand: ISUZU/HINO/MISTUBISHI

Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts
Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts
Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts
Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts
Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts
Kawasaki KPM K3V63DTP Hydraulic Pump Parts SK120-3 SK130 SK140 SK150 DH150-7 SK135SR EC140 Excavator Spare Parts





编号（REF） 数量(Qty) 件号(Part No) 品名(Part Name)
14 1 24165966 BRACKET
13 1 2437U157F1 HYDRAULIC PUMP SEE (C. P. M)
10 1 2437U400F1 PUMP SEE (C. P. M)
9 1 ZD12G05500 RING O — ID 54.40 ± 0.49 x OD 60mm
8 2 ZW11K10000 WASHER ID 10 x OD 18 x Th 2.0mm
6 13 ZS13C10025 SCREW M10x1.50x25mm
5 4 ZS23C16050 SCREW M16x2.0x50mm
4-7 1 2418U224S7 RUBBER INSULATOR
4-6 8 ZP26D05010 PIN Roll — OD 05 x 10mm Long
4-5 2 2418U162S3 SCREW Set — M16x2.0x28mm Long
4-4 4 2418U128S5 SCREW M16x2.0x50mm Long
4-3 4 2418U162S2 BOLT M16x2.0x16mm Long
4-2 1 2418U224S2 HUB COUPLING
4 1 2418U224F2 COUPLING ASSY
AR 24100N6211F2
7 4 ZW22K16000 LOCK WASHER ID 16 x OD 24 x Th 3.5mm
6 1 2436U1471F3 REGULATOR ASSY (R), F2 ONLY, SEE FIGURE 2436U1471-1-3
5 1 2436U1472F3 REGULATOR REGULATOR ASSY (F), F2 ONLY, SEE FIGURE 2436U1472-1-3
4 1 2436R884F1 VALVE ASSY, F2 ONLY, SEE FIGURE 2436R884-1
4 2 2436R884F1 VALVE VALVE ASSY, SOLENOID, F1 ONLY, SEE FIGURE 2436R884-1
2 1 2436U1472F1 REGULATOR (F), F1 ONLY, SEE FIGURE 2436U1472-1-3
1 1 2437U412F1 PUMP PUMP ASSY, (NOT IN SERVICE), SEE FIGURE 2437U412-1-3
AR 2437U400F2 PUMP CONSISTS OF THE FOLLOWING PARTS
AR 2437U400F1 PUMP CONSISTS OF THE FOLLOWING PARTS
3 1 2436U1471F1 REGULATOR (R), F1 ONLY, SEE FIGURE 2436U1471-1-3
AR 2437U188S530 REPAIR KIT CONSISTS OF 531 & 548
AR 2437U412S210 REPAIR KIT REPAIR KIT, CONSISTS OF REF 212 & 214
AR 2437U188S14 REPAIR KIT CONSISTS OF REF 141 & 314
AR 2437U188S13 REPAIR KIT CONSISTS OF REF 141 & 313
AR 2437U175S11 PISTON REPAIR KIT, CONSISTS OF REF 151 & 152
983 2 2437U407S983 RIVET
981 1 2437U407S981 LABEL NAME PLATE
954 2 2437U188S954 SCREW SET
953 2 2437U188S953 CAP SETSCREW
901 2 ZS91C01000 BOLT Eye — M10x1.50x18mm
886 4 ZP26D06014 PIN Roll — OD 06 x 14mm Long
885 2 2441U436S886 PIN
824 2 ZR16X03500 RING Retaining — ID 32.20 x OD 35 x Th 1.6mm
808 4 ZN11C16010 NUT M16x2.0mm
792 2 ZD85G03000 BACK-UP RING ID 30 x OD 35 x Th 1.25mm
789 2 ZD85P01600 RING BACK UP
774 1 2441U478S26 OIL SEAL
732 2 ZD12P01600 O-RING ID 15.80 ± 0.20 x OD 20mm
728 3 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
725 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
724 18 ZD12P00800 O-RING ID 07.80 ± 0.16 x OD 11mm
719 2 ZD12G11500 O-RING ID 114.40 ± 0.94 x OD 120mm
717 2 ZD12G12000 GASKET O-Ring — ID 119.40 ± 0.98 x OD 125mm
710 2 ZD12G08500 O-RING ID 84.40 ± 0.73 x OD 90mm
702 2 ZD12G03000 O-RING ID 29.4 ± 0.29 x OD 35mm
548 2 NSS NOT SERVICED SEPARATELY PIN
535 2 2437U188S535 STOP
534 2 2437U188S534 POPPET STOPPER
532 2 2437U188S532 PISTON PISTON
531 2 NSS NOT SERVICED SEPARATELY LEVER
490 15 2441U722S490 PLUG 1/16″ NPTF
467 3 2441U436S468 PLUG
466 2 2441U667S466 PLUG 1/4″ PF
407 4 ZS23C06020 SCREW M06x1.0x20mm
406 4 ZS23C06016 SCREW M06x1.0x16mm
401 8 2437U188S401 SCREW CAP
314 1 NSS NOT SERVICED SEPARATELY PLATE, VALVE
313 1 NSS NOT SERVICED SEPARATELY PLATE, VALVE
312 1 2437U188S312 BLOCK VALVE
271 2 2437U188S271 CASING
263 1 2437U188S263 COVER
261 1 2437U188S261 COVER SEAL
251 2 2437U188S251 PLATE RETAINER
214 2 NSS NOT SERVICED SEPARATELY BUSHING
212 2 NSS NOT SERVICED SEPARATELY PLATE
211 2 2437U188S211 PLATE SHOE
158 2 2437U188S158 THRUST RING
157 18 2437U188S157 SPRING
156 2 2437U188S156 BUSHING
153 2 2437U188S153 PLATE
152 18 NSS NOT SERVICED SEPARATELY SHOE
151 18 NSS NOT SERVICED SEPARATELY PISTON
141 2 NSS NOT SERVICED SEPARATELY BLOCK, CYLINDER
127 4 2441U478S5 SPACER
123 2 2437U188S123 BEARING
114 1 2437U188S114 COUPLING
113 1 2437U412S113 SHAFT (R)
111 1 2437U188S111 SHAFT (F)
AR 2437U412F2 PUMP ASSY, CONSISTS OF THE FOLLOWING PARTS
AR 2437U412F1 PUMP PUMP ASSY, CONSISTS OF THE FOLLOWING PARTS
124 2 2437U188S124 BEARING
