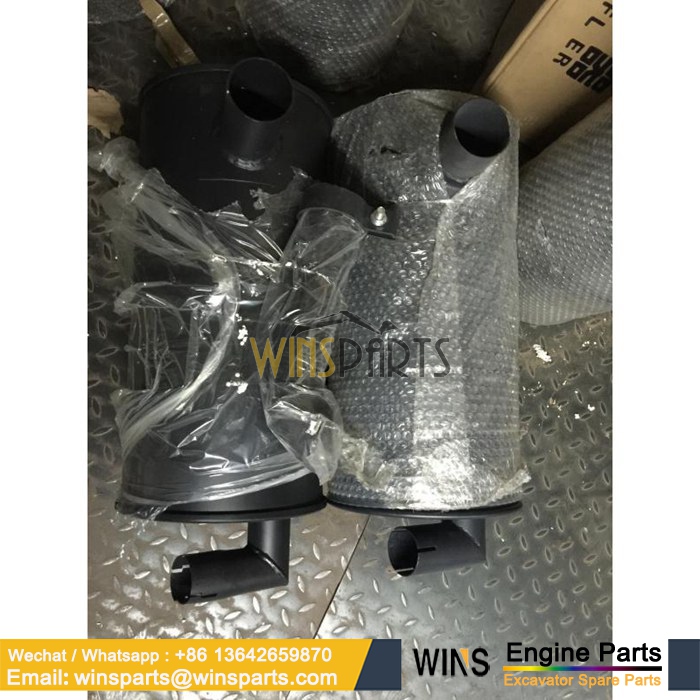

2427U1322 ENGINE MUFFLER Silencer FOR Kobelco
$1.00
Number:2427U1322
Type:ENGINE MUFFLER Silencer
Utend:Kobelco SK100-3 SK100 MARK III
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
2427U1322 ENGINE MUFFLER Silencer FOR Kobelco SK100-3 SK100 MARK III Excavator Spare Parts
Number:2427U1322
Type:ENGINE MUFFLER Silencer
Utend:Kobelco SK100-3 SK100 MARK III
Place of Origin:China/Japan
Packing: Fumigate Seaworthy Packing
Engine Brand: ISUZU/HINO/MISTUBISHI
Excavator Brand: New.Holland/KOBELCO/HITACHI
1 2418Z1333D2 TUBE 19.5mm ID x 23.8mm OD x 900mm Length, Protective Plastic, Applicable: YW04769-
124 2 2418Z773D2 TUBE, Remarks: YW04601-04768
123 8 ZN18C08007 NUT M08x1.25mm
122 5 ZN18F10008 NUT M10x1.25mm
1 2414P9282 GUARD, Applicable: YW05436-
121 1 2414P8376 GUARD, Applicable: YW04601-05435
120 1 2416N6106 BRACKET
119 4 ZW13H16000 WASHER ID 17 x OD 32 x Th 4.5mm
112 4 ZS18C10035 SCREW M10x1.50x35mm
1 2418P28426 RIGID TUBE PIPE, EXHAUST, Applicable: YW05149-
103 1 2418Z759D1 HOSE TUBE, VINYL
102 1 2418T18152D9 SPACER
101 2 2420T6788 SCREW M10x1.50x25mm (Incls. Washer & Lockwasher)
100 9 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
98 2 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm
97 1 2479Z2204 INSULATOR INSULATOR
96 1 2416P15858 STAY
95 1 2432Z473 CLAMP CLAMP SEAL
94 1 2416P15740 BRACKET, Remarks: (WITH ENGINE)
93 1 2418T16613 TUBE
92 1 2444Z3779 FLEXIBLE HOSE HOSE
91 1 2418P23309 TUBE TUBE
90 8 2432Z290 CLIP Wire Ties — 185mm Long, Applicable: YW04769-
90 10 2432Z290 CLIP Wire Ties — 185mm Long, Applicable: YW04601-04768
89 1 2489U268F1 SENDER UNIT SENDING UNIT, THERMO
88 2 2479R1770 INSULATOR INSULATOR
87 1 2418P23195 EXHAUST SYSTEM PIPE PIPE, TAIL
85 1 ZW16X12000 WASHER ID 12 x OD 24 x Th 2.3mm
84 1 2432T2279 CLAMP CLAMP
83 1 2416P18723 STAY
82 2 2420T6738 U-BOLT U-BOLT
79 1 2427U1322 MUFFLER MUFFLER
78-4 1 2446U242S4 VALVE VALVE
78-3 1 2446U226S4 WING NUT NUT, WING
78-2 1 2446U264S2 ELEMENT ELEMENT ASSY
78-1 1 2446U270S1 BODY ASSY
78 1 2446U270F1 CLEANER ASSY, AIR
76 1 24100N6211F3 PUMP ASSY, CONNECT, Remarks: P,301-01
74 4 2418T18173 COLLAR CLAMP COLLAR
73 2 2416Z574 RUBBER SLEEVE RUBBER, CUSHION
72 2 2416Z573 RUBBER SLEEVE RUBBER, CUSHION
71 1 2450R163F1 INDICATOR INDICATOR ASSY
69 1 2444R1080 FLEXIBLE HOSE HOSE
67 1 2420U195 PIPE
63 6 ZW22X08000 LOCK WASHER ID 08 x OD 15.4 x Th 2.0mm
62 2 ZS18C08025 SCREW M08x1.25x25mm
61 4 ZS13C08020 SCREW M08x1.25x20mm
60 4 ZS13C16035 SCREW M16x2.0x35mm, Applicable: YW04769-
60 5 ZS13C16035 SCREW M16x2.0x35mm, Applicable: YW04601-04768
59 6 ZS13C10020 SCREW M10x1.50x20mm
58 1 ZS18C16040 SCREW M16x2.0x40mm, Applicable: YW04769-
58 1 ZS13C16040 SCREW M16x2.0x40mm, Applicable: YW04601-04768
57 1 ZS18C12040 SCREW M12x1.75x40mm
56 1 ZS18C16035 SCREW M16x2.0x35mm, Applicable: YW04769-
54 2 ZC15X09000 CLAMP CLIP
53 1 2420T4376D3 SCREW CAPSCREW
52 1 ZS13C18120 M18x2.0x120mm
51 2 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm, Applicable: YW04769-
51 2 ZW13H12000 WASHER WASHER, Applicable: YW04601-04768
50 2 ZS18C12025 SCREW M12x1.75x25mm, Applicable: YW04769 –
50 2 ZS13C12025 SCREW M12x1.75x25mm, Applicable: YW04601-04768
49 2 ZW26X16000 LOCK WASHER ID 16 x OD 28 x Th 4.0mm, Applicable: YW04769-
49 2 ZW22X16000 WASHER, LOCK ID 16 x OD 28.0 x Th 4.0mm, Applicable: YW04601-04768
48 1 ZN18C12010 NUT M12x1.75mm
47 1 2418Z773D1 TUBE, Applicable: YW04601-04768
46 1 2418Z1333D3 TUBE 19.5mm ID x 23.8mm OD x 750mm Length, Protective Plastic, Applicable: YW04769-
46 1 2418Z773D4 TUBE, Applicable: YW04601-04768
45 1 2444Z3445 FLEXIBLE HOSE HOSE
44 2 ZS13C08030 SCREW M08x1.25x30mm
43 1 2418Z560D1 HOSE HOSE
42 1 2418R590D1 FLEXIBLE HOSE HOSE
41 1 2420Z912D4 HOSE HOSE
40-6 1 2427U203S6 SWITCH Radiator Over Flow Level
40-4 1 2427U203S4 TANK TANK
40-3 1 2427U203S3 LABEL PLATE, CAUTION
40-2 1 2427U203S2 HYD CONNECTOR CONDUCTOR
40 1 2427U203F3 TANK RADIATOR, SUB-TANK
39-2 1 2416R259D1 CUSHION RUBBER, CUSHION
39 1 2416T23254 BRACKET BRACKET
38 1 2446U273F1 FILTER, Remarks: (WITH ENGINE)
36 1 2479Z1435 SENSOR SENSOR, SPEED, Remarks: (WITH ENGINE)
35 6 ZC15X01500 CLIP CLIP, Applicable: YW04769-
35 6 ZC15X01300 CLIP CLIP, Applicable: YW04601-04768
34 4 ZC15X01000 CLIP CLIP
33 1 2420Z795D4 HOSE HOSE
32 1 2444Z1293D8 LUBE NIPPLE 1/4″PTx43mm Long
31 2 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm, Applicable: YW04769-
31 2 ZW22X12000 LOCK WASHER ID 12 x OD 21.5 x Th 3.0mm, Applicable: YW04601-04768
30 1 2444R2492D180 FLEXIBLE HOSE HOSE, Applicable: YW04769-
30 1 4018Z1D10 FLEXIBLE HOSE HOSE, Applicable: YW04601-04768
29 1 2418Z1333D6 TUBE 19.5mm ID x 23.8mm OD x 1400mm Length, ASN YW04769
28 1 2444R2492D150 HOSE 1500mm Long (59-3/64 in), Applicable: YW04769-
28 1 2444R2492D150 HOSE 1500mm Long (59-3/64 in), Applicable: YW04601-04768
27 1 2444R2492D220 HOSE HOSE, Applicable: YW04769-
27 1 4018Z1D7 HOSE HOSE, Applicable: YW04601-04768
26 2 ZC15X07000 CLIP CLIP
25 2 ZC15X08000 CLIP CLIP
24 10 ZW22X10000 LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm
22 2 ZN13C10008 NUT M10x1.50mm
21 4 ZN13C18015 NUT M18x2.5mm
20 2 ZS13C18080 SCREW M18x2.0x80mm
19 4 ZS13C10025 SCREW M10x1.50x25mm
17 4 ZC15X06000 CLIP CLIP
13 1 2444R2458 FLEXIBLE HOSE HOSE
12 1 2444R2457 FLEXIBLE HOSE HOSE
10 4 2416Z498 RUBBER SLEEVE RUBBER, CUSHION
9 2 2418T17962 PLATE PLATE
8 1 2432T5093 BRACKET, Remarks: (WITH ENGINE)
7-2 1 2416Z487D9 RUBBER, CUSHION
7-1 1 2432P2417 CLAMP
7 2 2432T5093F1 CLAMP ASSY
1 1 2452U413F1 RADIATOR RADIATOR ASSY, Remarks: P. 321-01
AR 24100J14478F4 POWER-PLANT ASSY
104 1 2427P3520 PIPE, EXHAUST, Applicable: YW04601-05148
Gz wins contruction engineering company is engaged in development, production, marketing and agency services.
We are a manufacturer of specialization and diversification engineering machinery parts. Our products are selling well in America, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
We Provide Original Genuine Kobelco Parts,Include the following；
Kobelco Air-conditioning System,A/C Assembly, A/C Hose,A/C Compressor,A/C Condenser,Blower Assembly,Evaporator,A/C Pipe,A/C Receiver, A/C Filter.
Kobelco Body & Stamping Parts,CAB Assy, Engine Mounting,Engine Hood, Car Body,Door Panel,Roof.
Kobelco Hydraulics System,Set plate,Piston shoe,Cylinder block,Valve plate,Drive shaft,Ball guide,Piston pump,Gear pump.
We Provide Genuine MITSUBISHI HINO ISUZU Engine Parts.
Hino：J05E, J08E, P11C.
Mitsubishi: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
Isuzu:4HK1,4JJ1,4LE1,4LE2,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
KOBELCO：SK60-III SK60-5 ,SK75-8,SK120LC-III SK120-5 ,SK130LC,SK140-8 SK140SRLC ,SK150LC,SK160,SK170,SK200-3 SK200-5 SK200LC-6E? SK200SR SK200-8,SK210LC-6E SK210LC-8, SK235SR,SK250LC-6E SK250 SK250-8,SK260-8 SK260-9,SK270,SK290LC,SK300LC-2 SK300LC-3 ,SK330LC-6E SK330,SK330LC-6E SK330-8 SK330-6,SK350-8 SK350LC SK350-9 ,SK460?SK460LC-IV SK480LC-6E SK460-8 SK480-6S ,SK485LC SK485-8 .
Kobelco Engine Assy,Engine Gasket Kits,Camshaft,Sprocket Camshaft,Tensioner,Crankshaft,Crankshaft Pulley,Crankshaft Bearing,Valve,Valve Seat,Valve Arm,Rocker Cover,Valve Spring,Valve Guide,Cylinder Head,Cylinder Liner,Cylinder Block,Washer,Piston,Piston Pin,Piston Ring,Piston Liner,Flywheel,Ring Gear of Flywheel,Timing Chain/Belt,Connecting Rod,Connecting Rod Bearing,Rocker Arm Shaft,Valve Cotter,Thrust Washer.
Injection Fueling System,Air Cleaner,Air Cleaner Cover,Exhaust Muffler,Exhaust Manifold,Exhaust Pipe,Intake Manifold,EGR Tube,Radiator,Water Hose,Fan,Thermostat,Oil Pan,Oil Level Gauge,Oil Filter.
