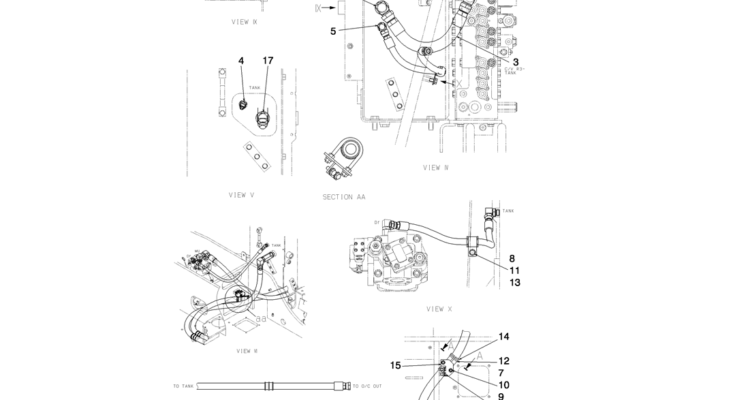

01-025(01) HYDRAULIC LINES, RETURN-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 HH45X16016G1 ELBOW 16 2 ZM73C08020 BOLT Sems 15 1 LF32H01005P1 BRACKET, SUPPORTING 14 1 2420Z2185 GROMMET 13 1 YJ42H01141P1 BUSHING 12…
01-021(02) HYDRAULIC LINES, UPPER-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 22 1 ZA38F12006 90 ELBOW 21 1 2444Z2449 HYD CONNECTOR 20 2 YT03H01028P1 CONNECTION 19 2 ZD12P01400 O-RING 18 1 HH25R08008G6 HYD CONNECTOR…
01-021(01) HYDRAULIC LINES, UPPER-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 31 3 YX03H01046P1 CLIP 30 4 PY01P01043D8 CLIP 29 1 ZW16H12000 WASHER 28 5 ZW16H10000 WASHER 27 1 LF03H01013P1 RUBBER 26 1 LF03H01033P1…

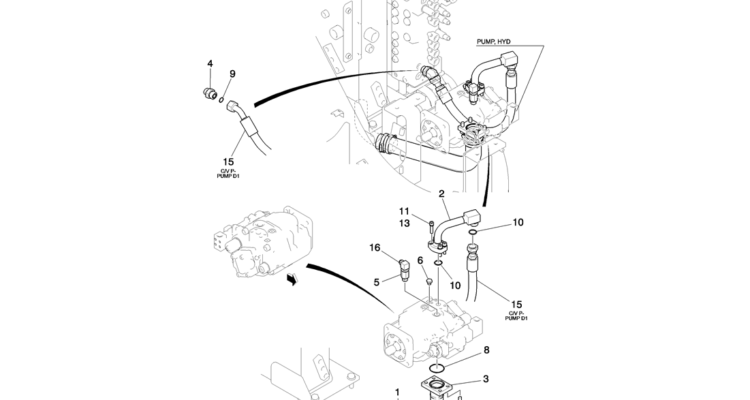

01-020(00) HYDRAULIC LINES, PUMP-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 16 1 ZH32X08000 HYD CONNECTOR 15 1 ZX20H12072 HOSE ASSY. 14 4 ZW26K12000 LOCK WASHER Lock 13 4 ZW26K10000 WASHER Lock 12 4…

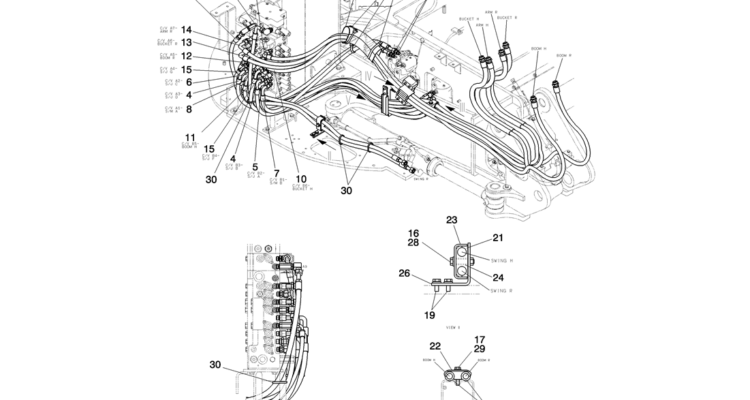

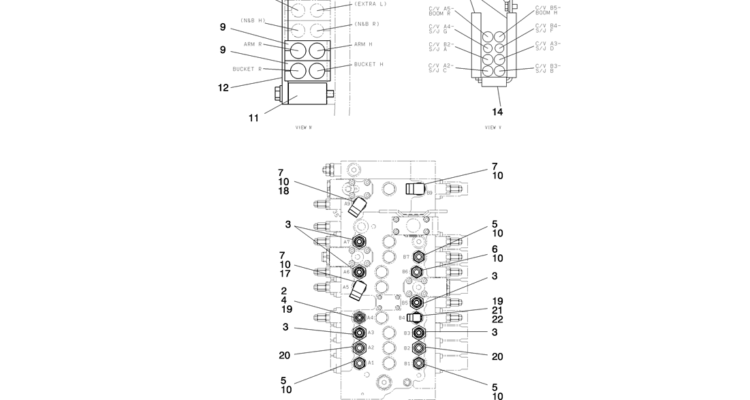

01-017(02) HYDRAULIC VALVE CONTROL -Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 2 4 YR30V00029S054 CAPTIVE WASHER SCREW 1 1 YT30V00042F2 CONTROL BLOCK Valve 13 8 YT30V00047S097 COVER 12 9 2436U1309S41 CAP 11 24 ZD12P01100…

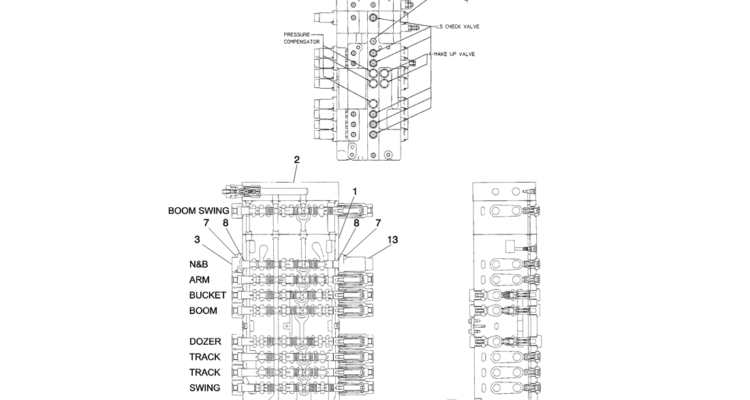

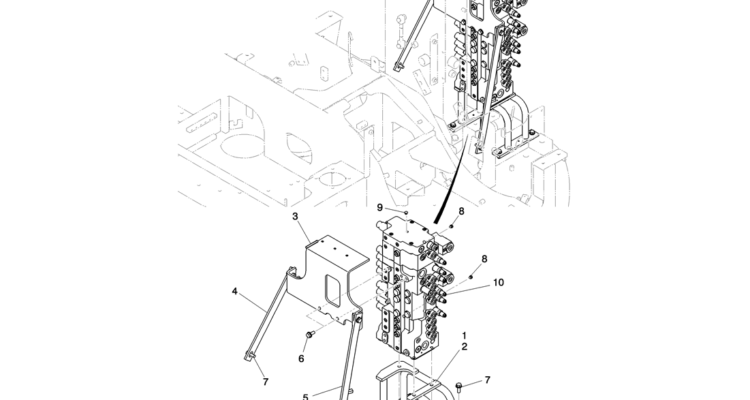

01-017(01) VALVE INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 10 1 LF30V00005F4 MAIN DISTRIBUTOR Control 9 1 YN64H01391D1 CAP 8 2 YN64H01393D1 CAP 7 11 ZM73C12035 BOLT Sems 6 2 ZM73C12030 BOLT Sems 5…

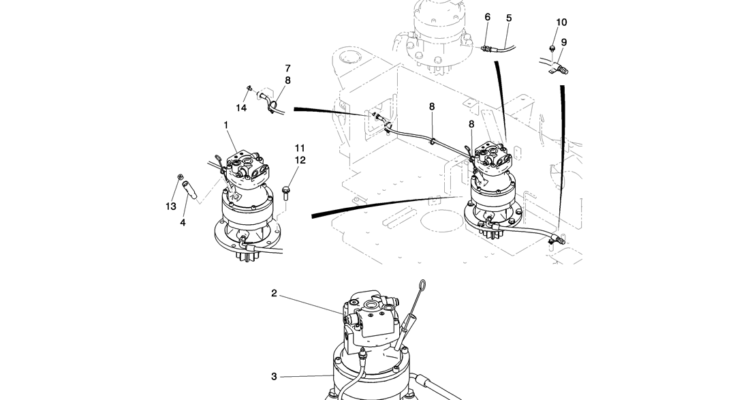

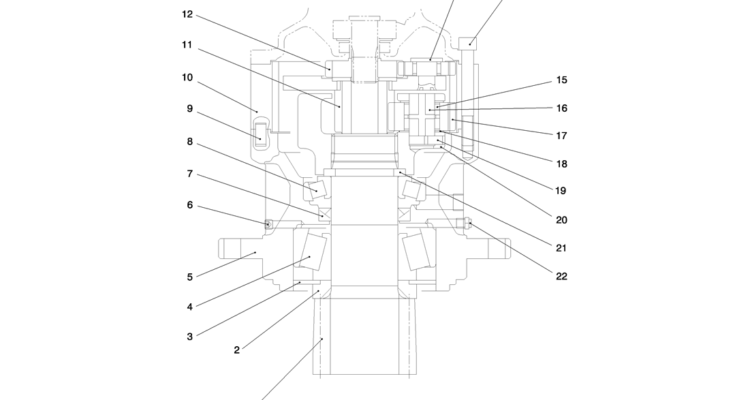

01-016(03) SWING MOTOR INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 1 YT32W00002R100 REPAIR KIT Consists Of Item: 16(3), 17(3), 18(3), 19(3), 15(6), 18(6) 22 1 YT32W00006S023 NIPPLE 21 2 YR32W00002S016 COLLAR 20 1 NSS…

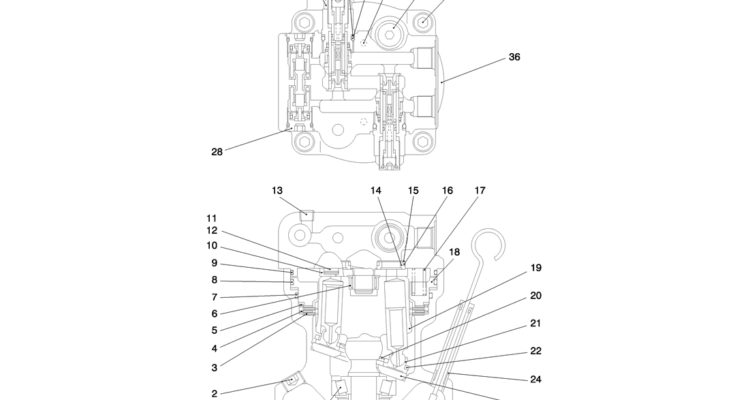

01-016(02) SWING MOTOR INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 36 1 NSS NOT SERVICED SEPARATELY Cover 35 4 ZS23C12030 SCREW Cap 34 1 ZD12P01400 O-RING 33 1 2437U283S42 PLUG 32 2…
01-016(01) SWING MOTOR INSTALLATION-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 14 1 ZG91U02000 LUBE NIPPLE 13 1 ZE82T08000 PLUG 12 8 ZW13H16000 WASHER 11 8 ZS13C16050 SCREW Cap 10 1 ZM73C10016 BOLT Sems…

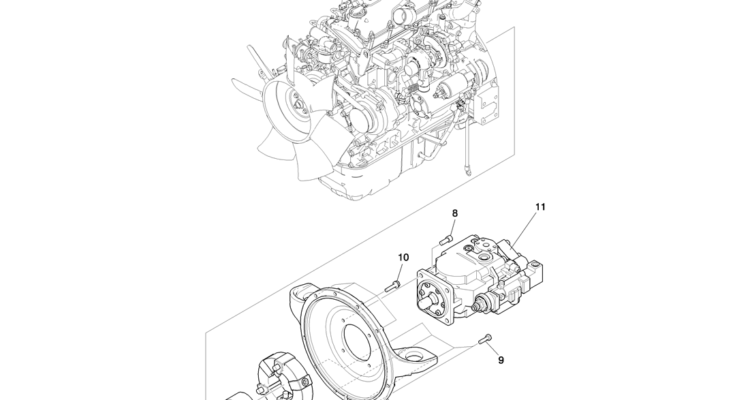

01-015(00) POWER TAKE OFF ASSEMBLY-Kobelco SK80MSR SK80CS-2 SK80CS-1E SK80 Excavator Parts Number Electronic Catalog EPC Manuals 11 1 YT10V00023F1 HYDRAULIC PUMP Assy. 10 4 ZM73C10045 BOLT Sems 9 4 ZS18C10035 SCREW Cap 8 4 ZS28C12030 CAP 7 1 YT30P01009P1…
