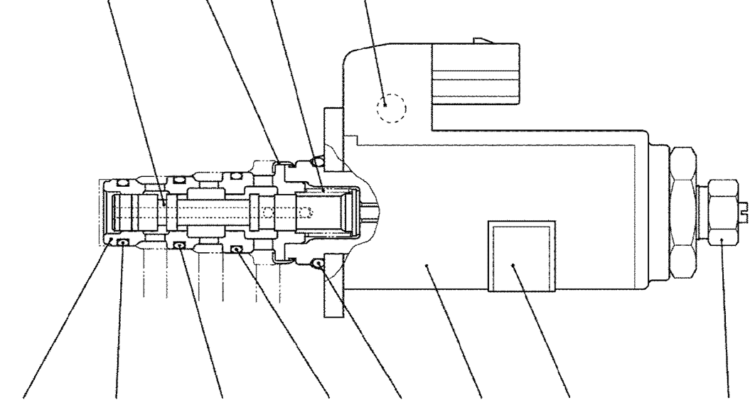

08-16-03(00) VALVE ASSEMBLY, SOLENOID (YN35V00050F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 902 1 NA NOT SERVICED Name Plate 901 1 NA NOT SERVICED Name Plate 861 1 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm 801…

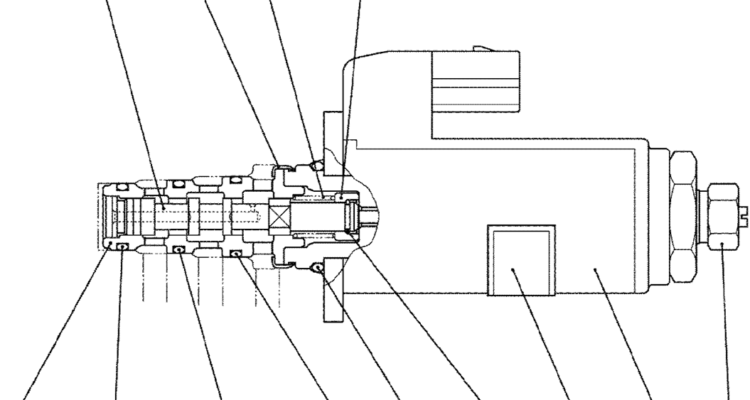

08-16-02(00) VALVE ASSEMBLY, SOLENOID (YN35V00049F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 901 1 NA NOT SERVICED Name Plate 861 1 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm 802 1 YN35V00018S802 NUT 801 1 NA NOT…

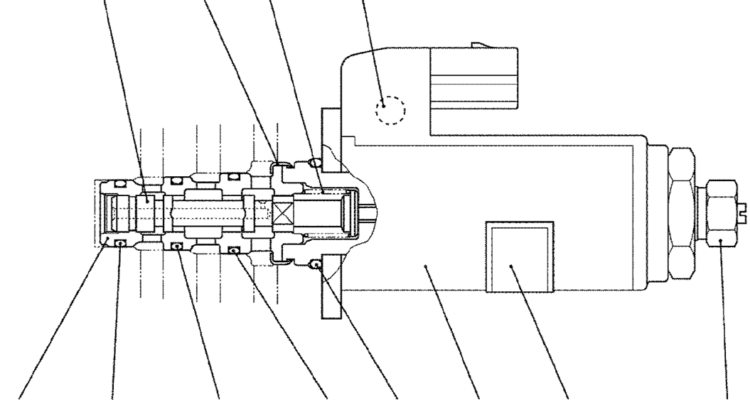

08-16-01(00) VALVE ASSEMBLY, SOLENOID (YN35V00048F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 902 1 NA NOT SERVICED Name Plate 901 1 NA NOT SERVICED Name Plate 861 1 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm 802…

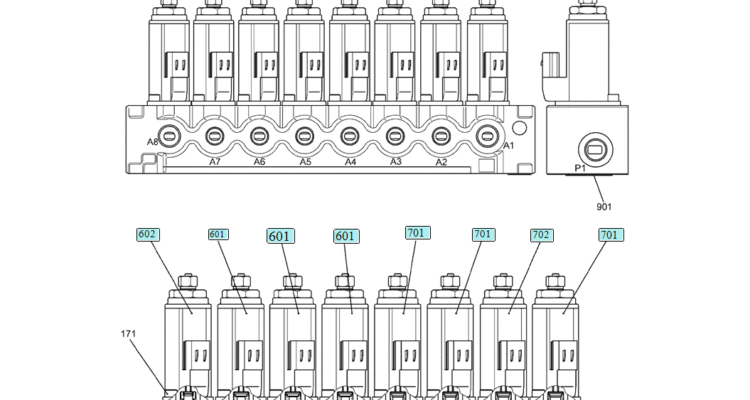

08-16-00(00) VALVE ASSEMBLY, SOLENOID (YN35V00047F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 901 1 NA NOT SERVICED Name Plate 702 1 YN35V00051F1 VALVE Solenoid, See Figure 08-16-04 701 3 YN35V00050F1 VALVE Solenoid, See Figure 08-16-03 601 3 YN35V00048F1…

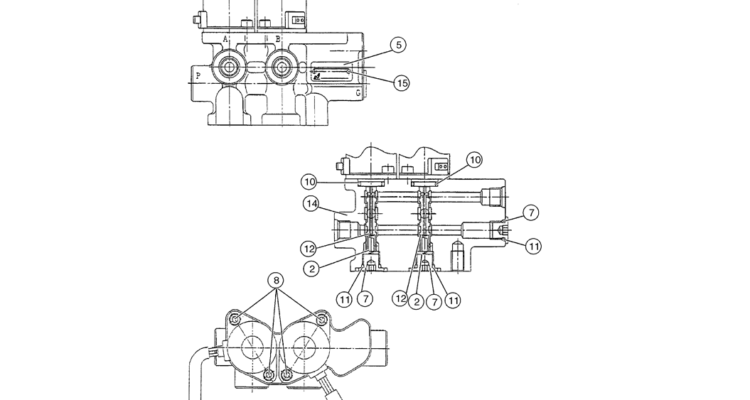

08-15(00) VALVE ASSEMBLY, SOLENOID (LC35V00004F2 & LC35V00004F3)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 2 YN30V00080S023 SCREW #2x4.8mm 14 1 NA NOT SERVICED Body 13 2 YR35V00009S022 SOLENOID VALVE 12 2 NA NOT SERVICED Spool 11 3…

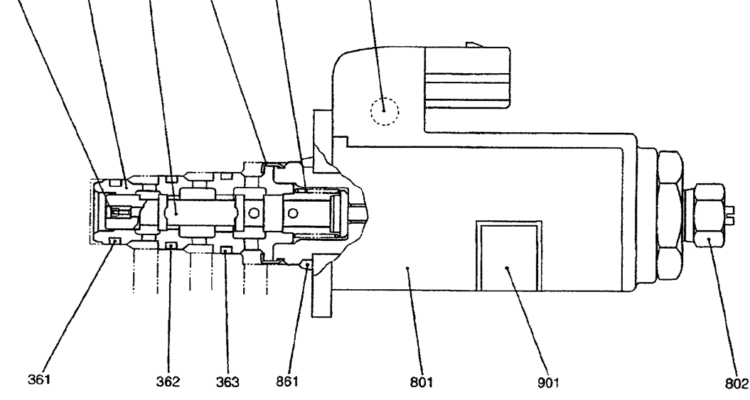

08-14-00(00) VALVE ASSY, SOLENOID (YB35V00005F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 902 1 NA NOT SERVICED Name Plate 901 1 NA NOT SERVICED Name Plate 861 1 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm 802…

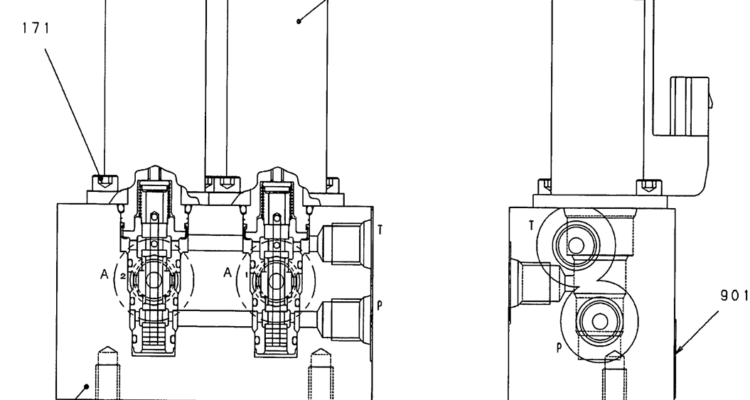

08-14(00) VALVE ASSEMBLY, SOLENOID, (YN35V00040F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 901 1 NA NOT SERVICED Name Plate 601 2 YB35V00005F1 VALVE See Figure 08-14-00 101 1 NA NOT SERVICED Body AR YN35V00040F1 VALVE Assembly, Solenoid 171…

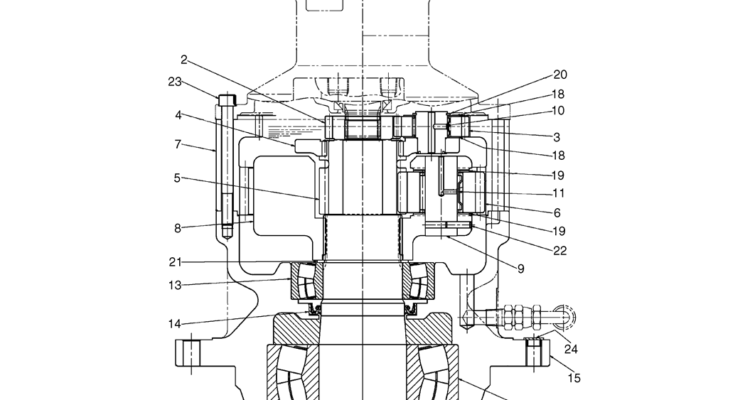

08-13(00) REDUCTION ASSEMBLY (SWING) (LS32W00012F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 24 2 PV02B01073DB CAP 18.4mm Plastic 23 16 ZS23C14150 SCREW M14x2.0x150mm 22 4 ZP26D08032 PIN Roll -- OD 08 x 32mm Long 21 1 ZR16X10000 RING…

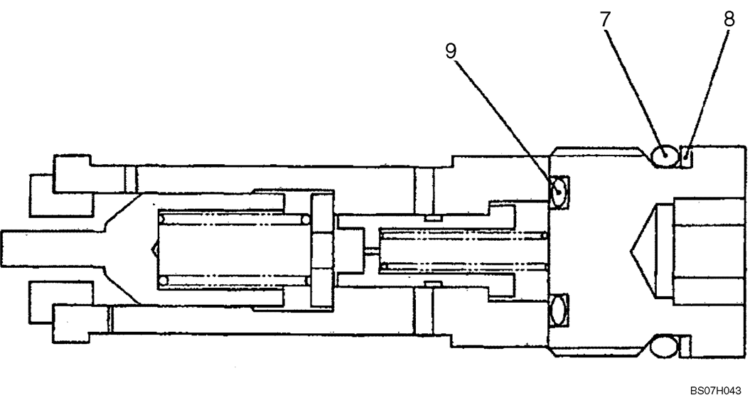

08-12(00) VALVE ASSEMBLY, BYPASS (LQ20V00001F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 1 ZD12P01200 O-RING ID 11.80 ± 0.19 x OD 16mm 7 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm AR LQ20V00001F1 HYDRAULIC VALVE…

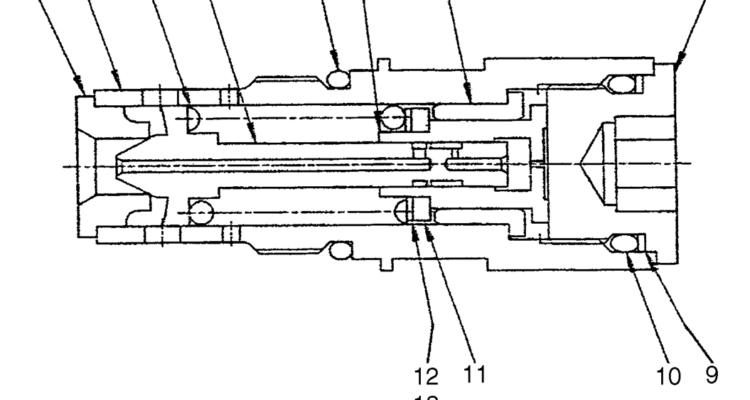

08-11(00) VALVE ASSEMBLY, RELIEF (SWING) (LQ22V00002F3)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YF22V00001R100 SHIM Kit, Repair (Contains Items 12 - 15) 15 2 YF22V00001S021 SHIM (1.0) 14 2 2441U962S54 SHIM (0.5) 13 4 2441U962S53 SHIM (0.3)…
