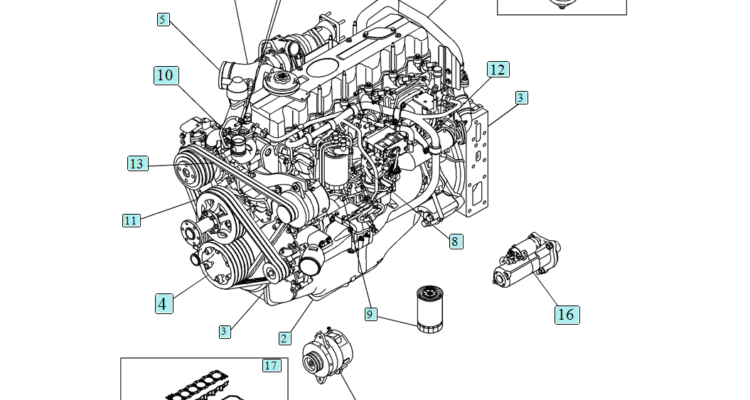

09-00(00) ENGINE ASSEMBLY (LS02P00031F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 1 VHS040104264A KIT Gasket Kit (Engine Overhaul), See Figure 09-29 1 Engine Accessory Parts, See Figure 09-28, Not Shown 16 1 VH28100E0010 STARTER MOTOR Starter Motor…

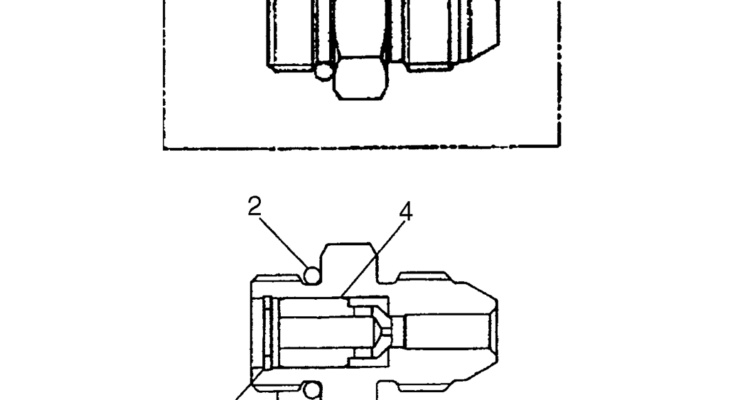

8.039(00) VALVE ASSEMBLY, SELECTOR CHECK (YN21V00005F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 1 YN21V00005S002 CHECK VALVE Valve, Check (Orifice Ø1.2mm) 2 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm 1 1 EN35V00004S013 RETAINER Retainer…

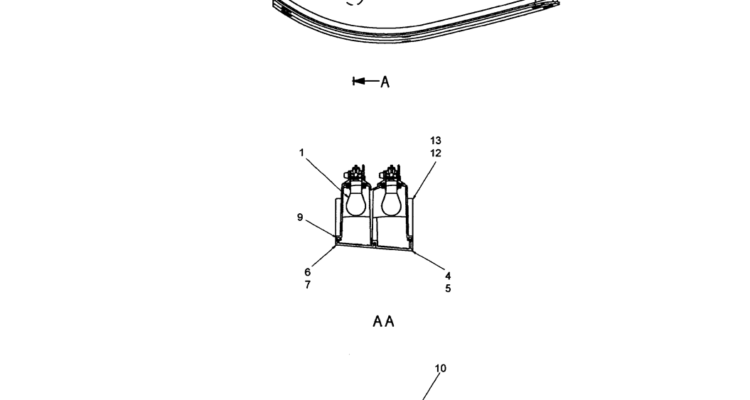

08-43(00) HAZARD AND FLASHER LAMPS (YM80S00001F1 & YM80S00001F2)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 1 YM80S00001S014 CABLE 13 1 NA NOT SERVICED Body, F2 -- Right Hand 12 1 NA NOT SERVICED Body, F1 -- Left…

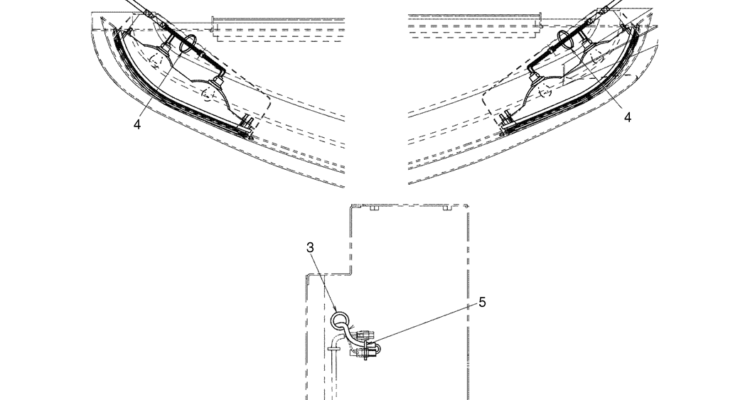

08-42(00) LAMP MOUNTING (LS80E00005F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 2 YN13E01375P1 CLIP Anchor Wire Ties 4 4 PY01P01043D3 CLIP Wire Ties -- 188mm Long 2 1 YM80S00001F1 LAMP Flashing, See Figure 08-43 1 1 YM80S00001F2…

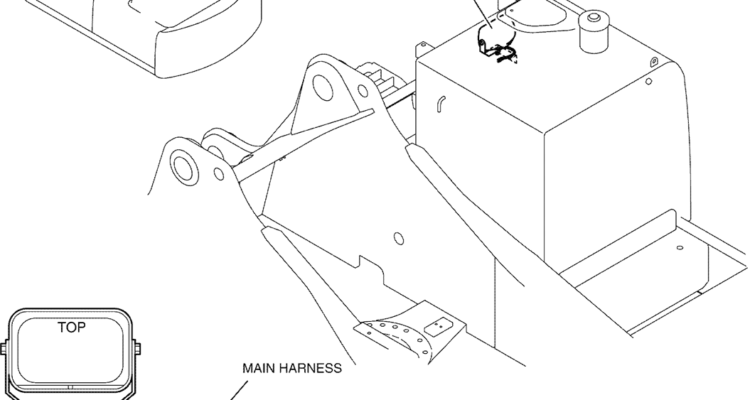

08-41(00) LAMP MOUNTING, UPPER (LS80E00009F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 NA NOT SERVICED Washer, (Part of YT80S00002F2), Not Shown 1 NA NOT SERVICED Lock Washer, (Part of YT80S00002F2), Not Shown 1 NA NOT SERVICED Nut,…

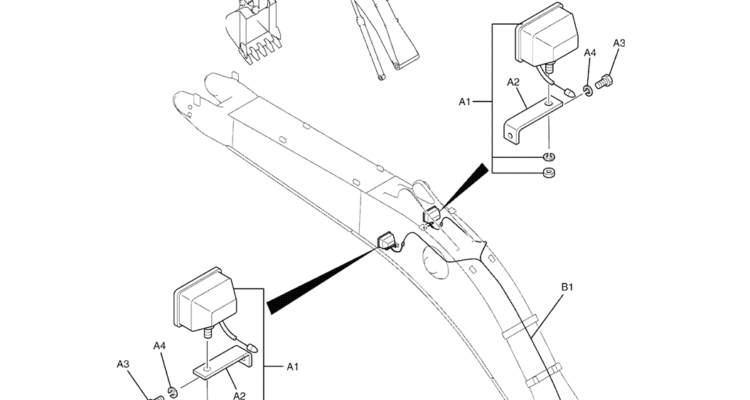

08-40(00) LAMP MOUNTING - BOOM (YN80E00026F1 & LB15E00001F3)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B2 1 PY01P01043D7 CLIP Wire Ties -- 445mm Long B1 1 LS15E01002P1 WIRE HARNESS Boom Working Lights Boom Harness Assembly, LB15E00001F3, Incl. Ref.…

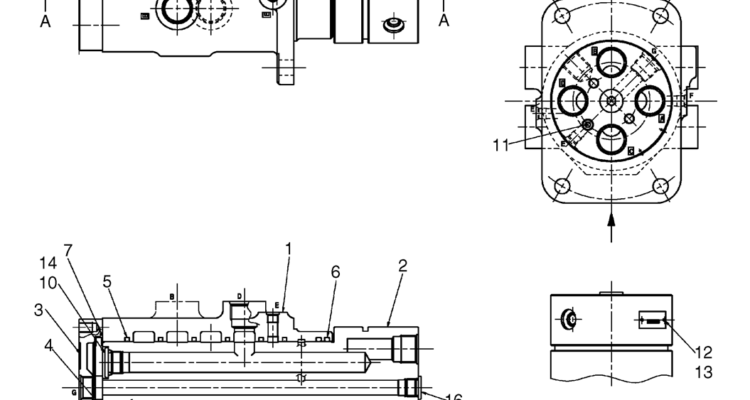

08-39(00) JOINT ASSEMBLY, SWIVEL (LS55V00008F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm 16 1 LE03H01117D4 PLUG 1/2"PFx17mm 14 4 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD…

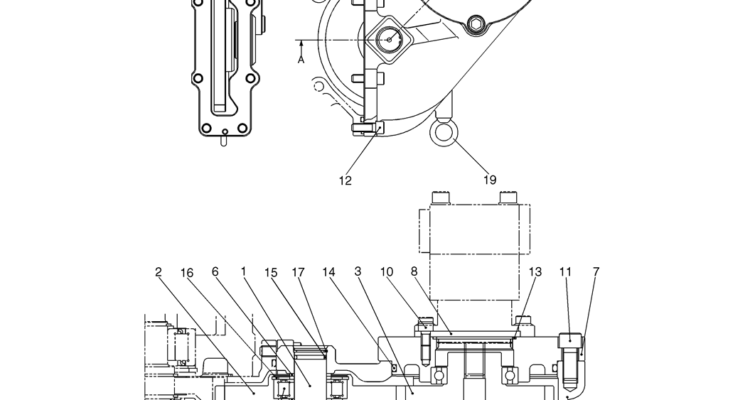

08-36(00) GEAR CASE ASSEMBLY (LS46W00001F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 19 1 ZS91C01000 BOLT Eye -- M10x1.50x18mm 18 2 NA NOT SERVICED Pin 17 1 ZR26X03500 LOCKING RING ID 35 x OD 37.8 x Th 1.6mm…

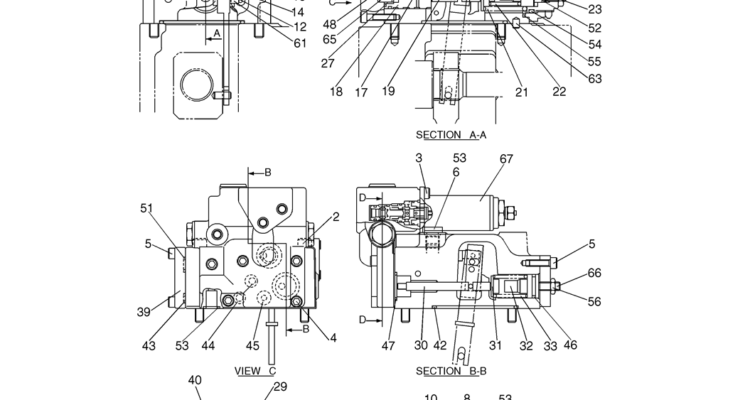

08-33(00) REGULATOR ASSEMBLY (LS10V01006F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 100 1 2437U219S41 REPAIR KIT Contains Items 8-10 67 1 YN35V00052F1 VALVE See Figure 08-34 66 1 2441U722S924 SCREW 65 1 NA NOT SERVICED Pin -- Ø11.5x11.8mm…

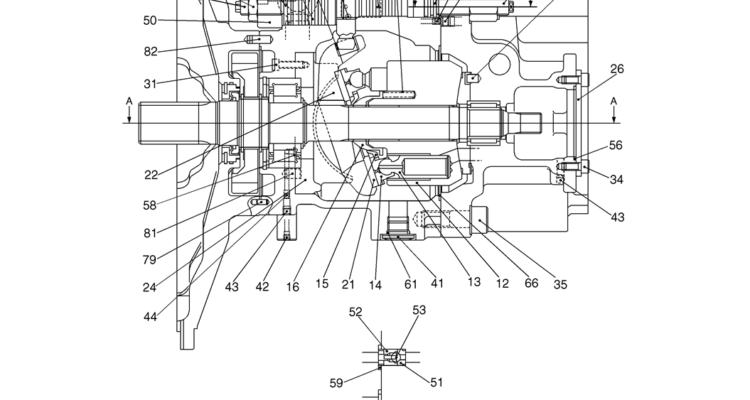

08-32-01(01) HYDRAULIC PUMP (LS10V00017F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 LS10V00006R500 REPAIR KIT Kit, Repair Contains Items 46 & 54 K 1 2437U219S41 REPAIR KIT Contains Items 51, 52 & 53 K 1 LS10V00017R400 KIT…
