02-08-00(00) AIR CLEANER - COMPONENTS (LS11P00014F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 1 YR11P00008S005 INDICATOR 7 1 EB11P00001S008 LABEL 6 1 LS11P00014S006 O-RING 4 1 LS11P00014S004 COVER ASSY 3 1 LS11P00014S003 AIR FILTER Element, Filter (Secondary),…
02-08(00) AIR CLEANER ASSEMBLY (LS11P00016F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 7 8 ZM73C10030 BOLT M10x1.50x30mm (Incls. Washer) 6 3 LV05P01379P1 CLIP Clamp, Hose -- Min 108 x Max 130mm 5 1 LS11P01061P1 CLIP Clamp, Hose --…
02-06(00) RADIATOR GROUP (LS05P00034F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 43 1 ZM73C12025 BOLT M12x1.75x25mm (Incls. Washer) 42 1 HX81X13120DX TUBE ID 13.2 x OD 17.5 x 1200mm Long (47-1/4 in) 39 3 LS05P01413P1 CLIP Min 70…
02-05-01(00) RADIATOR ASSEMBLY (LS05P00039F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 44 1 LS05P00039S044 BRACKET 43 4 LS05P00039S043 BOLT 42 1 LS05P00039S042 OIL COOLER 41 2 LQ05P00041S032 COLLAR 40 3 LS05P00039S040 COLLAR 39 3 LS05P00039S039 WASHER 38 3…
02-05-00(00) RADIATOR ASSEMBLY (LS05P00035F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 1 LS05P00035F1 Radiator Assembly, See Figure 02-05-00 8 1 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm 7 1 ZS18C12060 SCREW M12x1.75x60mm 6 1…
02-05(00) RADIATOR INSTALLATION (LS05P00036F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 1 LS05P00035F1 Radiator Assembly, See Figure 02-05-00 8 1 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm 7 1 ZS18C12060 SCREW M12x1.75x60mm 6 1…
02-04(00) ENGINE INSTALLATION (LS02P00029F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 59 1 PY01P01043D3 CLIP Wire Ties -- 188mm Long 53 1 YN13E01375P1 CLIP Anchor Wire Ties 46 12 ZW16H08000 WASHER ID 08 x OD 18 x Th…
02-03-01(04) REMOVABLE CWT ASSY (LS61CU0001F2)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 43 1 LS61CU1015P2 42 2 ZW16X33000 41 2 LS61CU1010P1 40 2 LS61CU1009P1 39 3 ZM32C12030 38 1 LS61CU1029P1 37 1 LS01VU0002F1 36 2 LS01VU0001F1 35 2…

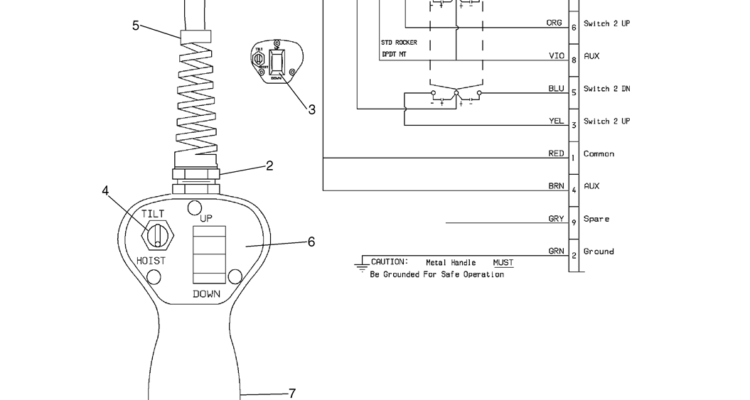

02-03-01(03) GRIP ASSEMBLY, COUNTERWEIGHT REMOVER SYSTEM, (LS13E01035F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 LS13E01037P1 COVER Where controller plugs into machine 7 1 LS13EU1022P1 HOUSING HOUSING 5 1 LS50MU1002P1 BOOT BOOT 4 1 LS51SU0002P1 TOGGLE SWITCH SWITCH,…

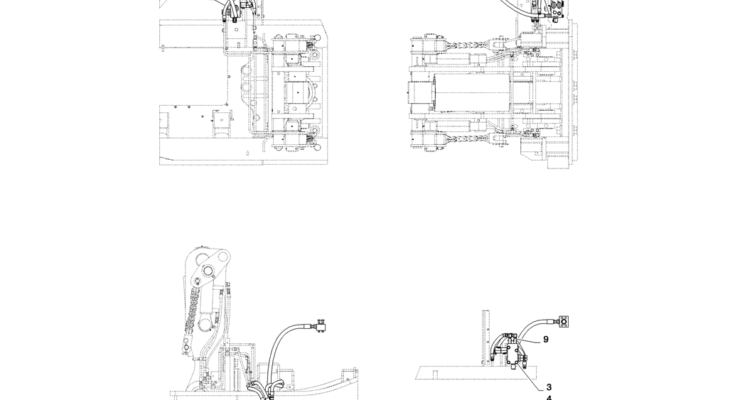

02-03-01(02) CTWT REMOVAL HYD LINES-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 1 ZD12P03800 O-RING 14 1 LS47HU1011P1 HYD CONNECTOR 13 1 LS30H01352P1 12 4 ZS18C14100 SCREW 11 4 ZD12P01400 O-RING 10 2 ZD12A01600 O-RING 9 2…
