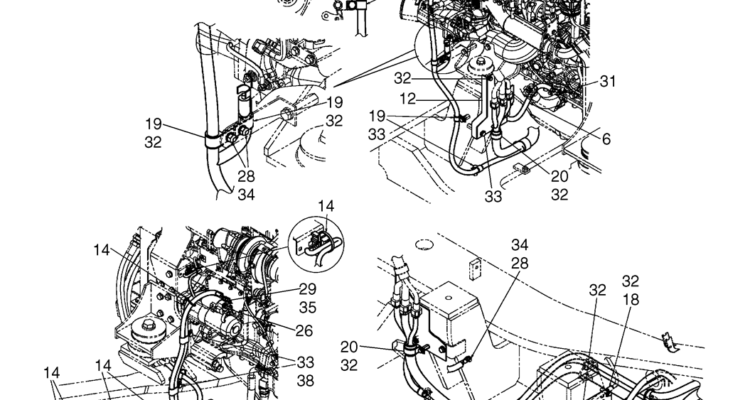

02-80-11(11) HARNESS ASSEMBLY, UPPER (ENGINE) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 41 1 ZC46X46014 CLIP Clamp -- Ø46mm Single Cable 38 4 ZC48X20014 CLIP Clamp, Double -- Ø20x77mm Long 35 1 ZN18C10008 NUT M10x1.50mm 34 3…

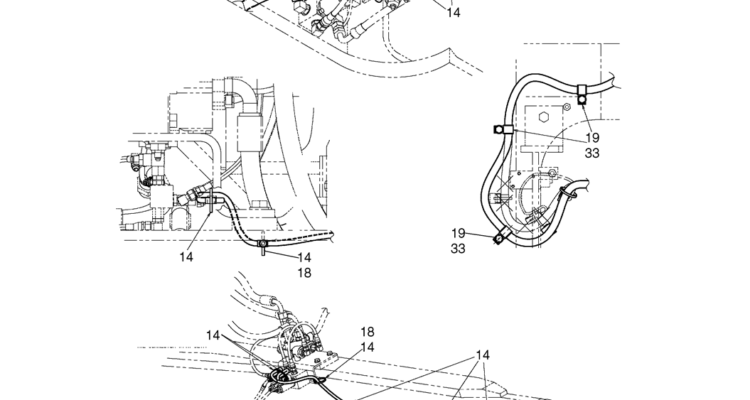

02-80-10(10) HARNESS ASSEMBLY, UPPER (SOLENOID VALVE) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 33 3 ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer) 16 1 YN13E01375P1 CLIP Anchor Wire Ties 14 9 PY01P01043D3 CLIP Wire Ties -- 188mm Long Upper…

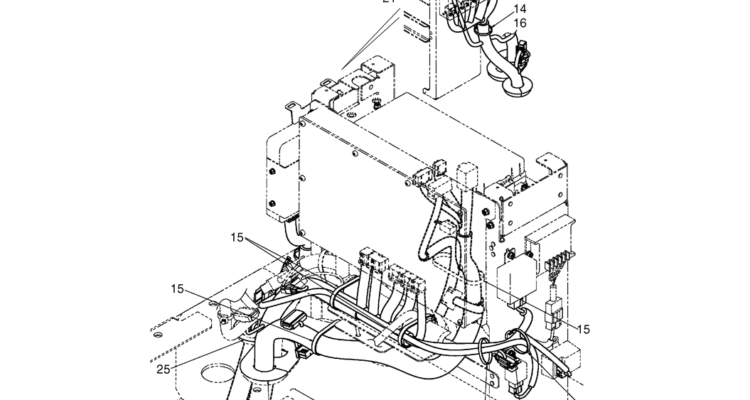

02-80-09(09) HARNESS ASSEMBLY, UPPER (CONTROLLER) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 37 1 LS13E01093P1 BRACKET Bracket 32 AR ZM73C08020 BOLT M08x1.25x20mm (Incls. Washer) 25 1 LQ13E01093P1 GROMMET 24 1 LC13E01192P1 GROMMET 21 1 EW02E01016D4 CLIP Clamp,…

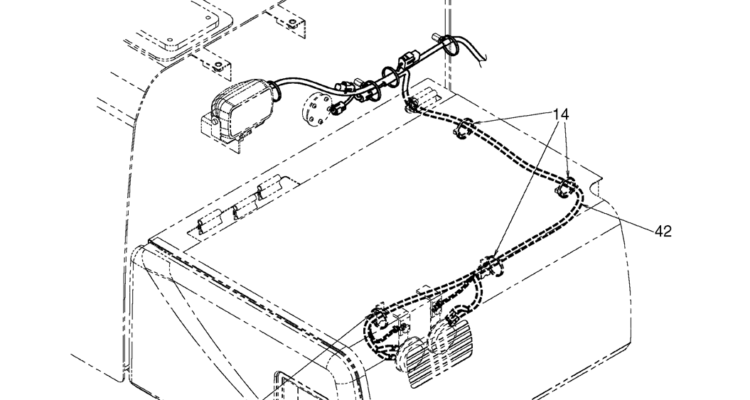

02-80-08(08) HARNESS ASSEMBLY, UPPER (HORN) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 42 1 LC13E01336P1 HARNESS Harness Upper Harness Assembly (HORN), LS13E00024F1, Page 8 of 11 14 AR PY01P01043D3 CLIP Wire Ties -- 188mm Long …

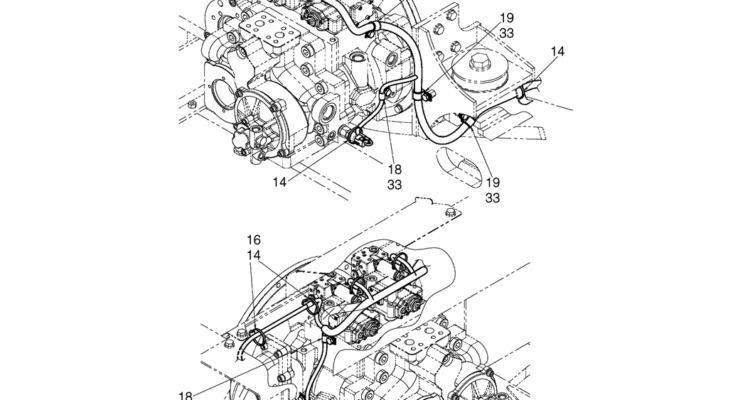

02-80-07(07) HARNESS ASSEMBLY, UPPER (PUMP) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 33 AR ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer) 19 AR EW02E01015D9 CLIP Clamp -- Ø20x25mm Long 18 AR EW02E01015D4 CLIP Clamp -- Ø10x20mm Long 14 AR…

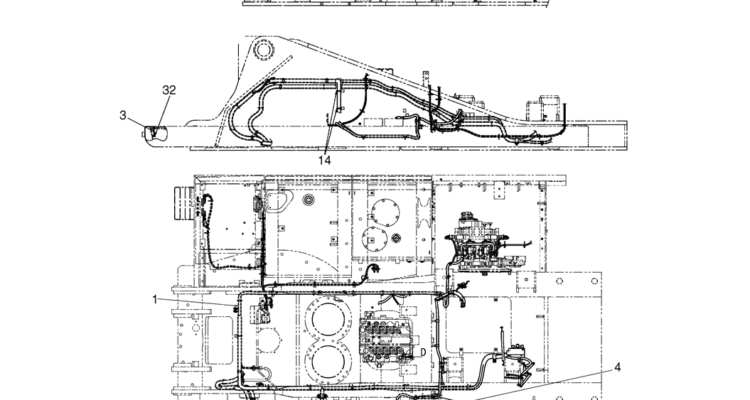

02-80-06(06) HARNESS ASSEMBLY, UPPER (FRAME MOUNTING) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 33 AR ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer) 32 AR ZM73C08020 BOLT M08x1.25x20mm (Incls. Washer) 14 AR PY01P01043D3 CLIP Wire Ties -- 188mm Long 3…

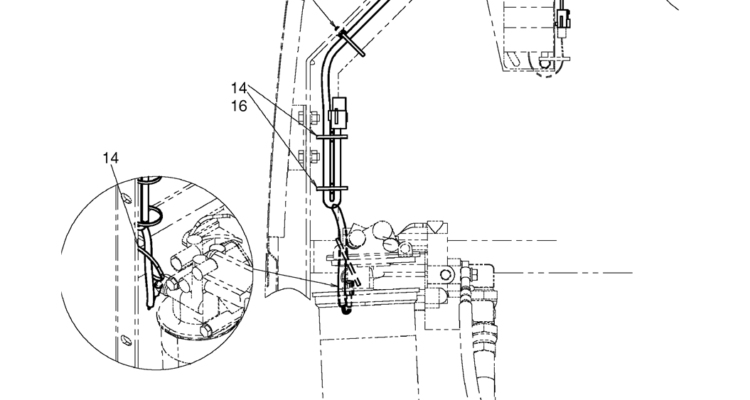

02-80-05(05) HARNESS ASSEMBLY, UPPER (OIL & TRAVEL ALARMS) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 AR PY01P01043D3 CLIP Wire Ties -- 188mm Long Upper Harness Assembly (OIL & TRAVEL ALARMS), LS13E00024F1, Page 5 of 11 16…

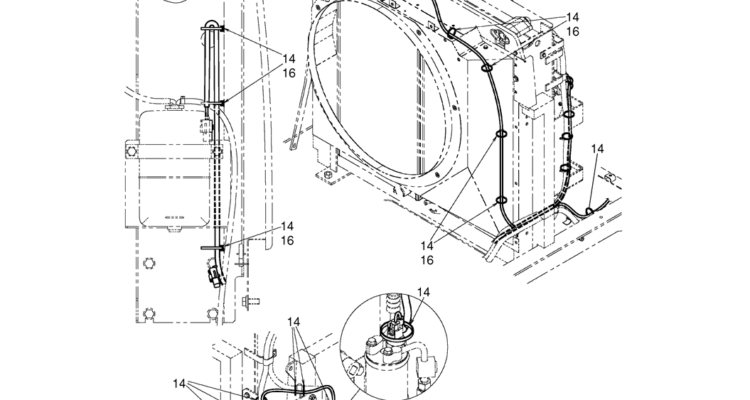

02-80-04(04) HARNESS ASSEMBLY, UPPER (DRIER & COOLENT SWITCH) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 AR YN13E01375P1 CLIP Anchor Wire Ties 14 AR PY01P01043D3 CLIP Wire Ties -- 188mm Long Upper Harness Assembly (DRIER & COOLENT…

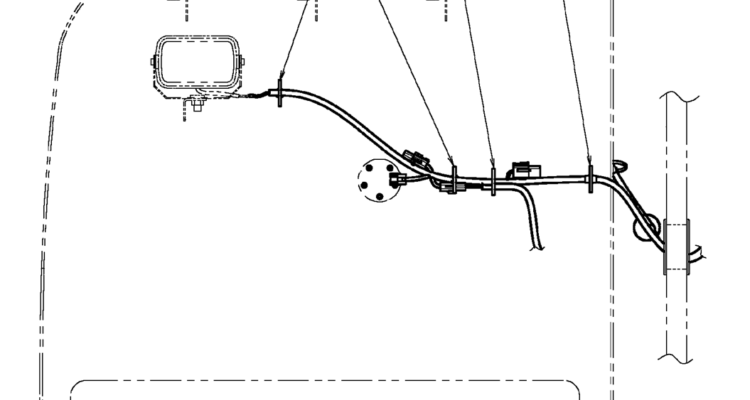

02-80-03(03) HARNESS ASSEMBLY, UPPER (FRAME WORK LIGHT) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 4 PY01P01043D3 CLIP Wire Ties -- 188mm Long Upper Harness Assembly (FRAME WORK LIGHT), LS13E00024F1, Page 3 of 11 16 3 YN13E01375P1…

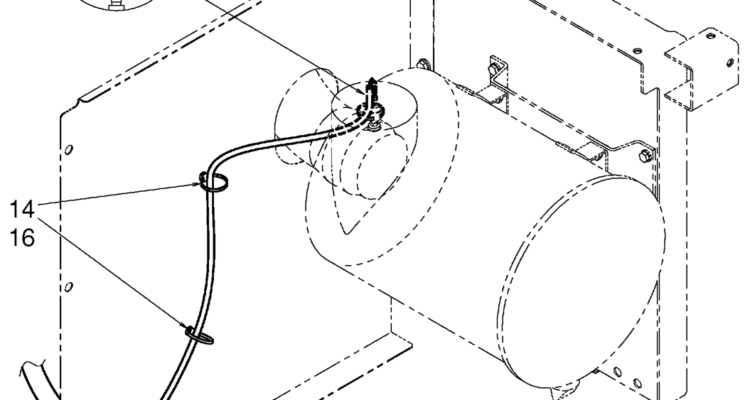

02-80-02(02) HARNESS ASSEMBLY, UPPER (AIR FILTER) (LS13E00024F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 2 YN13E01375P1 CLIP Anchor Wire Ties 14 3 PY01P01043D3 CLIP Wire Ties -- 188mm Long Upper Harness Assembly (AIR FILTER), LS13E00024F1, Page 2…
