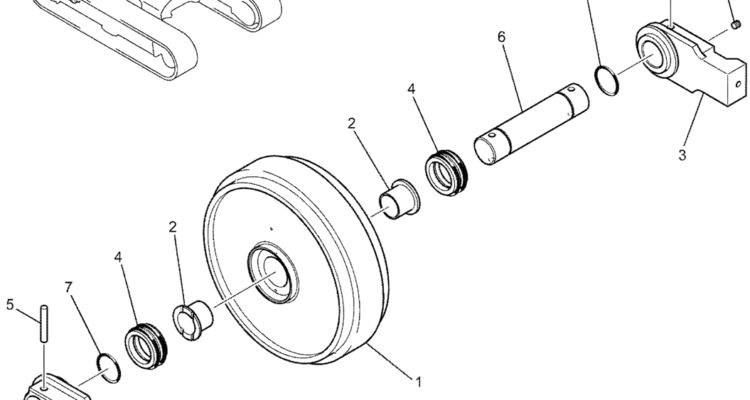

03-03-01(00) IDLER ASSEMBLY (LS52D00002F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 2 ZE82T02000 PLUG Pipe, 1.25" PT 7 2 ZD11G10500 O-RING ID 104.40 ± 0.87 x OD 110mm 6 1 2410P814 SHAFT OD 110 x 435mm Long…

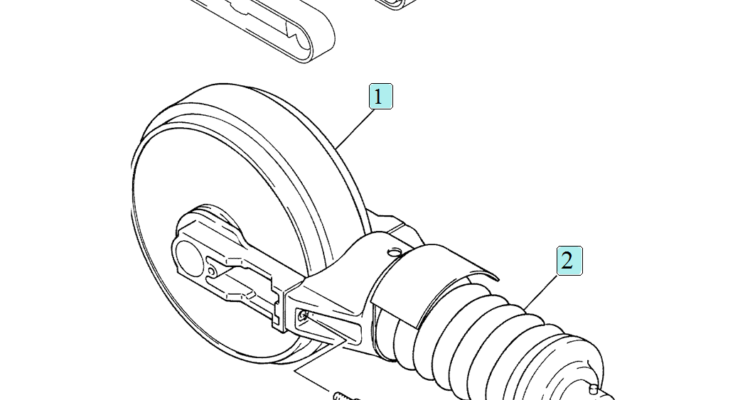

03-03-00(00) IDLER ASSEMBLY (LS52D00010F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 1 2444P803 LUBE NIPPLE 5/8" - 18 UNF, Straight 3 2 ZS23C24070 SCREW M24x3.0x70mm 1 1 LS52D00002F1 IDLER WHEEL See Figure 03-03-01 2 LS52D00011F1 Crawler Idler…

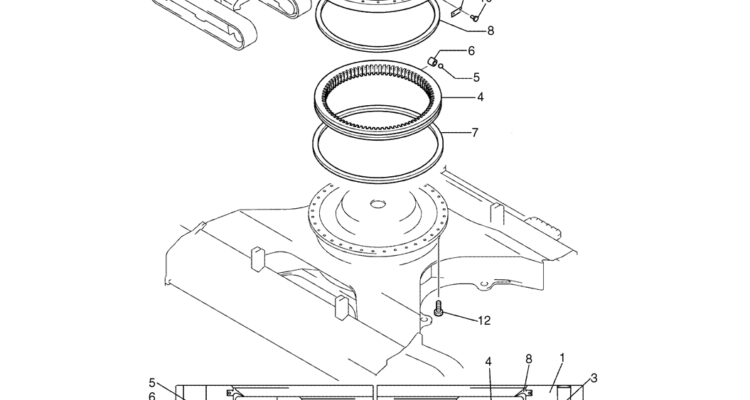

03-02(00) SLEWING RING ASSEMBLY (LS40F00011F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 12 36 2420P1614D1 SCREW M27x2.0x90mm 10 2 4020Z64 RIVET OD 5.0 x 6.0mm Long 9 1 YN22T00191P1 PLATE NAME 8 1 YN40F01019DC SEAL Seal -- 5231mm…

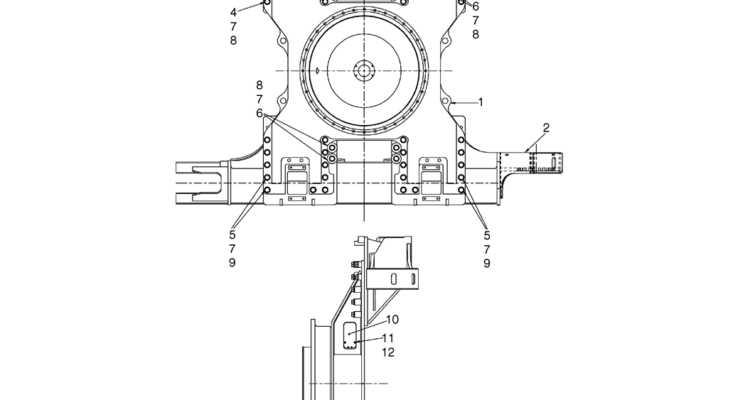

03-01-03(00) FRAME ASSEMBLY, LOW (LOGGER, HIGH AND WIDE UNDERCARRIAGE) (LS02FU0007P1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 12 8 ZW26K10000 WASHER Lock -- ID 10 x OD 15.7 x Th 2.5mm 11 8 ZS18C10030 SCREW M10x1.50x30mm 10 2…

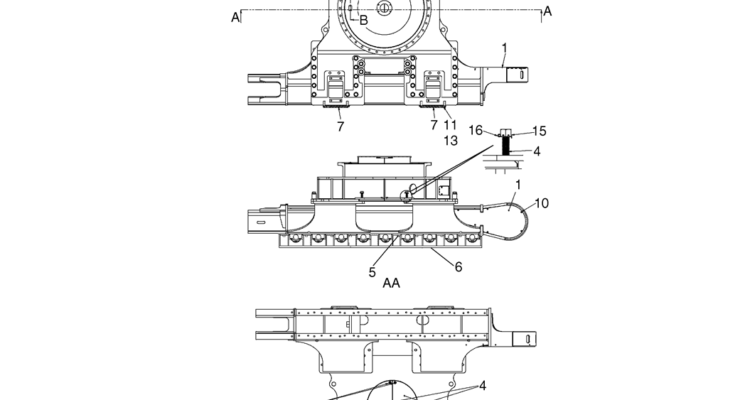

03-01-02(00) FRAME ASSEMBLY, LOW (FULL TRACK GUIDE, HIGH AND WIDE UNDERCARRIAGE) (LS01FU0002F2)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 2 ZP16D06056 PIN Cotter -- OD 6.3 x 56mm Long 15 2 ZN23C30033 NUT Slotted -- M30x3.5mm 14…

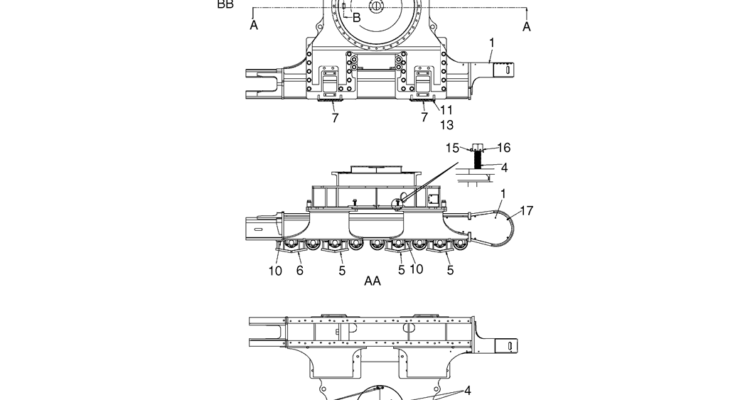

03-01-01(00) FRAME ASSEMBLY, LOW (STANDARD GUIDE, HIGH AND WIDE UNDERCARRIAGE) (LS01FU0002F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 12 ZM73C12025 BOLT M12x1.75x25mm (Incls. Washer) 16 2 ZP16D06056 PIN Cotter -- OD 6.3 x 56mm Long 15 2…

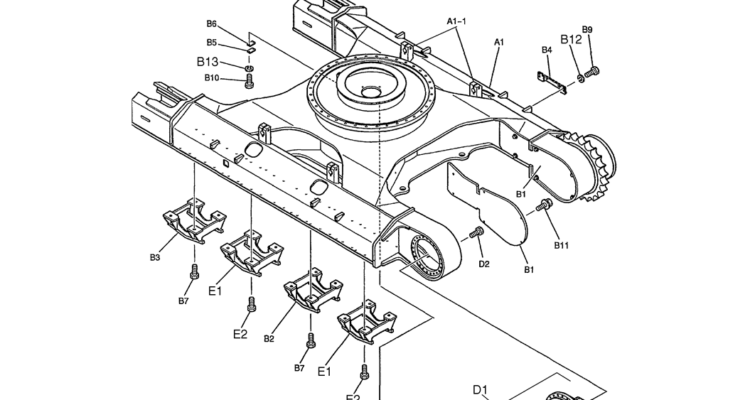

03-01-00(00) FRAME ASSEMBLY, LOW (LS02F00037F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals E2 16 2420P1613D3 SCREW M24x2.0x60mm E1 4 LS63D00001P1 GUIDE Lower Group, LS01F00015F1, Incls. Refs. E1 & E2 D2 54 2420P1613D5 SCREW M24x2.0x75mm D1-3 24 2420P1613D2 SCREW…

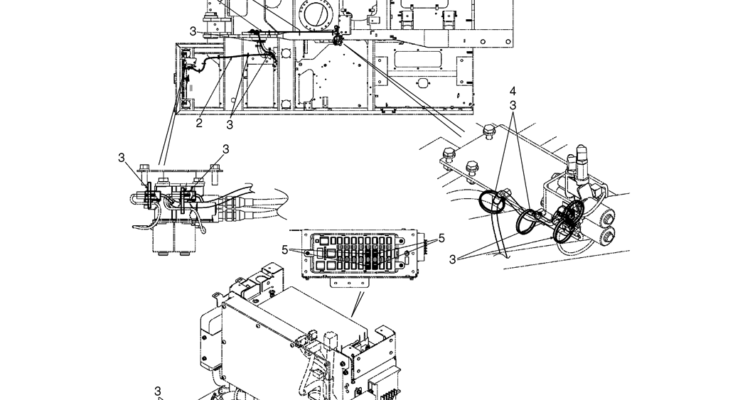

02-92(00) HARNESS ASSEMBLY, UPPER (NIBBLER & BREAKER HAND) (LS13E00025F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 4 YN24S00010P1 RELAY 4 2 YN13E01375P1 CLIP Anchor Wire Ties 2 1 LS13E01098P1 Harness 1 1 LS13E01099P1 Harness Upper Harness Assembly,…
02-91(00) HARNESS ASSEMBLY, UPPER (SELECTOR VALVE) (YN13E00137F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 AR PY01P01043D3 CLIP Wire Ties -- 188mm Long 2 1 LS13E01097P1 HARNESS Harness 1 1 LS13E01096P1 Harness Upper Harness Assembly (SELECTOR VALVE), YN13E00137F1…

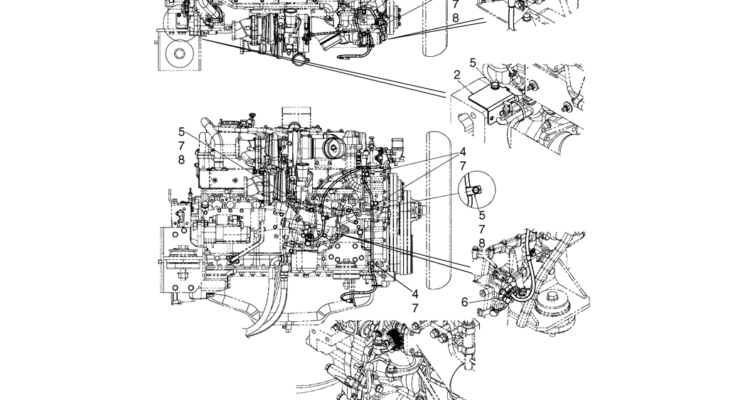

02-90(01) HARNESS ASSEMBLY, UPPER (ENGINE) (LS16E00008F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 3 ZW16H08000 WASHER ID 08 x OD 18 x Th 3.2mm 7 7 EW02E01015D3 CLIP Clamp -- Ø08x19mm Long 6 2 PY01P01043D3 CLIP Wire…
