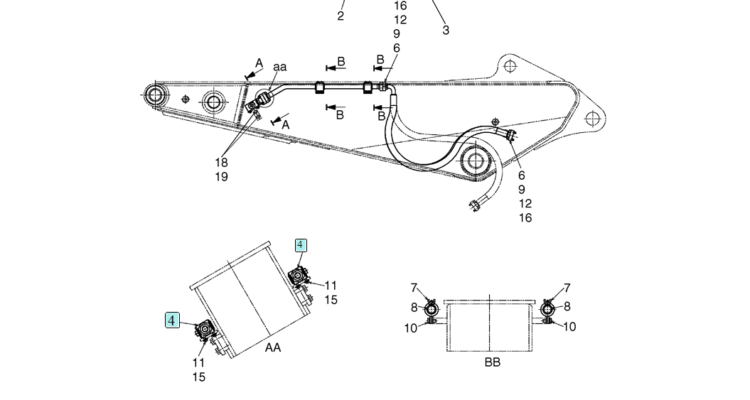

03-39(00) HYDRAULIC LINES - ARM (MASS EXCAVATOR / NIBBLER & BREAKER) (LC43HU0006F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 19 4 ZW16H16000 WASHER ID 17 x OD 32 x Th 4.5mm 18 4 ZS18C16040 SCREW M16x2.0x40mm 17 2…

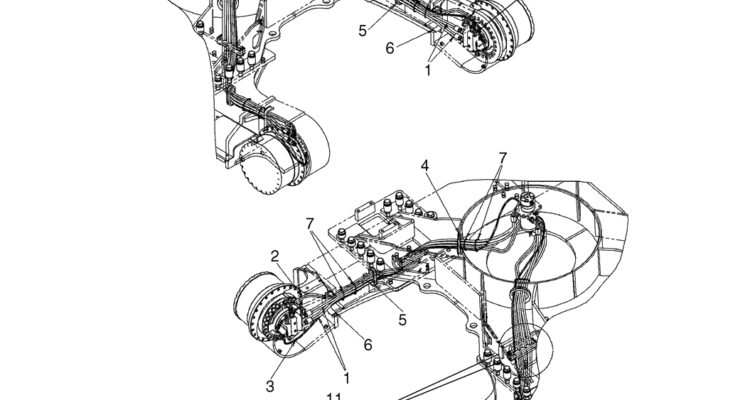

03-10-01(00) HYDRAULIC LINES, LOWER (HIGH & WIDE UNDERCARRIAGE) (LS02HU0003F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 8 ZW16X12000 WASHER ID 12 x OD 24 x Th 2.3mm 10 8 ZS28C12110 SCREW M12x1.75x110mm 8 4 LS02HU1028P1 CLAMP 7…

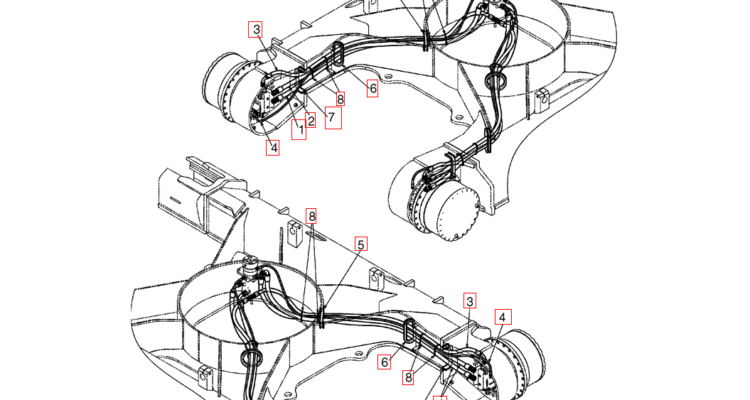

03-10(00) HYDRAULIC LINES, LOWER (LS02H00015F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 8 PY01P01043D8 CLIP Wire Ties -- 368mm Long 7 2 LS02H01115P1 GROMMET Grommet 6 2 LS02H01114P1 GROMMET Grommet 4 2 ZX23M04320 HOSE 3200mm Long (126…

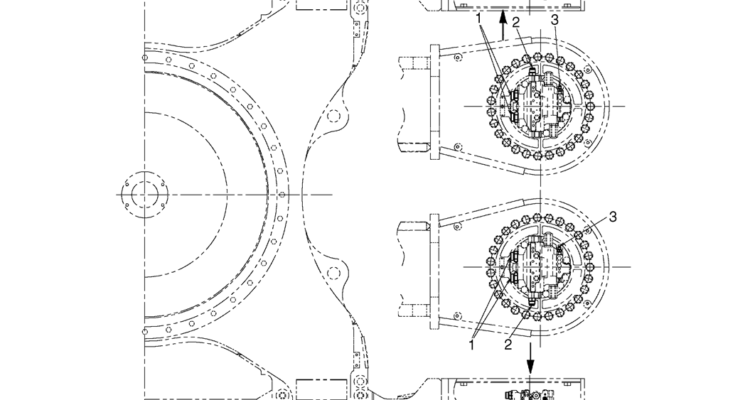

03-09(00) HYDRAULIC LINES, PROPEL (LS12H00005F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 237-6004 O-RING (Part of ZH32X04000), SAE No. 4-1, Not Shown 3 2 ZH22X04000 HYD CONNECTOR 1/4"PFx36mm Long (Incls. O-Ring 237-6004) 1 ZD12P01800 O-RING (Part of…

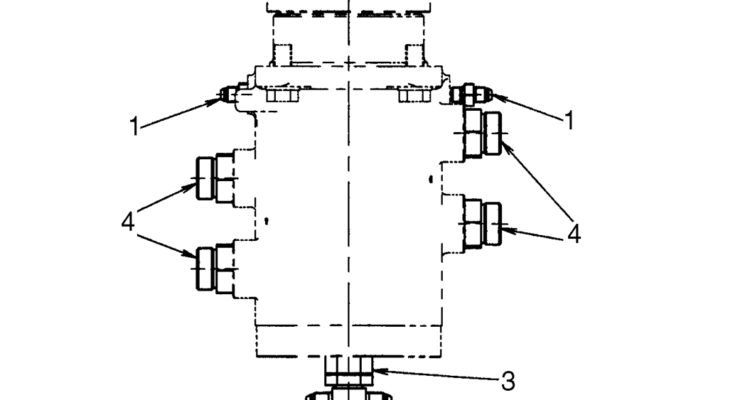

03-08-01(00) HYDRAULIC LINES, SWIVEL (LS19H00009F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 237-6016 O-RING (Part of ZG23F16016), SAE No. 6-1, Not Shown 4 4 ZG23F16016 HYD CONNECTOR 1.0"-1.0" PT (Incls. O-Ring 237-6016) 3 1 HH25R12012G3 HYD CONNECTOR…

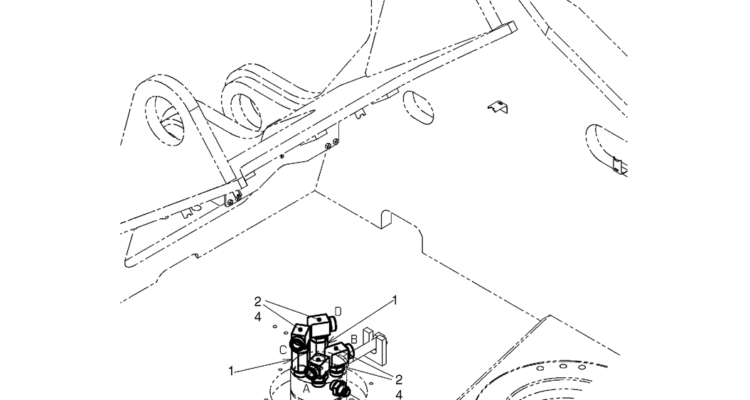

03-08-00(00) HYDRAULIC LINES, SWIVEL (LS19H00012F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZD12A02100 O-RING ID 23.52 ± 0.15 x OD 27.08mm 1 237-6012 O-RING (Part of ZH22X12000), SAE No. 12-1, Not Shown 3 1 ZH22X12000 HYD…

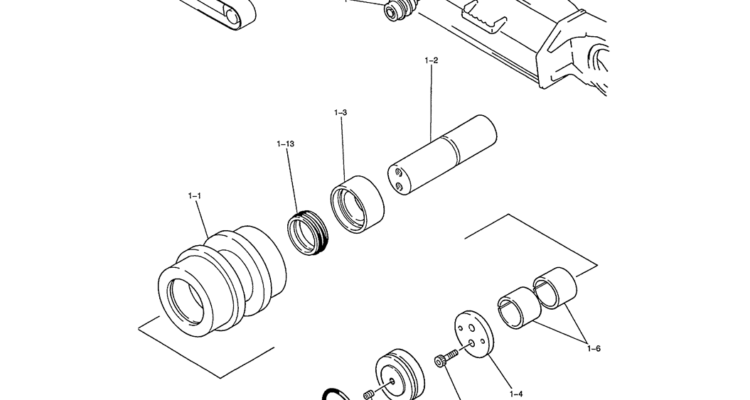

03-07(00) ROLLER ASSEMBLY, UPPER (LC64D00003F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3 8 ZW13H20000 WASHER ID 20 x OD 40 x Th 4.5mm 2 4 ZS13C20150 SCREW M20x2.50x150mm 1-13 1 2445R440F1 SEAL Floating 1-11 1 ZR26X10500 SNAP…
03-06-01(00) TRACK ROLLER ASSEMBLY (HIGH & WIDE) (LS64DU0009F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2 16 2420P1615D1 SCREW M22x2.5x115mm 1-11 2 2445R443F1 SEAL Floating 1-9 2 ZE82T04000 PLUG 1/4" PT 1-8 2 ZD11G08500 O-RING ID 84.40 ±…

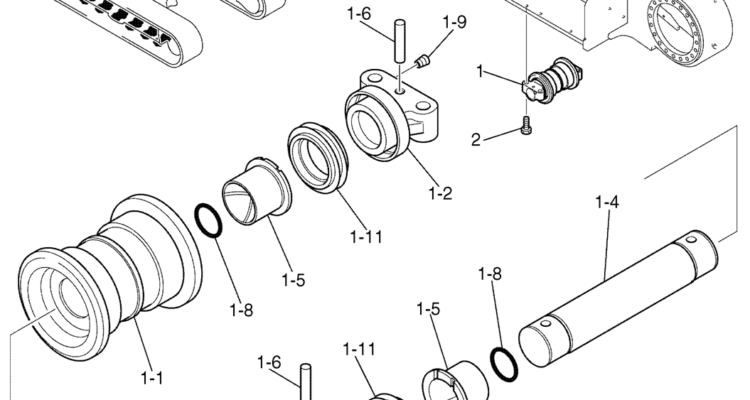

03-06-00(00) TRACK ROLLER ASSEMBLY (STANDARD) (LS64D00001F2)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2 72 2420P1615D1 SCREW M22x2.5x115mm 1-11 2 2445R443F1 SEAL Floating 1-9 2 ZE82T04000 PLUG 1/4" PT 1-8 2 ZD11G08500 O-RING ID 84.40 ± 0.61 x…

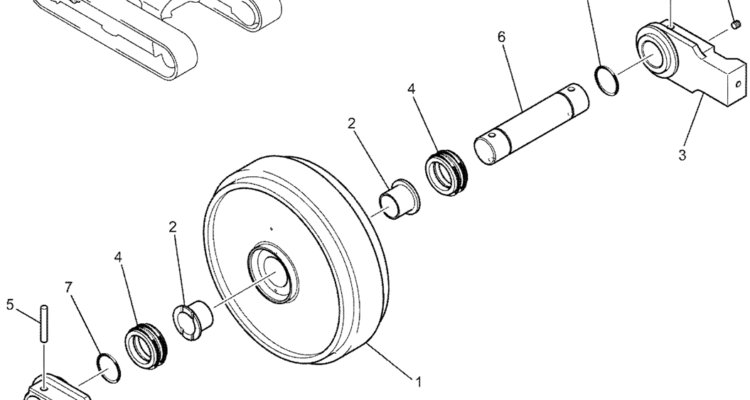

03-03-02(00) IDLER ADJUSTMENT ASSEMBLY (LS54D00003F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 12 1 LS54D01004P1 GUARD 10 2 LQ54D01023P1 PIN 9 1 2439P176 PISTON 8 1 LS54D01010P1 SEAL Seal, Wiper 7 1 LS54D01011P1 SEAL ID 98 x OD…
