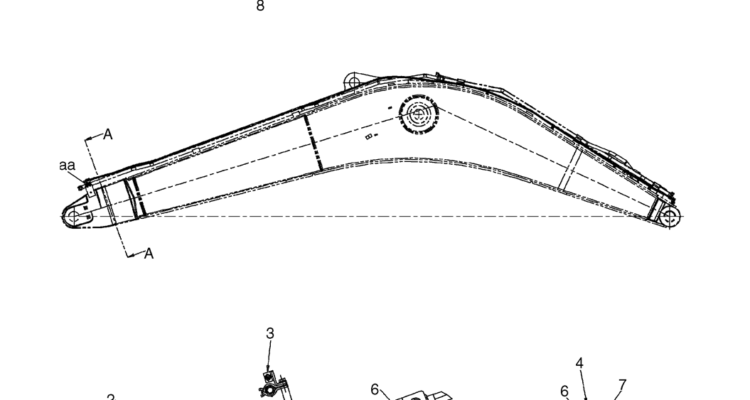

04-34-04(00) HYDRAULIC LINES, BOOM - HENDRIX COUPLER (LC42HU0012F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 24 PY01P01043D4 CLIP Wire Ties -- 249mm Long 7 2 ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer) 6 4 LC42HU1026P1 NUT Nut -- 1/4"…

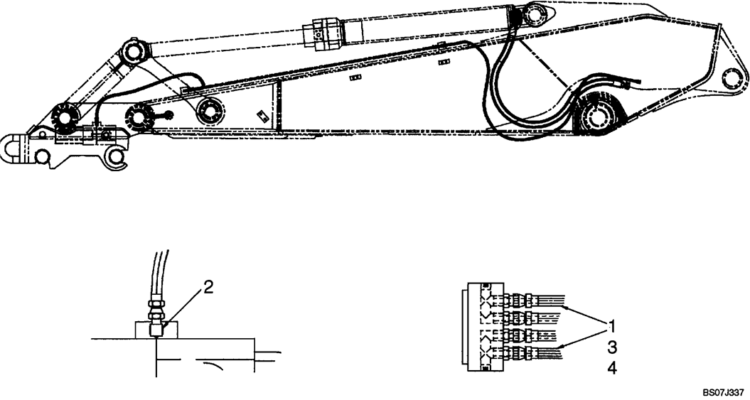

04-34-03(00) HYDRAULIC LINES, HENDRIX COUPLER (LC32TU0005F7)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 4 PY01P01043D4 CLIP Wire Ties -- 249mm Long 1 237-6006 O-RING (Part of ZH32W04006), SAE No. 6-1, Not Shown 2 2 ZH32W04006 ELBOW 1/4"…

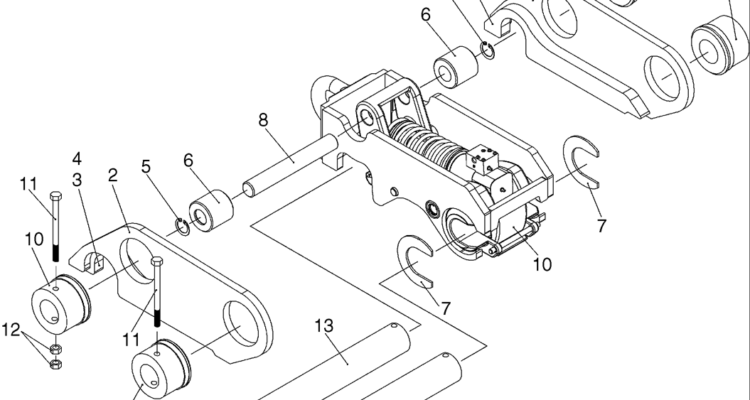

04-34-02(00) COUPLER INSTALLATION, HENDRIX (LC32TU0004FB)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 2 LS32TU1041S013 Pin 12 4 LS32TU1041S012 Nut 11 2 LS32TU1041S011 Bolt 10 1 LS32TU1041S010 Assembly, Lower 9 2 LS32TU1041S009 Boss 8 1 LS32TU1041S008 Pin 7…

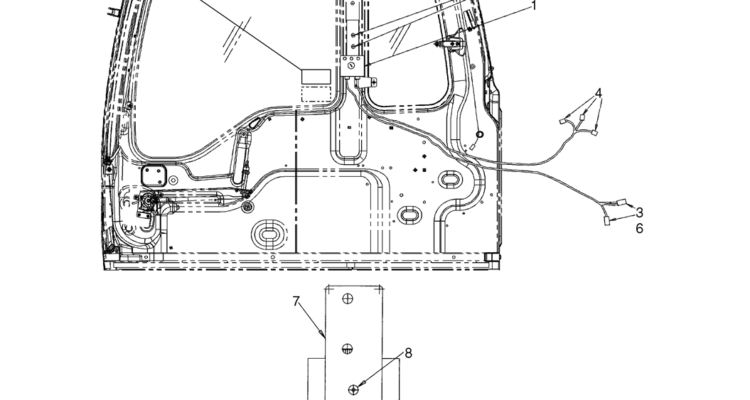

04-34-01(00) CONTROL BOX INSTALLATION, HENDRIX (LC32TU0006F1 & YN32TU1012F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 1 YN32TU1012S002 HANDBOOK Handbook, Operator -- Not Shown 9 1 YN32TU1012S001 DECAL Decal, Coupler Operation Decal (Label) Assembly, YN32TU1012F1, Incls. Refs. 9…

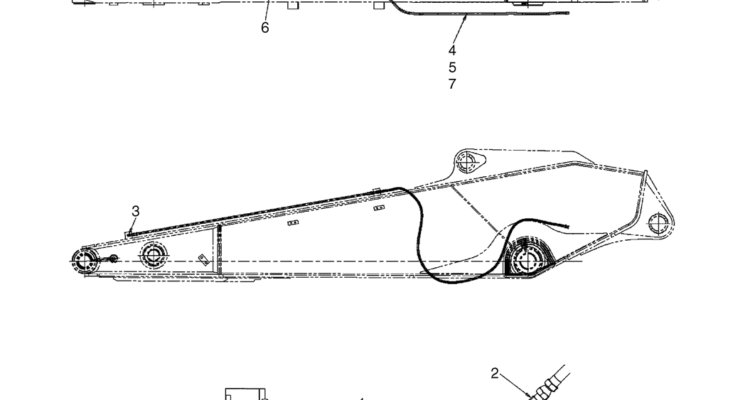

04-33(00) HYDRAULIC LINES - ARM (COUPLER) LONG (LC12BU0028FB)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 1 LC12BU1046P1 Manifold Block -- 76.2x31.8x31.8mm 7 1 LC12BU1047P1 Manifold Block -- 127x31.8x31.8mm Arm Assembly, LC12BU0026FB, Incls. Refs. 8 & 9 6…

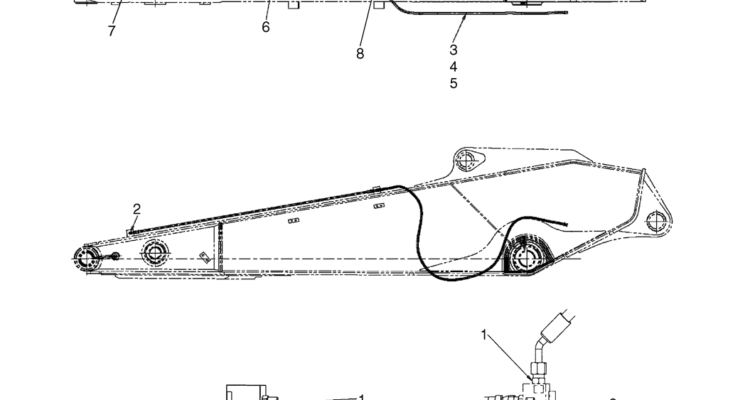

04-32(00) HYDRAULIC LINES - ARM (COUPLER) STANDARD (LC12BU0028FA)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 1 LC12BU1046P2 BLOCK Manifold Block -- 76.2x31.8x31.8mm 7 1 LC12BU1047P2 BLOCK Manifold Block -- 127x31.8x31.8mm Arm Assembly, LC12BU0026FA, Incls. Refs. 7 &…

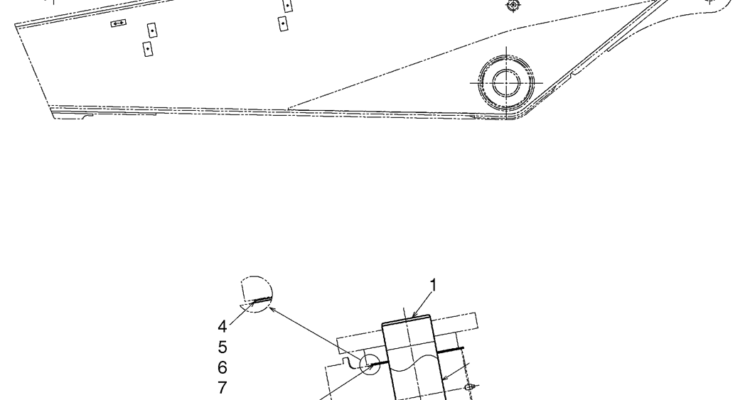

04-30(00) CYLINDER INSTALLATION, BUCKET (LS12B00249F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 Bucket Cylinder assembly, LS01V00057F1, See Figure 08-22 8 2 LB02B01043D1 SHIM ID 102 x OD 170 x Th 2.0mm 7 1 2420T2747D4 SHIM ID 102…

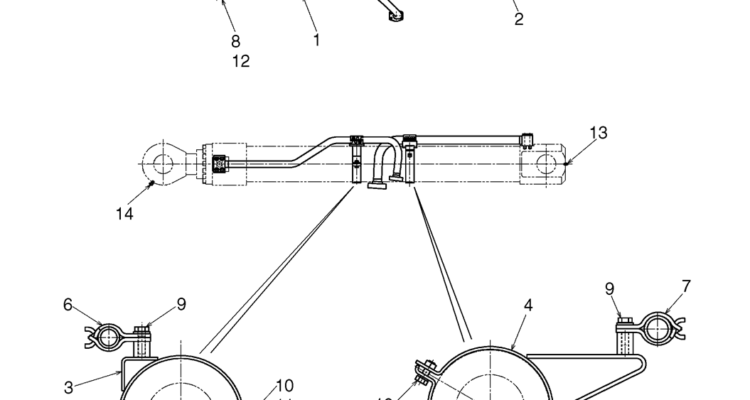

04-29-01(00) HYDRAULIC LINES - BUCKET CYLINDER, (3M -- 9FT 10IN / NIBBLER & BREAKER / ROTATION) (LS43H00103F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 1 ZG91V02000 LUBE NIPPLE 67°x1/8" PT 13 1 ZG91S02000 LUBE NIPPLE 1/8" PT…

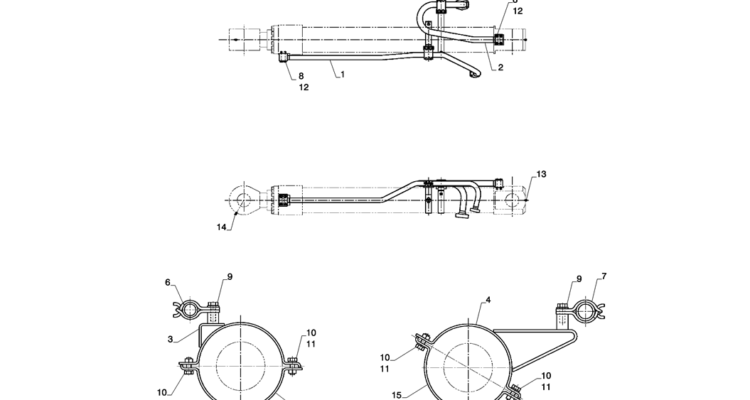

04-29-00(00) HYDRAULIC LINES - BUCKET CYLINDER, (LS43H00078F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 1 LS43H01444P1 BAND 14 1 ZG91V02000 LUBE NIPPLE 67°x1/8" PT 13 1 ZG91S02000 LUBE NIPPLE 1/8" PT -- Straight 12 2 ZD12P03400 O-RING…

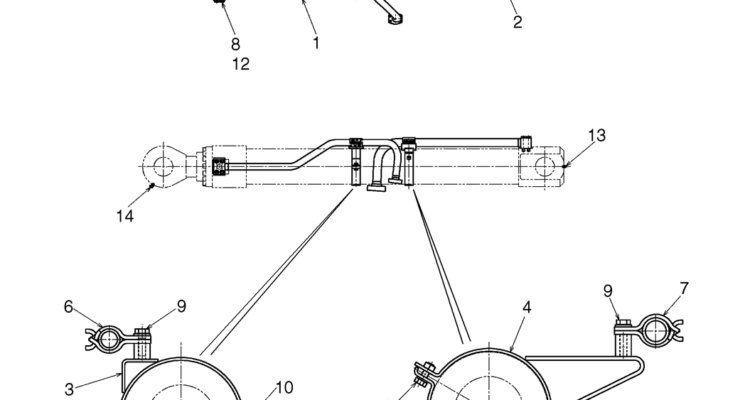

04-28-00(00) HYDRAULIC LINES - BUCKET CYLINDER, (4.04M -- 13FT 3IN / SEMI-LONG) (LS43H00116F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 1 LS43H01444P1 BAND 14 1 ZG91V02000 LUBE NIPPLE 67°x1/8" PT 13 1 ZG91S02000 LUBE NIPPLE 1/8" PT…
