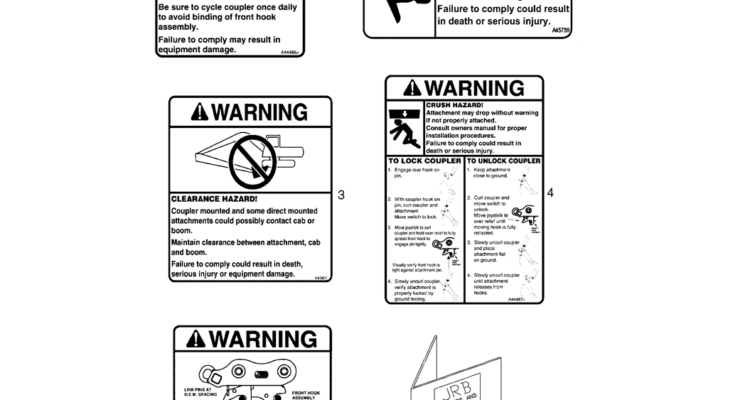

04-35-07(02) LABEL ASSEMBLY, LABELS, JRB (LC32TU1061F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 LC32TU1061S011 Manual -- Not Shown 6 1 LC32TU1061S006 Handbook, Operators 5 1 LC32TU1061S003 WARNING DECAL Decal, Warning -- Crush Hazard 3 1 LC32TU1061S004 WARNING…

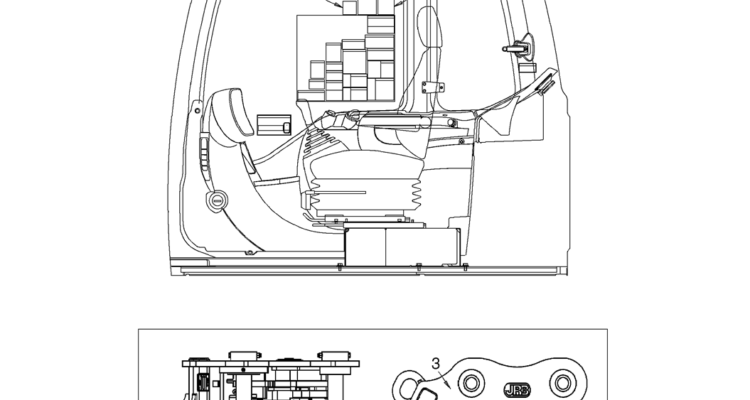

04-35-07(01) LABEL ASSEMBLY, LOCATION, JRB (LC32TU1061F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 LC32TU1061S011 Manual -- Not Shown 6 1 LC32TU1061S006 Handbook, Operators -- Not Shown 5 1 LC32TU1061S005 WARNING DECAL Decal, Warning -- Lock/Unlock Coupler 3…

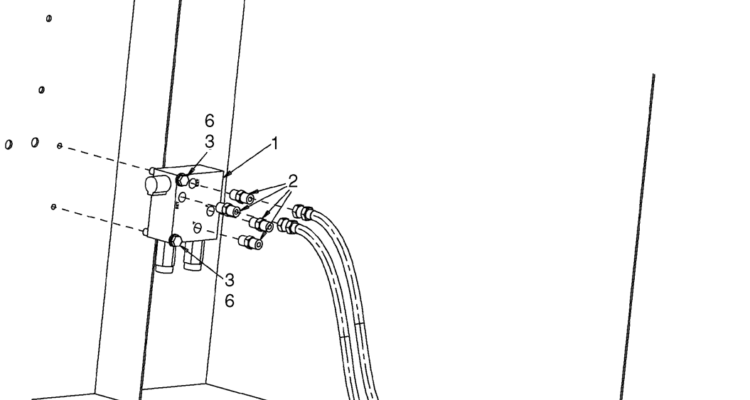

04-35-06(00) VALVE INSTALLATION, JRB (LC32TU1059F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 6 2 ZW16P08000 WASHER ID 08 x OD 17 x Th 1.6mm, Not Shown 5 2 YN32TU1057DC Hose, Guard -- 3300mm Long (129-59/64 in) 4 2…

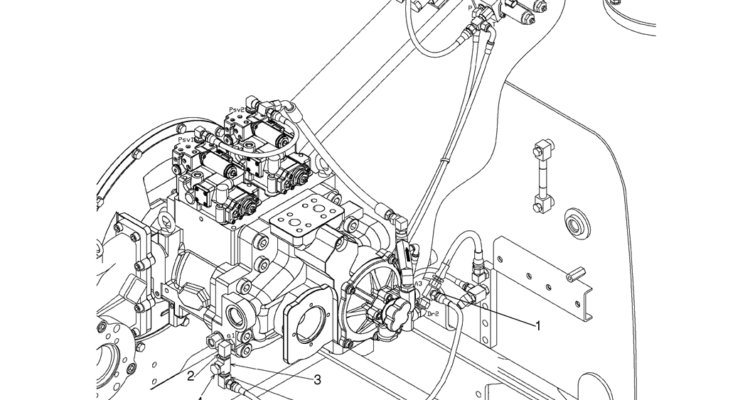

04-35-05(00) CONTROL LINES, PUMP, JRB (LC06HU0005F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 7 1 ZX25M04086 Hose -- 860mm Long (33-49/64 in) 6 1 ZX25M04082 Hose -- 820mm Long (32-9/32 in) 1 237-6004 O-RING (Part of ZH32X04000), SAE…

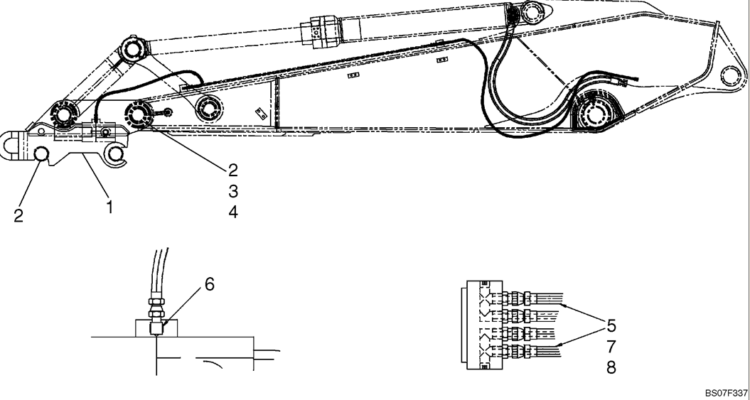

04-35-04(00) HYDRAULIC LINES, JRB COUPLER (LC32TU0005F8)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 4 PY01P01043D4 CLIP Wire Ties -- 249mm Long 3 2 YN32TU1057D1 GUARD Hose, Guard -- 1150mm Long (45-17/64 in) 1 237-6006 O-RING (Part of…

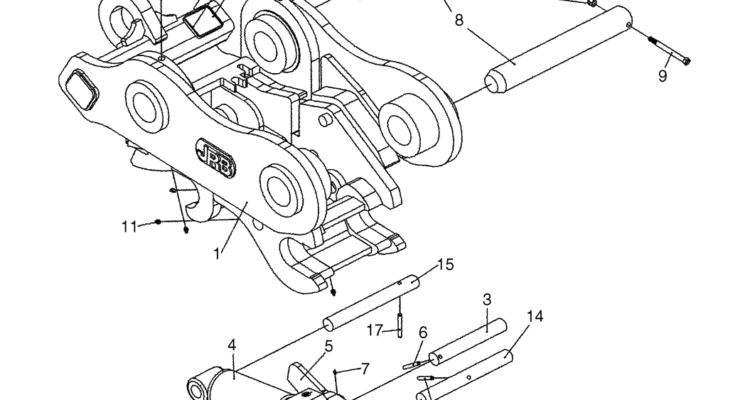

04-35-03(00) COUPLER INSTALLATION, JRB (LC32TU0004FC)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 1 LS32TU1042S017 Pin, Dowel -- 3/8" x 3-1/2" Long 16 1 LS32TU1042S016 Pin, Dowel -- 3/8" x 3" Long 15 1 LS32TU1042S015 Pin, Main --…

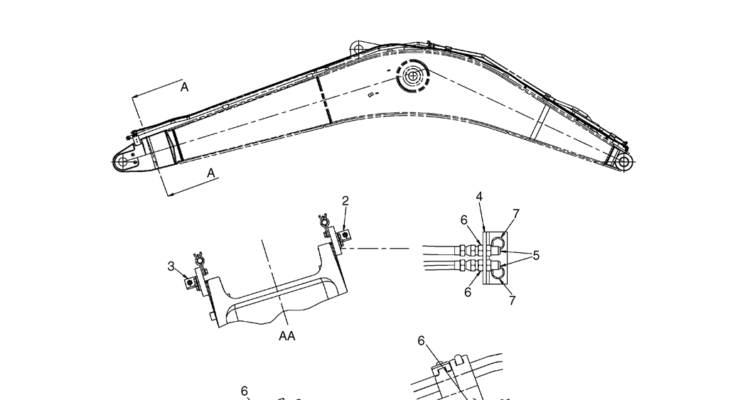

04-35-02(00) HYDRAULIC LINES, BOOM - JRB COUPLER (LC42HU0012F4)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 2 ZX25M04575 HOSE Hose -- 5750mm Long (226-3/8 in) -- After Date 12/31/2007 9 2 ZX25M04565 Hose -- 5650mm Long (222-7/16 in)…

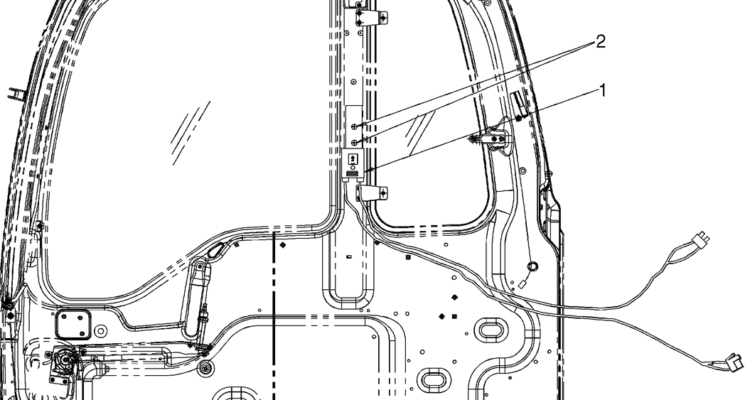

04-35-01(00) CONTROL BOX INSTALLATION, JRB (LC32TU1057F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3 20 PY01P01043D4 CLIP Wire Ties -- 249mm Long, Not Shown 2 2 YN17M01320P1 SCREW M06x1.0x15mm JRB Control Box Installation, LC32TU1057F1 1 1 LC32TU1058P1 Control…

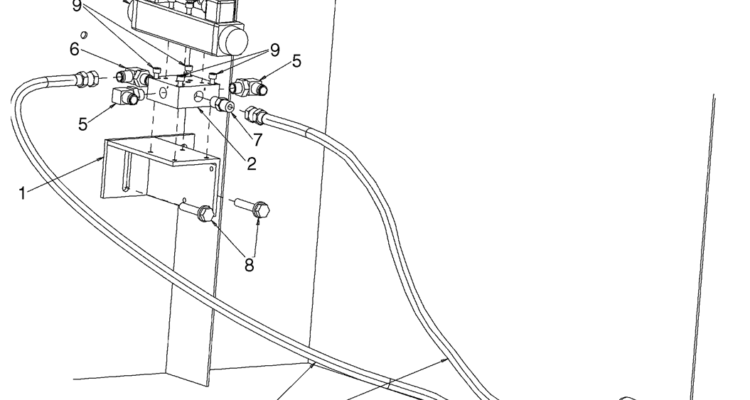

04-34-06(00) VALVE INSTALLATION, HENDRIX (LC32TU0007F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 2 YN32TU1057DB Hose, Guard -- 3200mm Long (126 in) 12 2 ZX25M04390 Hose -- 3900mm Long (153-1/2 in) 11 26 PY01P01043D4 CLIP Wire Ties --…

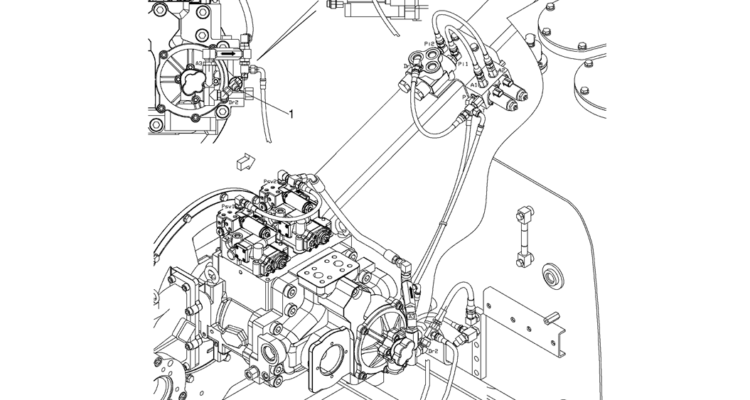

04-34-05(00) CONTROL LINES, PUMP HENDRIX (LC06HU0004F5)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3 1 ZX24M06086 Hose -- 860mm Long (33-49/64 in) 1 2 2444T2580 TEE 3/8" PF x 61mm Long (No O-Ring supplied) Hendtx Pump Control lines,…
