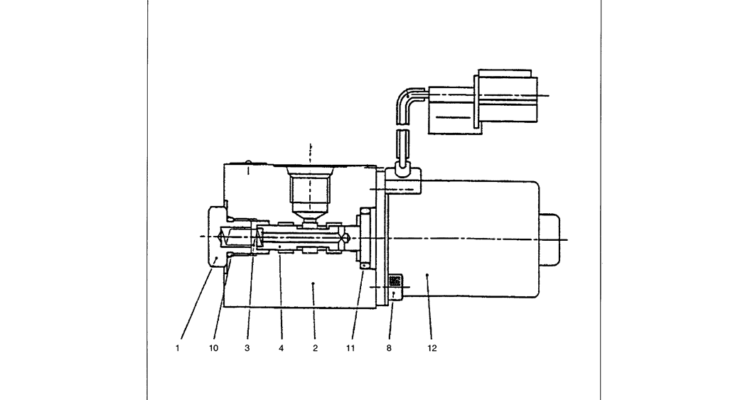

07-034 VALVE ASSEMBLY, SOLENOID P/N YN35V00010F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 12 1 YR35V00009S022 SOLENOID VALVE ASSY 11 1 ZD11P01600 O-RING ID 15.80 ± 0.20 x OD 20.6mm 8 2 EN35V00004S010 BOLT CAP 4…

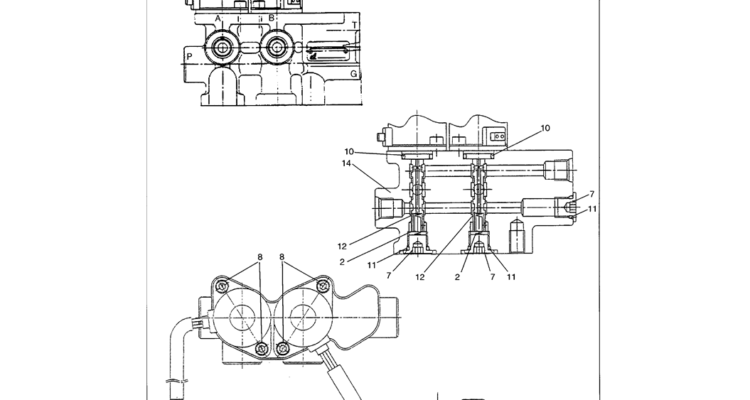

07-033 VALVE ASSY, SOLENOID P/N LC35V00004F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 15 2 YN30V00080S023 SCREW #2x4.8mm 14 1 NSS NOT SERVICED SEPARATELY BODY 13 2 YR35V00009S022 SOLENOID VALVE 12 2 NSS NOT SERVICED SEPARATELY…

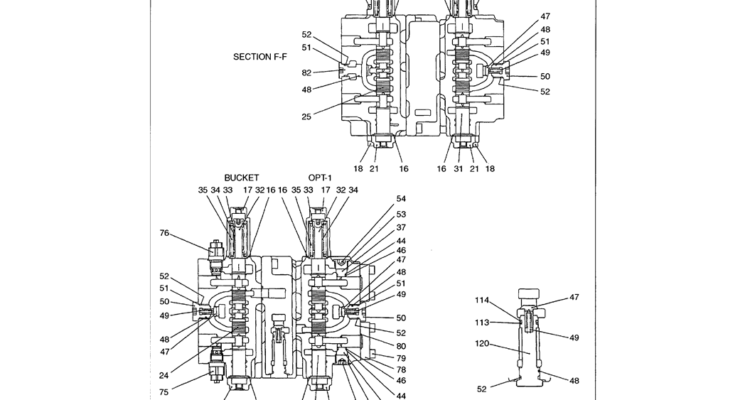

07-032 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS30V00002R260 SPOOL REPAIR KIT - Includes 31, 32 - 35 1 LS30V00002R250 SPOOL REPAIR KIT - Includes Ref 30, 32 - 35…

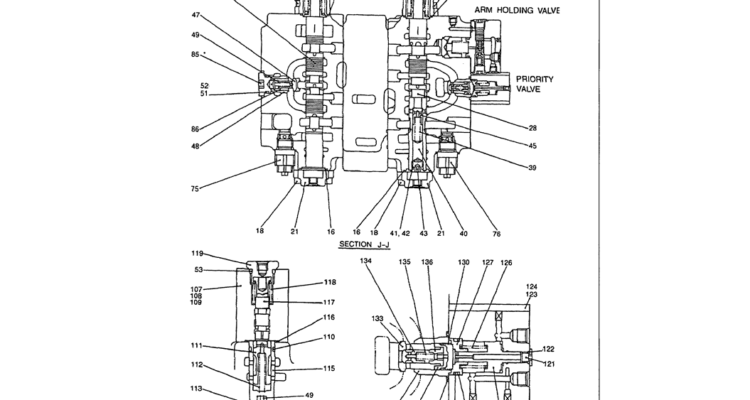

07-031 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 138 1 LS30V00002S138 BACK-UP RING 137 1 LS30V00002S137 O-RING 136 1 LS30V00002S136 CAP 135 1 LS30V00002S135 SPRING 134 1 LS30V00002S134 CHECK VALVE 133…

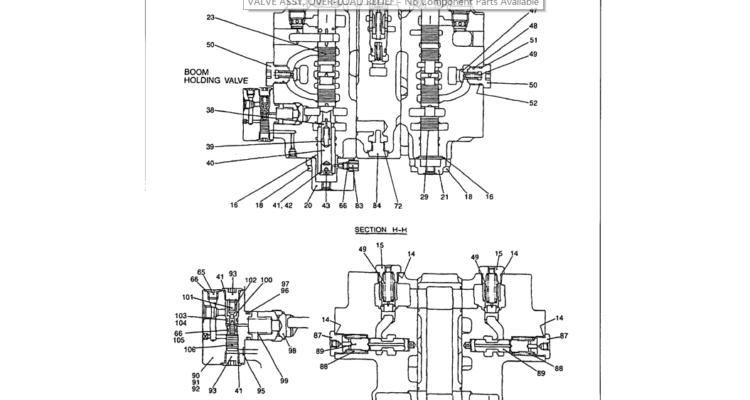

07-030 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 106 1 LS30V00002S106 PISTON 105 1 ZD85P01100 BACK-UP RING ID 11 x OD 15 x Th 1.25mm 104 1 ZD12P01250 O-RING ID 12.30…

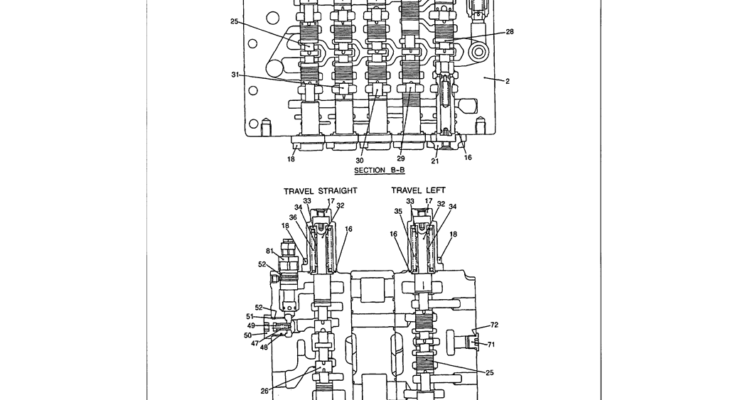

07-029 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS30V00002R260 SPOOL REPAIR KIT - Includes Ref 31, 32 - 35 1 LS30V00002R250 SPOOL REPAIR KIT - Includes Ref 30, 32 -…

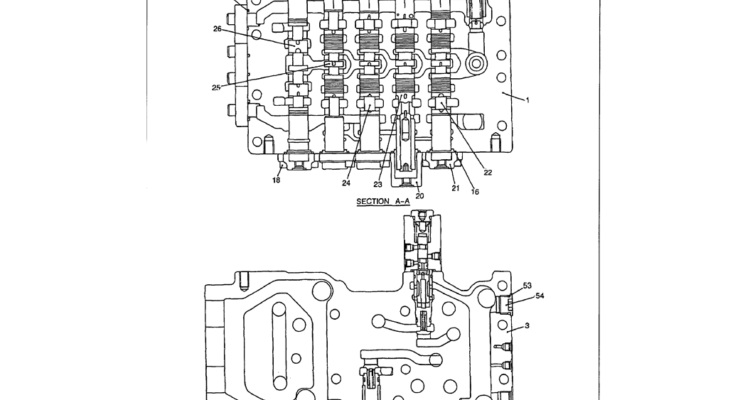

07-028 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS30V00002R140 SPOOL Includes Ref 26, 32 - 26 1 LS30V00002R220 SPOOL REPAIR KIT - Includes Ref 25, 32 - 35 1 LS30V00002R210…

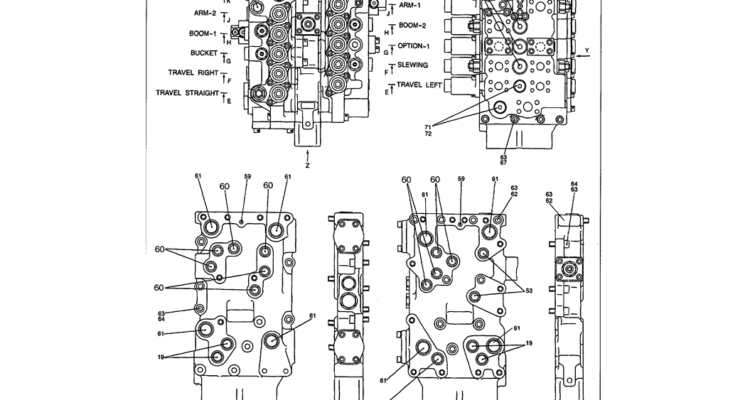

07-027 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 87 1 LS30V00002S087 CAP COVER 72 2 ZD12P02240 O-RING ID 22.10 ± 0.24 x OD 28.4mm 71 2 2436U2716S12 CAP COVER 69 1…

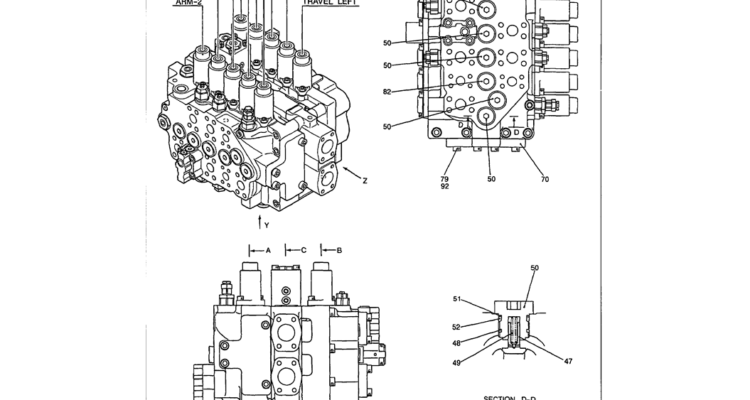

07-026 CONTROL VALVE ASSEMBLY P/N LS30V00002F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 92 4 LS30V00002S092 WASHER M14 87 1 LS30V00002S087 CAP COVER 82 1 LS30V00002S082 CAP COVER 79 4 ZS23C14045 SCREW M14x2.0x45mm 70 1 NSS…

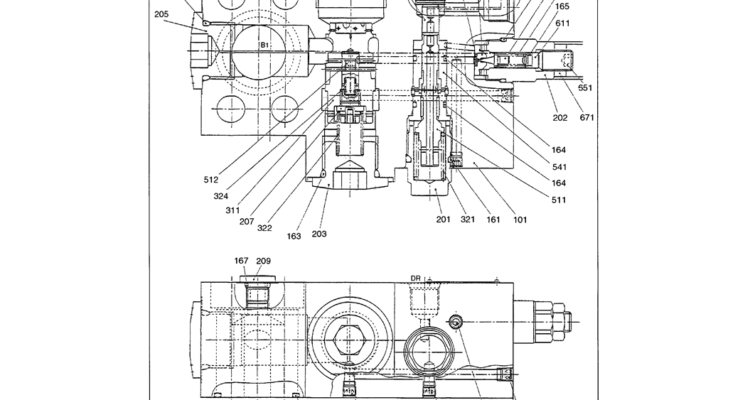

07-025 VALVE ASSEMBLY, HOLDING P/N LS28V00003F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 YN28V00008R300 REPAIR KIT Includes Ref 162, 165, 202, 312, 323, 611, 641, 651, 671, 691 1 YN28V00008R100 REPAIR KIT Includes Ref 207,…
