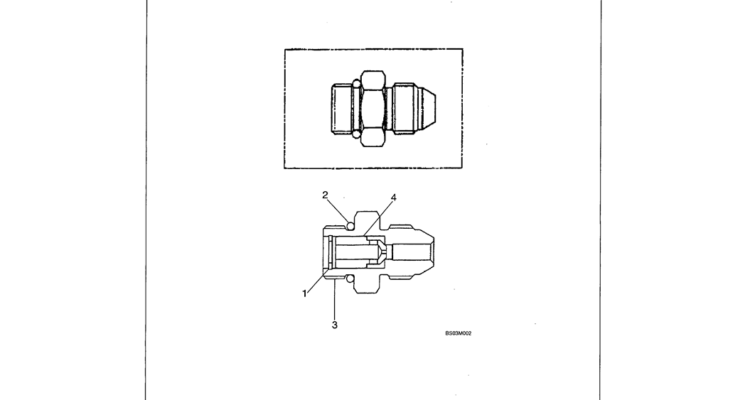

07-044 VALVE, SELECTOR P/N YN21V00005F5-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 1 YN21V00005S013 VALVE, CHECK -- (Orifice Ø1.3mm) 3 1 YN21V00005S012 CONNECTOR 1 1 EN35V00004S013 RETAINER VALVE, SOLENOID 1 YN21V00005F5 VALVE Check, (Incls. O-Ring…
07-043 VALVE, SELECTOR P/N 24100P2599F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 10 1 ZD85P06000 BACK-UP RING 8 2 ZD11G06000 O-RING ID 59.40 ± 0.61 x OD 65mm 7 1 ZD12P06000 GASKET O-RING 6 1 ZD12P05090…
07-042 SWIVEL JOINT ASSEMBLY P/N LS55V00001F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 13 2 2420Z1036D2 CLEVIS PIN 2.2x6.4mm 12 1 YN22T00194P1 TYPE PLATE NAME 11 2 ZE82T04000 PLUG 1/4" PT 10 1 ZE82T08000 PLUG 1/2"…

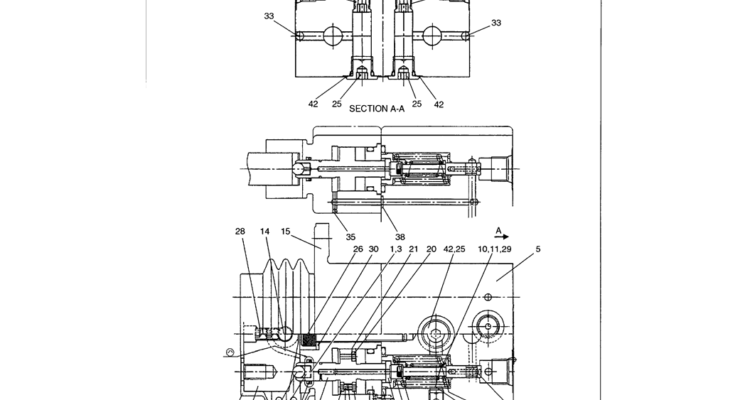

07-041 PILOT VALVE ASSEMBLY P/N YX30V00004F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 YX30V00004R200 REPAIR KIT Includes Ref 8, 10, 11, 18, 27, 29 42 3 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm…

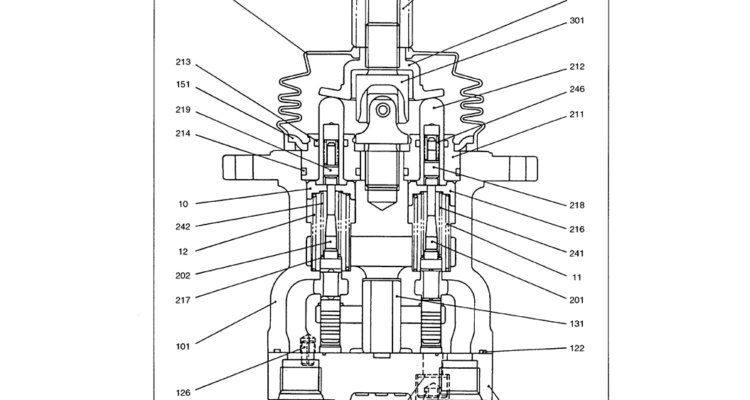

07-040 VALVE ASSEMBLY, PILOT P/N YT30V00008F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 YT30V00008R100 REPAIR KIT Includes Ref 122, 213, 214 501 1 YT30V00008S501 BOOT COVER 312 1 YT30V00008S312 NUT 302 1 YT30V00008S302 PLATE 301…
07-039 FILTER ASSEMBLY, INLINE P/N YN50V00011F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 YN50V00011R100 REPAIR KIT Includes Ref 2, 7, 8 8 1 NSS NOT SERVICED SEPARATELY BODY 7 1 NSS NOT SERVICED SEPARATELY RING,…

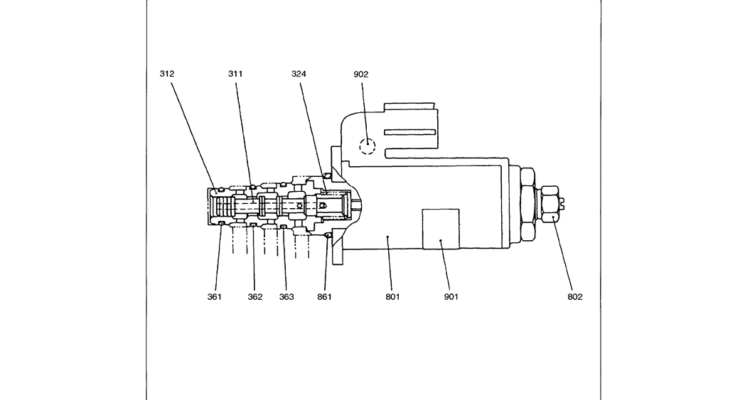

07-038 VALVE ASSEMBLY, SOLENOID P/N YN35V0002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 902 1 NSS NOT SERVICED SEPARATELY NAME PLATE 901 1 NSS NOT SERVICED SEPARATELY NAME PLATE 861 1 ZD12P02000 O-RING ID 19.80 ±…

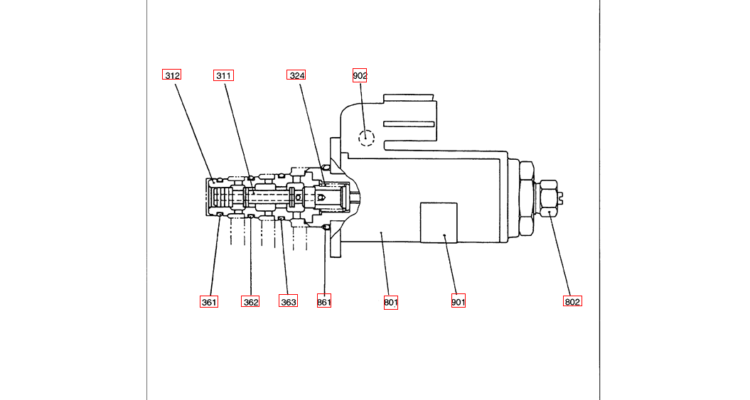

07-037 VALVE ASSEMBLY, SOLENOID P/N YN35V00020F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 902 1 NSS NOT SERVICED SEPARATELY NAME PLATE 901 1 NSS NOT SERVICED SEPARATELY NAME PLATE 861 1 ZD12P02000 O-RING ID 19.80 ±…

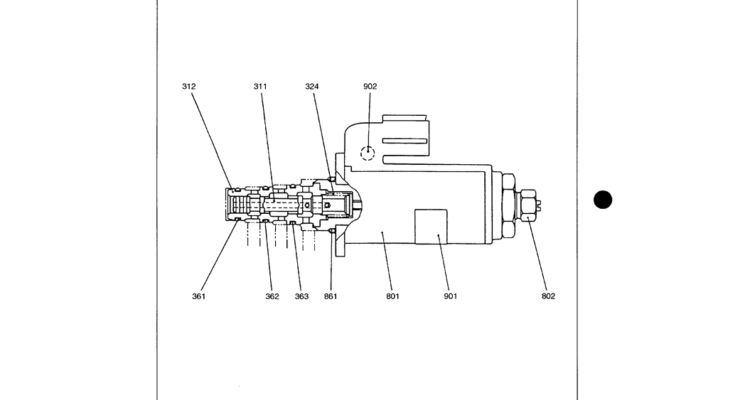

07-036 VALVE ASSEMBLY, SOLENOID P/N YN35V00019F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 902 1 NSS NOT SERVICED SEPARATELY NAME PLATE 901 1 NSS NOT SERVICED SEPARATELY NAME PLATE 861 1 ZD12P02000 O-RING ID 19.80 ±…

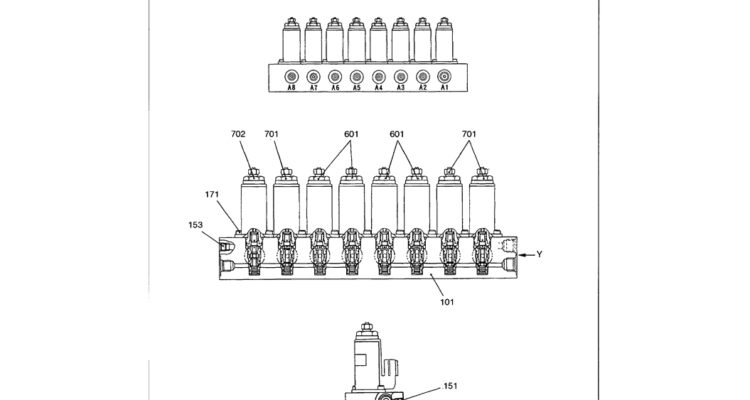

07-035 SOLENOID VALVE ASSEMBLY P/N YN35V0022F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 901 1 YA35V00001S901 PLATE NAME 702 1 YN35V00021F1 VALVE ASSY, SOLENOID - See Figure 07-038 701 3 YN35V00020F1 VALVE ASSY, SOLENOID - See…
