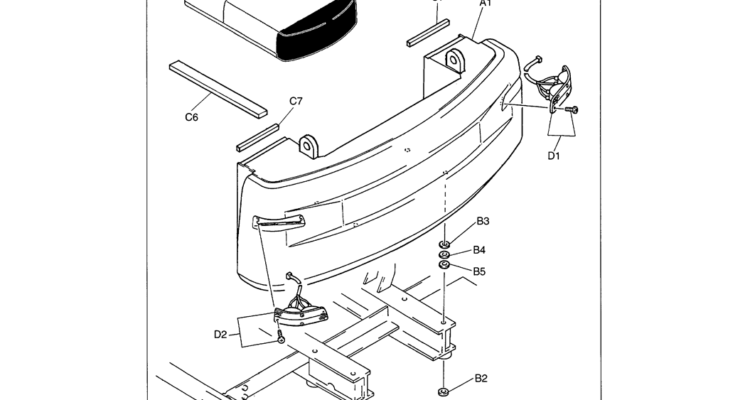

01-004 COUNTERWEIGHT ASSY MODELS WITH COUNTERWEIGHT REMOVER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals D2 1 YM80S00001F1 LAMP Flashing, SEE FIGURE 07-002 D1 1 YM80S00001F2 LAMP Flashing, SEE FIGURE 07-002 AR YM80E00003F1 LAMP INSTALLATION C7 2…
01-003 COUNTERWEIGHT ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals D2 1 YM80S00001F1 LAMP Flashing, SEE FIGURE 07-002 D1 1 YM80S00001F2 LAMP Flashing, SEE FIGURE 07-002 AR YM80E00003F1 LAMP INSTALLATION C6 1 LQ60C01140P1 FOAM INSULATION C3…
01-002 UPPER FRAME ASSEMBLY WITH COUNTERWEIGHT REMOVER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C1 1 LS52FU00006P1 FRAME, REWORK, UPPER - Not Illustrated B21 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm…

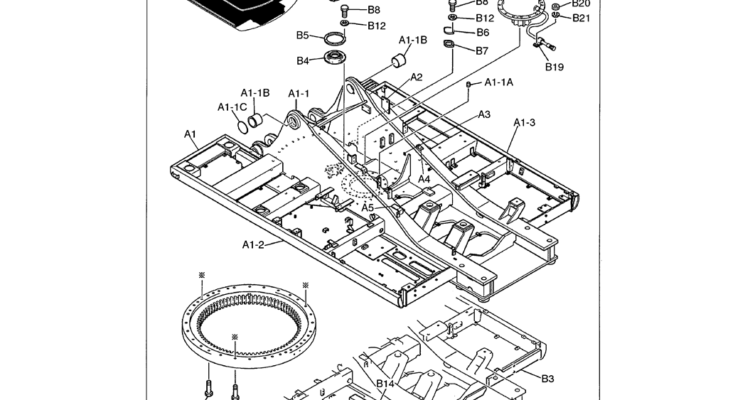

01-001 UPPER FRAME ASSEMBLY WITHOUT COUNTERWEIGHT REMOVER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B21 1 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm B20 1 ZN18C10008 NUT M10x1.50mm B19 1 ZC26X22011 CLAMP…

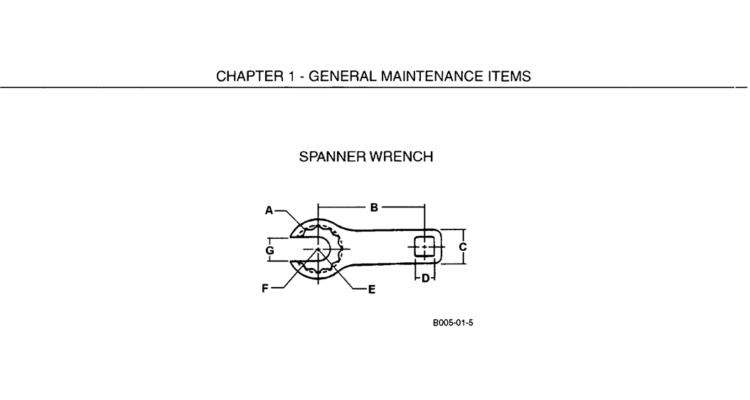

00-009 SPANNER WRENCHES-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 AR 2421T314 BOX SPANNER WRENCH, 35 mm (1.38 in) tube diameter, A=55 mm (2.17 in), B=90 mm (3.54 in), C=45 mm (1.77 in), D=20 mm…

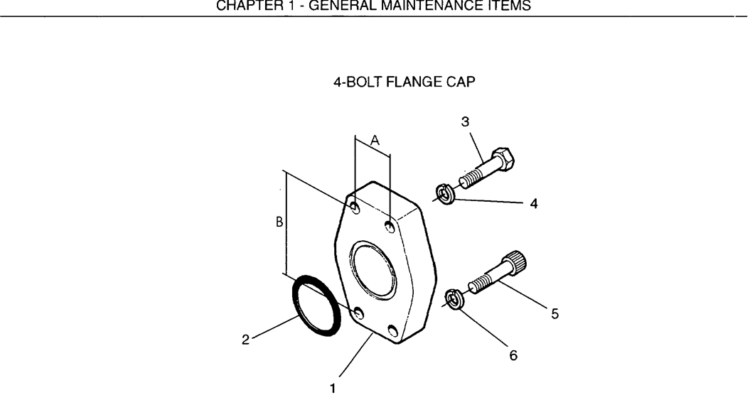

00-008 HYDRAULIC SERVICE COMPONENTS--4-BOLT FLANGE CAPS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1-5 AR ZW26K20000 WASHER 1-4 AR ZS23C20065 SCREW M20x2.5x65mm 1-3 AR ZW26X20000 LOCK WASHER 1-2 AR ZS18C20065 CAPSCREW, hexhead 1-1 AR 2445Z831D2 O-RING…

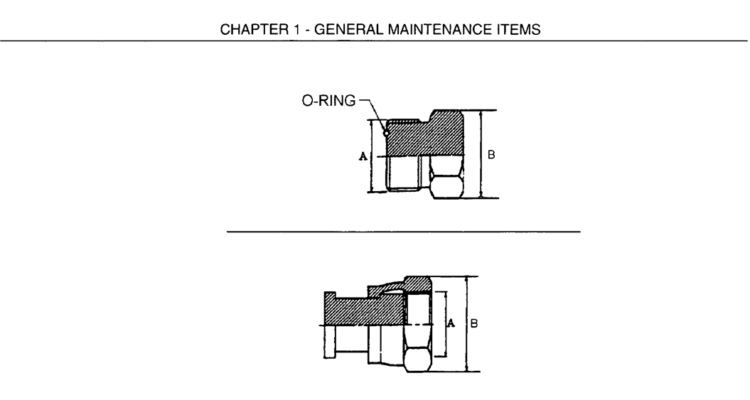

00-007 HYDRAULIC SERVICE COMPONENTS FITTINGS--MISCELLANEOUS FITTINGS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 7 AR YN01H01006P1 PLUG A = 34 mm inside diameter (1 in, 1-7/16 UNS), DIM B = 41 mm 7 AR YN01H01005P1 ARTICULATION…

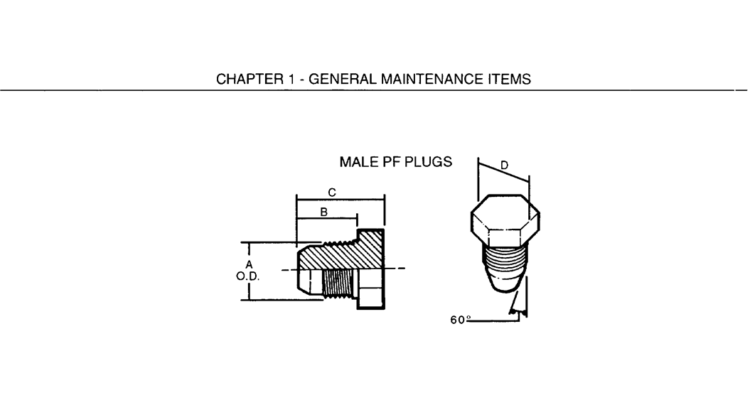

00-006 HYDRAULIC SERVICE COMPONENTS FITTINGS--MALE PF PLUGS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 5 AR 2444Z2728D5 PLUG 1"PFx36mm Long (No O-Ring supplied) 5 AR 2444Z2728D4 PLUG 3/4"PFx34mm Long (No O-Ring supplied) 5 AR 2444Z2728D3 PLUG…

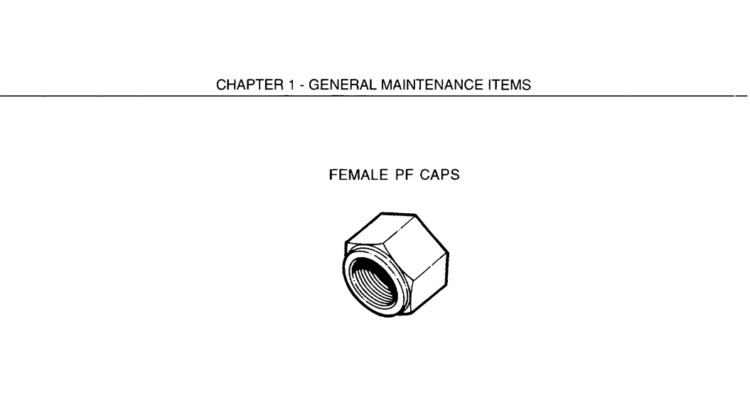

00-005 HYDRAULIC SERVICE COMPONENTS FITTINGS--FEMALE PF CAPS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 AR 2444Z2729D5 PLUG FEMALE CAP PF 1 inch 4 AR 2444Z2729D4 PLUG FEMALE CAP PF 3/4 inch 4 AR 2444Z2729D2 PLUG…

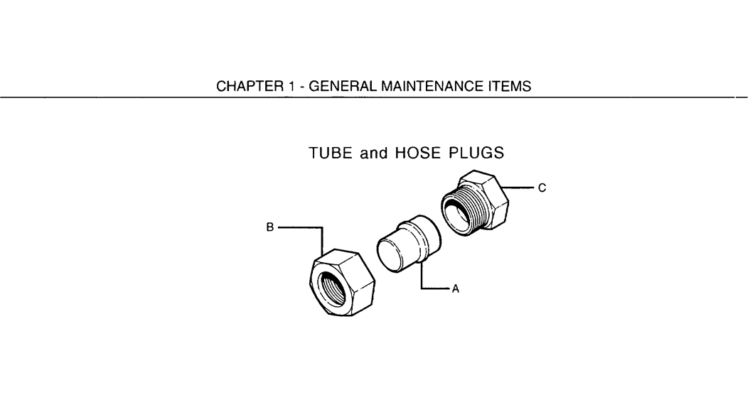

00-004 HYDRAULIC SERVICE COMPONENTS FITTINGS--TUBE AND HOSE PLUGS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 3C AR ZF83H35000 PLUG TUBE AND HOSE, EXTERNAL, 35 mm Diameter, For Tube End 3C AR 2444T1329D5 PLUG TUBE AND HOSE,…
