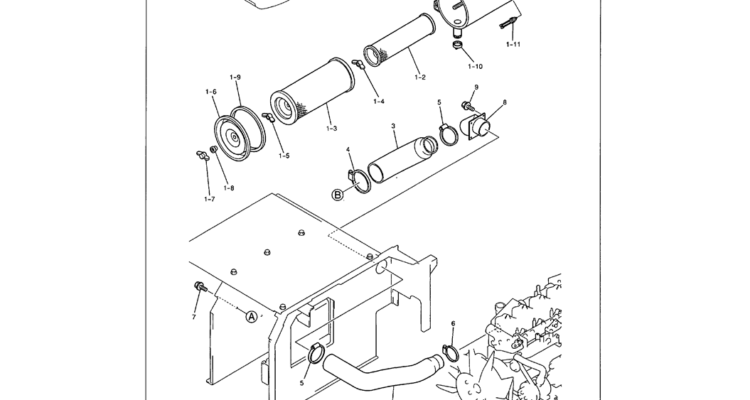

01-013 AIR CLEANER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 9 4 ZM22C10020 BOLT M10x1.50x20mm (Incls. Washer & Lockwasher) 8 1 LS11P01010P1 RIGID TUBE 7 4 ZM22C12030 BOLT M12x1.75x30mm (Incls. Washer & Lockwasher) 6 1…

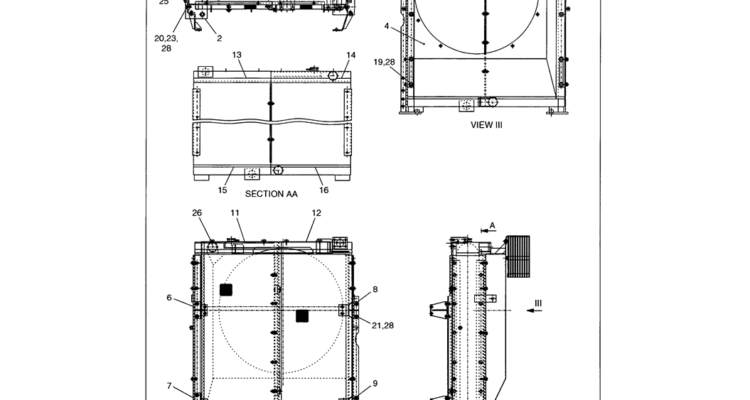

01-012 RADIATOR ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 29 5 2418T28292 WASHER 28 29 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm 26 6 2420R585D3 BOLT 25 6 ZW26X10000 LOCK WASHER ID…

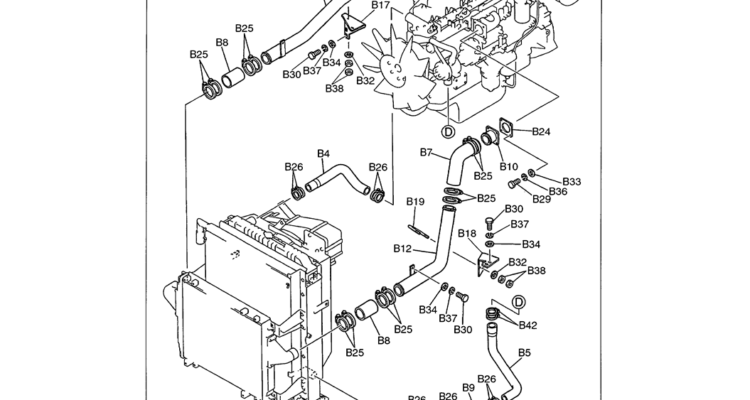

01-011 RADIATOR HOSES AND TUBES-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B42 2 ZC16X08100 CLIP B38 8 ZN18C08007 NUT M08x1.25mm B27 5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm B36 4…

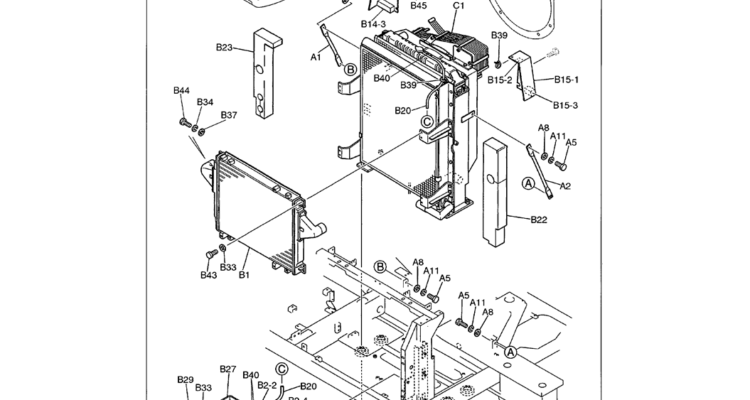

01-010 RADIATOR MOUNTING AND ATTACHING PARTS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C1 1 LS05P00011F1 RADIATOR ASSY, SEE FIGURE 01-012 B45 2 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm B44 1 ZS18C12025…

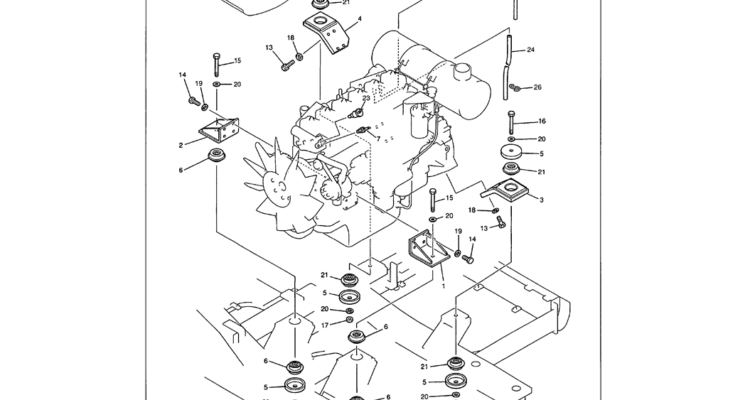

01-009 ENGINE MOUNTING-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 5 6 ZW16H08000 WASHER ID 08 x OD 18 x Th 3.2mm 4 6 ZS18C08030 SCREW M08x1.25x30mm 3 1 LS75S00001P1 FAN 1 1 LS02P00013F4 F4 ONLY…

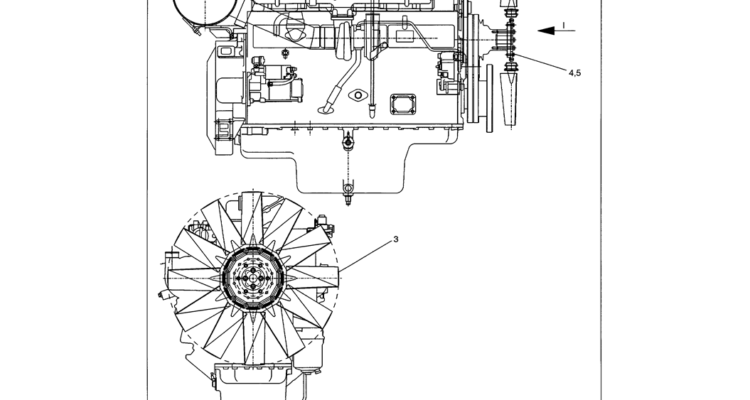

01-008 ENGINE ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 13F1 ENGINE F1 ONLY F4 AR LS02P00014F4 Engine Assy - Tropical With Countermeasure Exfoliating Bearing F3 AR LS02P00014F3 ENGINE ASSY - Standard With Countermeasure Exfoliating Bearing…

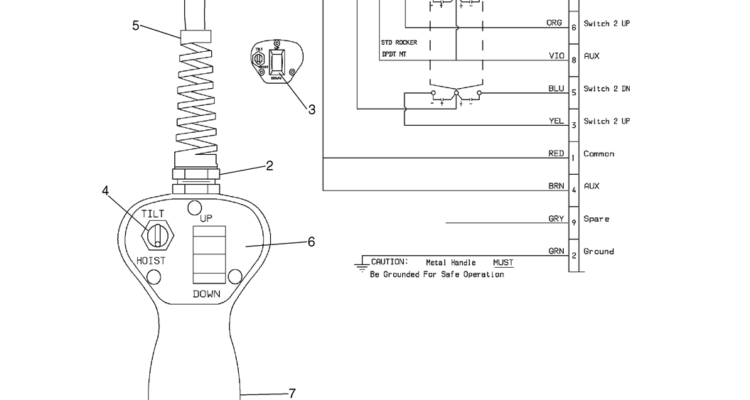

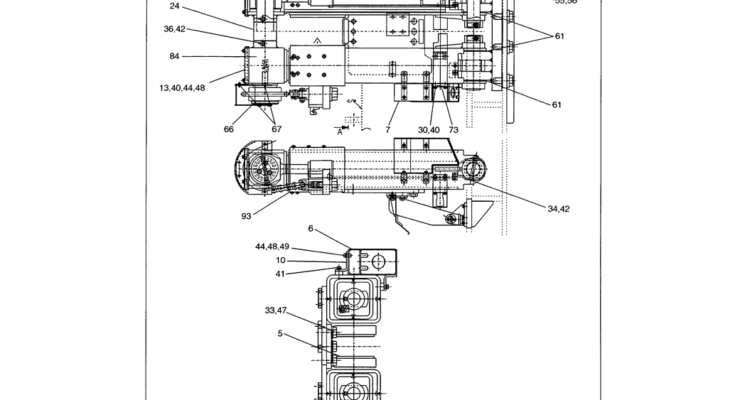

01-006(00) GRIP ASSEMBLY, COUNTERWEIGHT REMOVER SYSTEM, (LS13E01035F1)-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS13E01037P1 COVER Where controller plugs into machine 7 1 LS13EU1022P1 HOUSING HOUSING 5 1 LS50MU1002P1 BOOT BOOT 4 1 LS51SU0002P1 TOGGLE…

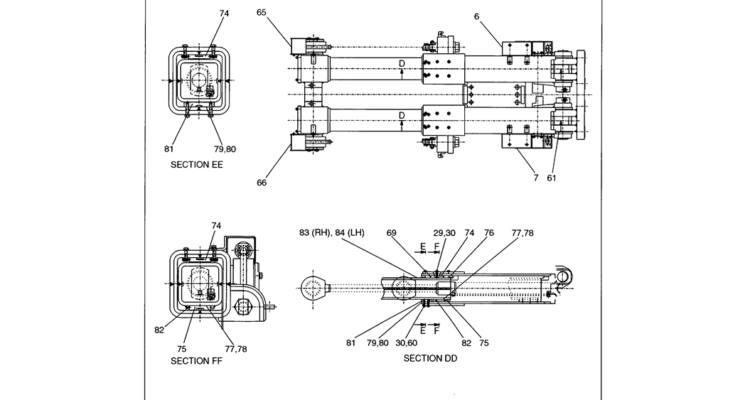

01-005(03) COUNTERWEIGHT REMOVAL SYSTEM, (LS61C00001F3)-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 84 1 LS61C01122P1 BOX - Left Hand 83 1 LS61C01121P1 BOX - Right Hand 82 4 ZS73C08016 SET SCREW, M08x1.25x16mm 81 2 LS61C01117P1 PLATE…

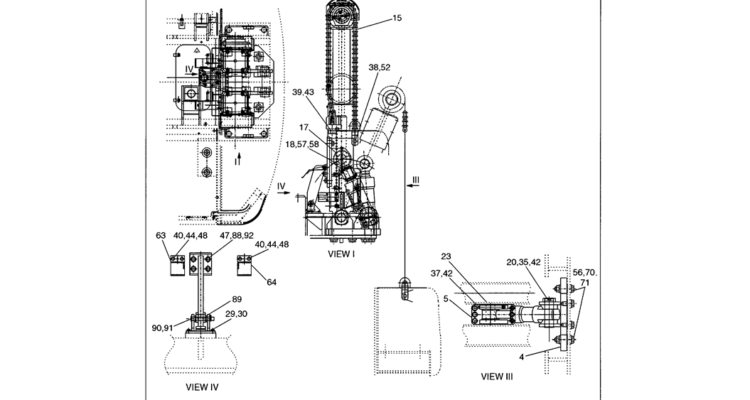

01-005(02) COUNTERWEIGHT REMOVAL SYSTEM, (LS61C00001F3)-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 92 4 ZS13C30045 CAPSCREW, M30x3.50x45mm 91 1 LS61C01130P1 RETAINER PIN 90 1 LS61C01129P1 PIN PIN 89 1 LS61C01128P1 BRACKET 88 1 LS61C01127P1 BRACKET 87…
01-005(01) COUNTERWEIGHT REMOVAL SYSTEM, (LS61C00001F3)-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 93 1 LS61C01125P1 CASE ASSY 84 1 LS61C01122P1 BOX 83 1 LS61C01121P1 BOX 73 1 LS61C01106P1 COVER 72 1 LS61C01105P1 COVER 67 8 ZM22C08025…
