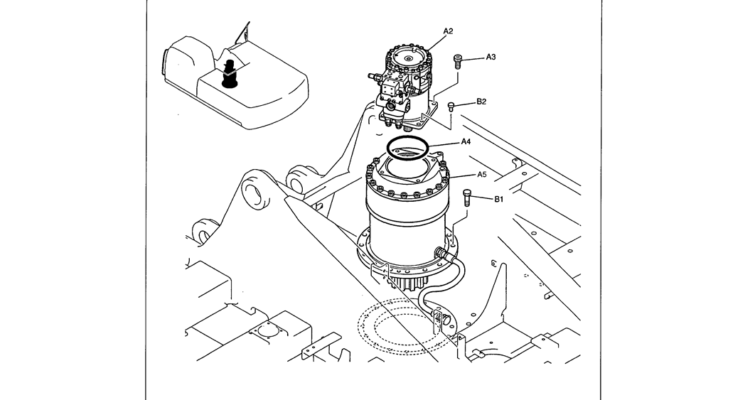

01-022 SWING MOTOR INSTALLATION-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B2 2 PV02B01073D3 CAP 10.7mm Plastic B1 16 2420P1613D6 SCREW M24x2.0x80mm A5 1 24100J13532F6 HYDRAULIC MOTOR See Figure 01-023 A4 1 ZD11G26000 O-RING ID 259.30…

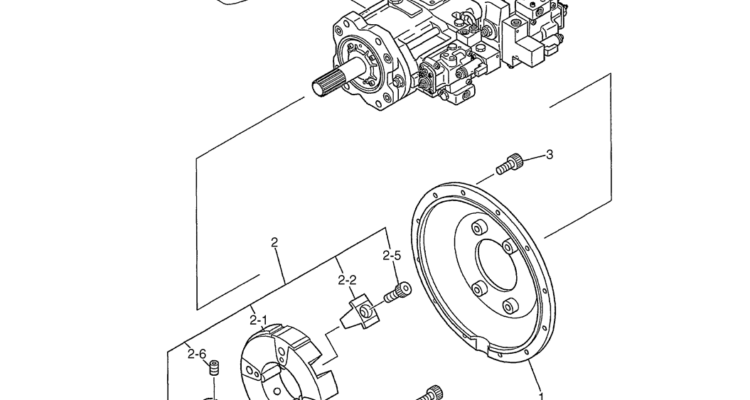

01-021 POWER TAKE-OFF ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZS23C20060 SCREW M20x2.5x60mm 3 12 ZS23C10035 SCREW M10x1.50x35mm 2-7 12 LS30P01001S007 PIN M08x16mm 2-6 2 LS30P01001S006 SET SCREW M20x25mm 2-5 8 LS30P01001S005 SCREW…

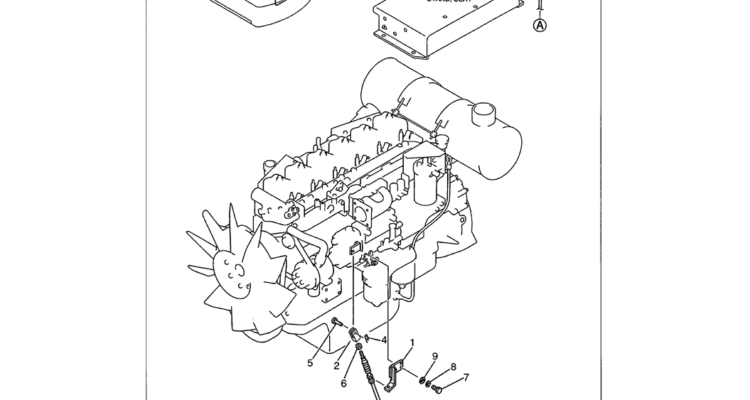

01-020 ENGINE CONTROL ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 14 1 ZS18C10020 SCREW M10x1.50x20mm 13 1 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 12 1 ZC46X12011 CLIP Clamp, Single Line --…

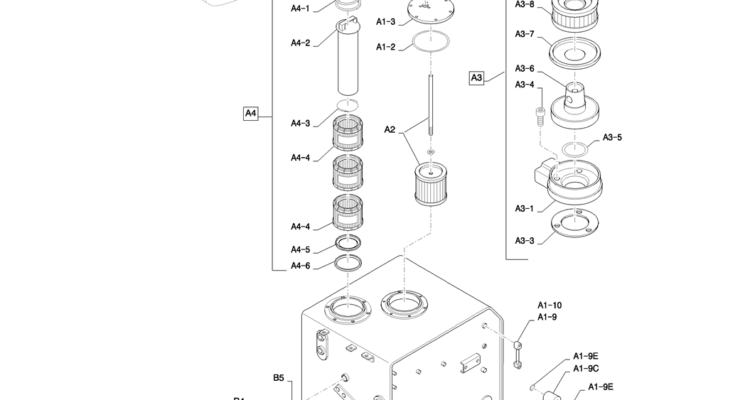

01-019(02) HYDRAULIC TANK ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B7 1 LS21V00001F1 HYDRAULIC VALVE CHECK B6 1 LS21V00002F1 HYDRAULIC VALVE CHECK B5 1 YN33H01052P1 SEAL B4 1 YN52S00023P1 SENSOR SWITCH, LEVEL (SW-25) B3 3…
01-019(01) HYDRAULIC TANK ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B7 1 LS21V00001F1 HYDRAULIC VALVE CHECK B6 1 LS21V00002F1 HYDRAULIC VALVE CHECK B5 1 YN33H01052P1 SEAL B4 1 YN52S00023P1 SENSOR SWITCH, LEVEL (SW-25) B3 3…

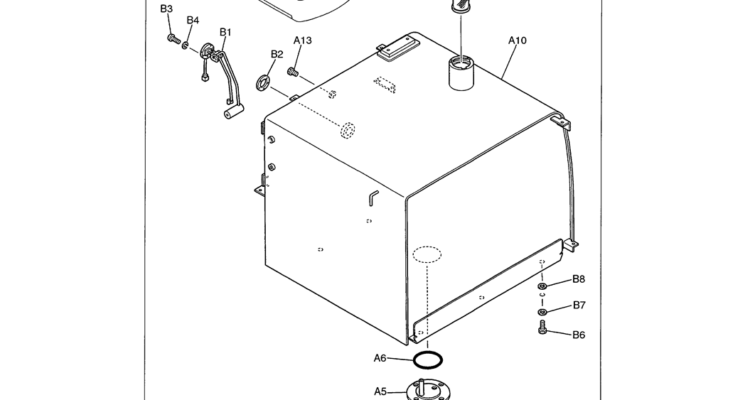

01-018 FUEL TANK ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B8 5 HY25X24050G1 SHIM (1.0) B7 6 ZW13H20000 WASHER ID 20 x OD 40 x Th 4.5mm B6 6 ZS13C20045 SCREW M20x2.50x45mm B5 1 YN20P01117P1…

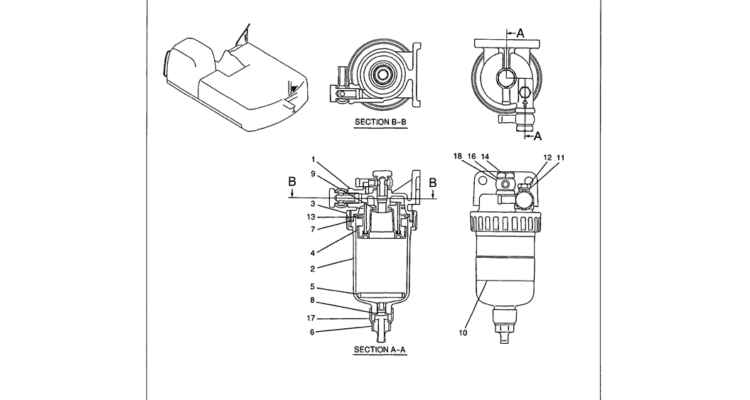

01-017 FILTER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 18 2 2446U234S18 FLEXIBLE JOINT SWIVEL 17 1 2446U234S17 CUP 16 4 2446U234S16 GASKET 14 2 2446U234S14 SCREW 13 2 2446U234S13 STRAINER ELEMENT SCREEN ASSY 12…

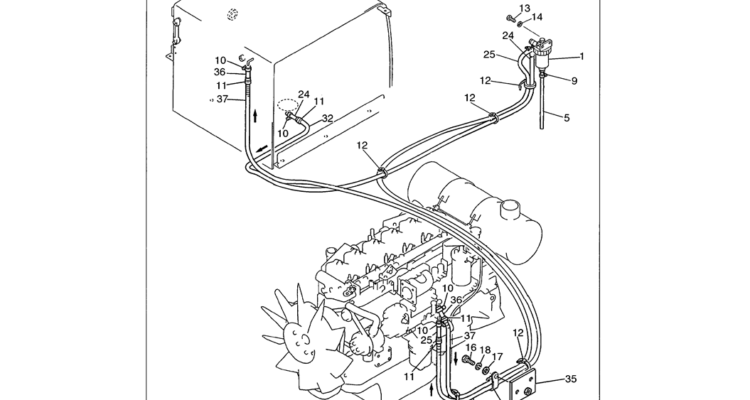

01-016 FUEL LINES MODELS WITH COUNTERWEIGHT REMOVER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 37 1 HX81X19470DX PIPE TUBE - 4700 mm long 36 1 2444R2492D480 HOSE - 4800 mm long 35 1 LS21P01002P1 BRACKET 33…

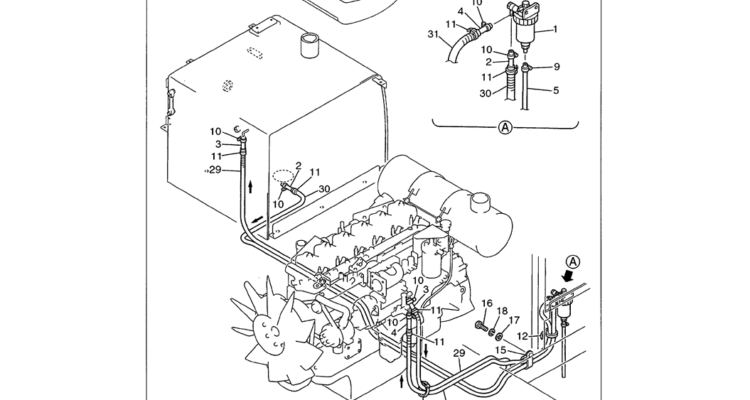

01-015 FUEL LINES MODELS WITHOUT COUNTERWEIGHT REMOVER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 31 1 HX81X19190DX TUBE 1900 mm long 30 1 HX81X19380DX FUEL TUBE TUBE - 3800 mm long 29 1 HX81X19430DX TUBE 4300mm…

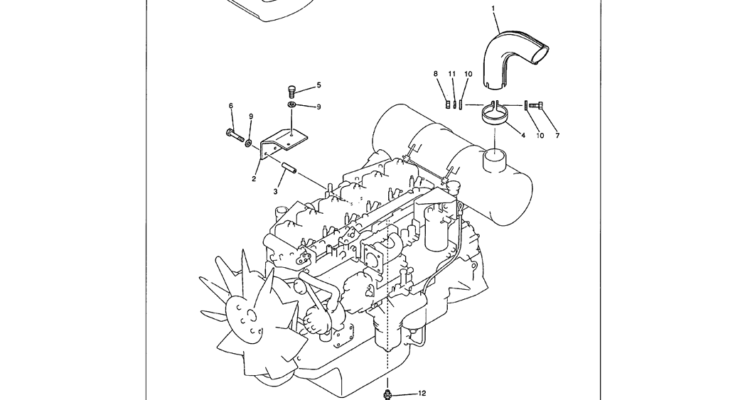

01-014 MUFFLER ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 14 1 ZC16X01200 CLIP Clamp, Hose -- Min 08 x Max 15mm 13 1 HX11Y07100DX FLEXIBLE HOSE ID 11 x OD 12 x 1000mm Long 12…
