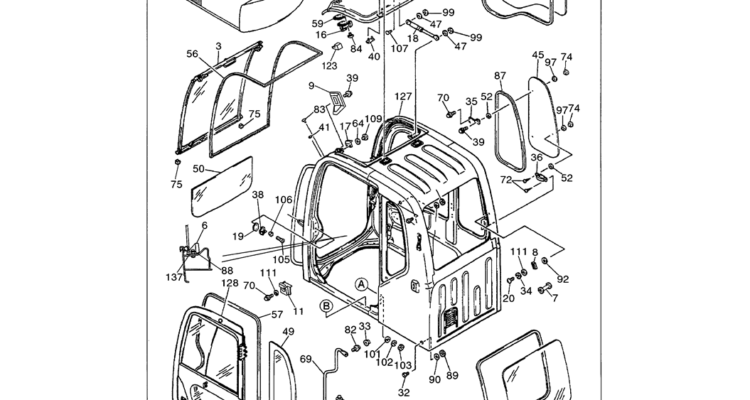

01-091 CAB ASSY GLASS AND DOORS (YN02C00103F2)-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 137 2 YN02C02186P1 SPACER 135 1 YT02C01515D1 TRIM PANEL Not Illustrated 131 1 YT02C01514D2 SEAL Not Illustrated 128 1 YN51C00010F2 DOOR ASSY.…

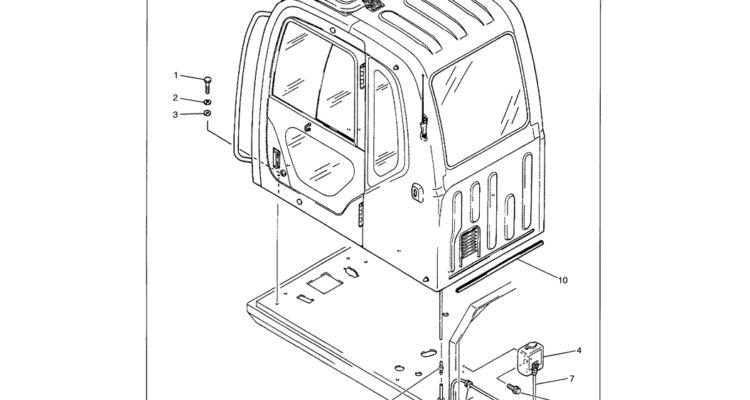

01-090 CAB MOUNTING-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 11 1 YN02C00103F2 CAB ASSY - SEE FIGURES 01-091 - 01-092 10 1 2427Z1594D078 TRIM PANEL 9 1 YT02C01282P1 ELEC CONNECTOR 30mm Long (1-13/16 in) 7…

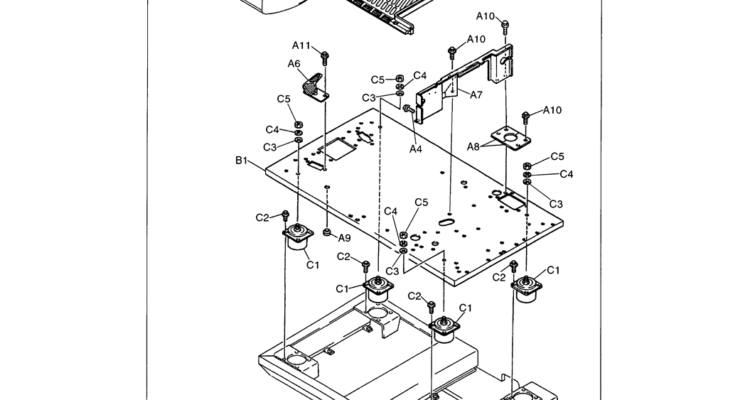

01-089 FLOOR PLATE GROUP BREAKER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C5 4 ZN18C16013 NUT M16x2.0mm C4 4 ZW26X16000 LOCK WASHER ID 16 x OD 28 x Th 4.0mm C3 4 ZW16H16000 WASHER ID 17…

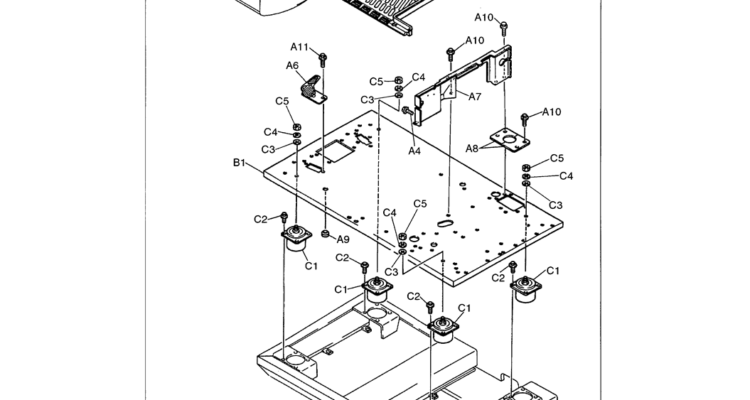

01-088 FLOOR PLATE GROUP NIBBLER AND BREAKER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C5 4 ZN18C16013 NUT M16x2.0mm C4 4 ZW26X16000 LOCK WASHER ID 16 x OD 28 x Th 4.0mm C3 4 ZW16H16000 WASHER…

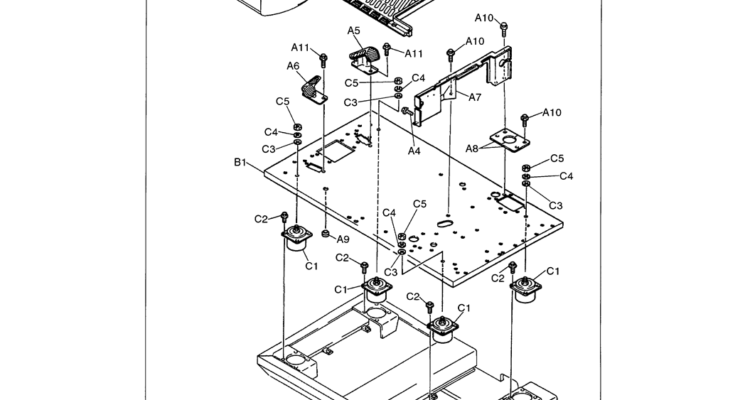

01-087 FLOOR PLATE GROUP STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C5 4 ZN18C16013 NUT M16x2.0mm C4 4 ZW26X16000 LOCK WASHER ID 16 x OD 28 x Th 4.0mm C3 4 ZW16H16000 WASHER ID 17…

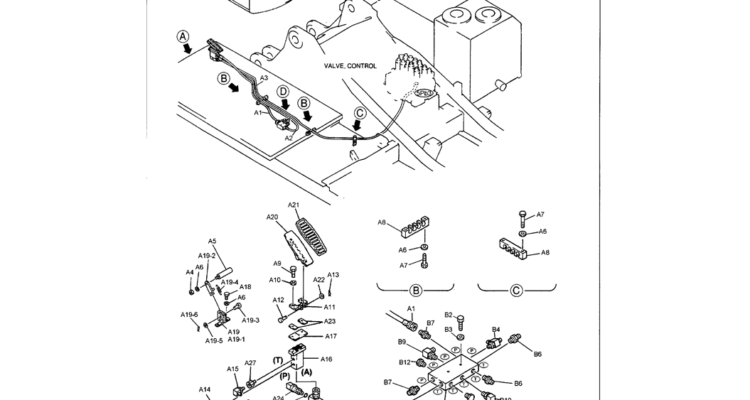

01-086 REMOTE CONTROL LINES BREAKER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B13 1 ZE72X06000 PLUG 3/8" PF, (Incls. O-Ring ZD12P01400) B12 1 ZE72X04000 PLUG (PF 1/4) (Incls. O-Ring ZD12P01100) B11 1 2416N6141 BLOCK B10 1…

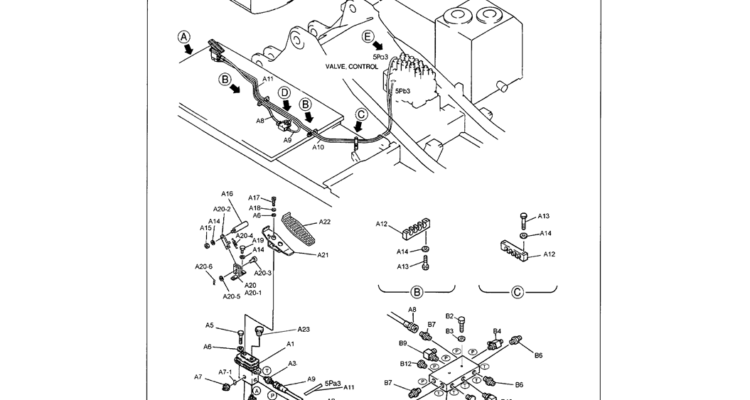

01-085 REMOTE CONTROL LINES NIBBLER AND BREAKER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B13 1 ZE72X06000 PLUG 3/8" PF, (Incls. O-Ring ZD12P01400) 12 1 ZE72X04000 PLUG (PF 1/4) (Incls. O-Ring ZD12P01100) B11 1 2416N6141 BLOCK…

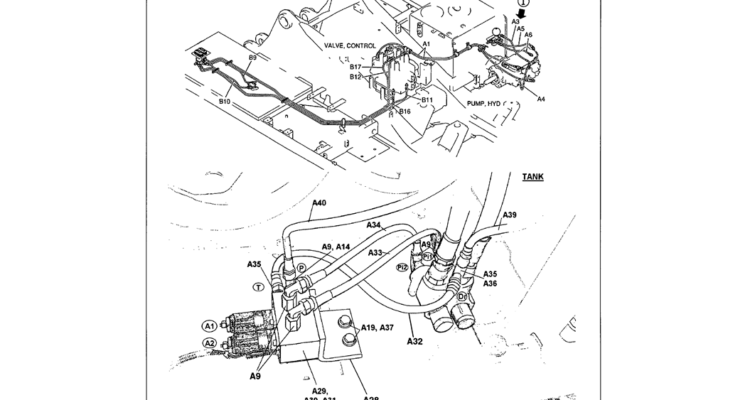

01-084 REMOTE CONTROL LINES HOSES AT SOLENOID VALVE-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B17 1 2420R537D390 HOSE (3/8" PF), 3900mm Long (153-1/2 in) B16 1 2420R537D340 HOSE ASSY. 3400 mm long B12 1 2420R537D400…

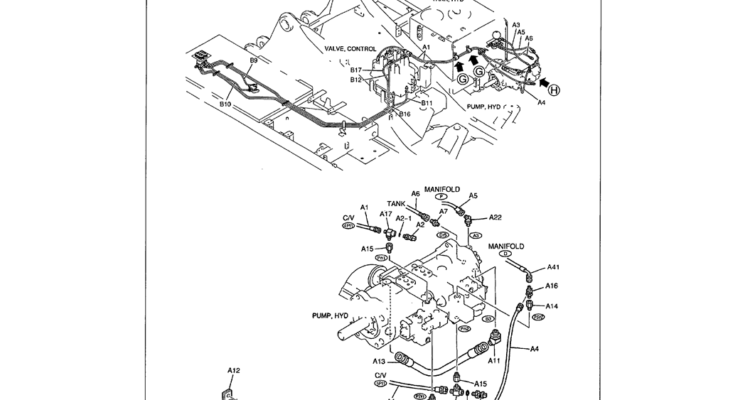

01-083 REMOTE CONTROL LINES HOSES AT PUMP-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B17 1 2420R537D390 HOSE (3/8" PF), 3900mm Long (153-1/2 in) B16 1 2420R537D340 HOSE ASSY. 3400 mm long B12 1 2420R537D400 FLEXIBLE…

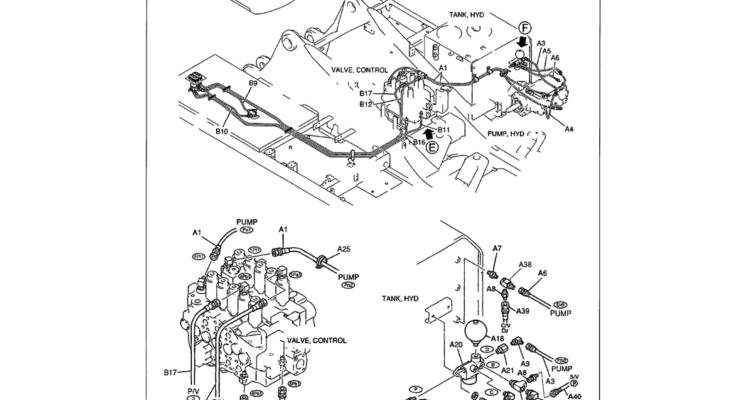

01-082 REMOTE CONTROL LINES TO CONTROL VALVE AND FILTER ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B17 1 2420R537D390 HOSE (3/8" PF), 3900mm Long (153-1/2 in) B16 1 2420R537D340 HOSE ASSY. 3400 mm long B12…
