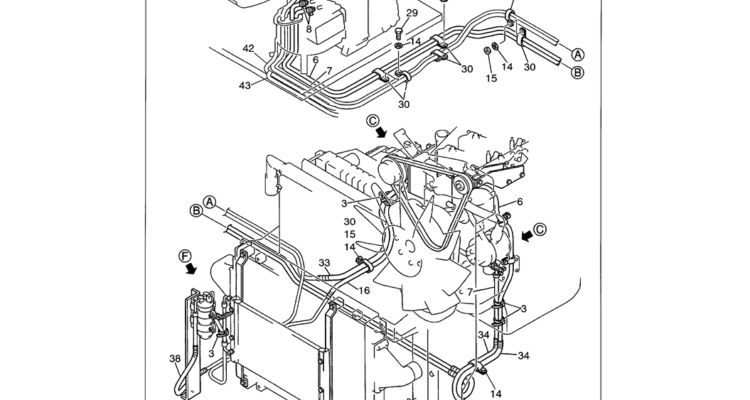

01-111 AIR CONDITIONER P/N LS20M00012F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 43 1 HX81X19040DX TUBE 400 mm long 42 1 HX81X25045DX TUBE TUBE - 450 mm long 38 1 HX81X19100DX TUBE TUBE - 1000 mm…

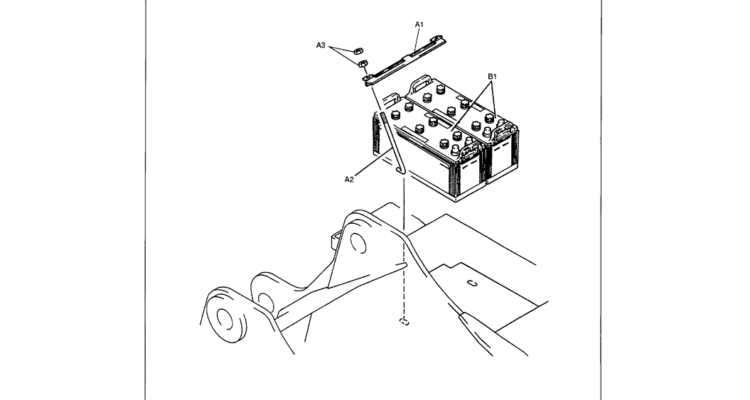

01-110 BATTERY INSTALLATION-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B1 2 2411U22 BATTERY BATTERY A3 4 ZN18C08007 NUT M08x1.25mm A1 1 LB72E01001P1 BRACKET AR LB72E00001F1 BATTERY INSTALLATION A2 2 2420T7352 ROD …

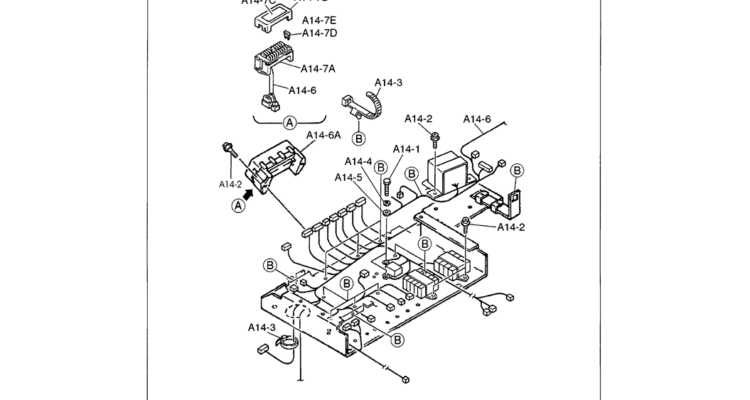

01-109 CONTROLLER GROUP HARNESS ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals A14-7E 9 2479R655S9 FUSE 20 Amp A14-7D 13 2479R655S8 FUSE 10 Amp A14-7C 1 LC73E01008P1 LABEL A14-7B 1 YN73E00001S002 COVER A14-7A 1 YN73E00001S001 BASE…

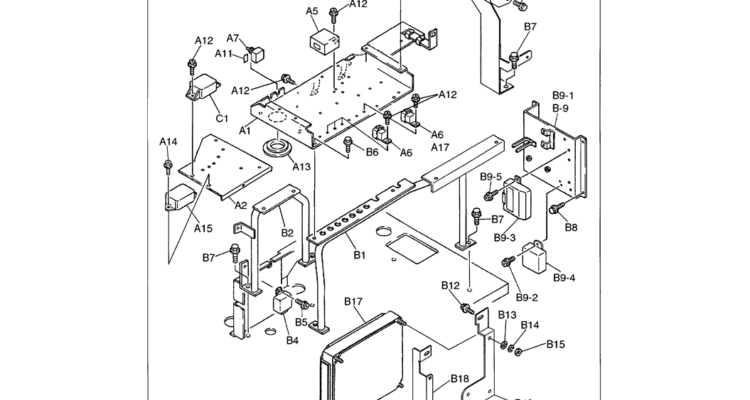

01-108 CONTROLLER GROUP-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C2 1 NSS NOT SERVICED SEPARATELY CONTROLLER - See Engine Chapter 9, MITSUBISHI COMPONENTS C1 1 NSS NOT SERVICED SEPARATELY STARTER SAFETY RELAY - See Engine…

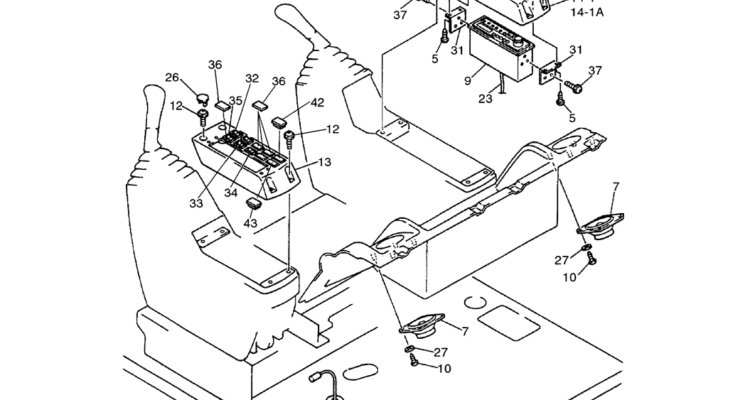

01-107 INSTRUMENT PANEL ASSY CONTROL BOXES-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 43 1 LS80E00001D2 LIGHT ASSY - Orange 42 1 LS80E00001D1 LIGHT ASSY - Red 41 1 2420Z1330 GROMMET 38 1 YN17M01143P1 PLATE 37…

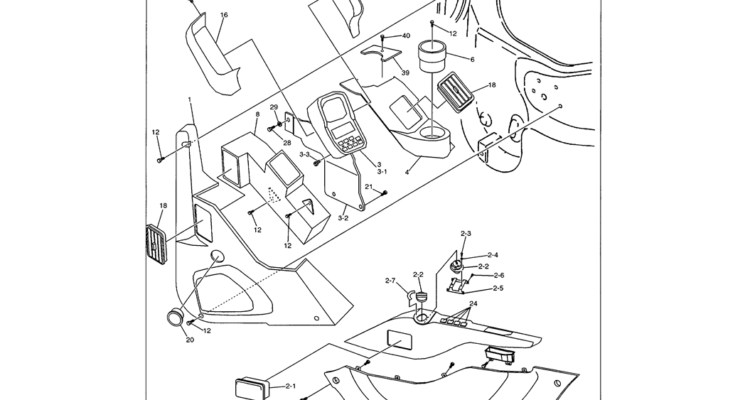

01-106 INSTRUMENT PANEL ASSY COVERS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 40 1 YN17M01154P1 SCREW MACHINE 39 1 YN17M01153D2 COVER 29 1 ZW11X08000 WASHER ID 09 x OD 17 x Th 1.6mm 28 1 ZS11C08016…

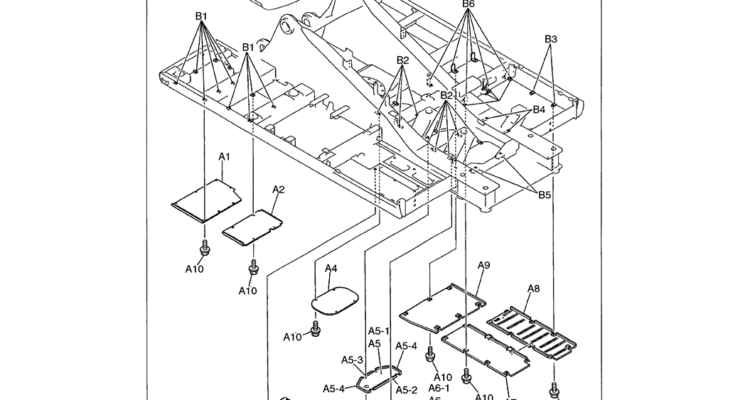

01-105 UNDER COVER ASSY STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B6 6 LW52F01120P1 SUPPORT B5 2 LS52F01031P1 SUPPORT B4 2 LS52F01038P1 BLOCKED, TAPPED B3 2 2416T13049D1 U-BRACKET B2 10 2416T13049D8 U-BRACKET TAPPED B1 15…

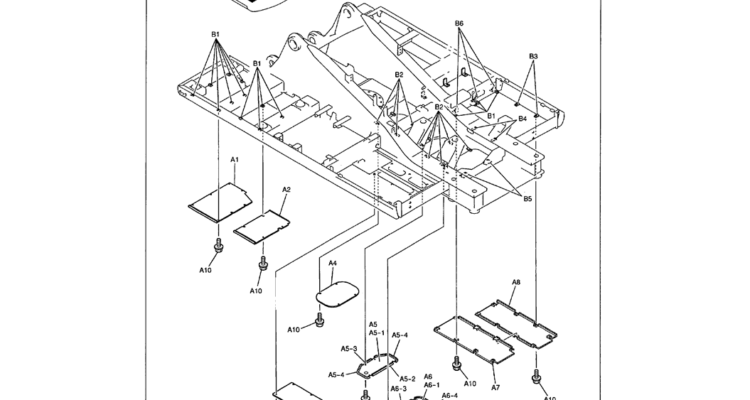

01-104 UNDER COVER ASSY TROPICAL-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B6 3 LW52F01120P1 SUPPORT B5 2 LS52F01031P1 SUPPORT B4 2 LS52F01038P1 BLOCKED, TAPPED B3 2 2416T13049D1 U-BRACKET B2 10 2416T13049D8 U-BRACKET TAPPED B1 15…

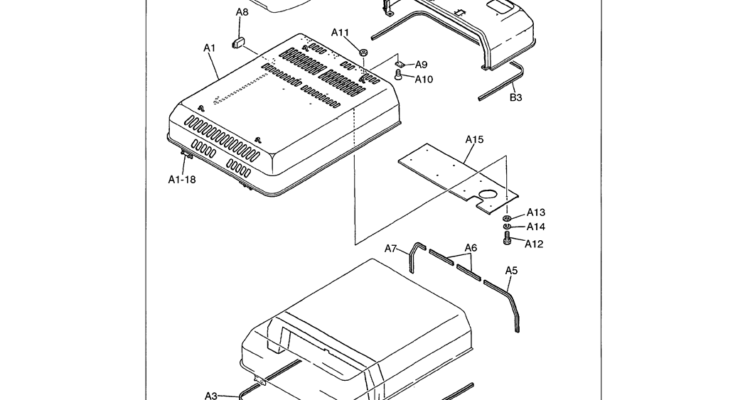

01-103 HOOD ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B3 1 YN22C01099DC INSULATING PANEL STRIP, WEATHER B1 1 LS22C01026P1 ENGINE HOOD 1 LS22C00006F2 ENGINE HOOD ASSY A15 1 LS22C01043P1 GUARD ASSY, F1 ONLY A14 8…

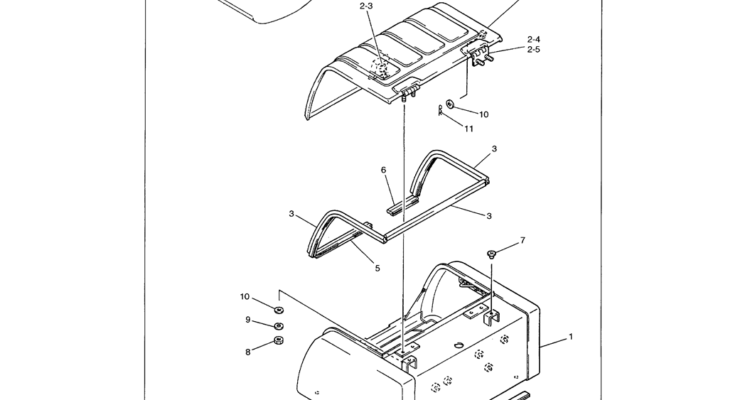

01-102 COVER ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 13 1 2420R429D11 GROMMET 12 1 YN21C01135D1 SEAL SHEET RUBBER 11 1 2419R9D2 COTTER PIN OD 08mm x 27.7mm Long 10 5 ZW16X10000 WASHER ID 10…
