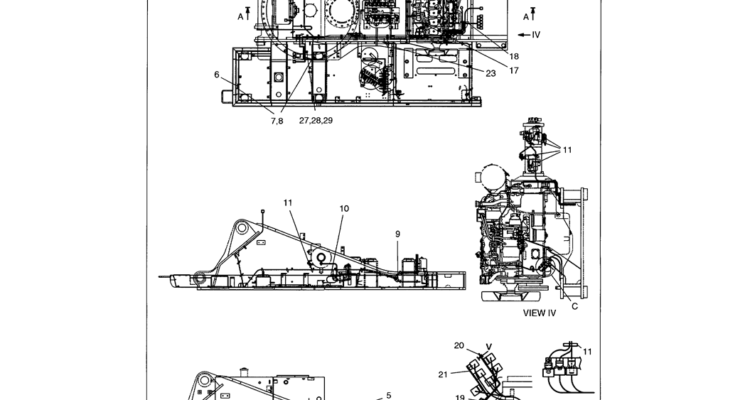

01-121 HARNESS ASSY P/N LS13E00016F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 29 1 ZS18C10030 SCREW M10x1.50x30mm 28 1 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 27 2 ZC46X38014 CLIP Clamp -- Ø38.1mm…

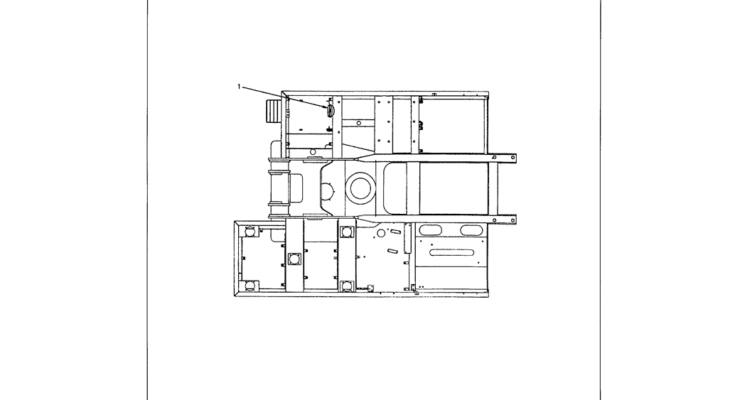

01-120 UPPER LIGHT INSTALLATION-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals AR YN80E00025F1 LIGHT UPPER INSTALLATION 1 1 2456R248 LIGHT Includes Nut Kobelco Part Number Information parts manager pro is the electronic…

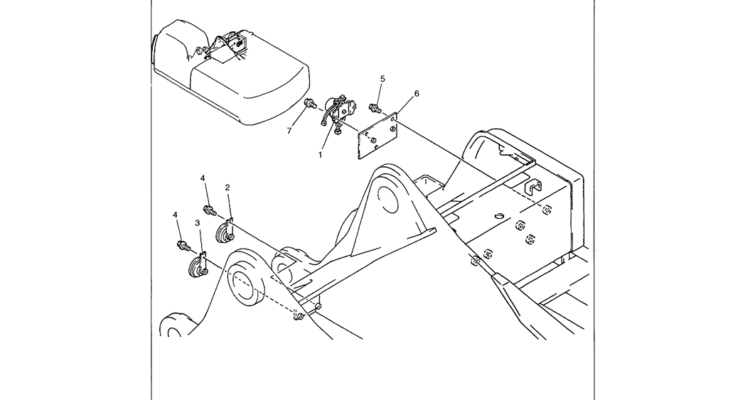

01-119 UPPER ELECTRICAL ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 7 2 ZM22C08030 BOLT M08x1.25x30mm (Incls. Washer & Lockwasher) 6 1 YN03E01014P1 BRACKET 5 3 ZM22C08020 BOLT M08x1.25x20mm (Incls. Washer & Lockwasher) 4 2 ZM11C08025…

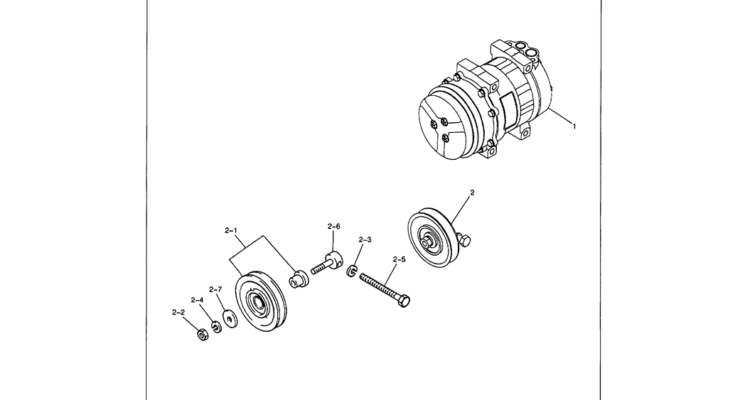

01-118 AIR COMPRESSOR ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 2-7 1 24100U1176S19 STOP 2-6 1 YX20M01029S006 SHAFT 2-5 1 24100U1176S18 BOLT 2-3 1 24100U1176S27 LOCK WASHER M08 2-2 1 24100U1176S25 NUT M10 2-1 1…

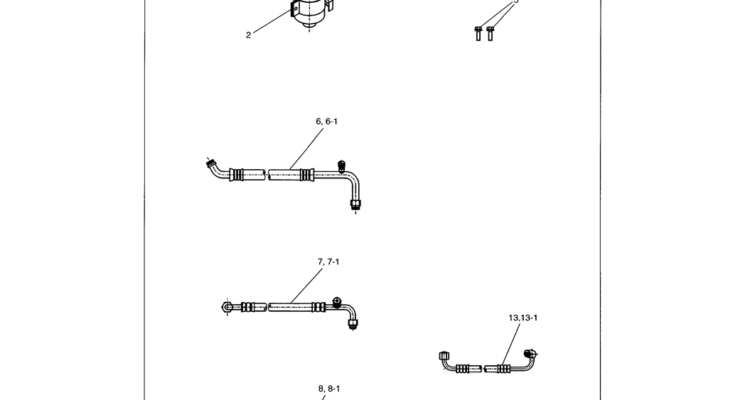

01-117 AIR DRYER ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 13-1 2 2445Z1604D6 O-RING 08mm 13 1 LS20M01063F1 HOSE Drier to condenser 8-1 2 2445Z1604D6 O-RING 08mm 7-1 2 2445Z1604D4 O-RING 1/2 in 7 1…

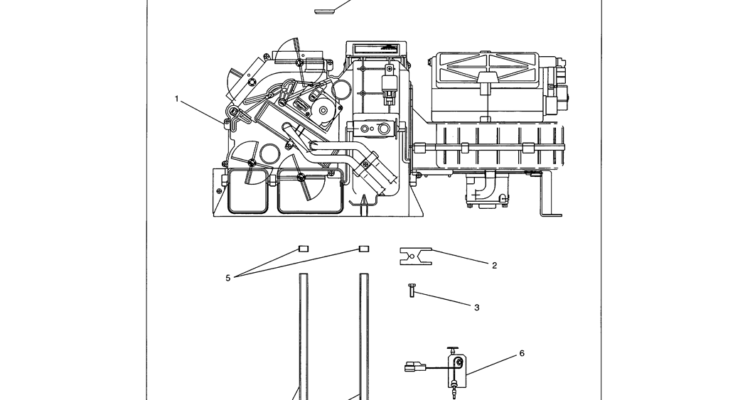

01-116 AIR CONDITIONER ASSY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 9 1 YT20M00009S006 CAP 8 2 YN20M00016S078 CLIP 5 2 24100U1176S5 CLAMP 4 2 LC20M01014D1 HOSE ID 11 x OD 15 x 300mm 3 1…

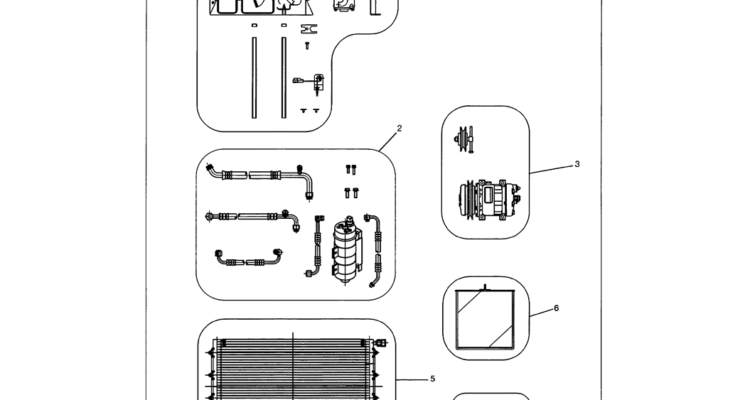

01-115 AIR CONDITIONER GROUPS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 7 1 YN20M01299P1 PANEL 6 1 YN50V01006P1 ELEMENT FRESH AIR (not HEPA) 5 1 YN20M01354P1 CONDENSER 2 1 LS96V00003F4 RECEIVER-DRYER ASSY, AIR - See Figure…

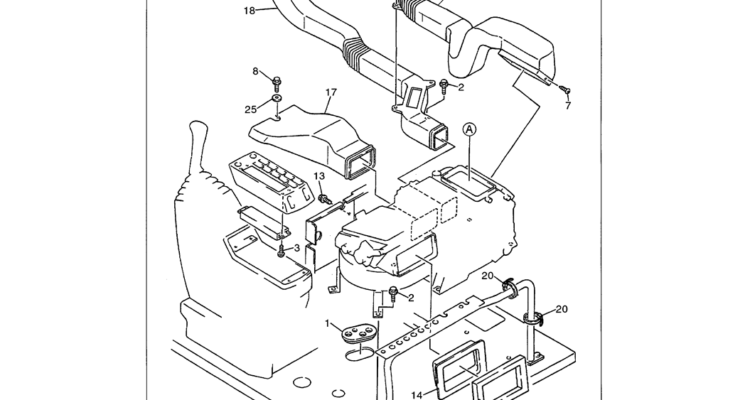

01-114 AIR CONDITIONER INSTALLATION DUCTS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 25 1 2418T12346 WASHER ID 11 x OD 30 x Th 3.2mm 24 1 YN20M01271P1 RUBBER 20 2 PY01P01043D3 CLIP Wire Ties -- 188mm…

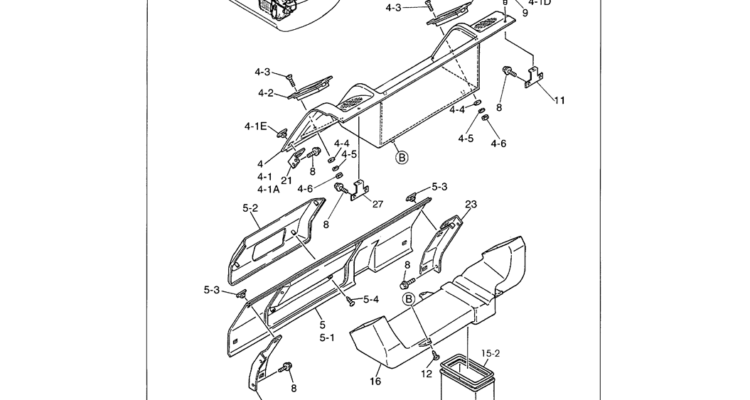

01-113 AIR CONDITIONER INSTALLATION COVERS-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 27 1 YN17M01155P1 BRACKET 26 1 YN18S01001P1 SOCKET 23 1 YN20M01275P1 SUPPORT 22 1 YN20M01274P1 SUPPORT 21 1 YN20M01248P1 SUPPORT 16 1 YN20M01334F1 DUCT…

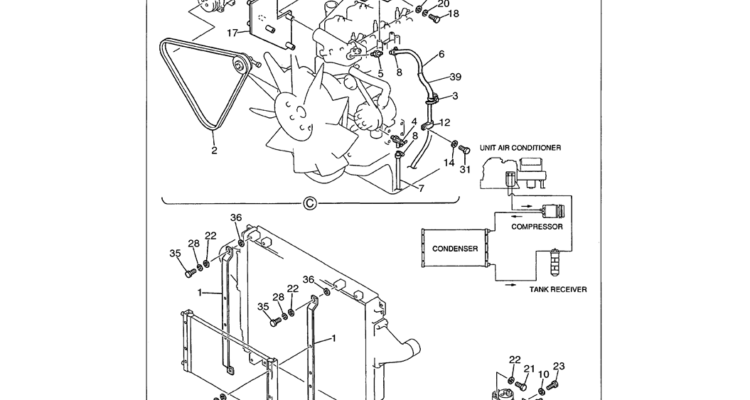

01-112 AIR CONDITIONER P/N LS20M00012F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 41 3 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm 39 1 HX81X22035DX TUBE - 350 mm long 36 4 ZW16H08000 WASHER…
