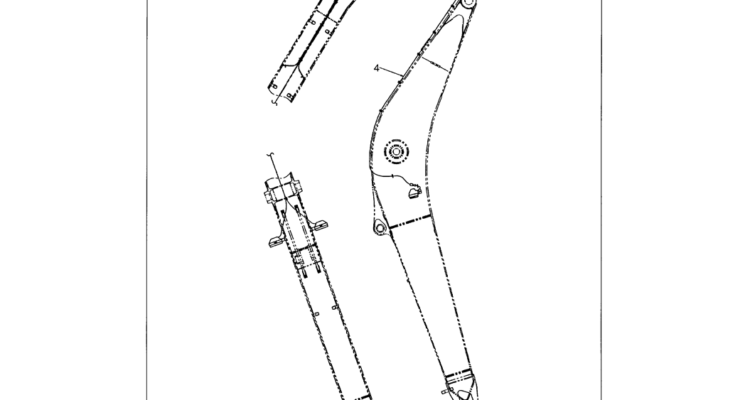

01-131 HARNESS ASSY BOOM-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 1 LS15E01002P1 WIRE HARNESS 3 1 PY01P01043D7 CLIP Wire Ties -- 445mm Long AR LB15E00001F3 HARNESS ASSY Kobelco Part Number…

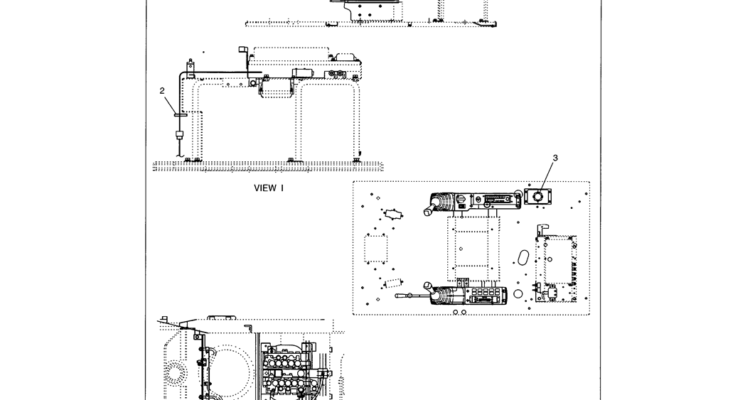

01-130 HARNESS ASSY ROTATION-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 6 1 LS11E01005P1 WIRE HARNESS 2 1 PY01P01043D3 CLIP Wire Ties -- 188mm Long AR YN11E00013F4 WIRE HARNESS ASSY 3 1 YN13E01175P1 GROMMET …

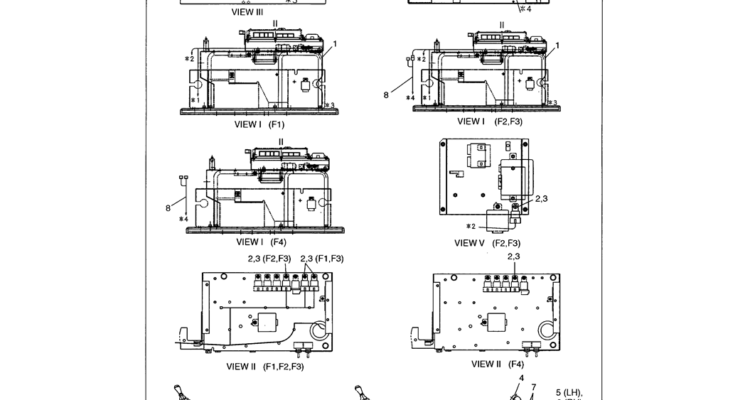

01-129 HARNESS ASSY HAND/FOOT CONTROL-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 8 1 YN13E01253P1 HARNESS F2 - F4 ONLY 7 4 ZM46C06012 SCREW M06x1.0x12mm (Incls. Washer & Lockwasher) 6 1 YN03M01356P1 LEVER Right Hand 5…

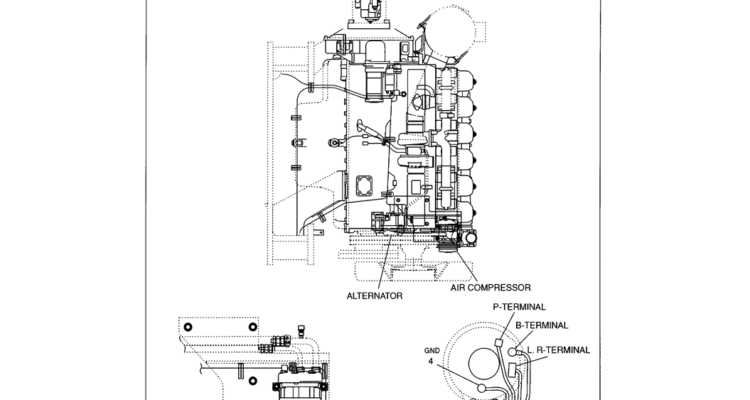

01-128 HARNESS ASSY ENGINE P/N LS16E0005F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 20 1 ZS18C06014 SCREW M06x1.0x14mm 19 1 2432R233D1 CLIP 37x12x40mm 5 1 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm…

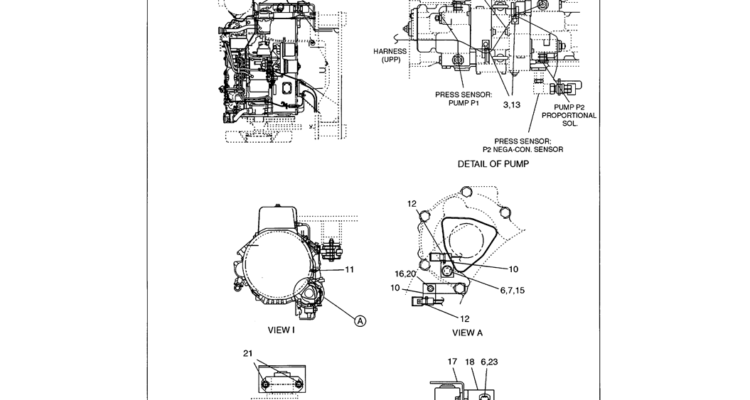

01-127 HARNESS ASSY ENGINE P/N LS16E00005F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 23 1 ZS18C10025 SCREW M10x1.50x25mm 22 1 2414Z199D025 GUARD Hose -- 250mm Long (9-27/32 in) 21 2 ZM66C06016 BOLT M06x1.0x16mm (Incls. Washer &…

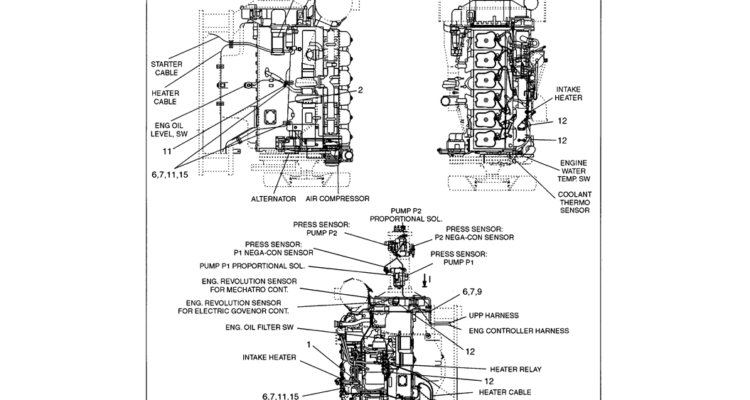

01-126 HARNESS ASSY ENGINE P/N LS16E00005F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 22 1 2414Z199D025 GUARD Hose -- 250mm Long (9-27/32 in) 12 7 PY01P01043D3 CLIP Wire Ties -- 188mm Long 11 4 2432R233D3 CLIP…

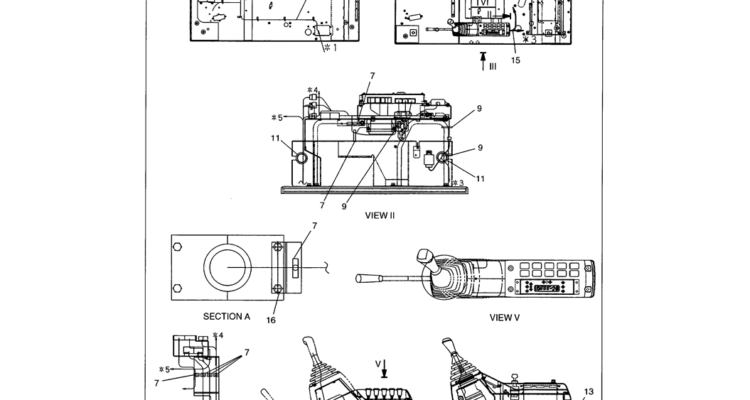

01-125 HARNESS ASSY FLOOR PLATE-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 16 1 LS13E01014P1 PLATE 15 1 LC13E01104P2 WIRE HARNESS 13 1 YN13E01327P3 HARNESS 12 1 YN13E01175P1 GROMMET 11 2 YN13E01307P1 GROMMET 10 1 LE13E01005P1…

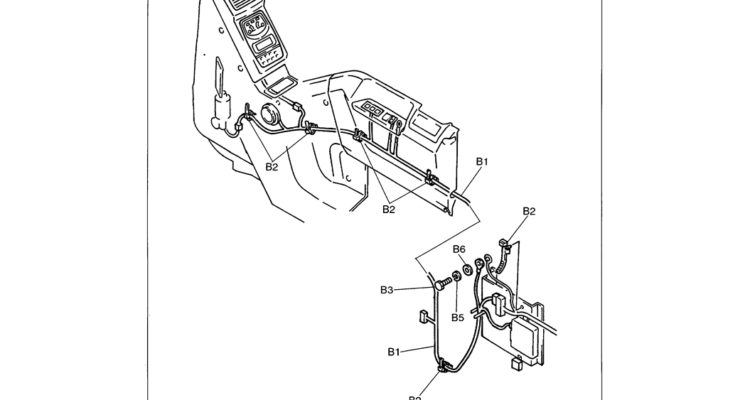

01-124 HARNESS ASSY CAB-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B6 1 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm B5 1 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm…

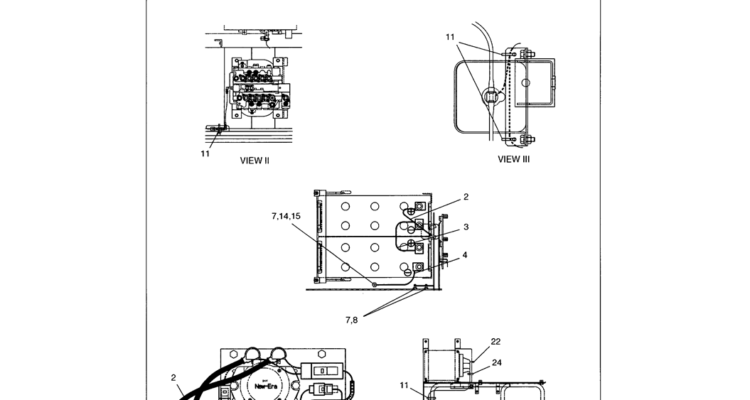

01-123 HARNESS ASSY P/N LS13E00016F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 24 1 YN03E01001D5 CLIP 195mm Long (7-43/64 in) -- Black 22 1 NSS NOT SERVICED SEPARATELY RESISTOR - See Engine Chapter 18 1 LS13E01051P1…

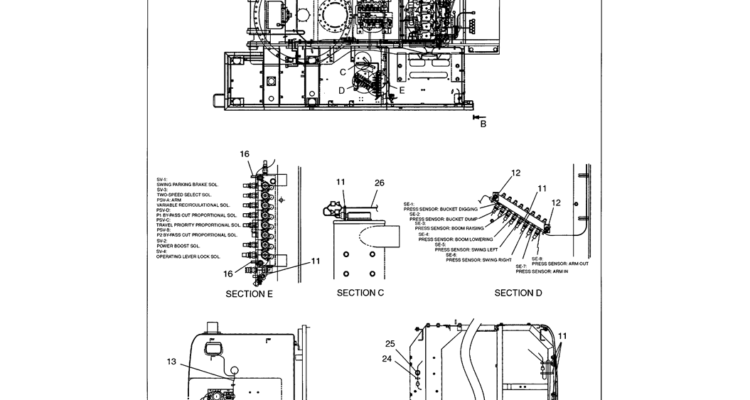

01-122 HARNESS ASSY P/N LS13E00016F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 26 1 LS13E01065P1 HARNESS 24 1 YN03E01001D5 CLIP 195mm Long (7-43/64 in) -- Black 16 2 2432R233D3 CLIP 50x16x60mm 13 1 2420Z1330 GROMMET 12…
