02-010 LOWER HYDRAULIC LINES - STANDARD TUBES AT SWIVEL-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B3 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm B2-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x…

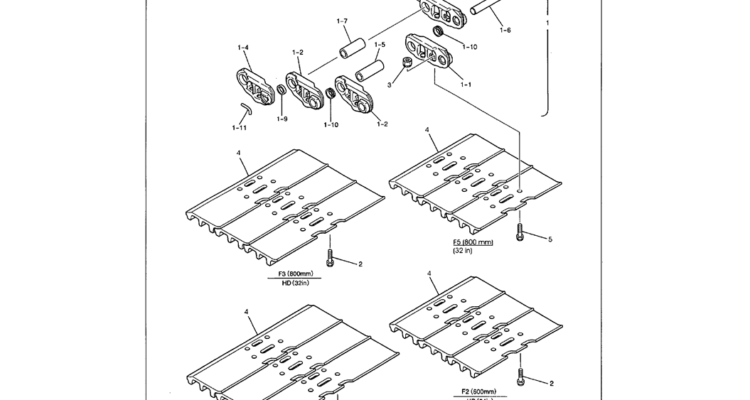

02-009 SHOE ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 5 200 LS60D01003P1 BOLT F5 ONLY 4 50 LS60D00005P1 TRACK SHOE SHOE - 800 mm (32 in), H&W, F5 ONLY 4 50 2424N233D3 TRACK SHOE 900…

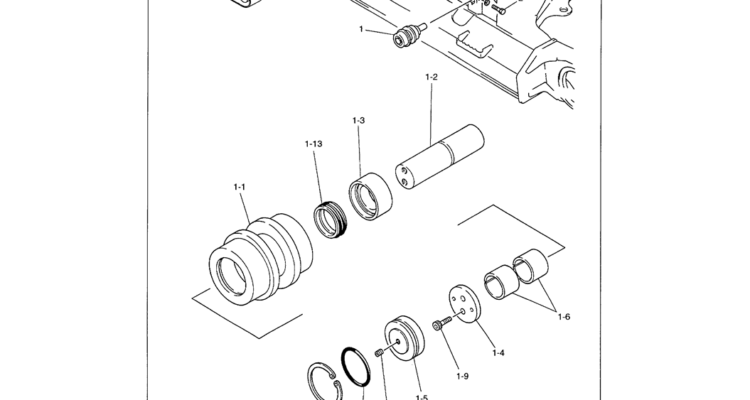

02-008 UPPER ROLLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZN13C20016 NUT M20x2.50mm 3 8 ZW13H20000 WASHER ID 20 x OD 40 x Th 4.5mm 2 4 ZS13C20150 SCREW M20x2.50x150mm 1-13 1 2445R440F1…

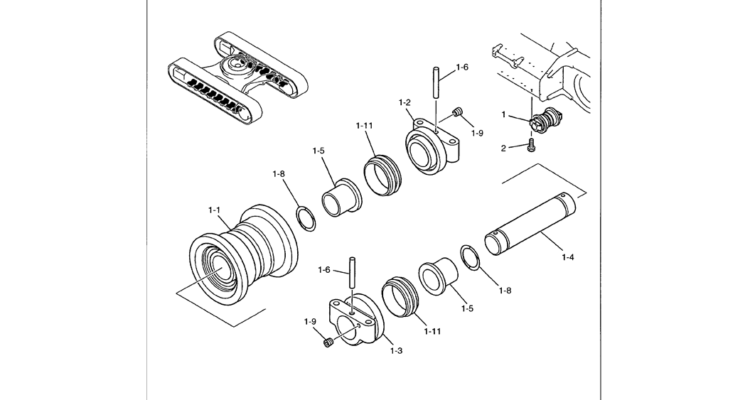

02-007 TRACK ROLLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 2 72 2420P1615D1 SCREW M22x2.5x115mm 1-11 2 2445R443F1 SEAL FLOATING 1-9 2 ZE82T04000 PLUG 1/4" PT 1-8 2 ZD11G08500 O-RING ID 84.40 ± 0.61 x…

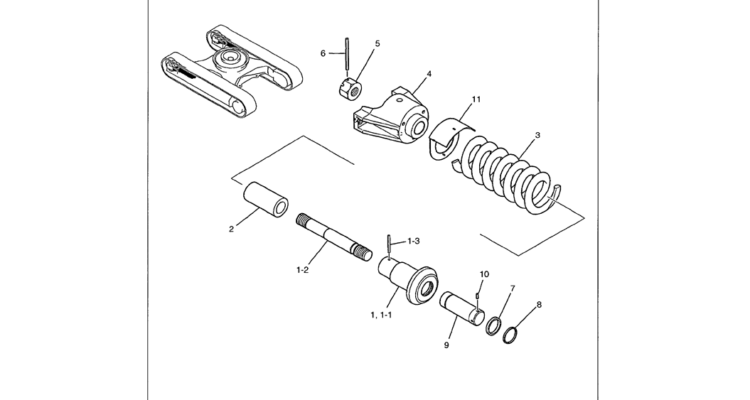

02-006 IDLER ADJUSTMENT ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 11 1 LS54D01004P1 GUARD 10 2 2419T4748 PIN 9 1 2439P176 PISTON PISTON 7 1 R45T0003D7 KIT ID 100 x OD 120 x Th 15mm…

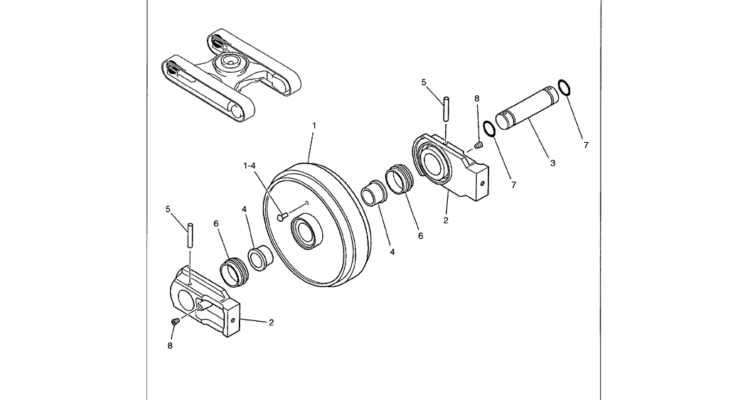

02-005 IDLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 8 2 ZE82T02000 PLUG Pipe, 1.25" PT 7 2 ZD11G10500 O-RING ID 104.40 ± 0.87 x OD 110mm 6 2 2445U266D24 SEAL 5 2 2419T2669D1 PIN…

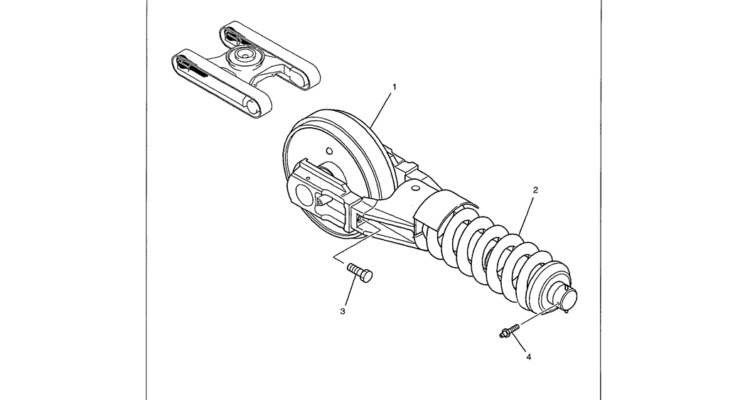

02-004 CRAWLER IDLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 1 2444P803 LUBE NIPPLE 5/8" - 18 UNF, Straight 2 1 LS54D00001F1 SHOCK ABSORBER See Figure 02-006 1 1 LS52D00002F1 IDLER WHEEL See Figure…

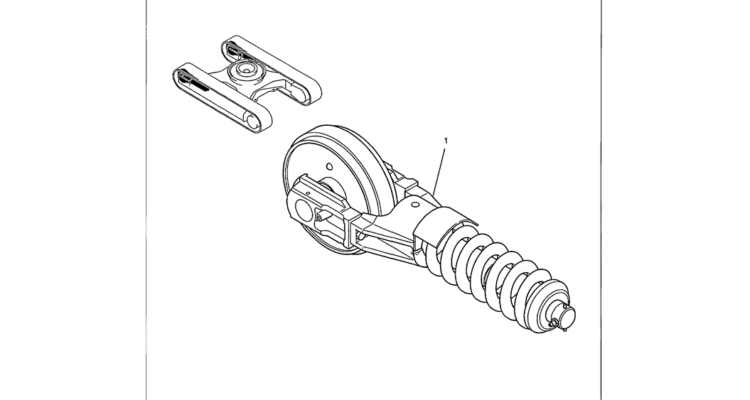

02-003 IDLER ASSEMBLY, CRAWLER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals AR LS52D00001F1 IDLER ASSY, CRAWLER 1 1 LS52D00003F1 ILDER ASSY, CRAWLER - See Figure 02-004 Kobelco Part Number Information parts manager…

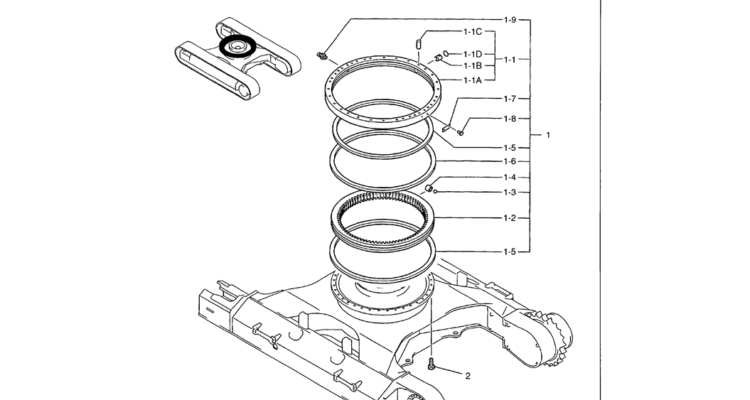

02-002 SLEWING RING ASSEMBLY (LS40F00001F1)-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 2 36 2420P1614D1 SCREW M27x2.0x90mm 1-9 1 ZG91S02000 LUBE NIPPLE 1/8" PT -- Straight 1-8 2 4020Z64 RIVET OD 5.0 x 6.0mm Long 1-7…

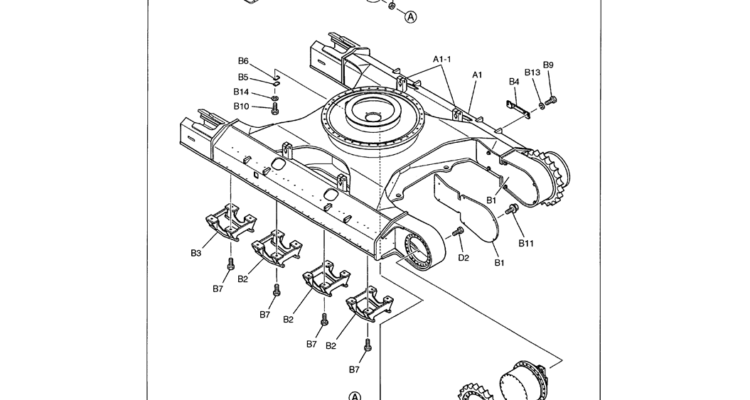

02-001 LOWER GROUP-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals D3 48 2420P1613D2 SCREW M24x2.0x70mm D2 48 2420P1615D8 SCREW M22x2.5x68mm D1 2 LS51D01001P1 SPROCKET Propel Motor Installation, LS53D00001F1, Incls. Refs. D1 - D3 C5 1 ZN18C24019…
