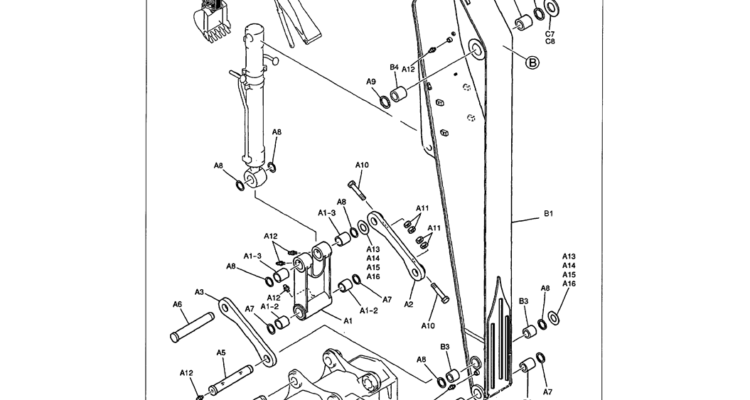

03-016 MASS EXCAVATOR ARM ASSEMBLY P/N LS12BU0003F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 03-015 ARM ASSEMBLY 3.45M (11FT 4IN) HEAVY DUTY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C13 1 2420T2571D5…

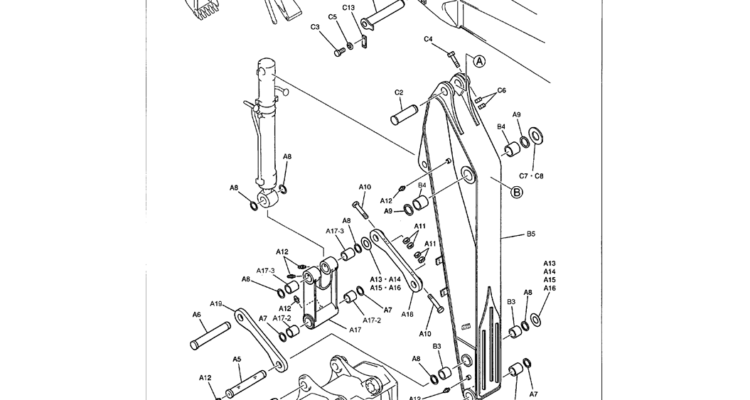

03-015 ARM ASSEMBLY 3.45M (11FT 4IN) HEAVY DUTY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C14 1 LS12B01209P1 PIN PIN C13 1 2418T25049 PLATE C12 1 2420T2571D5 SHIM ID 123 x OD 180 x Th 2.3mm…

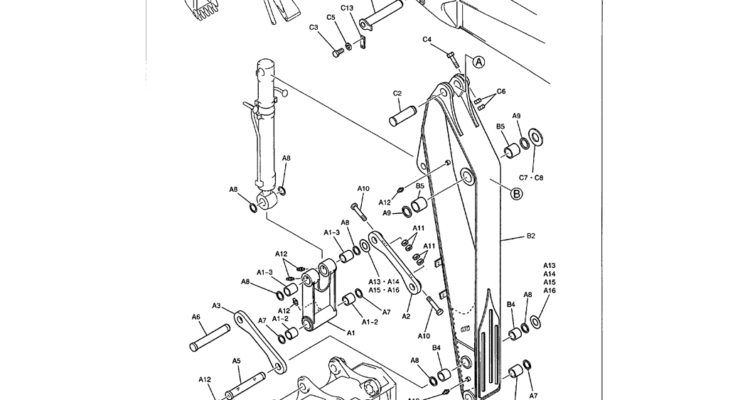

03-014 ARM ASSEMBLY 3.45M (11FT 4IN) STANDARD/ROTATION-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C13 1 2418T25049 PLATE C12 1 2420T2571D5 SHIM ID 123 x OD 180 x Th 2.3mm C11 1 2420T2571D4 SHIM ID 123…

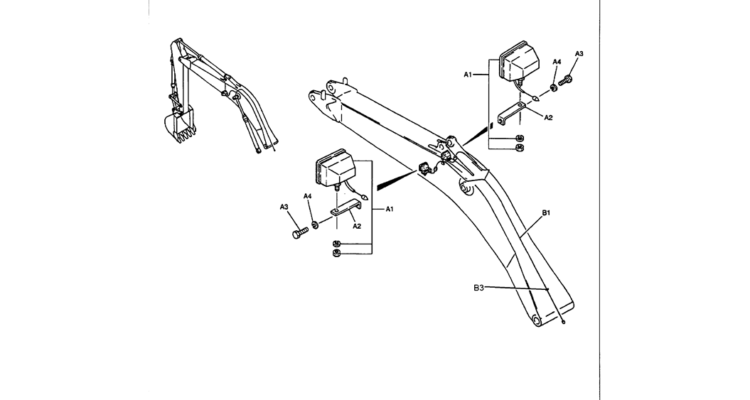

03-013 BOOM LIGHT INSTALLATION-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals B3 1 PY01P01043D7 CLIP Wire Ties -- 445mm Long B1 1 LS15E01002P1 WIRE HARNESS AR LB15E00001F3 BOOM HARNESS ASSY A3 2 ZS18C10020 SCREW M10x1.50x20mm A2…

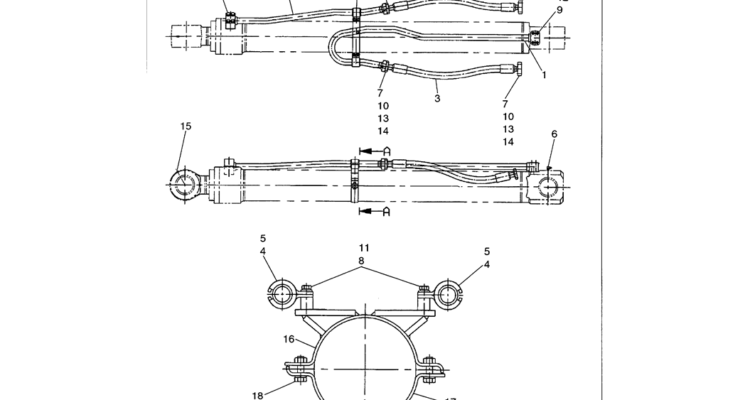

03-012 HYDRAULIC LINES, CYLINDER - MASS EXCAVATION BOOM-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 19 2 NSS NOT SERVICED SEPARATELY LOCK WASHER 18 1 NSS NOT SERVICED SEPARATELY CAPSCREW 17 1 NSS NOT SERVICED SEPARATELY…

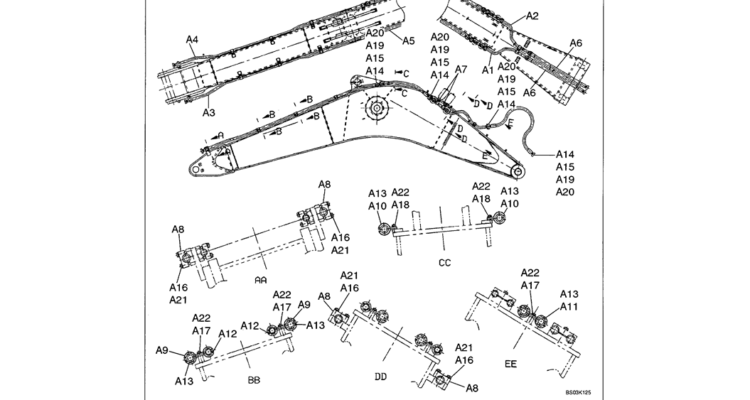

03-011 BOOM HYDRAULIC LINES - MASS EXCAVATOR BOOM WITH NIBBLER AND BREAKER-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals A22 10 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm A21 12 ZW16H12000 WASHER ID…

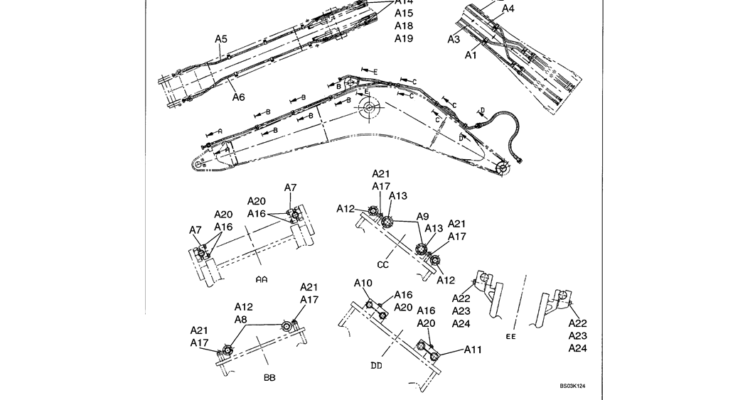

03-010 BOOM HYDRAULIC LINES - MASS EXCAVATION BOOM-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals A24 2 ZS18C14085 SCREW M14x2.0x85mm A23 2 ZW16H14000 WASHER ID 15 x OD 29 x Th 3.2mm A22 2 2432T5169 CLAMP…

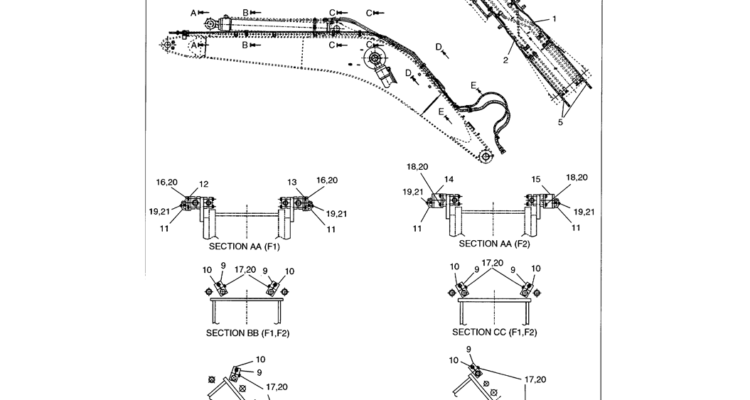

03-009 BOOM HYDRAULIC LINES ROTARY CIRCUIT-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 21 2 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm 20 14 ZW26X12000 LOCK WASHER ID 12 x OD 21…

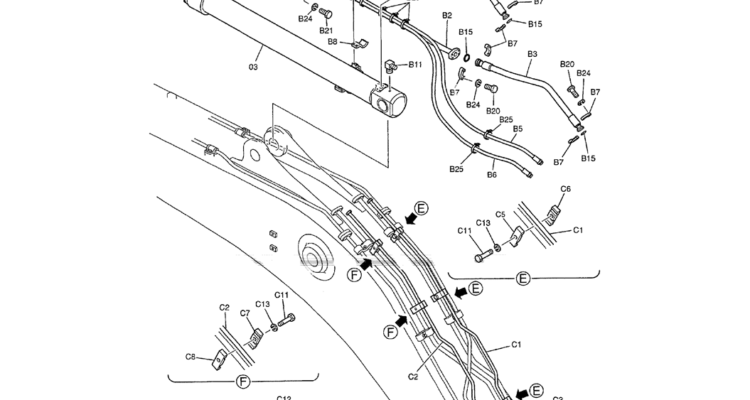

03-008(02) BOOM HYDRAULIC LINES - 7.0 M (23 FT) BOOM SAFETY/BOOM AND ARM SAFETY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C13 6 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm C12 1 ZS18C12050…

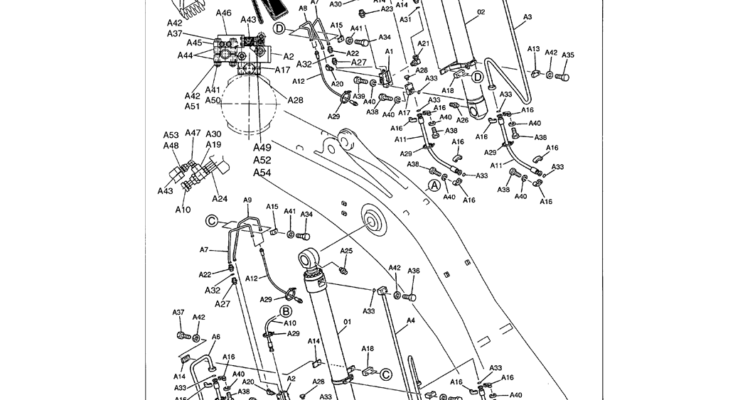

03-008(01) BOOM HYDRAULIC LINES - 7.0 M (23 FT) BOOM SAFETY/BOOM AND ARM SAFETY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals C13 6 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm C12 1 ZS18C12050…
