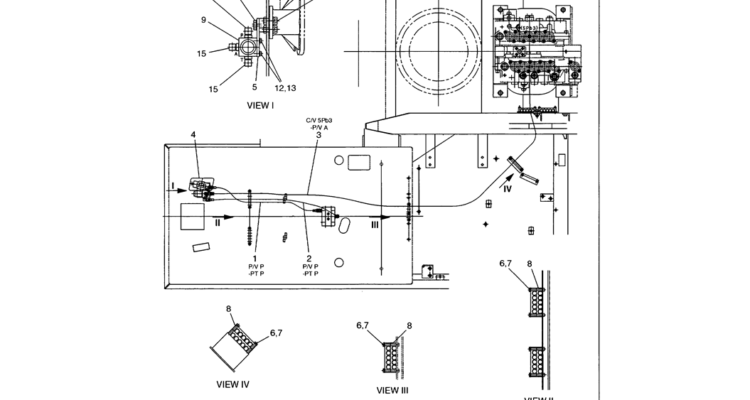

05-009 REMOTE CONTROL LINES ROTARY CIRCUIT/HAND CONTROL - ONE WAY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 16 2 ZH32X04000 HYD CONNECTOR Elbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) 14 1 HH35X04004G3 ELBOW 90° --…

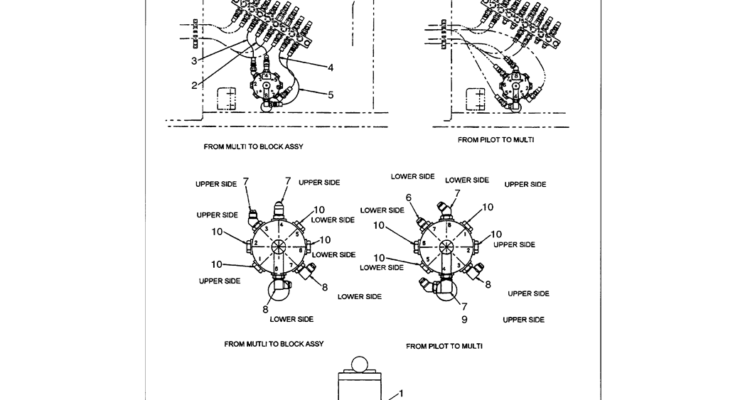

05-008 REMOTE CONTROL LINES MULTI-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 12 4 ZW16X08000 WASHER ID 08 x OD 17 x Th 1.6mm 11 4 ZS18C08020 SCREW M08x1.25x20mm 10 8 ZE72X06000 PLUG 3/8" PF, (Incls.…

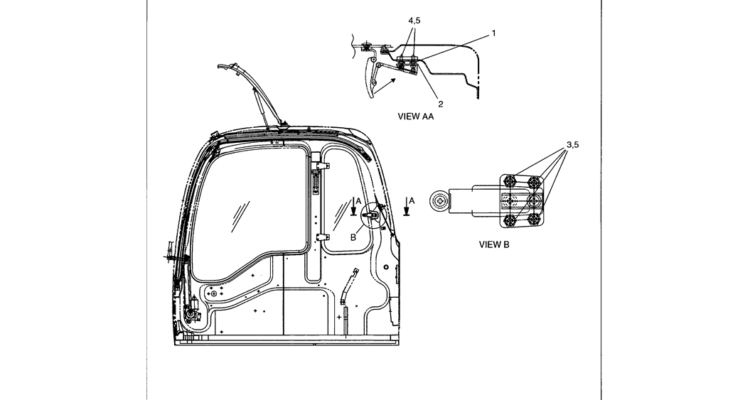

05-007 CAB VANDALISM GUARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 5 6 ZW16K05000 WASHER ID 05 x OD 10 x Th 1.0mm 4 2 ZS31C05012 BOLT M05x0.8x12mm 2 1 YN02C02028P1 PLATE PLATE 1 1 YN02C02027P1…

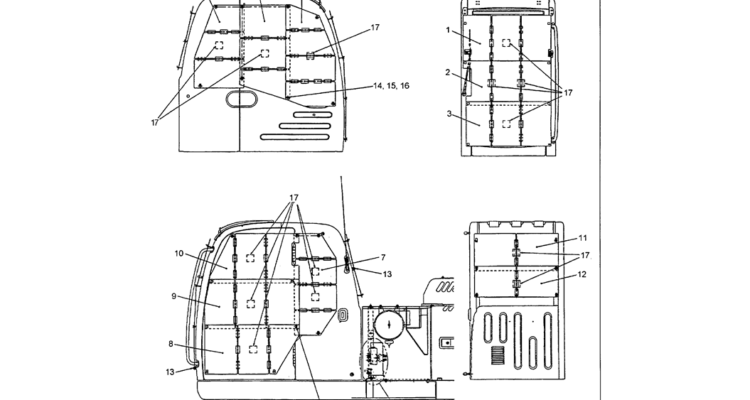

05-006 CAB VANDALISM GUARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals A18-7 10 ZM32C12025 BOLT M12x1.75x25mm (Incls. Washer & Lockwasher) A18-6 1 2418T12346 WASHER ID 11 x OD 30 x Th 3.2mm A18-5 1 2420R220D43 BOLT…

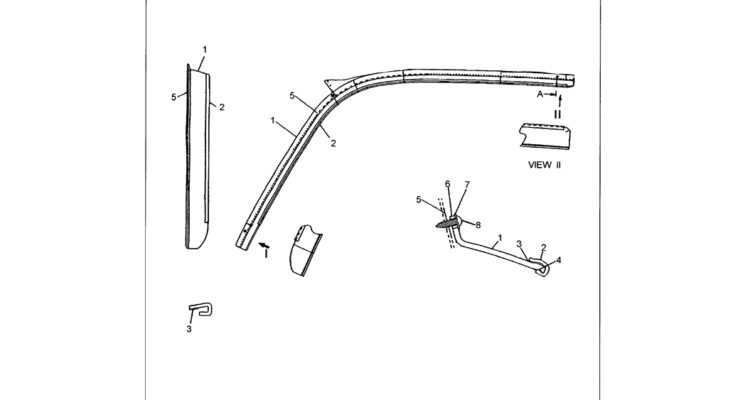

05-005 RAIN GUTTER SUNVISOR-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 8 5 YN55C01013S008 SCREW, TAPPING 6 5 YN55C01013S006 SPACER 5 1 YN55C01013S005 ADHESIVE 4 1 YN55C01013S004 ADHESIVE 3 1 YN55C01013S003 ADHESIVE 2 1 YN55C01013S002 SEAL…

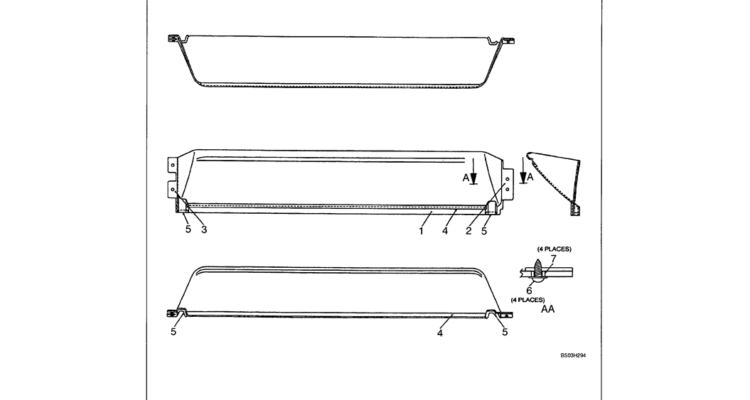

05-004 ROOF SUNVISOR-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 7 4 YN55C00004S007 SPACER 6 4 YN55C00004S006 SCREW SCREW, TAPPING 4 1 YN55C00004S004 INSULATION INSULATION 3 2 YN55C00004S003 ADHESIVE 2 2 YN55C00004S002 ADHESIVE 1 1 YN55C00004S001…

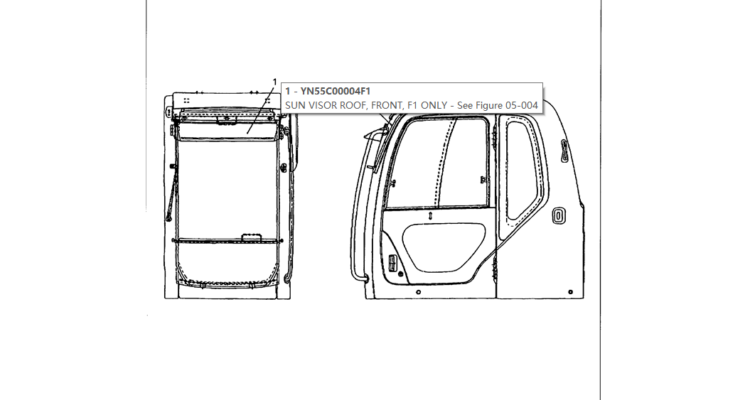

05-003 SUNVISOR ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 2 1 YN55C01013F1 GUTTER RAIN, F2 ONLY - See Figure 05-005 1 1 YN55C00004F1 SUN VISOR ROOF, FRONT, F1 ONLY - See Figure 05-004 F2 YN55C00003F2…

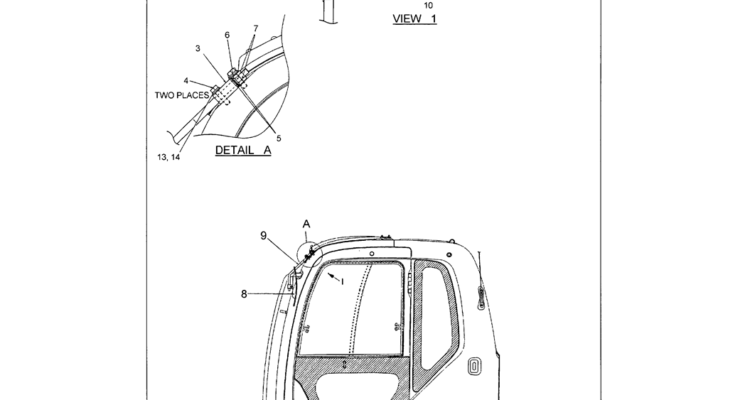

05-002 MIRROR INSTALLATION STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 14 2 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm 13 2 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm…

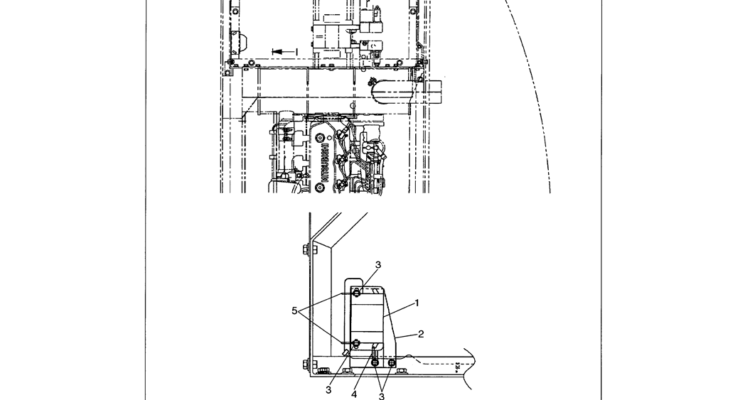

05-001 TRAVEL ALARM ASSEMBLY STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 5 2 PY01P01043D3 CLIP Wire Ties -- 188mm Long 4 1 2432R233D2 CLIP 37x12x40mm 2 1 LC53E01003P1 PLATE 1 1 YN53S00003F1 ALARM Assembly AR…

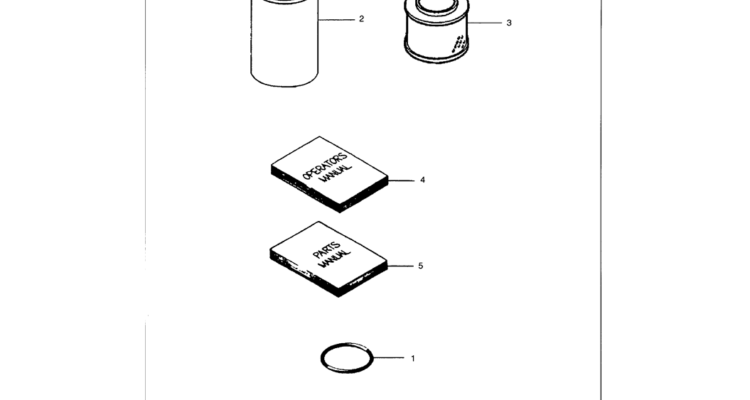

04-002 ELEMENT KIT-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 5 1 LS91Z00002D6 MANUAL, PARTS 3 1 VAME150631 ELEMENT FUEL, PN:2446R332D16 2 1 VAME121789 ENGINE OIL FILTER PN: 2446R332D15 1 4 2445Z1538 O-RING ID 162 ±…
