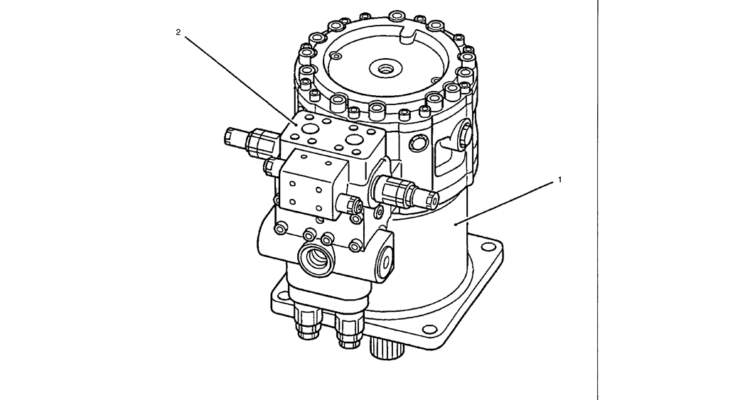

07-014 MOTOR ASSEMBLY, SWING P/N LS15V00002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 2 1 LS20V00001F1 CHECK VALVE RELIEF - See Figure 07-016 1 LS15V00002F1 HYDRAULIC MOTOR SWING 1 1 LS15V00005F1 HYDRAULIC MOTOR See Figure 07-015…

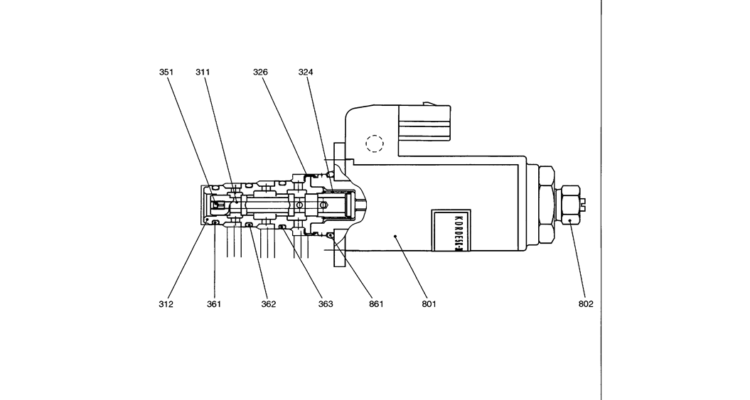

07-013 VALVE ASSEMBLY, SOLENOID P/N YB35V00003F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 861 1 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm 802 1 YN35V00018S802 NUT 801 1 NSS NOT SERVICED SEPARATELY SOLENOID 363…

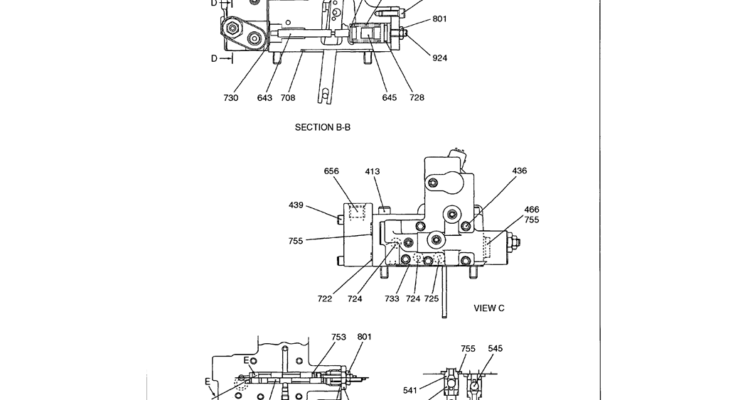

07-012(02) REGULATOR ASSEMBLY P/N LS10V01001F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 924 1 NSS NOT SERVICED SEPARATELY SETSCREW 801 2 ZN12C08005 NUT M08x1.25mm 755 3 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm 753…

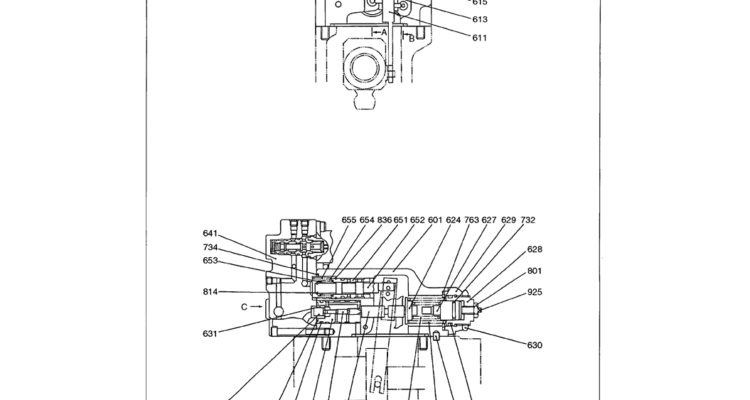

07-012(01) REGULATOR ASSEMBLY P/N LS10V01001F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 924 1 NSS NOT SERVICED SEPARATELY SETSCREW 801 2 ZN12C08005 NUT M08x1.25mm 755 3 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm 753…

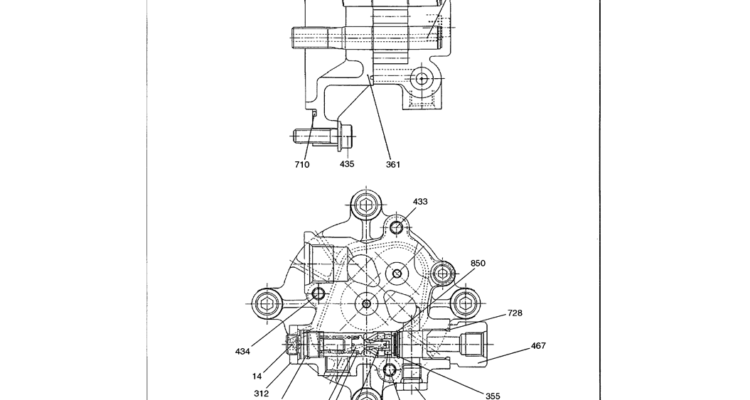

07-011 PUMP ASSEMBLY, GEAR P/N LS10V00003F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 850 1 ZR26X01800 RING Retaining -- ID 18 x OD 19.5 x Th 1.0mm 732 1 ZD12P01600 O-RING ID 15.80 ± 0.20 x…

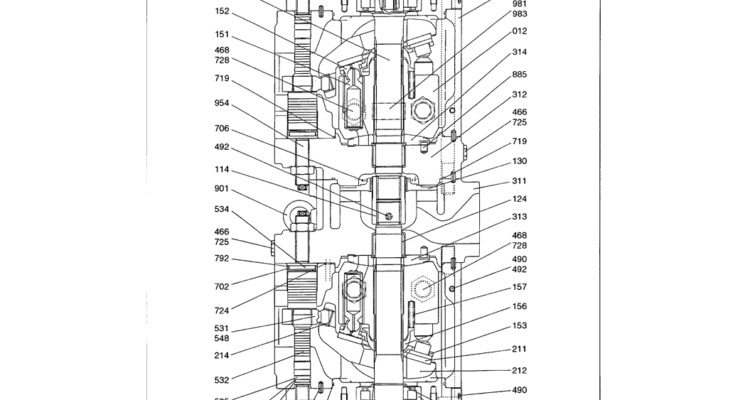

07-010 PUMP ASSEMBLY, HYDRAULIC P/N LS10V00002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 2437U214S30 PLATE Includes Ref 531, 548 1 2437U214S30 PLATE Includes Ref 212, 214 1 2437U219S02 CYLINDER Includes Ref 012, 314 1 2437U219S01…

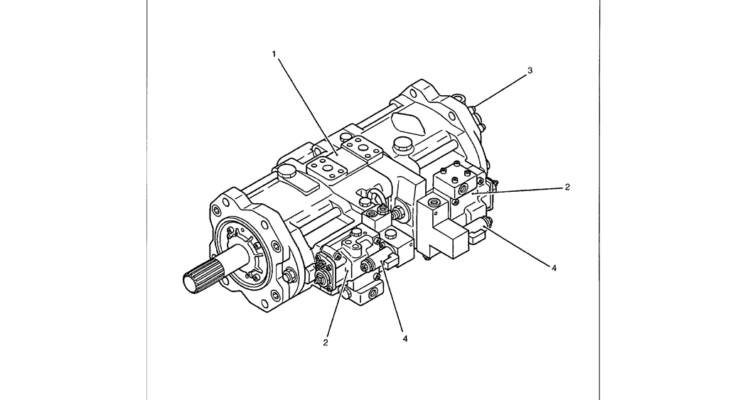

07-009 PUMP ASSEMBLY P/N LS10V00001F3-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 4 2 YB35V00003F1 VALVE ASSY, SOLENOID - See Figure 07-013 3 1 LS10V00003F2 PUMP ASSY - See Figure 07-011 2 2 LS10V01001F1 VOLTAGE REGULATOR…

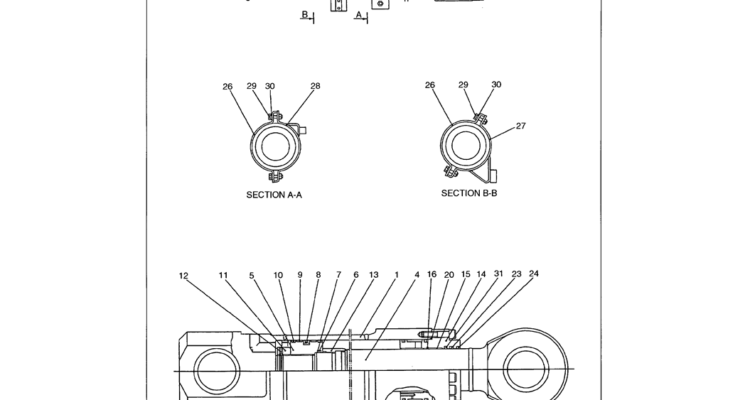

07-008 BUCKET CYLINDER ASSEMBLY P/N LS01V00004F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS01V00004R500 CONNECTING ROD KIT, PISTON - Includes Ref 2 - 4 1 LS01V00004R400 REPAIR KIT KIT, CYLINDER - Includes Ref 1 -…

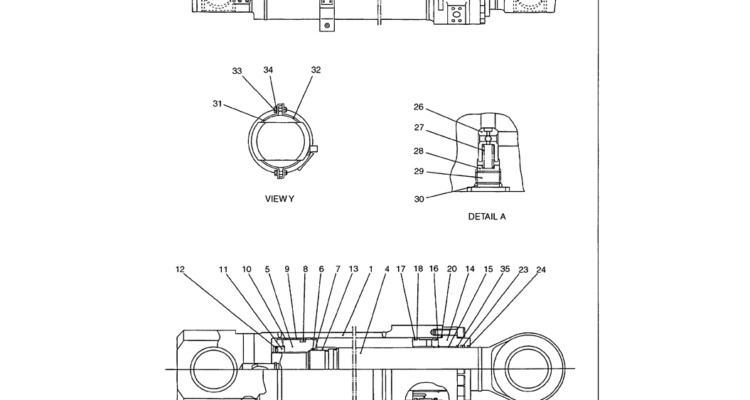

07-007 ARM CYLINDER ASSEMBLY P/N LS01V00003F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS01V00003R500 SEAL KIT KIT, PISTON - Includes Ref 2 - 4 1 LS01V00003R400 RIGID TUBE KIT, CYLINDER - Includes Ref 1 -…

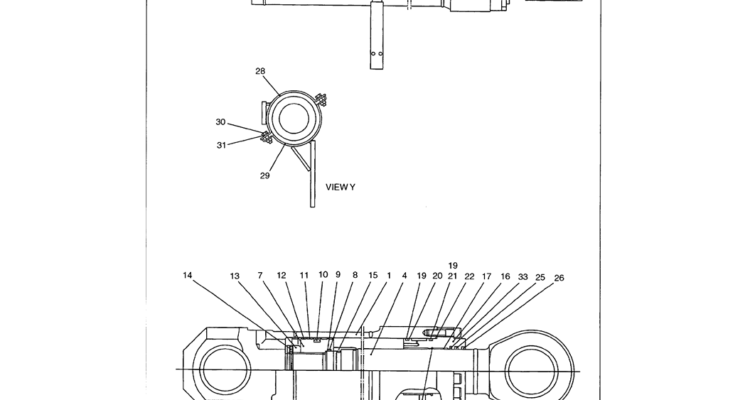

07-006 BOOM CYLINDER ASSEMBLY - RIGHT HAND P/N LS01V00002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals 1 LS01V00001R500 CYLINDER KIT, PISTON - Includes Ref 4 - 6 1 LS01V00001R400 REPAIR KIT KIT, CYLINDER - Includes Ref…
