SK350-8/SK330LC-8

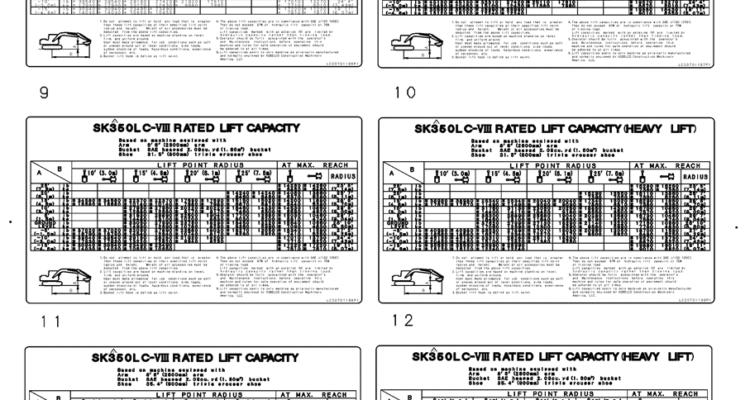

7.017(00) NAME PLATE INSTALLATION, LABEL LC22T00097F4-F6-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 1 LC20T01200P1 LABEL 900MM TRACK 10 1 LC20T01199P1 LABEL 800MM TRACK 9 1 LC20T01198P1 LABEL 800MM TRACK 8 1 LC20T01197P1 LABEL 600MM TRACK 7 1…

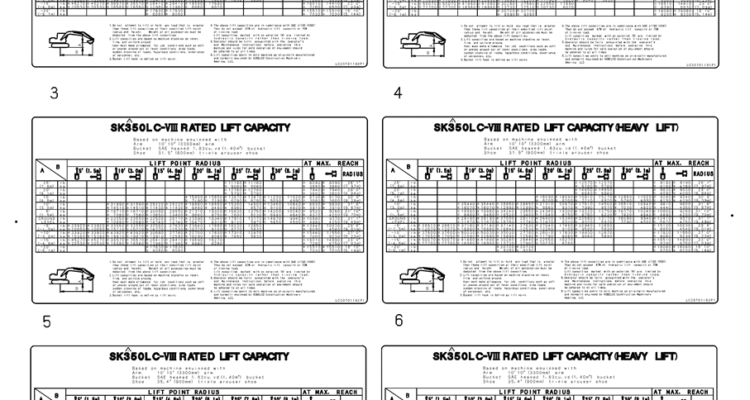

7.016(00) NAME PLATE INSTALLATION, LABEL LC22T00097F1-F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 6 1 LC20T01195P1 LABEL LABEL 900MM TRACK 5 1 LC20T01194P1 LABEL LABEL 900MM TRACK 4 1 LC20T01193P1 LABEL LABEL 800MM TRACK 2 1 LC20T01191P1 LABEL LABEL…

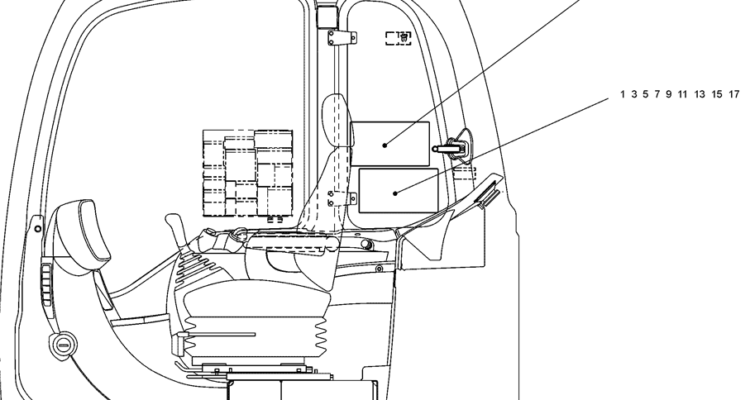

7.015(00) NAME PLATE INSTALLATION, LOCATION LC22T00097F1-F9-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 18 1 LC20T01207P1 LABEL 900MM TRACK 17 1 LC20T01206P1 LABEL 900MM TRACK 16 1 LC20T01205P1 LABEL 800MM TRACK 15 1 LC20T01204P1 LABEL 800MM TRACK 14 1…

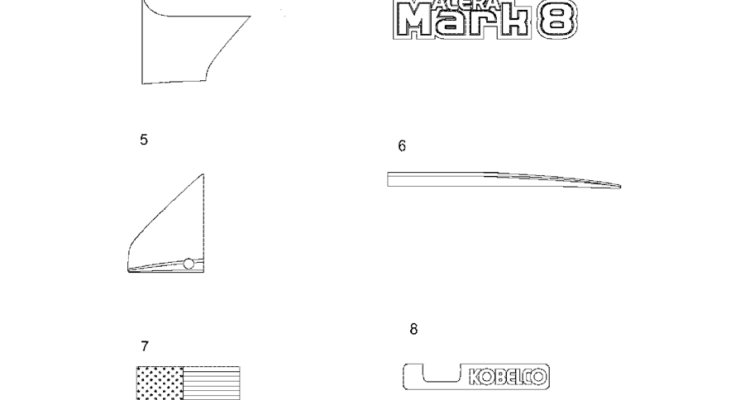

7.014(00) NAME PLATE INSTALLATION, (EXTERIOR) LABELS LC22TU0007F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 1 LC20TU1060P1 LABEL Decal, Engine Right Stripe 9 1 LC20TU1059P1 LABEL Decal, Engine Left Graphic 8 1 YN22T00331P1 DATA PLAQUE Decal, KOBELCO Logo 7…

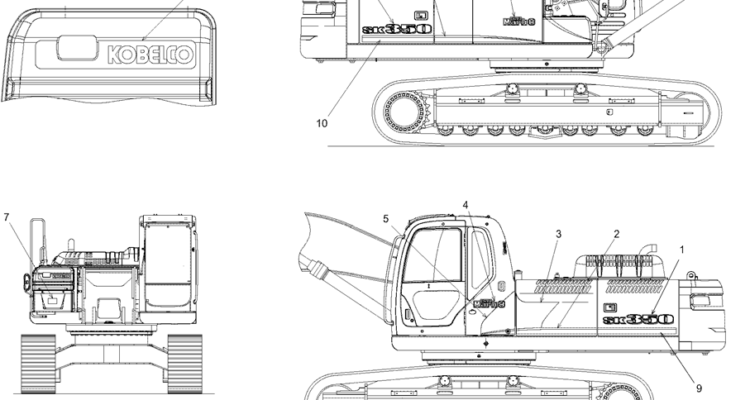

7.013(00) NAME PLATE INSTALLATION, (EXTERIOR) LOCATION LC22TU0007F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 1 LC20TU1060P1 LABEL Decal, Engine Right Stripe 8 1 YN22T00331P1 DATA PLAQUE Decal, KOBELCO Logo 7 1 YN20TU1013P1 LABEL Decal, American Flag 6 1…

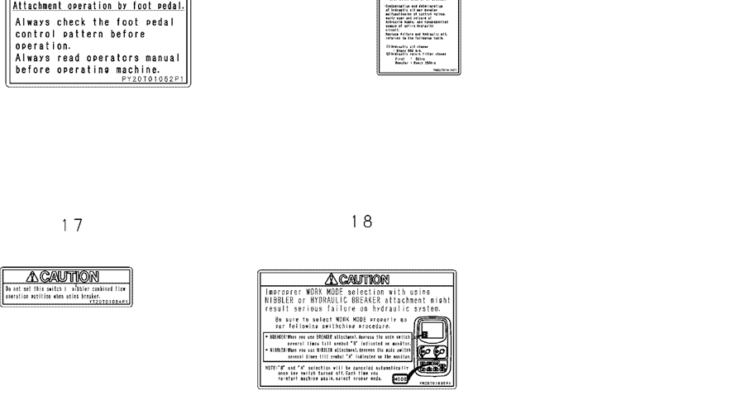

7.012(00) NAME PLATE INSTALLATION, CAB (NIBBLER & BREAKER) LABEL YN22T00341F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 1 YT20T01054P1 LABEL Decal, Caution - Do not set this switch to nibbler combined flow operation … 16 1 YN20T01414P1 LABEL…

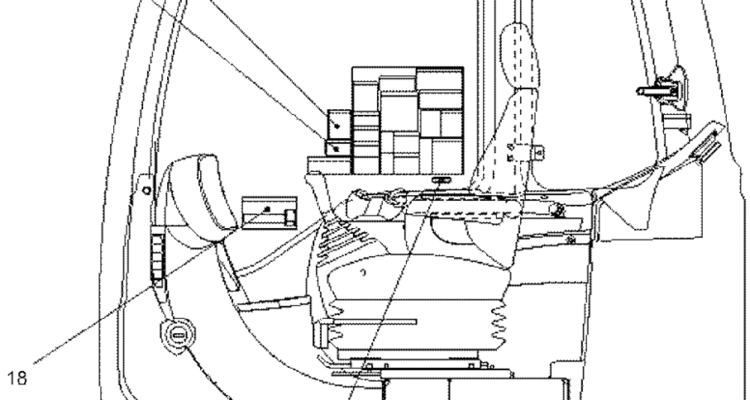

7.011(00) NAME PLATE INSTALLATION, CAB (NIBBLER & BREAKER), LABEL LOCATION YN22T00341F3-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 18 1 YN20T01836P1 LABEL Decal, Caution - Improper work mode selection with using NIBBLER and Hydr… 17 1 YT20T01054P1 LABEL Decal,…

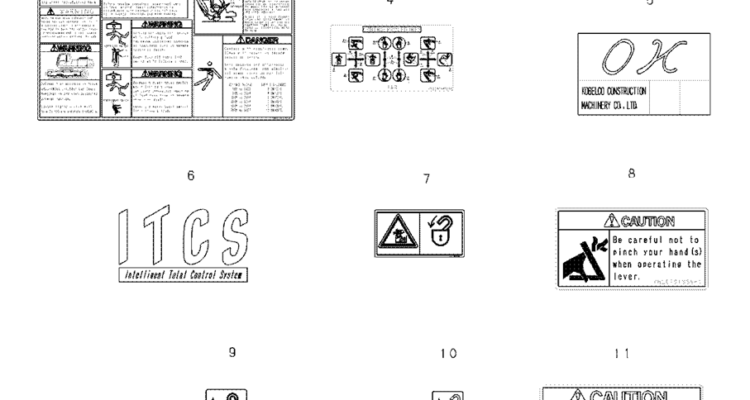

7.010(00) NAME PLATE - CAB, LABELS YN22T00341F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 1 YN20T01639P1 LABEL Decal, Caution, Swing parking brake release switch is installed on the rear side this cover. 9 1 YN20T01799P1 LABEL Decal, Unlock…

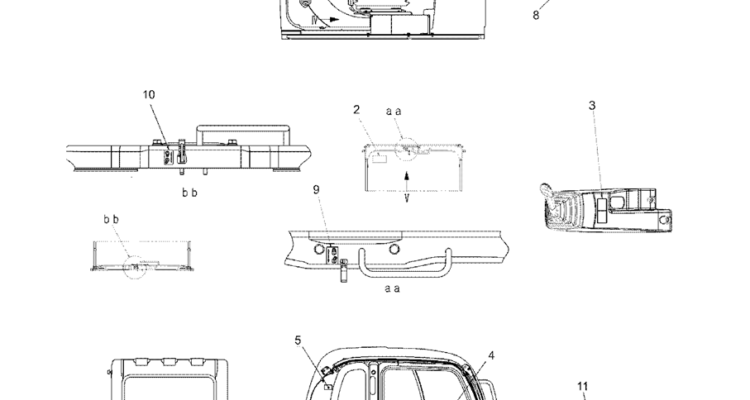

7.009(00) NAME PLATE INSTALLATION, CAB, LABEL LOCATION YN22T00341F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 1 YN20T01639P1 LABEL Decal, Caution, Swing parking brake release switch is installed on the rear side this cover. 10 1 YN20T01800P1 LABEL Decal,…

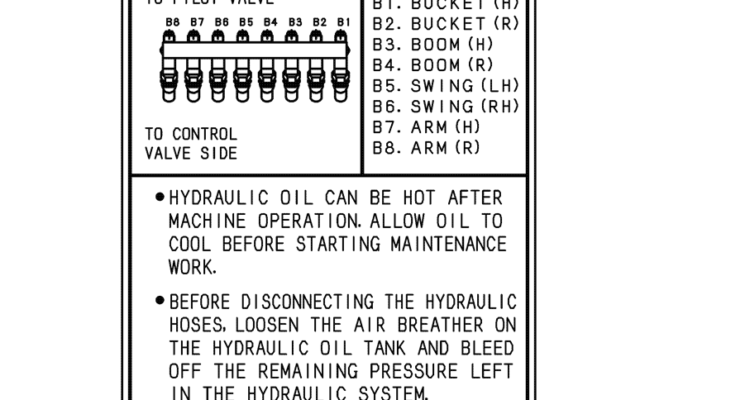

7.008(00) NAME PLATE, CAUTION LABEL YN22T00340F4-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 1 YN20T01872P1 LABEL Decal, Caution, Hydraulic oil can be hot after machine operation. Allow oil … Name Plate Installation, Location, YN22T00340F4     Kobelco Part…
