SK350-8/SK330LC-8

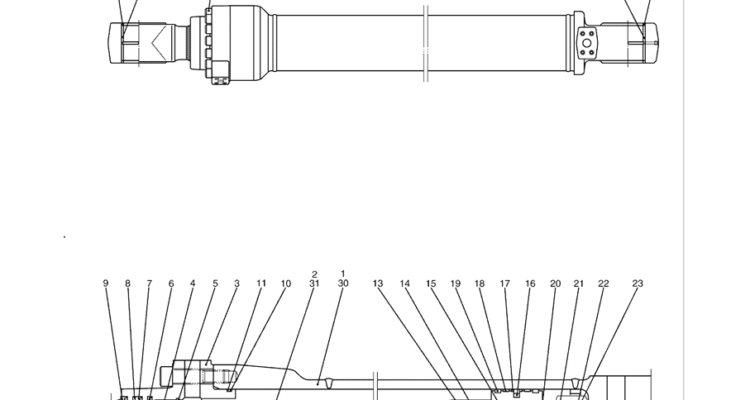

8.021(00) CYLINDER ASSY, ARM LC01V00054F1,F2 (HC650)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 LC01V00054R500 REPAIR KIT CONSISTS OF ITEM 2, 28X1, 29X2 K 1 LC01V00054R400 REPAIR KIT CONSISTS OF ITEM 1, 28X1, 29X2 CONSISTS OF ITEM 6X1,…

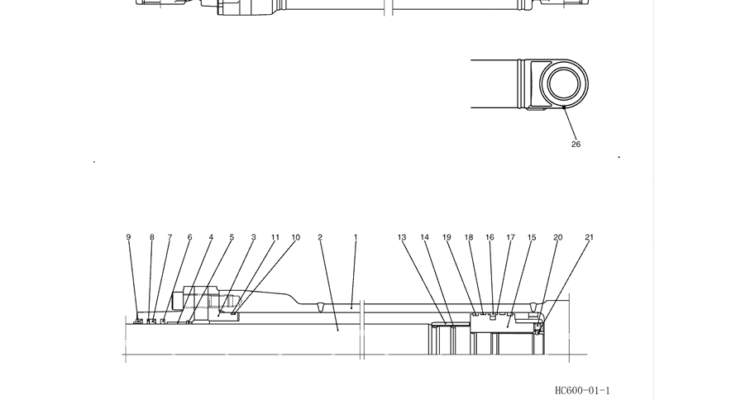

8.020(00) CYLINDER ASSY, BOOM LC01V00044F1 (HC600)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 LC01V00044R500 REPAIR KIT CONSISTS OF ITEM 2X1, 24X1, 25X2 K 1 LC01V00044R400 REPAIR KIT CONSISTS OF ITEM 1X1, 22X1, 23X2 K 1 LC01V00044R300 REPAIR…

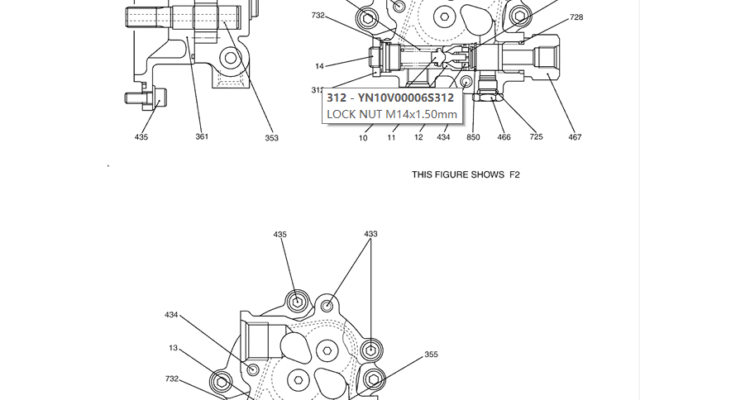

8.019(00) PUMP ASSY, GEAR YN22V00014F1-FB (HC420)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 YN10V00014R300 REPAIR KIT CONSISTS OF ITEM 10X1, 11X1, 15X1, 353X1, 354X1, 361X1 850 1 ZR26X01800 RING Retaining -- ID 18 x OD 19.5 x…

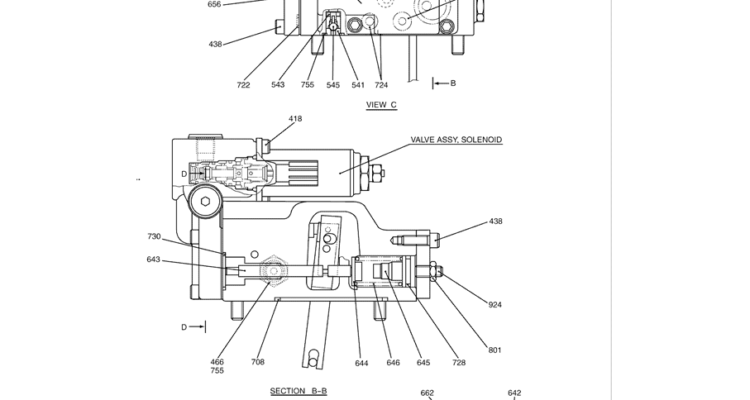

8.018(00) REGULATOR ASSY LC10V01005F1 (HC410) PAGE 2 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 2437U219S41 REPAIR KIT REPAIR KIT CONSISTS OF ITEM 541X1, 543X1, 545X1 924 1 2441U722S924 SCREW 898 1 NSS NOT SERVICED SEPARATELY…

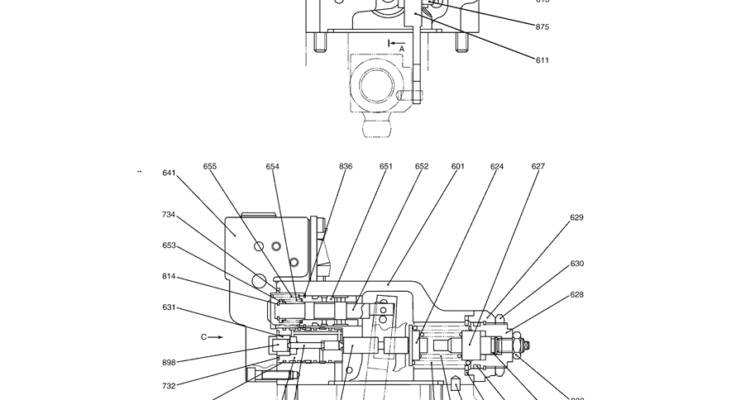

8.017(00) REGULATOR ASSY LC10V01005F1 (HC410) PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 2437U219S41 REPAIR KIT CONSISTS OF ITEM 541X1, 543X1, 545X1 924 1 2441U722S924 SCREW 898 1 NSS NOT SERVICED SEPARATELY PIN 897…

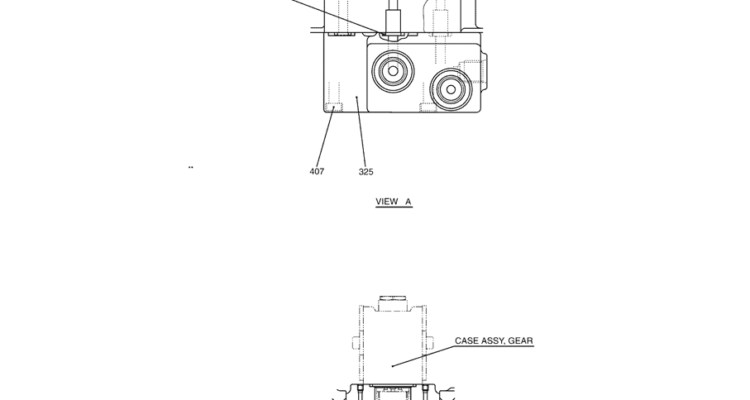

8.016(00) PUMP ASSY LC10V00020F1 (HC405) PAGE 2 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 LC10V00010R600 REPAIR KIT CONSISTS OF ITEM 212X1, 214X1 K 1 LC10V00010R500 REPAIR KIT CONSISTS OF ITEM 531X1, 548X1 K 1 LC10V00020R200…

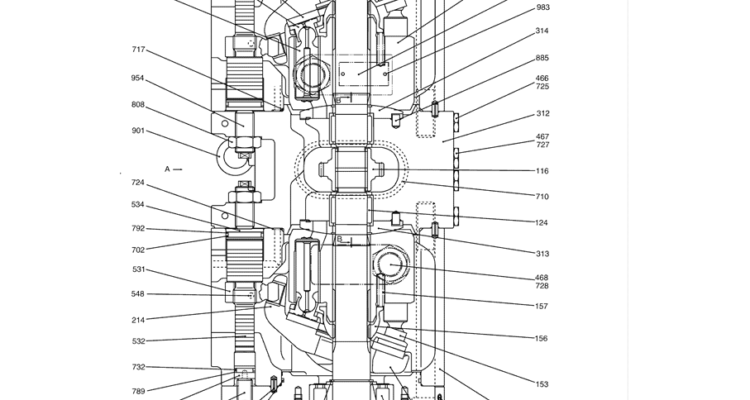

8.015(00) PUMP ASSY LC10V00020F1 (HC405) PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 LC10V00010R600 REPAIR KIT CONSISTS OF ITEM 212X1, 214X1 K 1 LC10V00010R500 REPAIR KIT CONSISTS OF ITEM 531X1, 548X1 K 1 LC10V00020R200…

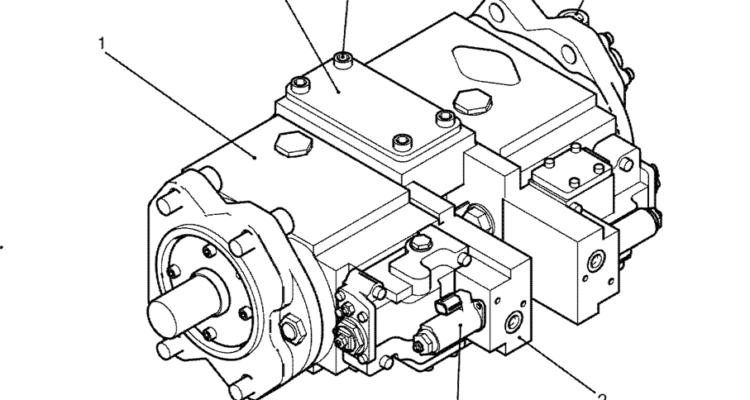

8.014(00) PUMP ASSY LC10V00014F1 (HC400)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 YN10V00043S326 COVER 4 1 YN10V00014F3 PUMP ASSY, GEAR SEE (HC420) 3 2 YN35V00052F1 VALVE ASSY, SOLENOID SEE (HC415) 2 2 LC10V01005F1 REGULATOR REGULATOR ASSY SEE…

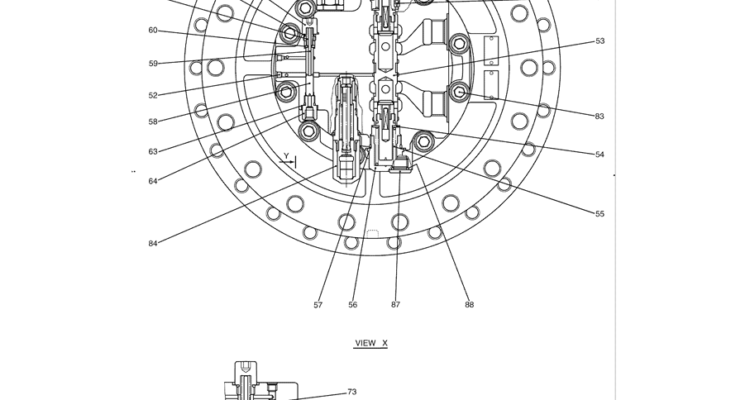

8.013(00) MOTOR ASSY, PROPELLING LC15V00023F1 (HC370) PAGE 2 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 88 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm 87 2 YR30V00001S115 PLUG 86 1 ZR26X04000 RING Retaining -- ID…

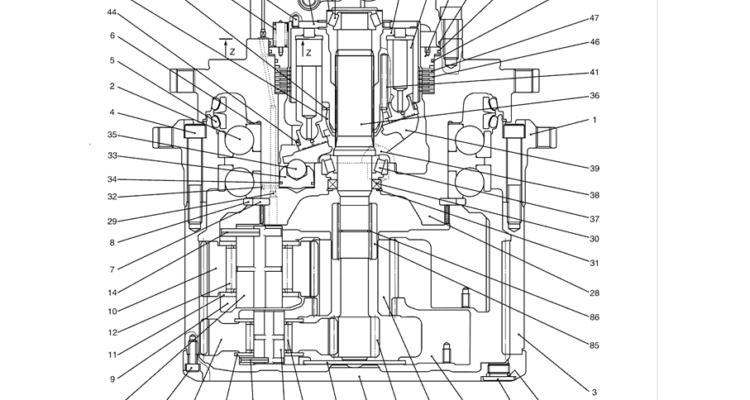

8.012(00) MOTOR ASSY, PROPELLING LC15V00023F1 (HC370) PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K LC15V00023R300 KIT Ref 46x7 47x6 K LC15V00023R200 KIT Ref 38x2 39x1 K LC15V00023R100 KIT Ref 33x1 34x1 88 2 ZD12P01800 O-RING…
