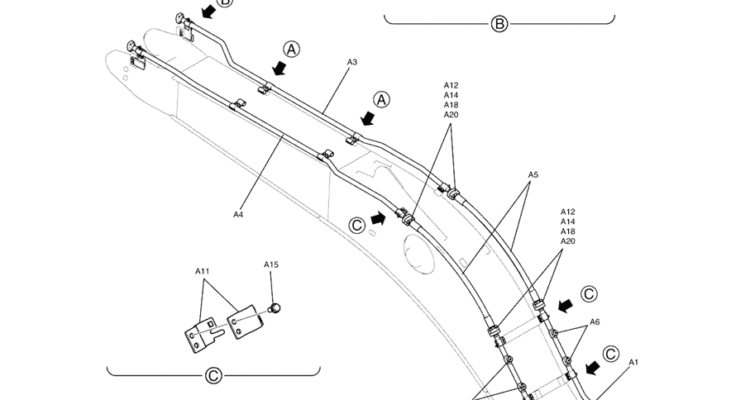

3.037(01) HYD LINES, BOOM, MASS EXCAVATOR (NIBBLER & BREAKER) (LC42HU0008F1), PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B3 4 ZM73C12040 BOLT M12x1.75x40mm (Incls. Washer) B2 1 LC42H01915P1 BRACKET Left Hand B1 1 LC42H01916P1 BRACKET Right…

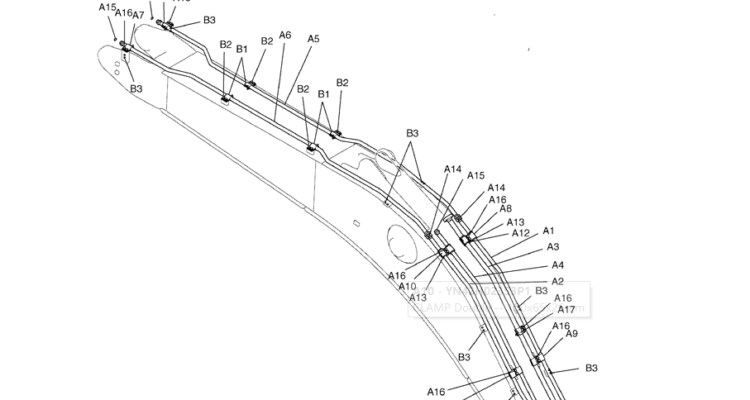

3.036(00) BOOM HYDRAULIC LINES, MASS EXCAVATOR (LC42HU0005F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B3 16 PV02B01073D3 CAP 10.7mm Plastic B2 10 ZM73C12035 BOLT M12x1.75x35mm (Incls. Washer) B1 8 YN42H02357P1 CLAMP Ø18.5x65x52mm Standard Boom Hydraulic Lines, LC42HU0004F1 A17 3…

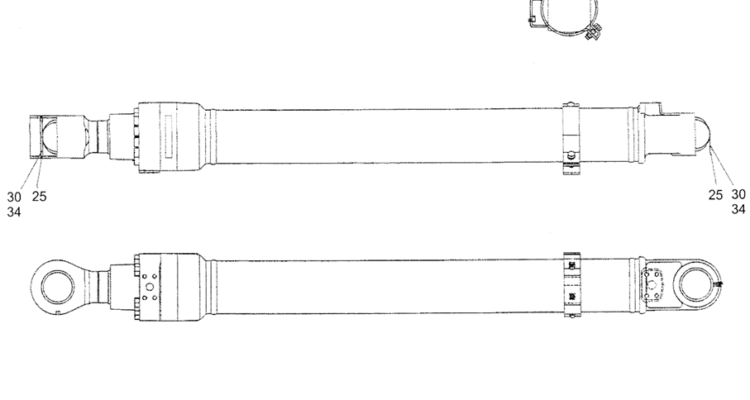

3.035(00) CYLINDER, BUCKET YM01V00009F1 LONG REACH-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YM01V00009R900 CYLINDER Contains Items 33 & 34 1 YM01V00009R600 REPAIR KIT Contains Items 3 & 4 1 YM01V00009R300 REPAIR KIT Contains Items 7-11, 16-19 &…

3.034(00) CYLINDER INSTALLATION, BUCKET (LONG REACH) YM12B00027F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 1 HS18C14130G1 SCREW M14x2.0x130mm 8 2 YM12B01058D1 SHIM (2.0) 7 1 YT02B01008D3 SHIM (1.6) 5 1 B16T0442D93 SHIM ID 72 x OD 120 x…

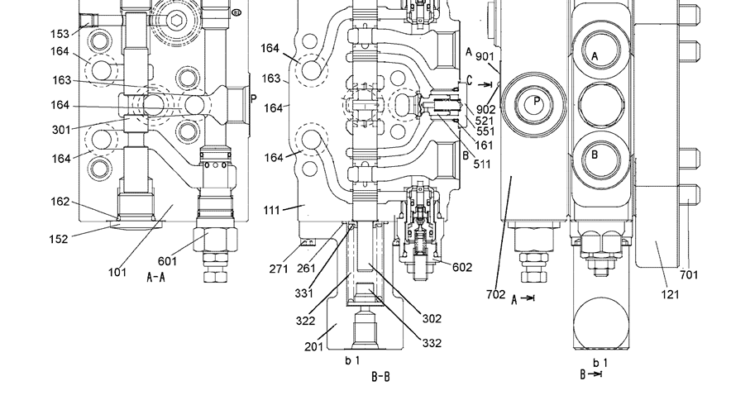

3.033(01) VALVE YN30V00108F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 902 2 NSS NOT SERVICED SEPARATELY PIN 901 2 NSS NOT SERVICED SEPARATELY NAME PLATE 702 4 ZS23C08080 CAP Screw -- M08x1.25x80mm 701 4 ZS23C12025 SCREW M12x1.75x25mm 1 ZD12P02000…

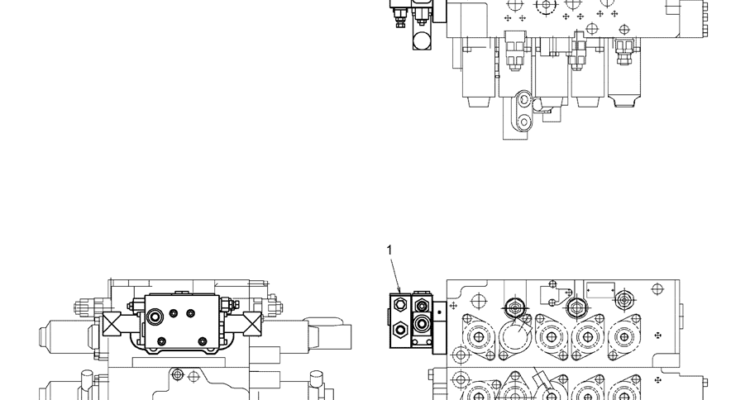

3.033(00) VALVE INSTALLATION (ROTATION) YN64H00196F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 1 YN30V00108F1 HYDRAULIC VALVE SEE 3.033.01 YN64H00196F1 VALVE VALVE INSTAL (Rotation)     Kobelco Part Number Information parts manager pro is the electronic parts Catalog Kobelco…

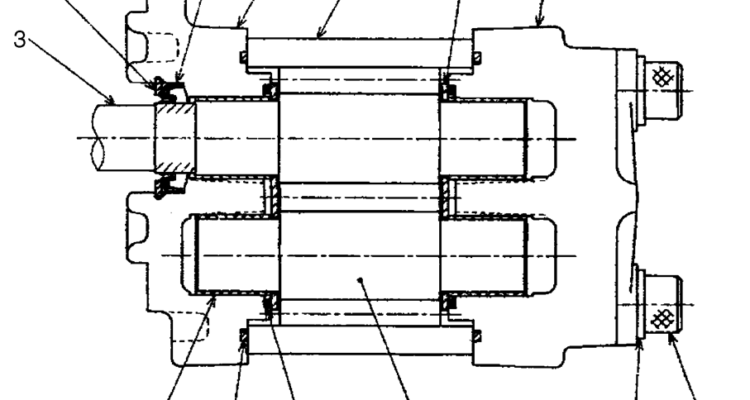

3.032(00) PUMP - GEAR YF10V00003F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YN10V00019R100 REPAIR KIT Contains Items 7x2, 8x2, 9x2, 13x1 & 14x1 14 1 NSS NOT SERVICED SEPARATELY Ring, Retaining 13 1 NSS NOT SERVICED SEPARATELY Seal,…

3.031(00) CASE ASSY, GEAR YN46W00002F6-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 826 1 ZR26X05200 RING 825 1 ZR26X07200 SNAP RING 725 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm 711 1 ZD12G08500 O-RING ID 84.40 ±…

3.030(00) CASE ASSY, GEAR YN46W00001F2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 886 2 NSS NOT SERVICED SEPARATELY PIN 826 1 NSS NOT SERVICED SEPARATELY RING 825 1 NSS NOT SERVICED SEPARATELY RING 728 1 ZD12P02400 O-RING ID 23.70…

3.029(00) BUCKET - INSTALLATION (LONG REACH) YM61B00002F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 3 4 2445Z1570 O-RING ID 125 ± 0.40 x OD 143mm 2 2 2419T6002D6 PIN OD 16 x 102mm Long 1 2 2418T23987D2 RING Retaining…
