SK350-8/SK330LC-8

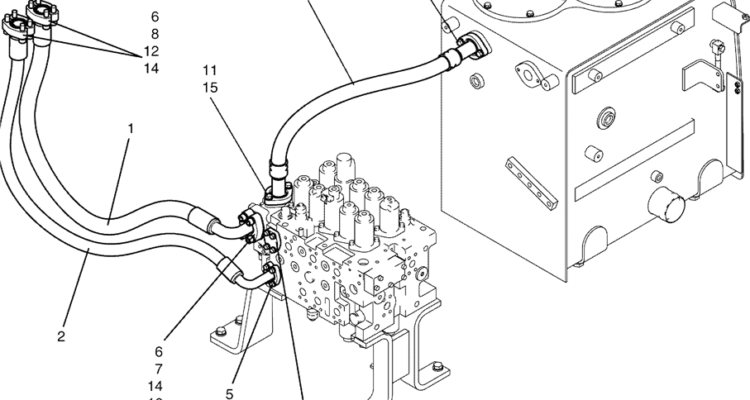

5.002(00) HYD LINES, UPPER (NIBBLER & BREAKER) LC03H00055F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 4 ZW26X14000 LOCK WASHER ID 14 x OD 24.5 x Th 3.5mm 15 2 ZD12P04800 O-RING ID 47.70 ± 0.44 x OD 54.7mm…

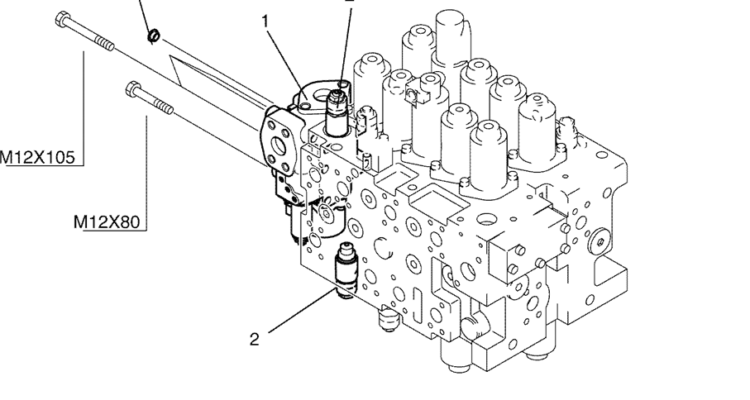

5.001(00) VALVE INSTALLATION YN64H00190F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 YN64H01392D1 CAP 14.0mm (Nylon) -- Used after 05/24/2007 3 1 PV02B01073D7 CAP Shipping Plug, 14.6mm Plastic -- Used from 09/23/2005 - 05/24/2007 1 1 YN30V00104F1 HYDRAULIC VALVE…

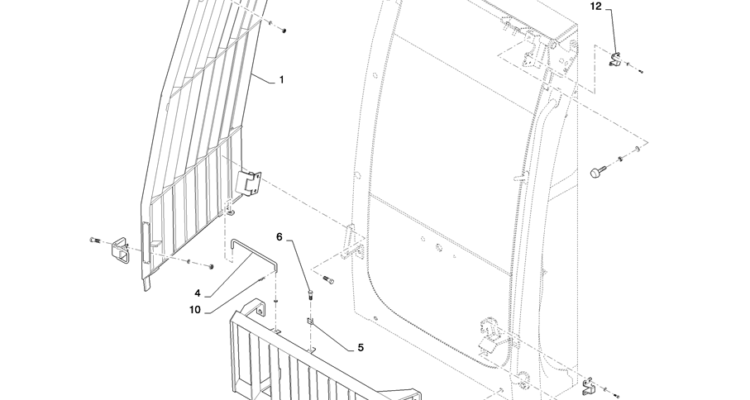

1.068(02) CAB FRONT GUARD-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 2 ZW16X10000 WASHER 15 2 ZN18F10008 NUT 14 2 YT02C01066P1 STOP 13 12 ZM73C06020 BOLT 12 2 LS02C01137F1 LOCK 11 2 YN02C03660P1 SHIM 10 1 2419R9D2 COTTER…

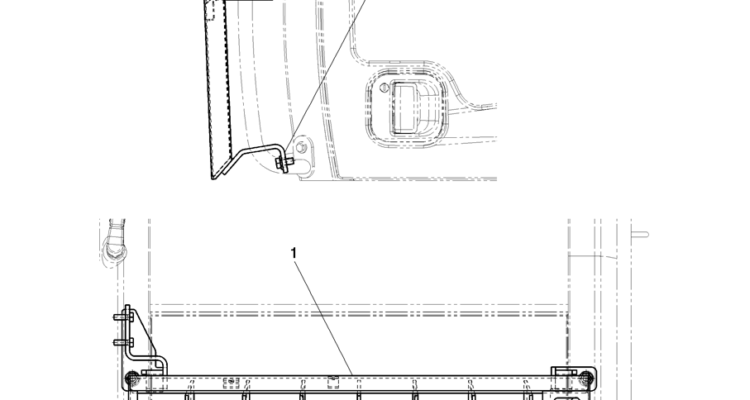

1.068(01) CAB FRONT GUARD-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 2 4 ZM73C12030 BOLT 1 1 LS02C01051P1 GUARD 3 4 Not Used     Kobelco Part Number Information parts manager pro is the electronic parts Catalog Kobelco EPC…

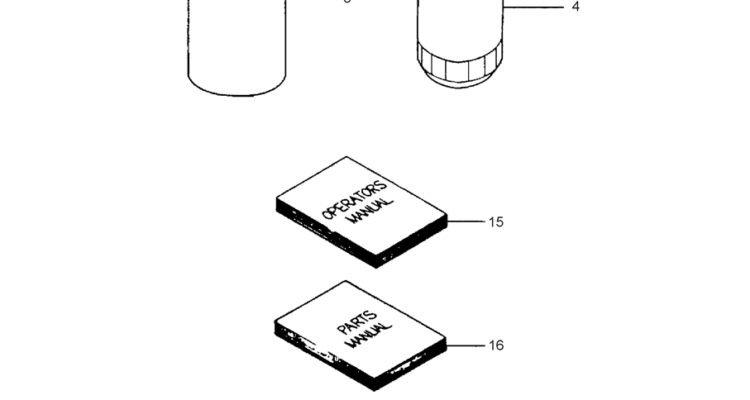

4.002(00) ELEMENT KIT LC30T00005F7-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 15 1 LC91Z00012D6NA MANUAL, OPERATOR’S 9 4 LQ61B01004P1 O-RING ID 155.5± 0.60 x OD 177.7mm 5 1 YN30T01002P1 ELEMENT FILTER, FUEL 4 1 YN30T01001P1 ELEMENT FILTER, OIL 16…

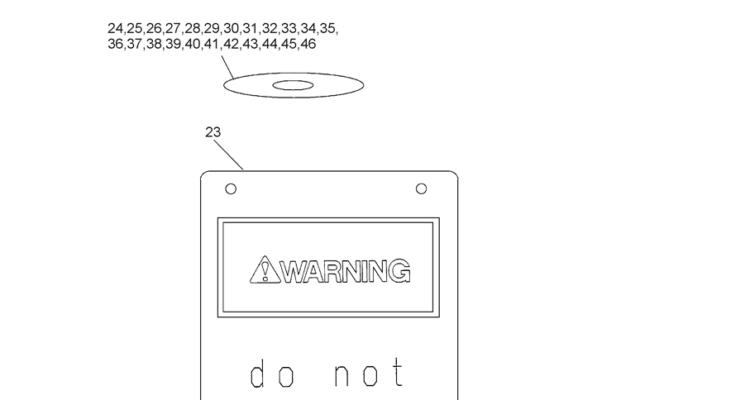

4.001(00) TOOLS & ACCESSORIES LC01T00032F4-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 48 1 2421R380 GREASE GUN 47 1 2421Z499 GREASE 46 1 YN12B01601D1 SHIM ID 82 x OD 140 x Th 2.0mm 45 1 YN02B01414D1 SHIM ID 92…

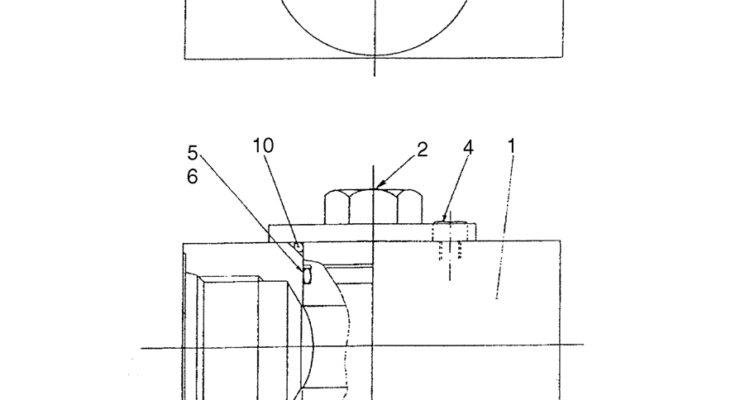

3.040(00) VALVE ASSEMBLY, (24100P3133F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 10 2 ZD11G04000 O-RING ID 39.40 ± 0.37 x OD 45mm 9 1 2418T8945D1 SPACER ID 40 x OD 60 x Th 3.2mm 8 1 ZD75G04000 BACK-UP RING…

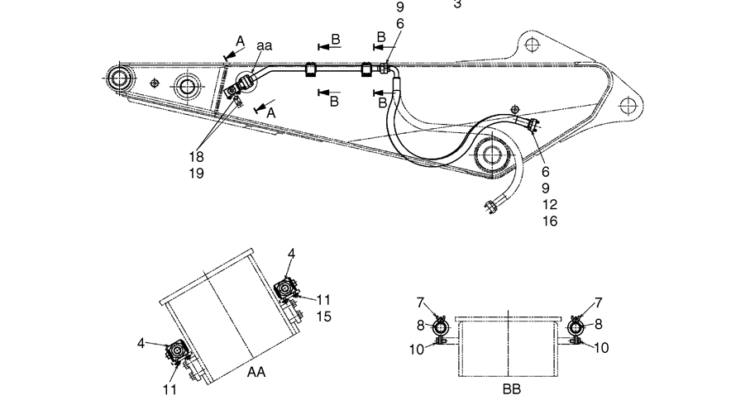

3.039(00) HYDRAULIC LINES - ARM (MASS EXCAVATOR / NIBBLER & BREAKER) (LC43HU0006F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 19 4 ZW16H16000 WASHER ID 17 x OD 32 x Th 4.5mm 18 4 ZS18C16040 SCREW M16x2.0x40mm 17 2 YN43H01663P1…

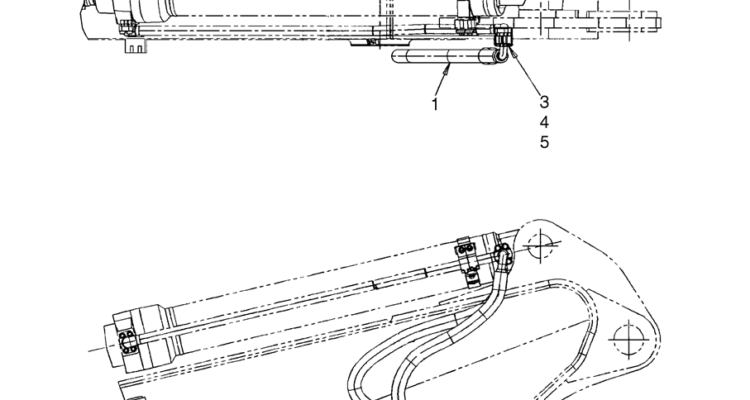

3.038(00) HYD LINES, ARM (MASS EXCAVATOR) (LC43HU0005F1)-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 8 HM83C12040G1 BOLT M12x40mm 4 2 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 3 4 ZE13X16000 FLANGE Clamp, Half -- (Incls. Capscrew…

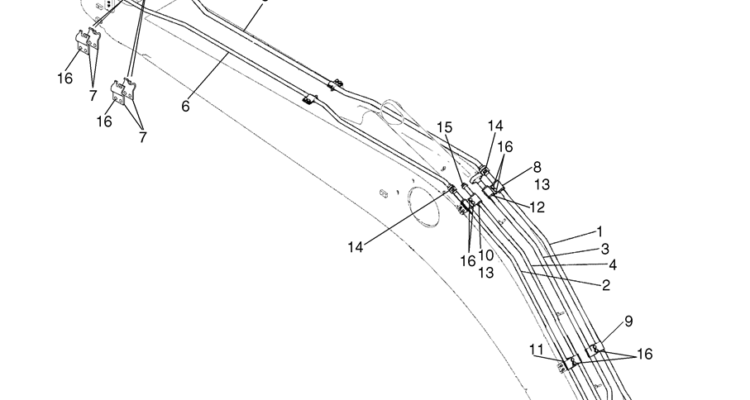

3.037(02) HYD LINES, BOOM, MASS EXCAVATOR (NIBBLER & BREAKER) (LC42HU0008F1), PAGE 2 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 3 YN42H02361P1 CLAMP Ø26x65x52mm 16 16 ZM73C12035 BOLT M12x1.75x35mm (Incls. Washer) 15 6 ZD12A02100 O-RING ID 23.52…
