SK350-8/SK330LC-8

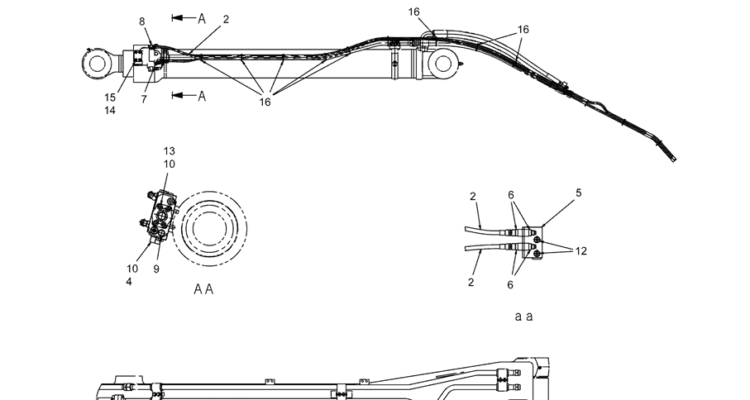

5.022(00) HYD LINES, ARM CYLINDER (SAFETY) LC42H00186F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 17 PY01P01043D3 CLIP Wire Ties -- 188mm Long 15 4 ZW26K12000 LOCK WASHER ID 12 x OD 17.8 x Th 2.5mm 14 4 ZS28C12075…

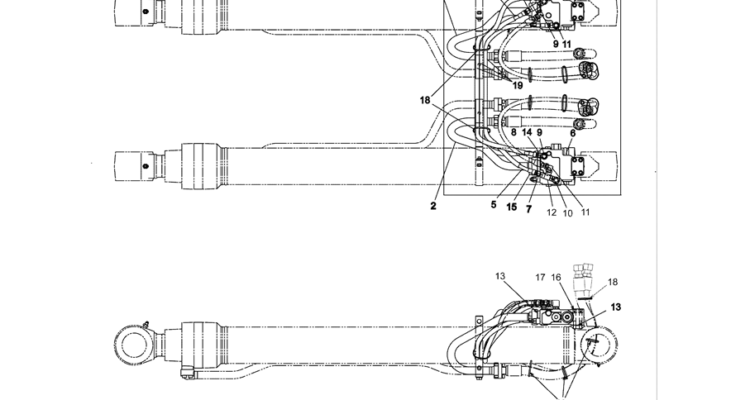

5.021(00) HYD LINES, BOOM CYLINDER (SAFETY) LC42H00227F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 19 3 PU13E01010D5 TUBE ID 15.2 x OD 19.5 x 1900mm Long 18 10 PY01P01043D6 CLIP Wire Ties -- 368mm Long 17 8 ZW26K12000 LOCK…

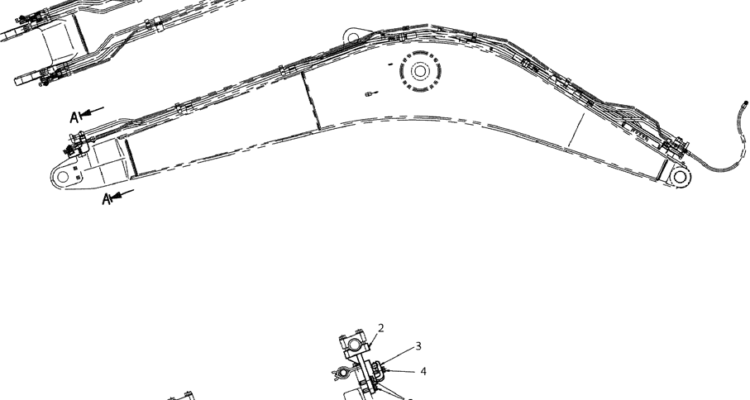

5.020(00) HYD LINES, BOOM (ROTATION) LC42H00180F1 PAGE 2 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 4 ZM73C12040 BOLT M12x1.75x40mm (Incls. Washer) 4 2 ZM73C10045 BOLT M10x1.50x45mm (Incls. Washer) 3 2 ZC26X22011 CLAMP Single Line -- 38x29x65mm…

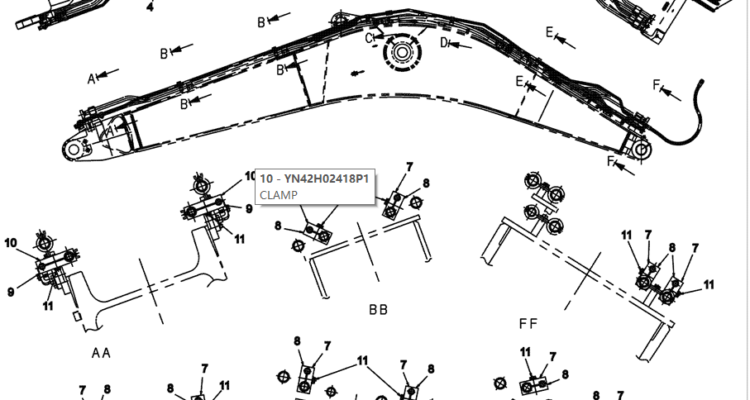

5.019(00) HYD LINES, BOOM (ROTATION) LC42H00180F1 PAGE 1 OF 2-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 4 ZM73C12040 BOLT M12x1.75x40mm (Incls. Washer) 4 2 ZM73C10045 BOLT M10x1.50x45mm (Incls. Washer) 3 2 ZC26X22011 CLAMP Single Line -- 38x29x65mm…

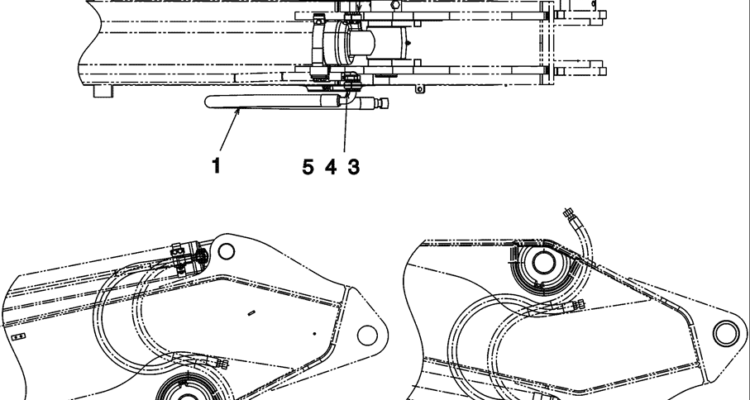

5.018(00) HYD LINES, ARM, SHORT LC43H00105F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 2 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 3 4 ZE13X16000 FLANGE Clamp, Half -- (Incls. Capscrew & Lockwasher) 2 1 YN03H01456DJ HYDRAULIC…

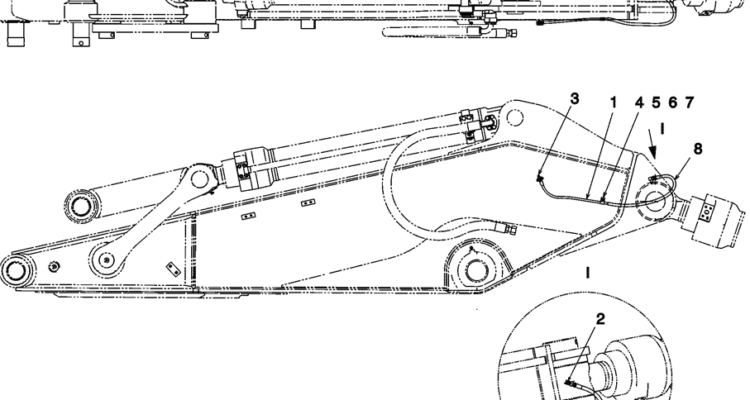

5.017(00) ARM GROUP, SHORT (2.6M) LC12B00408F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 1 2418R676D2 TUBE ID 10.7 x OD 14.1 X 600mm Long (23-5/8 in) 7 1 ZW16P06000 WASHER ID 06 x OD 11.5 x Th 1.6mm…

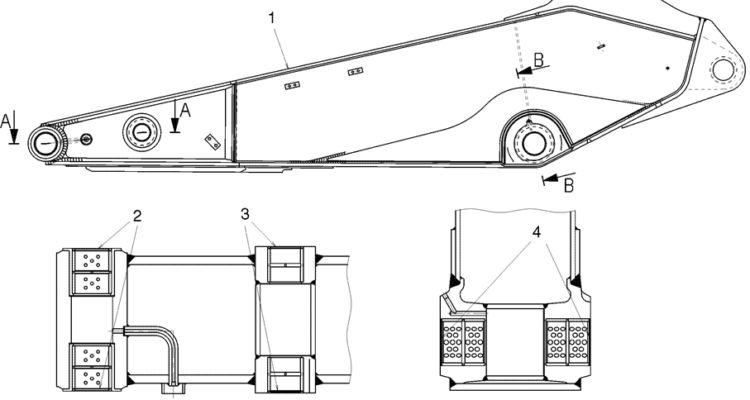

5.016(00) ARM, SHORT (NIBBLER & BREAKER) LC12B00402F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 2 2445R138D26 SEAL Dust -- ID 110 x OD 125 x Th 4mm 3 2 2445R220D4 SEAL Dust -- ID 80 X OD 95…

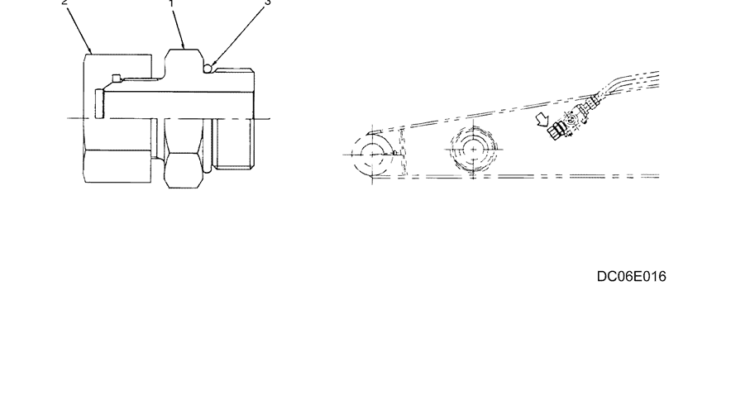

5.015(00) CONNECTOR ASSY (NIBBER & BREAKER) YN43H01646F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1-2 2 2444T2406 PLUG Cap -- 1-5/16" 12UNF 1-1 2 2444P1744D3 HYD CONNECTOR 1-5/16" 12UNF x 1-1/4" PF (No O-Ring supplied) YN43H00004F1 HYD CONNECTOR Assembly…

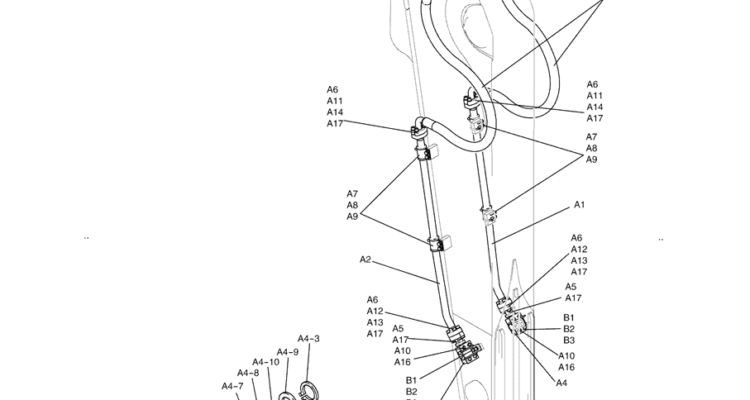

5.014(00) HYD LINES, ARM 3.3M (NIBBLER & BREAKER) LC43H00111F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B3 4 ZW16H16000 WASHER ID 17 x OD 32 x Th 4.5mm B2 4 ZS18C16040 SCREW M16x2.0x40mm B1 2 YN43H01663P1 BRACKET After 02/03/2006…

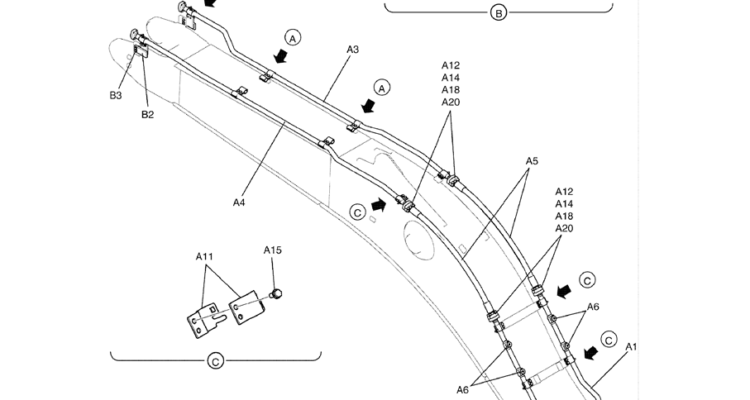

5.013(00) HYD LINES, BOOM (NIBBLER & BREAKER) LC42H00169F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B3 4 ZM73C12040 BOLT M12x1.75x40mm (Incls. Washer) B2 1 LC42H01915P1 BRACKET B1 1 LC42H01916P1 BRACKET LC42H00177F1 HYD LINES,BOOM A22 6 ZS18C12065 SCREW M12x1.75x65mm, Not…
