SK350-8/SK330LC-8

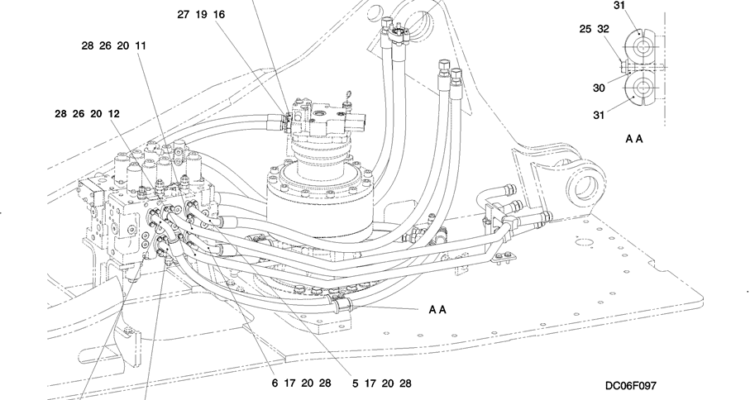

5.031(00) HYD LINES, UPP (ROTATION) BASE PAGE 2 OF 2 LC03H00067F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 4 ZS18C10060 SCREW M10x1.50x60mm 31 4 YN03H01432P1 BUSHING Split -- ID 28 x OD 38 x 70mm Long 30 2…

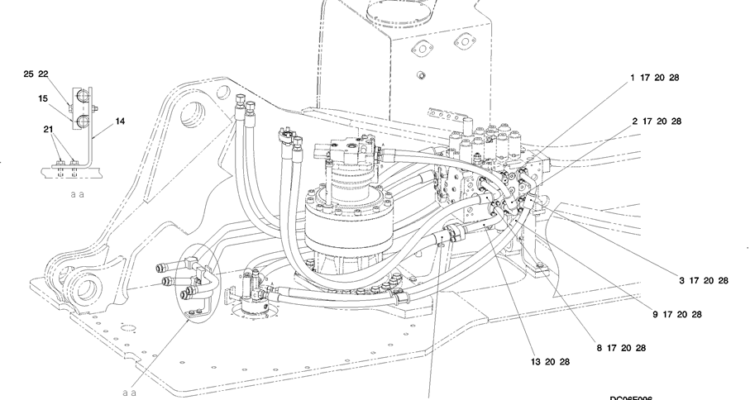

5.030(00) HYD LINES, UPP (ROTATION) BASE PAGE 1 OF 2 LC03H00067F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 32 4 ZS18C10060 SCREW M10x1.50x60mm 31 4 YN03H01432P1 BUSHING Split -- ID 28 x OD 38 x 70mm Long 30 2…

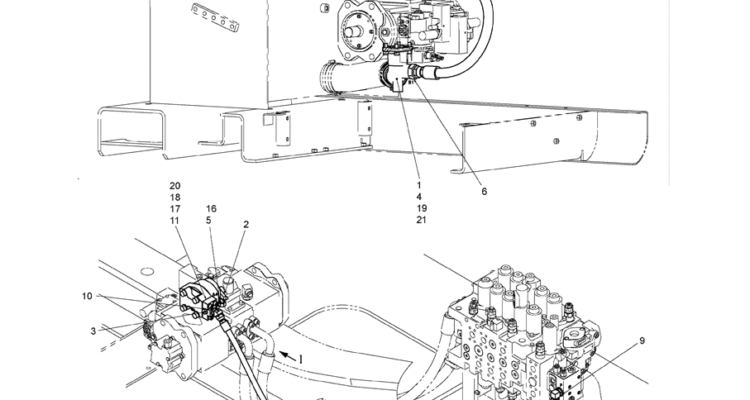

5.029(01) HYD LINES, PUMP (ROTATION) LC30H00031F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 22 1 ZD12P03800 O-RING ID 37.70 ± 0.37 x OD 44.7mm 21 1 45Z91D104 O-RING ID 69.44 ± 0.38 OD 76.50mm 20 1 ZD12P03400 O-RING ID…

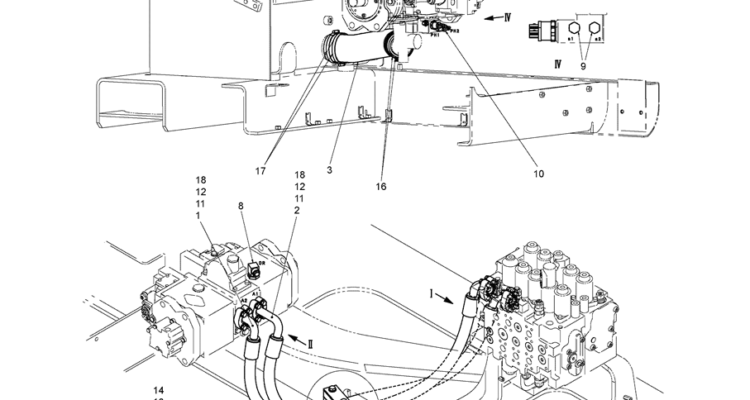

5.029(00) HYD LINES, PUMP (ROTATION) LC30H00037F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals Optional Hydraulic Lines, LC30H00029F1, See Figure 5.029.01 19 AR ZS28C12040 SCREW M12x1.75x40mm 18 4 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm 17 2 ZC16X10000…

5.028(00) HYD LINES, ARM, SHORT (ROTATION) LC43H00150F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 2420T4405 PLUG 3/4"-16UNF x 22mm Long 10 2 2444T2657D1 HYD CONNECTOR M30x1.5mm - 3/4"-16UNF x 46mm Long LC43H01315F1 HYD CONNECTOR CONNECTOR ASSY 8…

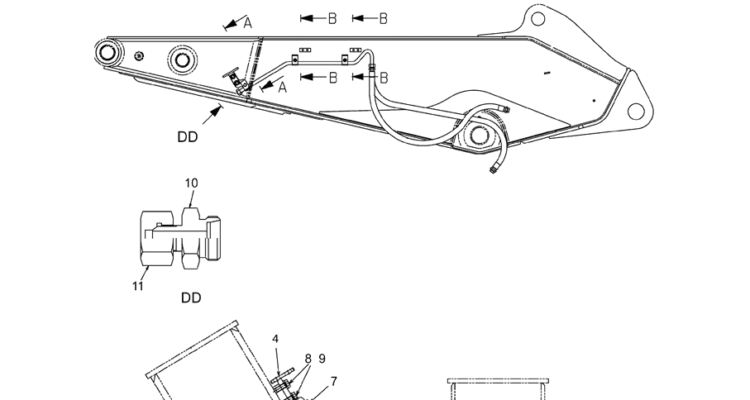

5.027(00) HYD LINES, ARM SHORT (ROTATION + NIBBLER & BREAKER) LC43H00149F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 2420T4405 PLUG 3/4"-16UNF x 22mm Long 10 2 2444T2657D1 HYD CONNECTOR M30x1.5mm - 3/4"-16UNF x 46mm Long LC43H01315F1 HYD…

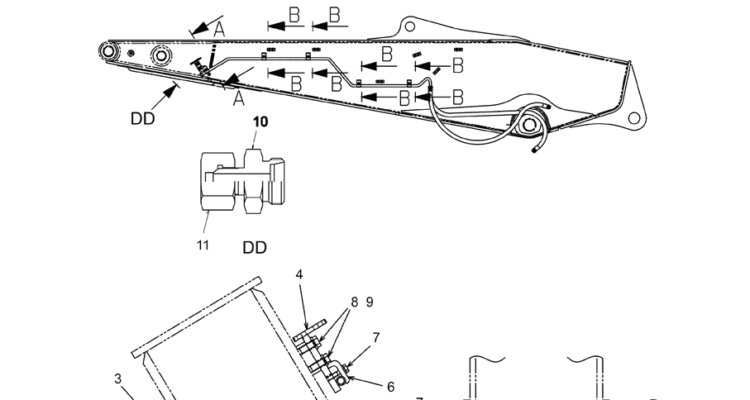

5.026(00) HYD LINES, ARM, LONG (ROTATION) LC43H00147F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 2420T4405 PLUG 3/4"-16UNF x 22mm Long 10 2 2444T2657D1 HYD CONNECTOR M30x1.5mm - 3/4"-16UNF x 46mm Long LC43H01315F1 HYD CONNECTOR CONNECTOR ASSY 9…

5.025(00) HYD LINES, ARM, LONG (ROTATION & NIBBLER & BREAKER) LC43H00146F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 2420T4405 PLUG 3/4"-16UNF x 22mm Long 10 2 2444T2657D1 HYD CONNECTOR M30x1.5mm - 3/4"-16UNF x 46mm Long LC43H01315F1 HYD…

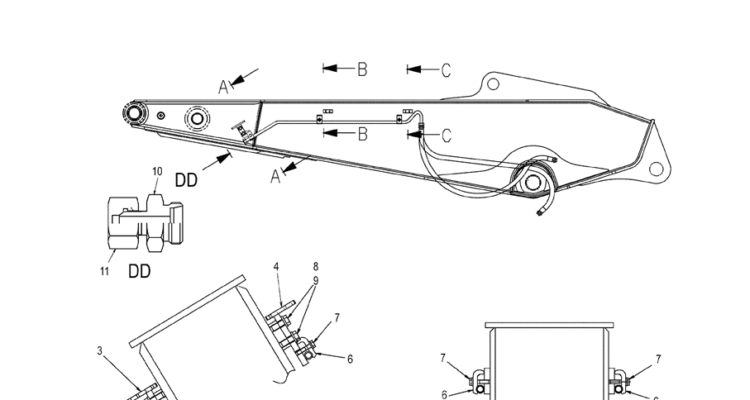

5.024(00) HYD LINES, ARM (ROTATION) LC43H00144F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 2420T4405 PLUG 3/4"-16UNF x 22mm Long 10 2 2444T2657D1 HYD CONNECTOR M30x1.5mm - 3/4"-16UNF x 46mm Long LC43H01315F1 HYD CONNECTOR CONNECTOR ASSY 9 4…

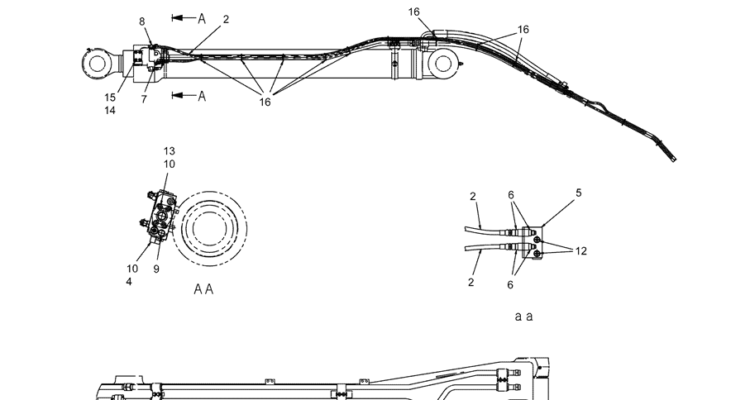

5.023(00) HYD LINES, ARM (ROTATION & NIBBLER & BREAKER) LC43H00143F1-SK350-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 11 2 2420T4405 PLUG 3/4"-16UNF x 22mm Long 10 2 2444T2657D1 HYD CONNECTOR M30x1.5mm - 3/4"-16UNF x 46mm Long LC43H01315F1 HYD CONNECTOR…
