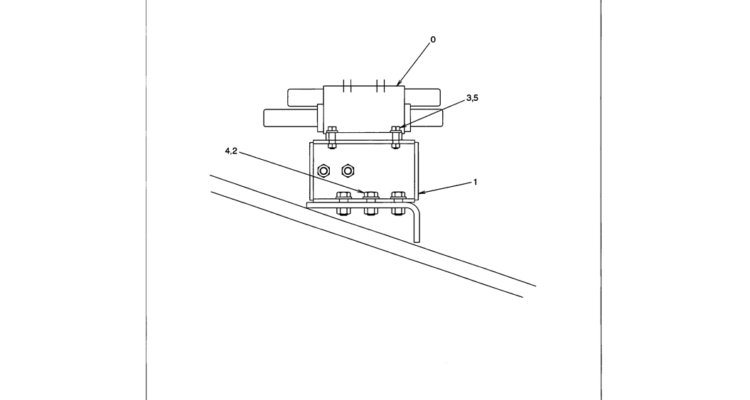

01-022 VALVE INSTALLATION (ROTATION VALVE)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 3 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm 3 3 ZS18C08030 SCREW M08x1.25x30mm 2 3 ZS18C12030 SCREW M12x1.75x30mm 1 1 LC03H01078P1…

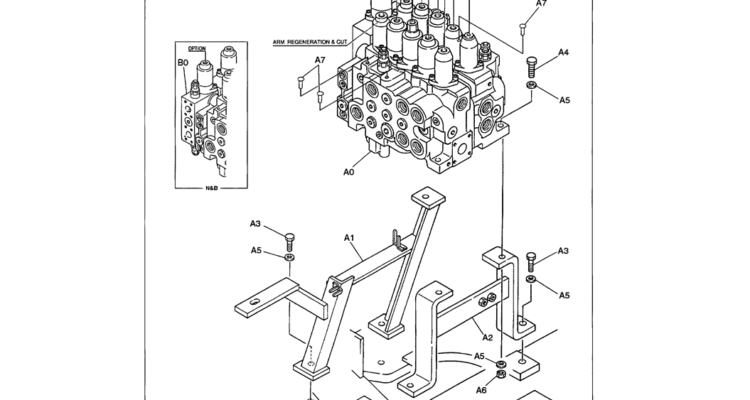

01-021 VALVE INSTALLATION (MAIN HYDRAULIC VALVE)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B1 4 NSS NOT SERVICED SEPARATELY CAPSCREW AR NSS NOT SERVICED SEPARATELY VALVE INSTALLATION - NIBBLER AND BREAKER B0 1 YN30V00047F2 VALVE ASSEMBLY, CONTROL…

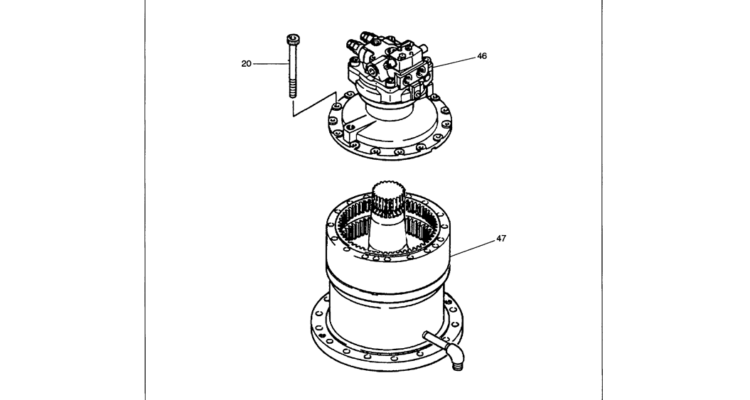

01-020 SWING REDUCTION ASSEMBLY-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 47 1 24100J16661F4 HYDRAULIC MOTOR REDUCTION ASSEMBLY, Remarks: See Art CR8-41 45 1 LC15V00003F2 HYDRAULIC MOTOR MOTOR, HYDRAULIC, Remarks: See Art CR8-37 20 1 2420T4730D1 SCREW…

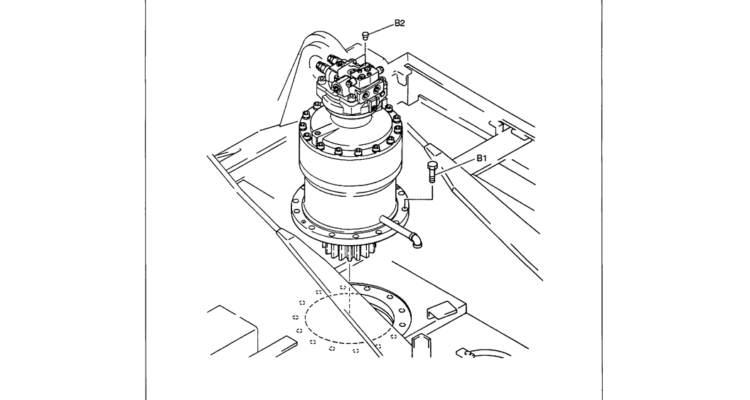

01-019 SWING MOTOR INSTALLATION-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B2 2 PV02B01073D3 CAP 10.7mm Plastic AR LC32W00001F1 MOTOR INSTALLATION, SWING B1 14 2420P1613D2 SCREW M24x2.0x70mm Kobelco Part Number Information parts manager…

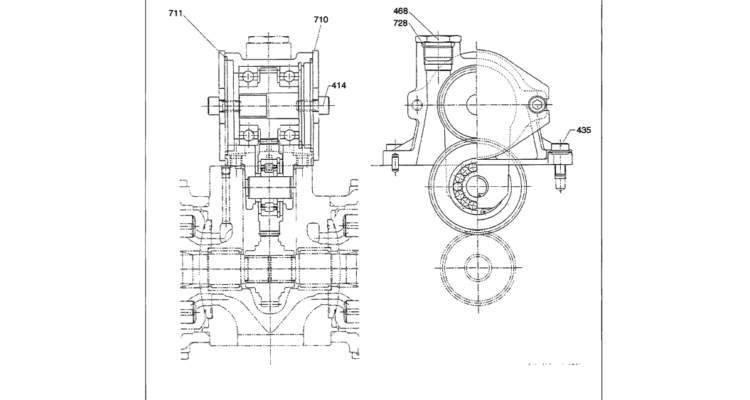

01-018 GEAR CASE ASSEMBLY (ROTATION OPTION)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 728 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm 710 1 ZD12G08000 O-RING ID 79.40 ± 0.69 x OD 85mm 468 1…

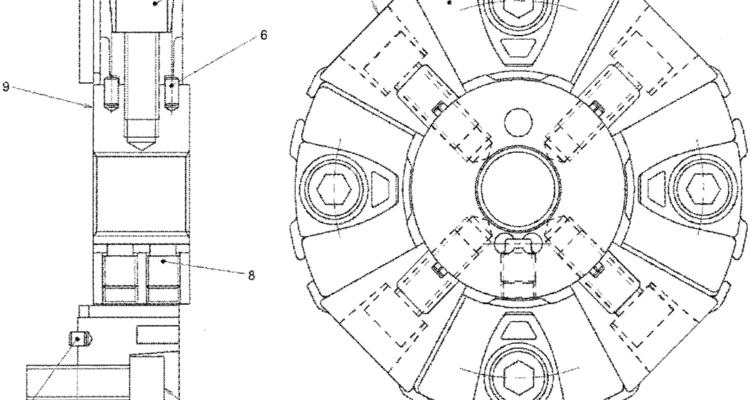

01-017 COUPLING, HUB-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 1 LC30P00007S009 COUPLING HUB 8 2 ZS73C20025 SET OF SCREWS 7 4 2418R605S7 COTTER PIN SPRING 5 4 2418U153S5 SCREW 4 4 2418U153S4 SCREW 3 4…

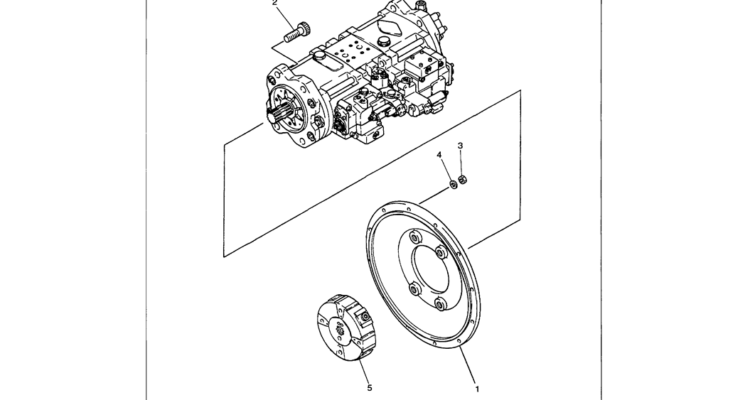

01-016 POWER TAKEOFF ASSEMBLY-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 12 VAMF404548 STUD for housing (not shown) 4 12 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm 3 12 ZN18F10008 NUT M10x1.25mm 2…

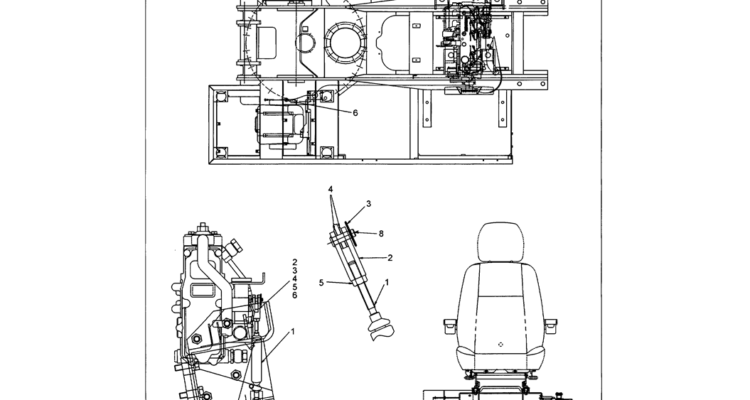

01-015 ENGINE CONTROL ASSEMBLY-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 1 YN11M01114P2 PIN 7 1 2432T4615 LABEL Decal -- 45x45mm Red triangle 6 1 2420Z1330 GROMMET 5 1 ZN18C06005 NUT M06x1.0mm 3 1 2419R9D1 COTTER…

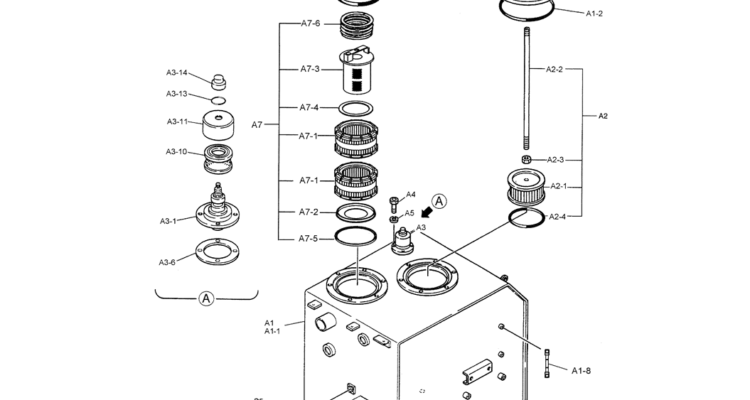

01-014 HYDRAULIC TANK ASSEMBLY, P/N LC33H00020F6-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B5 1 YN33H01052P1 SEAL SEAL B4 1 YN52S00023P1 SENSOR SENSOR, LEVEL (SW-25) B3 3 HY25X24050G1 SHIM (1.0) B2 4 ZW13H20000 WASHER ID 20 x…

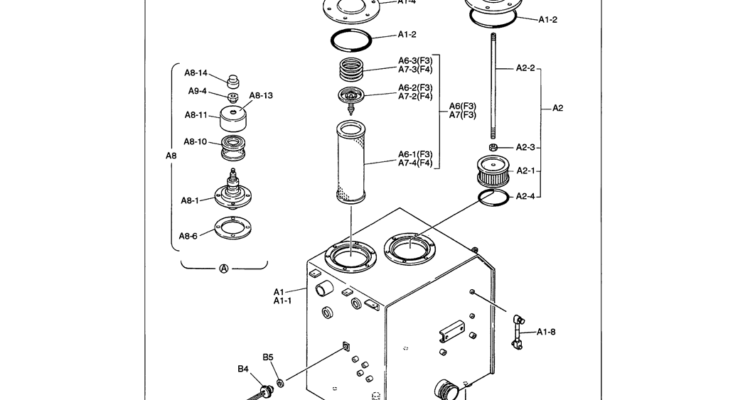

01-013 HYDRAULIC TANK ASSEMBLY P/N LC33H00020F3-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B5 1 YN33H01052P1 SEAL B4 1 YN52S00023P1 SENSOR B3 3 HY25X24050G1 SHIM (1.0) B2 4 ZW13H20000 WASHER ID 20 x OD 40 x Th…
