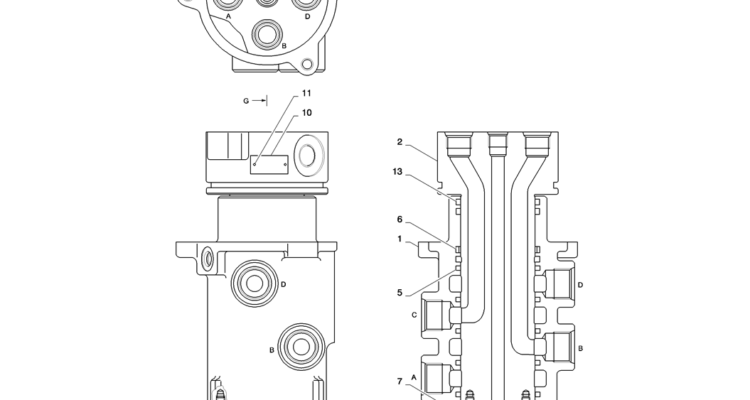

02-005(02)JOINT INSTALL, SWIVEL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 2 2445R152D1 O-RING 12 1 PV52D01007P1 PLUG 11 2 2420Z1036D3 CLEVIS 10 1 YN22T00194P1 TYPE PLATE Name 9 3 ZS23C08030 SCREW Cap 8 2 ZS23C08020 SCREW…

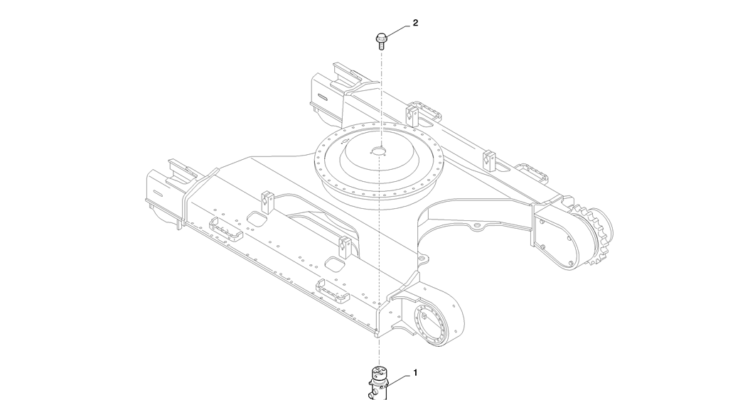

02-005(01)JOINT INSTALL, SWIVEL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 1 YN55V00053F1 CENTER JOINT Swivel AR YN19H00053F1 Swivel 2 3 ZM73C12025 BOLT Sems Kobelco Part Number Information parts manager pro is the…

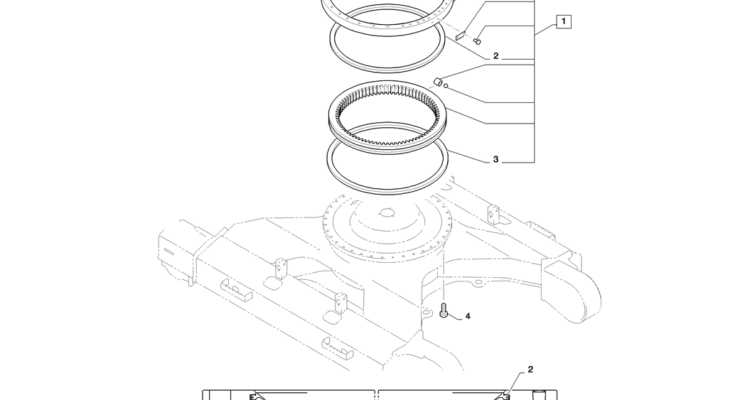

02-003(00)RING ASSY, SLEWING-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 36 LQ40F01001P1 SCREW Cap 3 1 YN40F01024D5 SEAL 2 1 YN40F01024D6 SEAL 1 1 YF40F00007F2 SLEWING RING Includes Ref. 2-3 AR YF40F00008F1 Slewing …

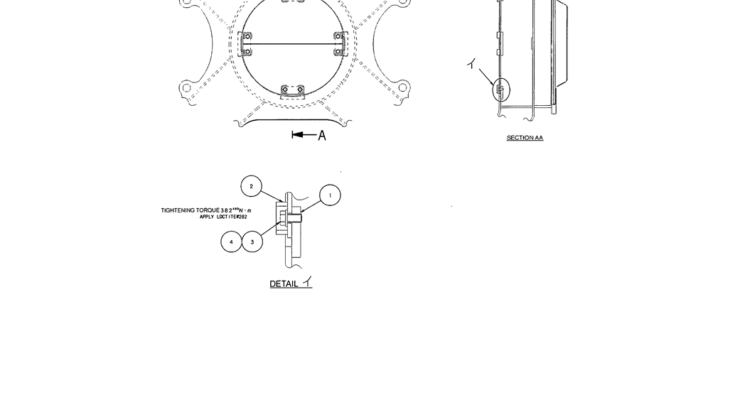

2-002(02)UNDER COVER ASSEMBLY-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 8 ZW11X18000 WASHER ID 18 x OD 34 x Th 3.2mm 2 2 YN24C01215P1 COVER ASSY 1 1 YN24C01214P1 U-BRACKET BLOCK INSTAL YN24C00023F1 COVER ASSY UNDER…

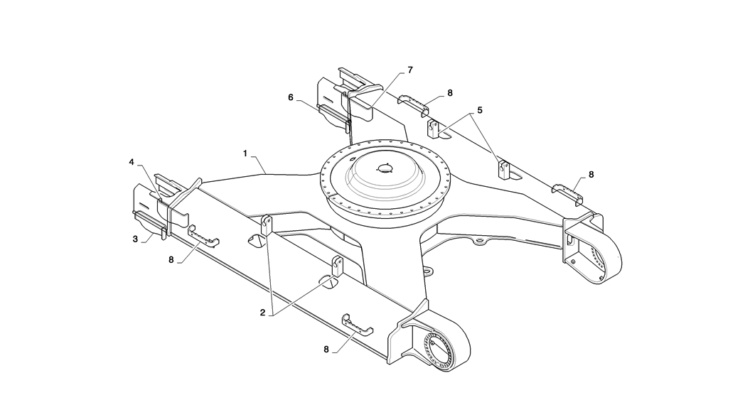

02-002(00)FRAME ASSY, LOW (LONG CRAWLER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 4 YN41C00077P1 STEP 7 1 YN07F01076P1 GUIDE 6 1 YN07F01075P1 GUIDE 5 2 YN07F01270P1 SUPPORT 3 1 YN07F01075P1 GUIDE 2 2 YN07F01270P1 SUPPORT 1…

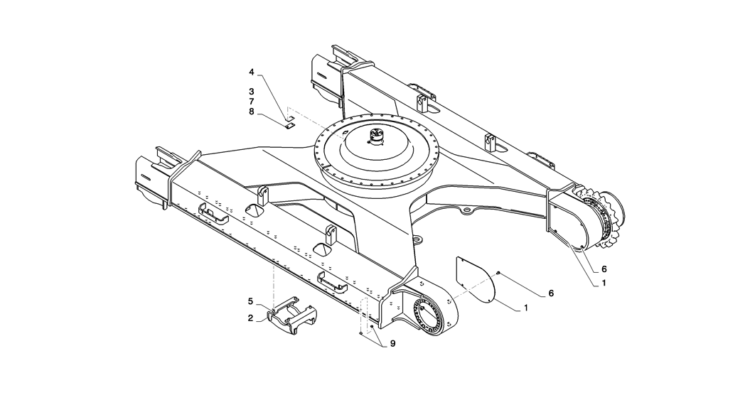

02-001(00)LOW GROUP-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 9 32 YN01F01040P1 CAP 8 2 ZW26X10000 LOCK WASHER 7 2 ZS18C10014 SCREW Cap 6 8 ZM73C12025 BOLT Sems 5 8 2420P1580D1 SCREW Cap 4 1 2418T12274 PACKING…

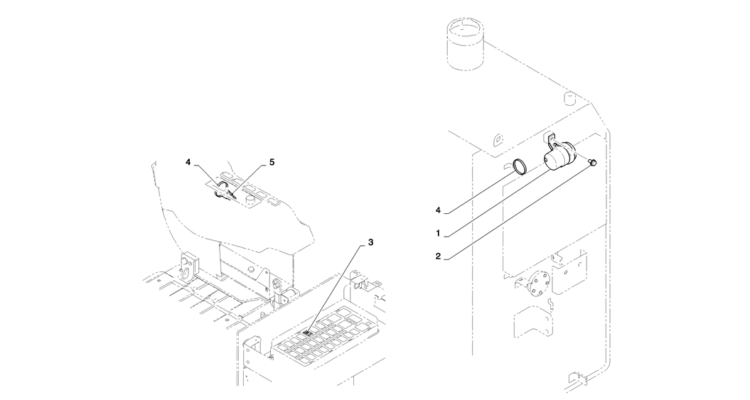

01-088(00)ALARM ASSY-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 LC53E01004P1 WIRE HARNESS 3 1 YN24S00010P1 RELAY 2 1 ZM73C08016 BOLT Sems 1 1 YN53S00004F1 ALARM AR YB53E00002F2 ALARM 4 2 PY01P01043D3 CLIP …

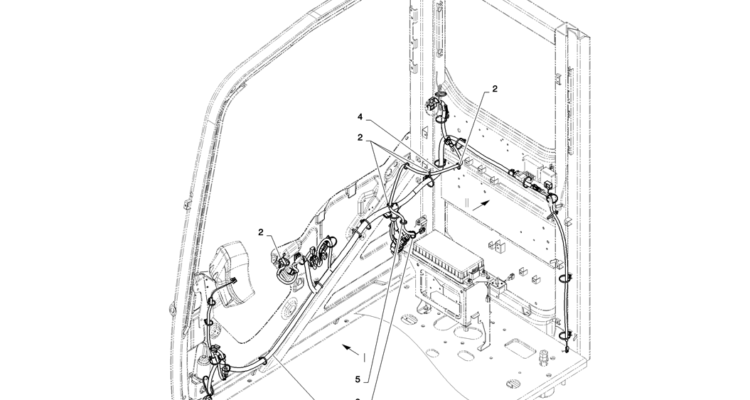

01-087(02)HARNESS ASSY, CAB-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 1 YN11E01205P1 WIRE HARNESS 3 3 YT11E01043P1 SPRING Clip 2 17 YN13E01375P1 CLIP 1 29 PY01P01043D3 CLIP AR YY14E00028F1 Cab, ASN YU06-03008 4 1 ZM73C06016 BOLT…

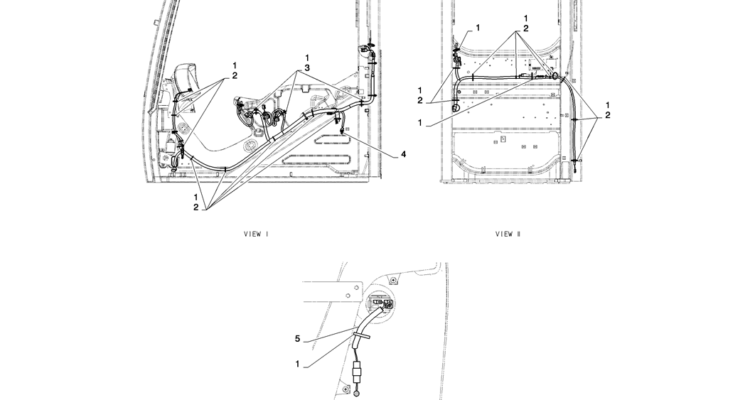

01-087(01)HARNESS ASSY, CAB-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 2 PY01P01043D5 CLIP , BTW YU06-03008 & YU06-03010 4 1 LF14E01033P1 WIRE HARNESS , ASN YU06-03011 4 1 LF14E01029P1 WIRE HARNESS , BTW YU06-03008 & YU06-03010…

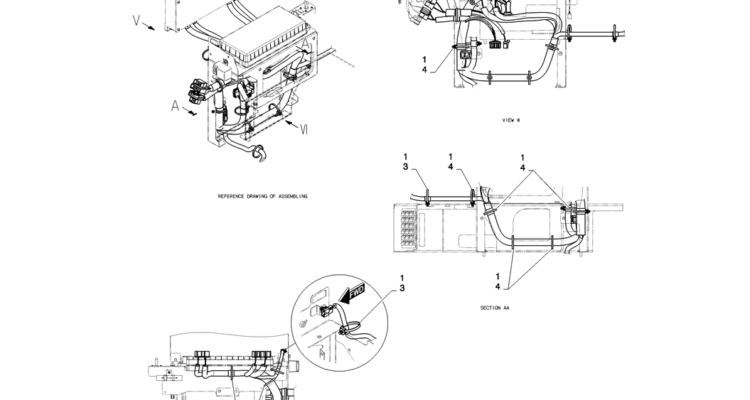

01-086(02)HARNESS ASSY, UPPER-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 7 PY01P01043D5 CLIP 2 1 YY13E01268P1 WIRE HARNESS 1 21 YN13E01375P1 CLIP AR YB13E00053F1 Upp. (Hand Control Less) 3 26 PY01P01043D3 CLIP …
