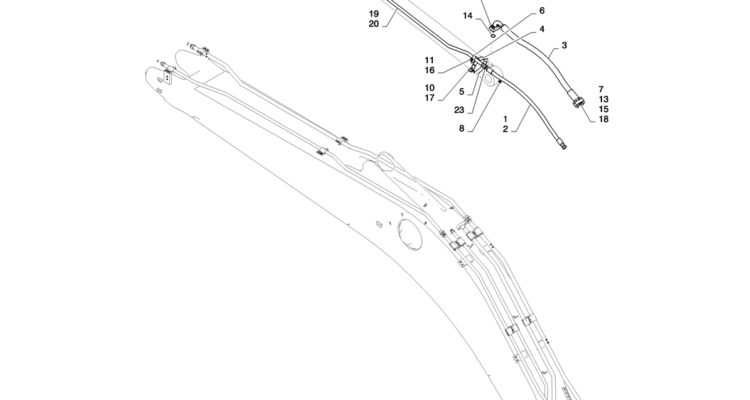

03-009(00)HYD LINES, CYLINDER (ARM)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 23 1 ZD12A01800 O-RING 22 1 ZD12P03400 O-RING 21 4 ZS28C12040 SCREW Cap 20 1 YN42H02333P1 TUBE 19 1 YN42H00337F1 Cylinder 18 4 ZW26K14000 LOCK WASHER…

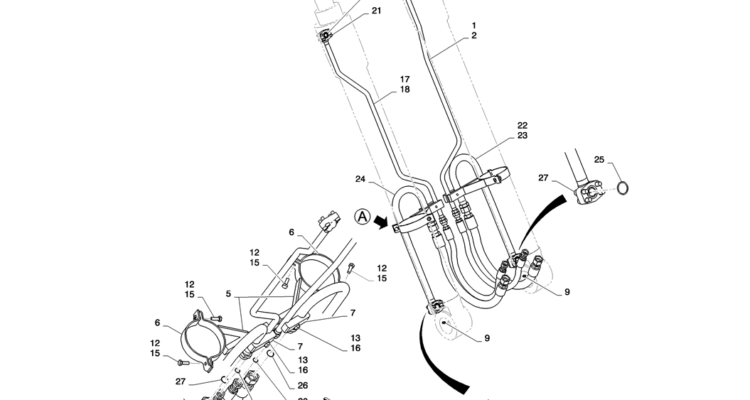

03-008(00)HYD LINES, CYLINDER (BOOM)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 27 8 ZS28C12040 SCREW Cap 26 2 ZD12A02100 O-RING 25 2 ZD12P03400 O-RING 24 1 YF42H01131P1 TUBE 23 1 YF42H01130P1 TUBE 22 1 YF42H00042F1 Cylinder 21…

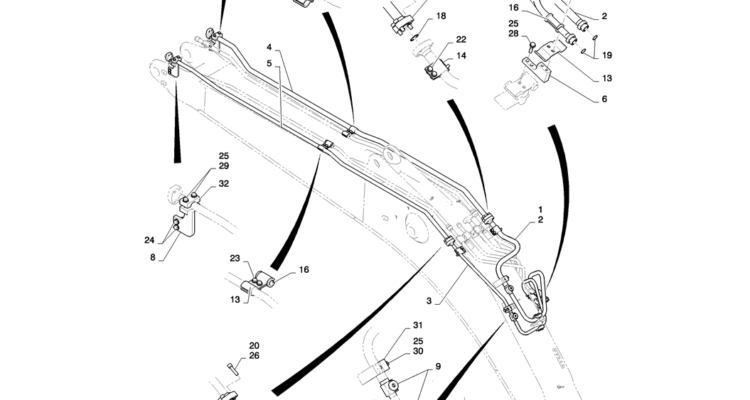

03-007(02)HYD LINES, BOOM 5.65M (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 33 2 2432T6122 CLAMP 32 2 2432T5924 CLAMP 31 2 LC42H01269P1 CLAMP 30 4 ZS18C12065 SCREW Cap 29 4 ZS18C12060 SCREW Cap 28…
03-007(01)HYD LINES, BOOM 5.65M (NIBBLER & BREAKER)-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 10 ZM73C12035 BOLT Sems 16 1 YY42H01313P1 O-RING 15 4 ZD12A02100 O-RING 14 4 ZD12A01800 O-RING 13 4 YN43H01524P1 BUSHING 12 4…

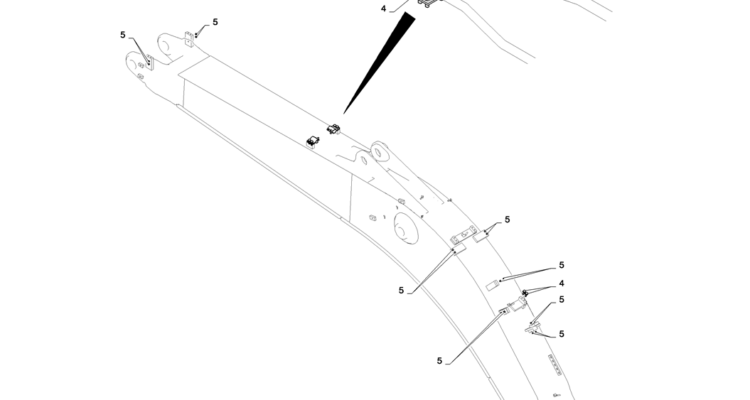

03-006(02)HYD LINES, BOOM 5.65M-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 5 16 YN64H01391D1 CAP 4 6 ZM73C12035 BOLT Sems 2 2 YN42H02355P1 CLAMP 1 1 YB42H00043F1 Boom AR YF42H00032F1 Boom 5.65M 3 2 YN42H02357P1 CLAMP …

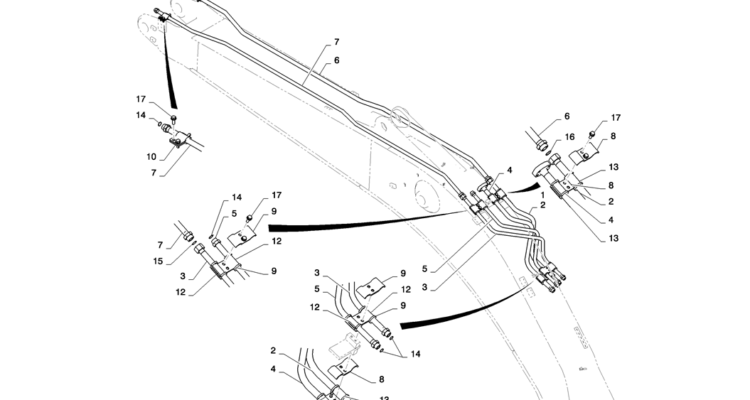

03-006(01)HYD LINES, BOOM 5.65M-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 17 10 ZM73C12035 BOLT Sems 16 1 YY42H01313P1 O-RING 15 4 ZD12A02100 O-RING 14 4 ZD12A01800 O-RING 13 4 YN43H01524P1 BUSHING 11 2 YN42H02357P1 CLAMP 10…

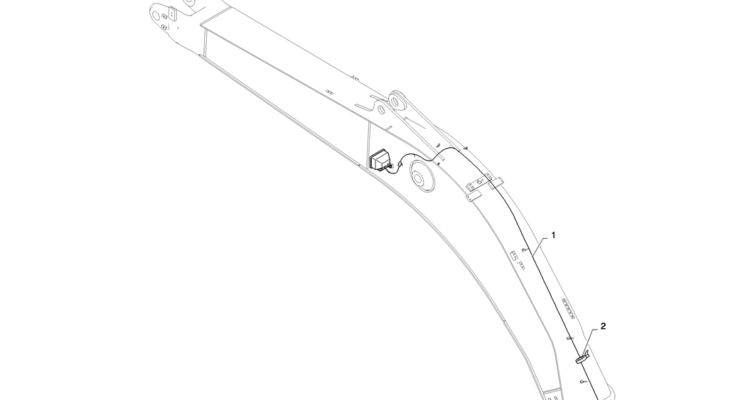

03-004(00)HARNESS ASSY, BOOM-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 1 YB15E01001P1 HARNESS AR YB15E00005F1 Boom 2 1 PY01P01043D3 CLIP Kobelco Part Number Information parts manager pro is the electronic parts Catalog…

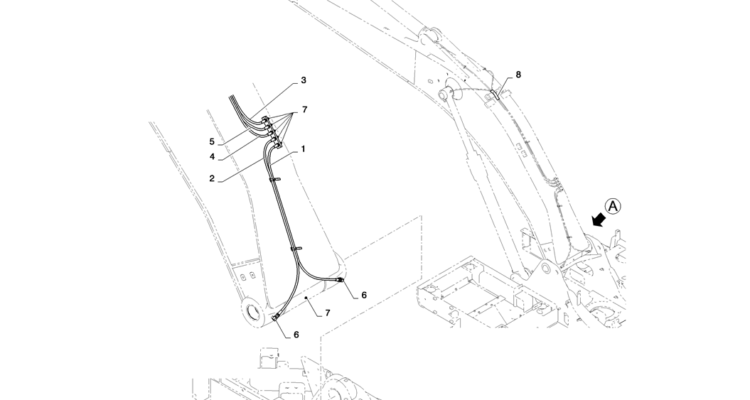

03-003(00)BOOM GROUP-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 1 2414Z199D25 GUARD Hose 7 6 ZG91S02000 LUBE NIPPLE 5 1 2444R1117D260 HOSE 2600.00 mm 4 1 2444R1117D225 HOSE 2250.00 mm, ASN YU06-03005 4 1 2444R1117D220 HOSE…

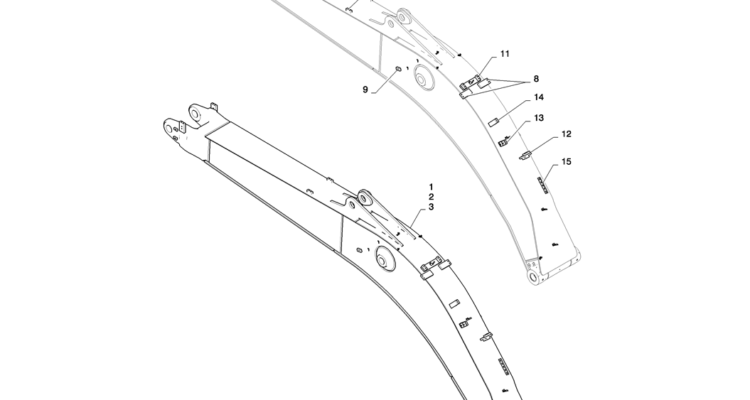

03-002(00)BOOM, HOE 5.65M-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 2 2445R138D8 SEAL Dust 15 1 2418T22409 PLATE 14 1 YF42H01152P1 BRACKET 13 1 YF42H01150P1 BRACKET 12 1 YF42H01148P1 BRACKET 11 1 YF02B01065P1 BRACKET 10 2…

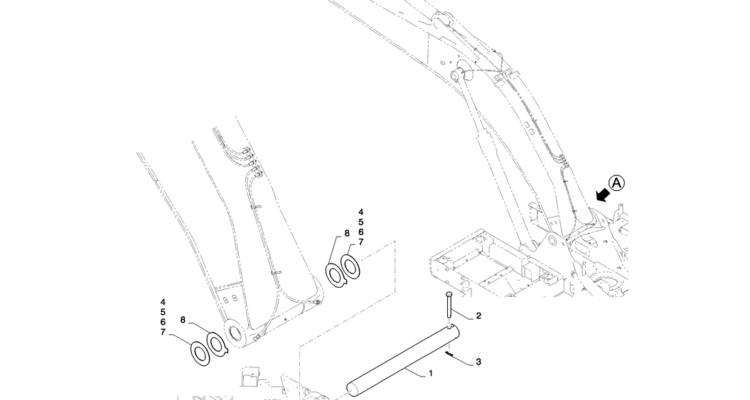

03-001(00)BOOM INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 2 YN02B01414D1 SHIM (2.0) 6 1 B16T0442D14 SHIM (1.6) 5 1 B16T0442D40 SHIM (0.9) 4 1 B16T0442D53 SHIM (0.5) 3 1 YN02B01234P1 PIN 2 1 YN02B01233P1 PIN…
