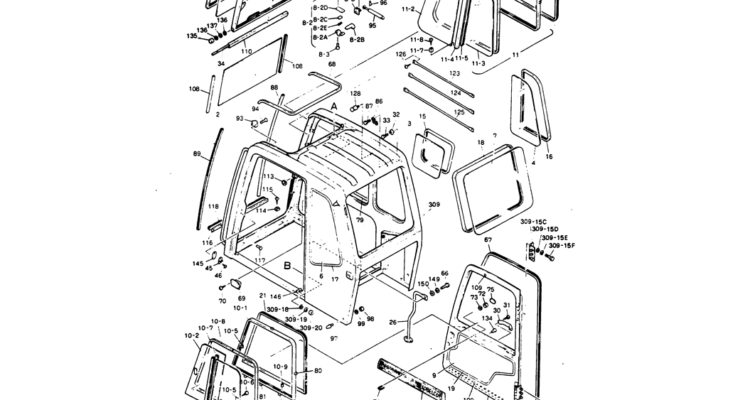

02-004(01) CAB ASSY P/N 24100J14396F15-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 24100R169F1 CABIN DOOR 309-20 6 ZN17C10008 NUT M10x1.50mm 309-19 6 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm 309-18 6 ZW16X10000…
02-003(02) CAB ASSY P/N 24100J14396F9-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 24100R169F1 CABIN DOOR 305-20 6 ZN17C10008 NUT M10x1.50mm 305-19 6 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 305-18 6 ZW16X10000 WASHER…

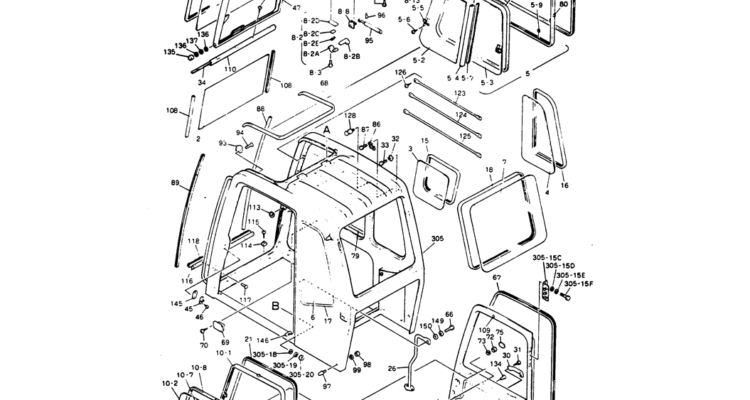

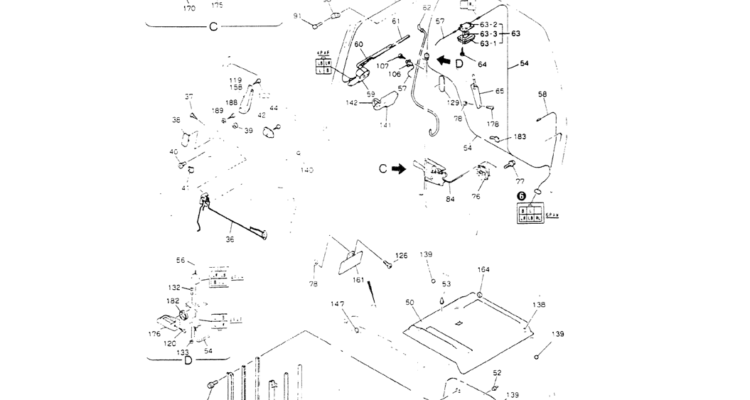

02-003(01) CAB ASSY P/N 24100J14396F9-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 24100R169F1 CABIN DOOR 305-20 6 ZN17C10008 NUT M10x1.50mm 305-19 6 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 305-18 6 ZW16X10000 WASHER…

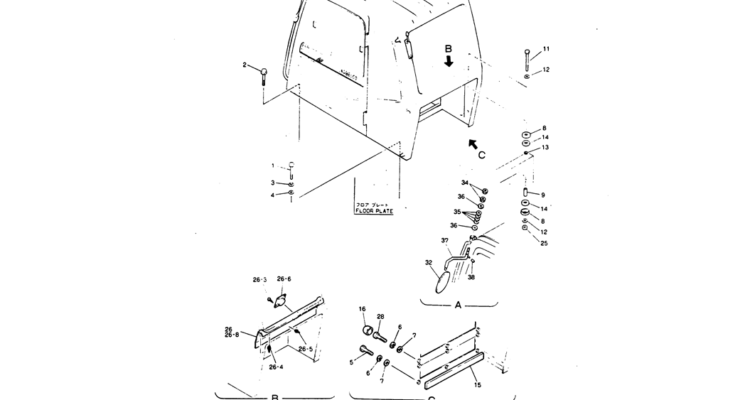

02-002 INSTALL, CAB P/N 24100N7745F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 38 1 2420Z912D16 HOSE , ASN LQU00036- 38 1 2420Z912D16 HOSE , ASN LLU000783- 37 1 2416T28880 STAY , ASN LQU00036- 37 1 2416T28880 STAY…

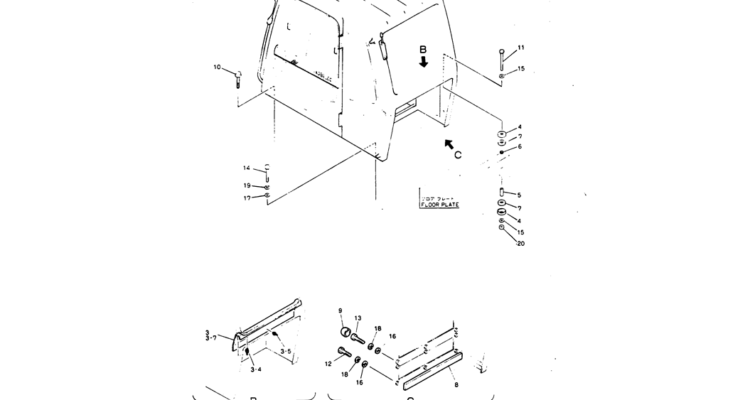

02-001 INSTALL, CAB P/N 24100N7462F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 20 2 ZN18C16013 NUT M16x2.0mm 19 8 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm 12 ZW26X08000 WASHER Lock -- ID 08…

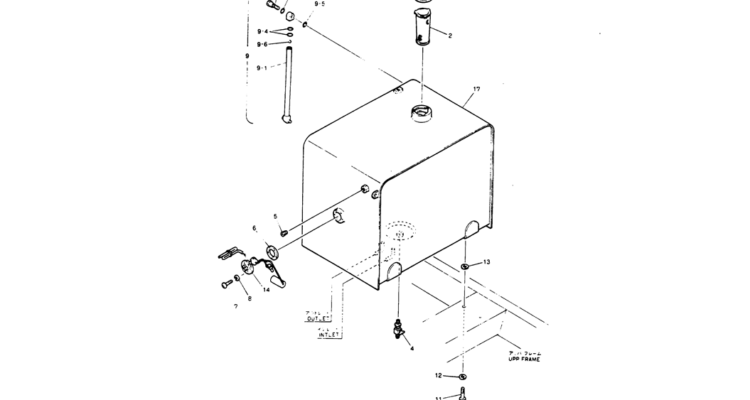

01-009 TANK ASSY, FUEL P/N 24100N76635-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 2427J3121 FUEL TANK 14 1 2489U267F1 SENSOR FUEL 13 3 2418T17283D1 SPACER (1.) 12 4 ZW13H16000 WASHER ID 17 x OD 32…

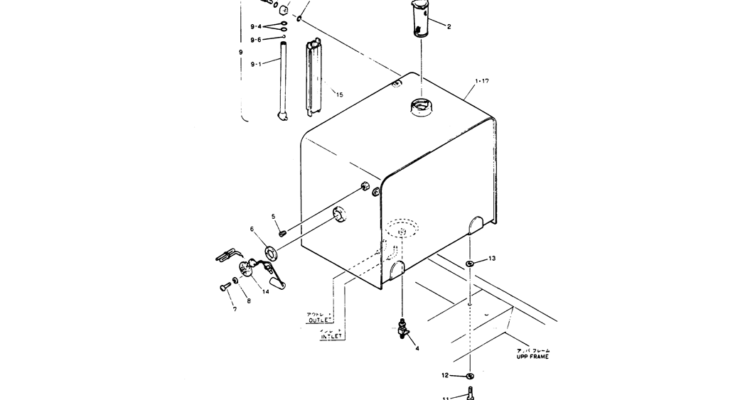

01-008 TANK ASSY, FUEL P/N 24100N7663F1, F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 2427J3121 FUEL TANK , ASN LLU00693- 15 1 2414T5027 GUARD 14 1 2489U267F1 SENSOR FUEL 13 3 2418T17283D1 SPACER (1.0) 12…

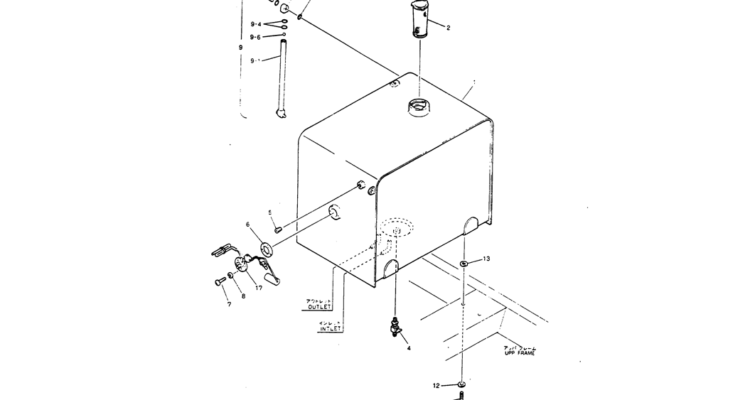

01-007 TANK ASSY, FUEL P/N 24100N7436F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 2489U267F1 SENSOR FUEL 13 3 2418T17283D1 SPACER (1.0) 12 4 ZW13H16000 WASHER ID 17 x OD 32 x Th 4.5mm 11 4…

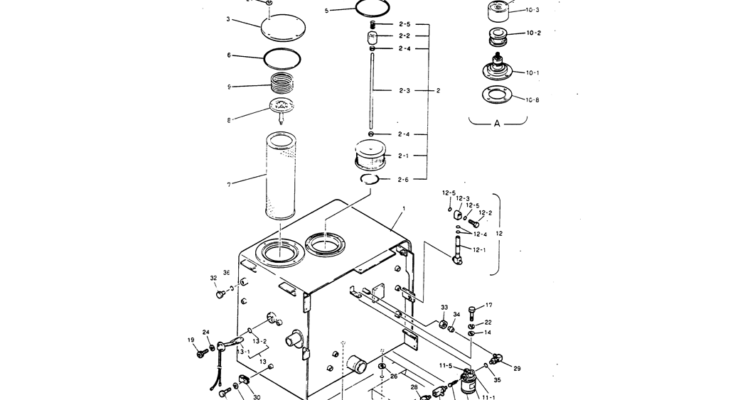

01-006 TANK ASSY, HYDR-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 24046Z73 ELEMENT CONSISTS OF ITEM 6, 7 AR 24100J16077F1 TANK, OIL, HYDR, ASN LQU00018- 1 24100J16077F1 TANK, OIL, HYDR, Remarks: CONSISTS OF ITEM 1, 2,…

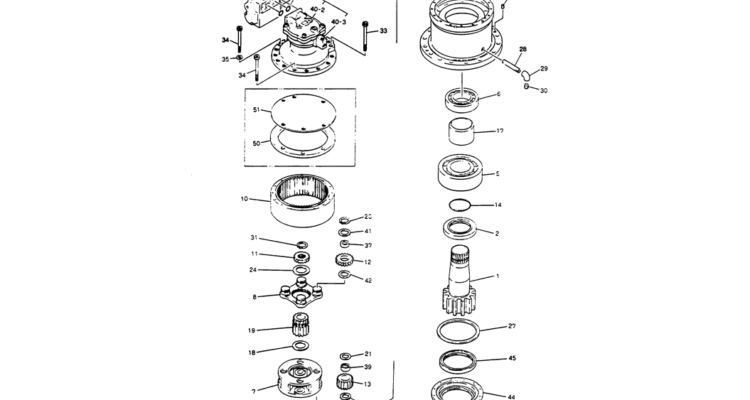

01-005 MOTOR ASSY, SWING-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 24100J13483F2 REDUCER CONSISTS OF FIGURES 1, 2, 4-15, 17-21, 24-27, 30, 33-37, 39, 41, 42, 44, 45, 50, 51 51 1 2414T4960 COVER 50 1…
