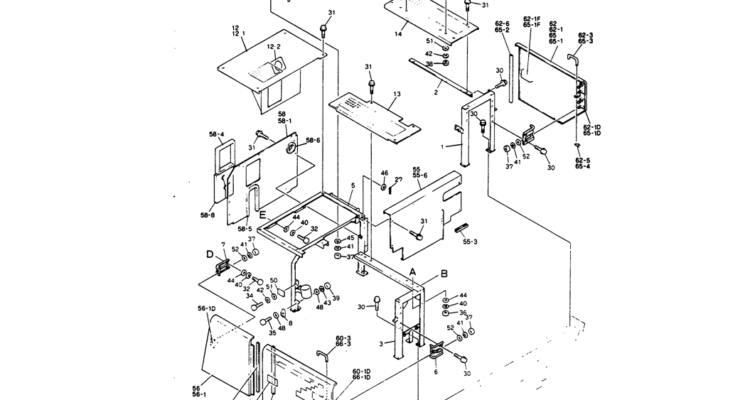

02-012(02) GUARD ASSY P/N 24100J15139F3, F5-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 6 4 2416P16989 U-BRACKET 66-4 1 2419R9D3 PIN Hair -- OD 10mm x 32.6mm Long 66-3 1 2416T23696 STAY 66-2 1 2416Z650D1 RUBBER SLEEVE…
02-012(01) GUARD ASSY P/N 24100J15139F3, F5-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 66-4 1 2419R9D3 PIN Hair -- OD 10mm x 32.6mm Long 66-3 1 2416T23696 STAY 66-2 1 2416Z650D1 RUBBER SLEEVE 20x25x595mm 66-1F 1 2427R476F2…

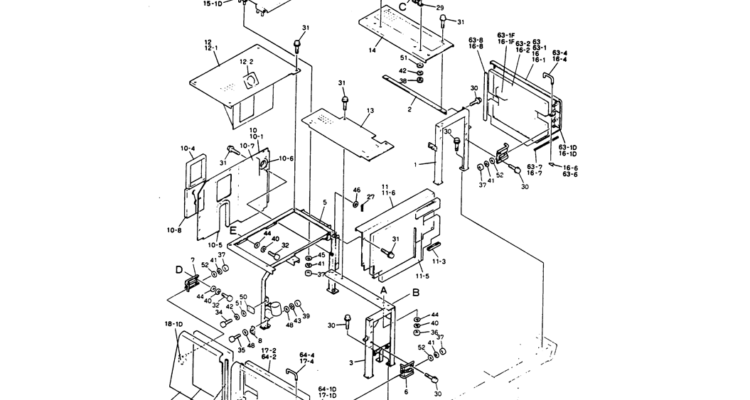

02-011(01) GUARD ASSY P/N 24100J15139F1, F4-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 64-8 1 2416Z650D1 RUBBER SLEEVE 20x25x595mm 64-7 1 2427P1836D6 WEATHERSTRIP 64-6 1 2419R9D3 PIN Hair -- OD 10mm x 32.6mm Long 64-4 1 2416T23696…

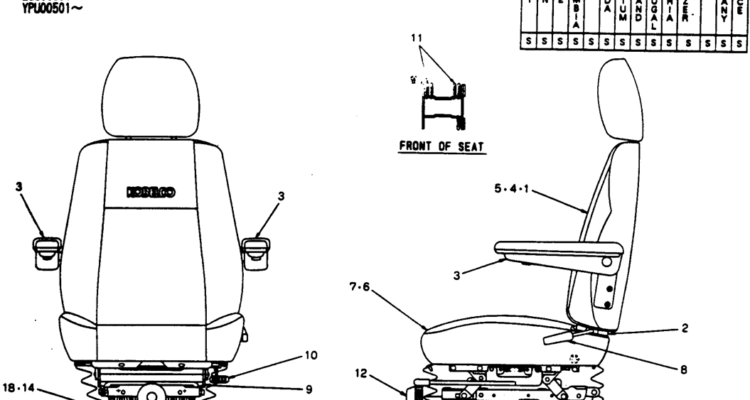

02-010 SEAT ASSY P/N 2448U167F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 18 1 2448U167S18 KIT 17 1 2448U167S17 COVER 16 1 2448U167S16 STOP 15 1 2448U167S15 DAMPER DAMPER 14 1 2448U167S14 SUSPENSION 13 1 2448U167S13 RAIL…

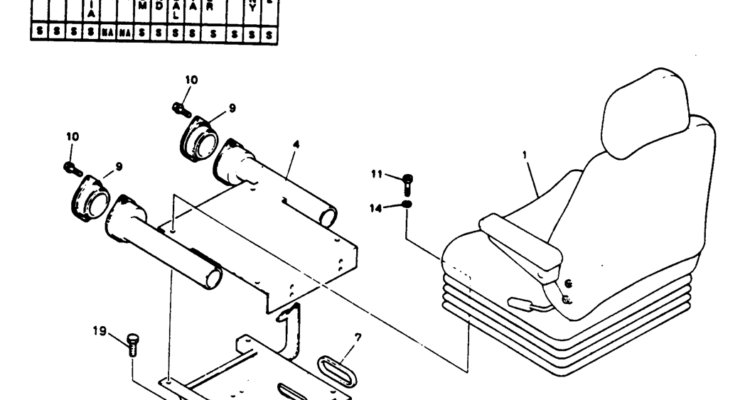

02-009 SEAT ASSY P/N 24100N7702F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 20 1 ZN18C10008 NUT M10x1.50mm 19 5 ZS18C10040 SCREW M10x1.50x40mm 15 4 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm 14 4…

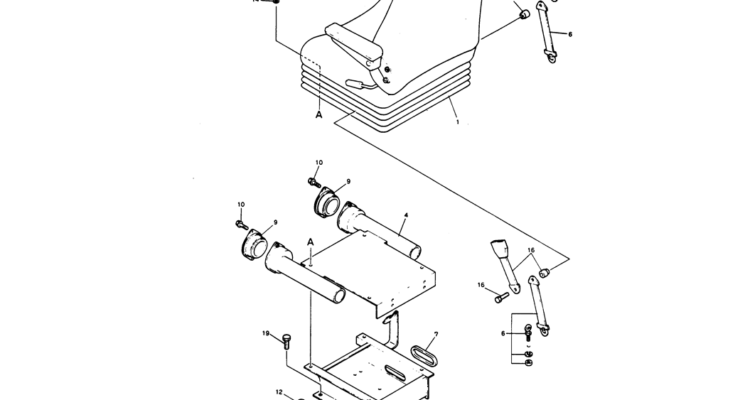

02-008 SEAT ASSY P/N 24100N8022F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 20 1 ZN18C10008 NUT M10x1.50mm 19 1 ZS18C10040 SCREW M10x1.50x40mm 16 1 2407U144F1 BELT ASSY, SEAT 15 5 ZW26X10000 LOCK WASHER ID 10 x OD…

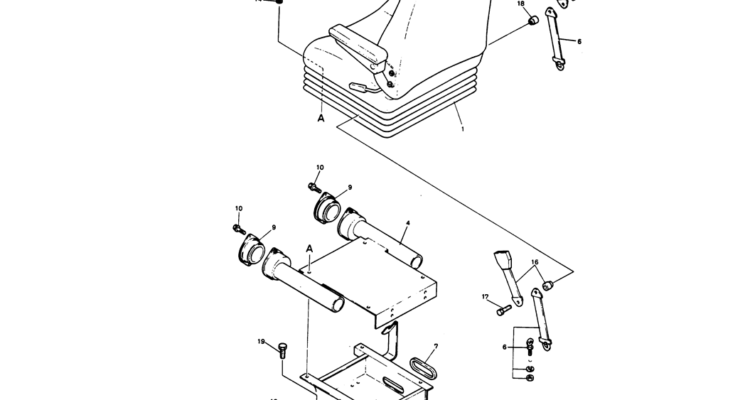

02-007 SEAT ASSY P/N 24100N7702F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 20 1 ZN18C10008 NUT M10x1.50mm 19 1 ZS18C10040 SCREW M10x1.50x40mm 18 1 2418T24771 SPACER 17 1 2420T8240 SCREW 16 1 2407U71 15 5 ZW26X10000 LOCK…

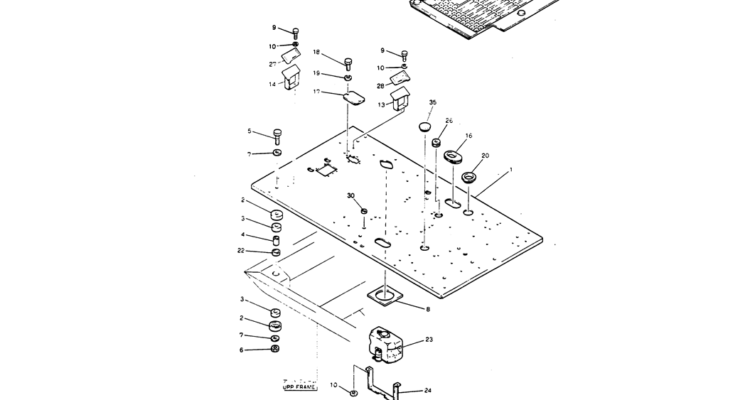

02-006 PLATE ASSY, FLOOR (WRIST)-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 35 1 2420Z1617 PLUG 30 1 2405T1749 BUSHING BUSHING 29 1 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm 28 1 2414T2879 COVER…

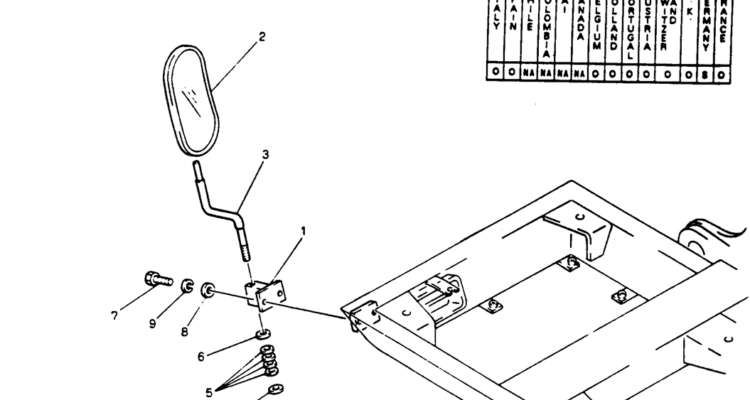

02-005 INSTALL, MIRROR-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 9 2 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm 7 2 ZS18C10020 SCREW M10x1.50x20mm 6 2 ZW16X12000 WASHER ID 12 x OD 24…

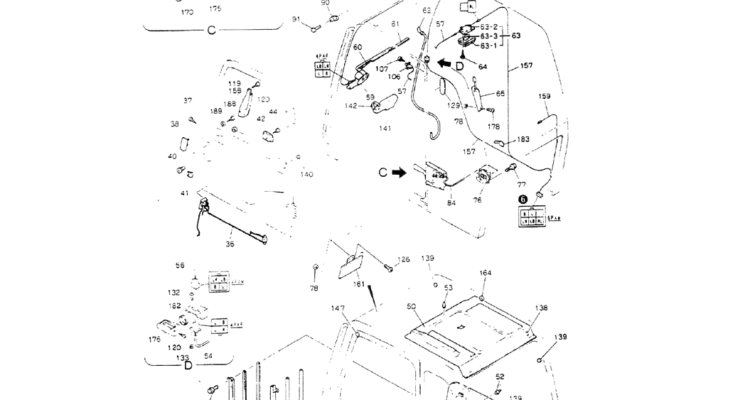

02-004(02) CAB ASSY P/N 24100J14396F15-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 24100R169F1 CABIN DOOR 309-20 6 ZN17C10008 NUT M10x1.50mm 309-19 6 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm 309-18 6 ZW16X10000…
