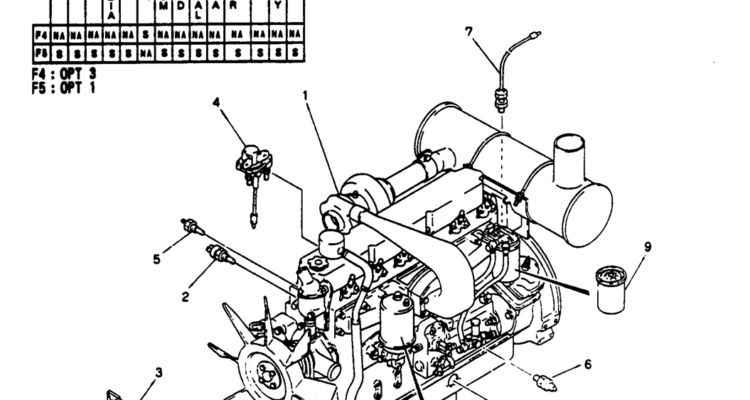

05-004 ENGINE ASSY-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 10 1 VAME074013 ELEMENT 9 1 VAME035393 ELEMENT 8 1 MC840577 SENSOR LEVEL, OIL 7 1 VAMC845235 SENDER UNIT SPEED 6 1 VAMC840219 SWITCH OIL PRESS (E/G)…

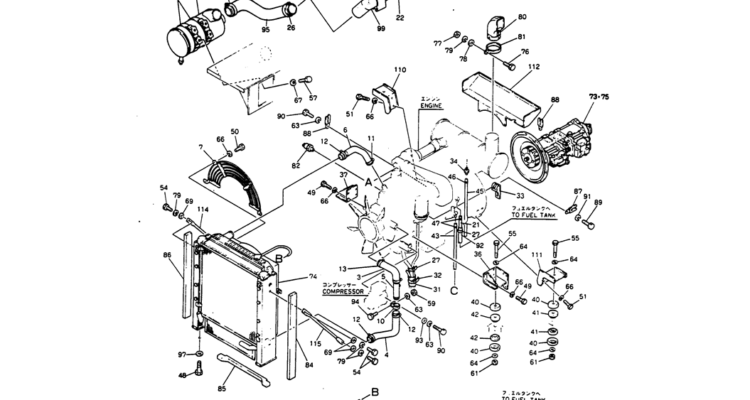

05-003 POWER-PLANT ASSY P/N 24100J15118F2, F4, F5-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 116 1 2418R590D1 FLEXIBLE HOSE HOSE 115 1 2416T25931 STAY 114 1 2416T25932 113 1 2446U180F2 SEPARATOR FILTER ASSY, SEE FIGURE 328-01 112…

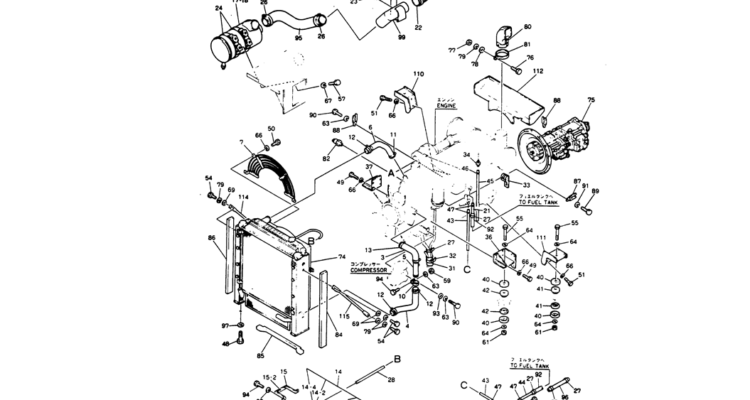

05-002 POWER-PLANT ASSY P/N 24100J15118F1, F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 116 1 2418R590D1 FLEXIBLE HOSE HOSE 115 1 2416T25931 STAY STAY 114 1 2416T25932 STAY 113 1 2446U180F2 SEPARATOR FILTER ASSY, SEE FIGURE 328-01…

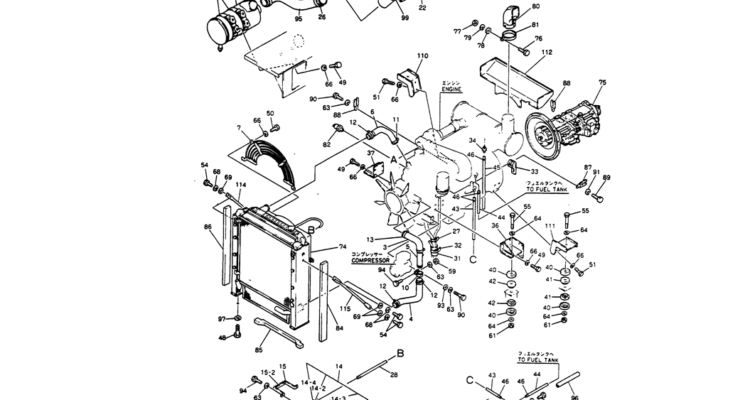

05-001 POWER-PLANT ASSY P/N 24100J14454F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 116 1 2418R590D1 FLEXIBLE HOSE HOSE 115 1 2416T25931 STAY 114 1 2416T25932 113 1 2446U180F2 SEPARATOR FILTER, SEE FIGURE 328-01 112 1 2414P8306 GUARD…

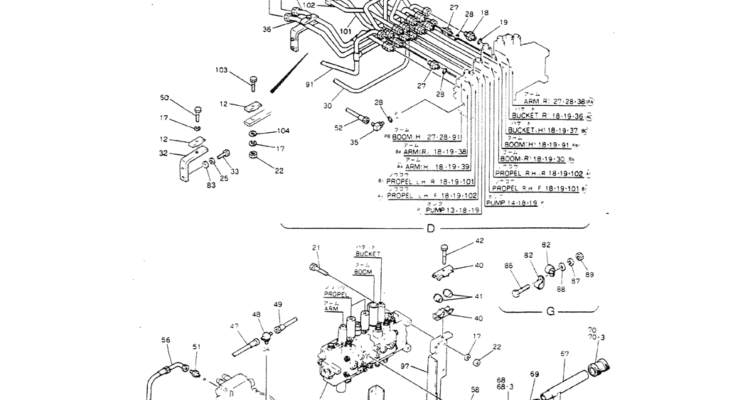

04-001(02) HYDR LINES. UPP-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 107 1 ZE72X08000 PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) 106 1 2436U2623F2 VALVE , SEE (C.P.M) 104 1 ZW13H12000 WASHER 103 1 ZS13C12080 SCREW M12x1.75x80mm 102…

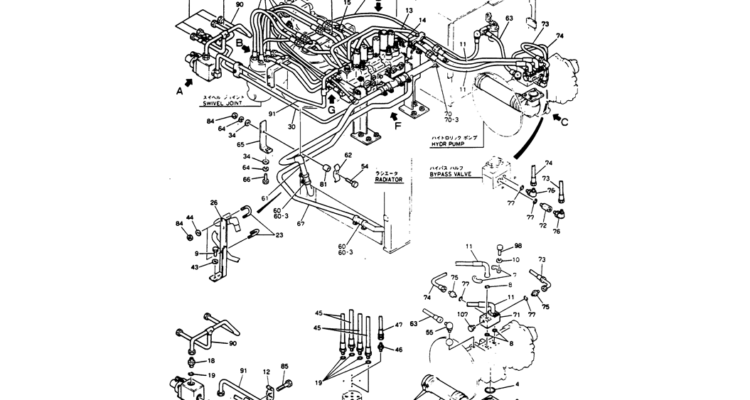

04-001(01) HYDR LINES. UPP-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 107 1 ZE72X08000 PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) 106 1 2436U2623F2 VALVE , SEE (C.P.M) 104 1 ZW13H12000 WASHER 103 1 ZS13C12080 SCREW M12x1.75x80mm 102…
03-005 LEVER ASSY, CONTROL-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 6 4 ZS18C10020 SCREW M10x1.50x20mm 4 1 2406P5343D2 PEDAL 3 1 2406P5343D1 PEDAL 2 1 2406P5382D2 LEVER 1 1 2406P5382D1 LEVER AR 24100N7501F1 LEVER 5 4…

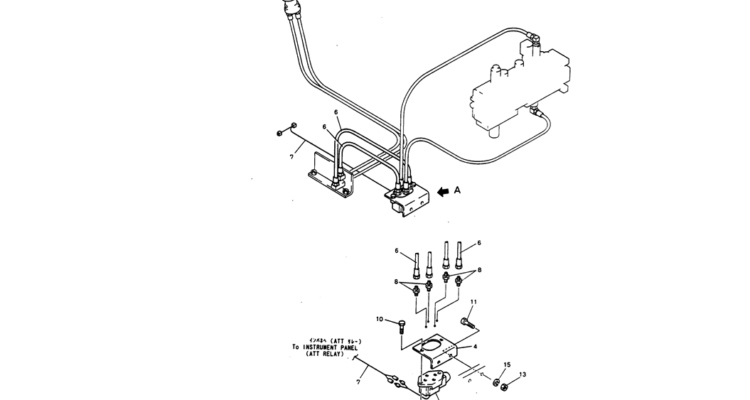

03-004 REWORK, REMOTE-CONTROL-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 15 2 ZW22X10000 LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm 14 2 ZW22X06000 ID 06 x OD 12.2 x Th 1.5mm 12 2 ZN13C06005…

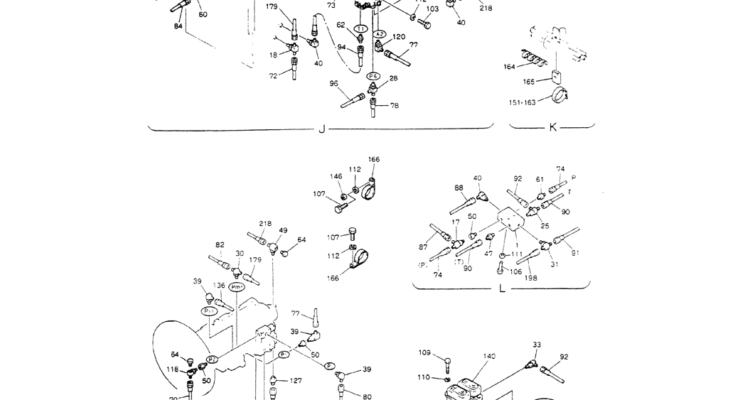

03-003(03) REMOTE-CONTROL ASSY (WRIST) P/N 24100J15271F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 220 2 2444Z4080 HYD CONNECTOR 1 2420R1183D195 , ASN LQU00016- 1 2420R1183D195 , ASN LLU00635- 219 1 2420R537D195 HOSE 9.60 mm ID x 1950.00…

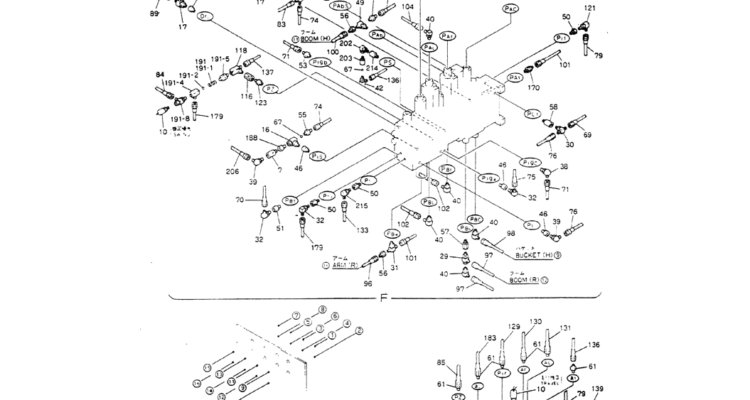

03-003(02) REMOTE-CONTROL ASSY (WRIST) P/N 24100J15271F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 220 2 2444Z4080 HYD CONNECTOR 1 2420R1183D195 , ASN LQU00016- 1 2420R1183D195 , ASN LLU00635- 219 1 2420R537D195 HOSE 9.60 mm ID x 1950.00…
