06-009 LAMP ASSY P/N 2456U104F3, F4-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 3 1 2456U104S3 PACKING 23 1 2456U104S23 HEADLAMP LENS F4 ONLY 22 1 2456U104S22 HEADLAMP LENS F3 ONLY 21 1 2456U104S21 LENS F4 ONLY…

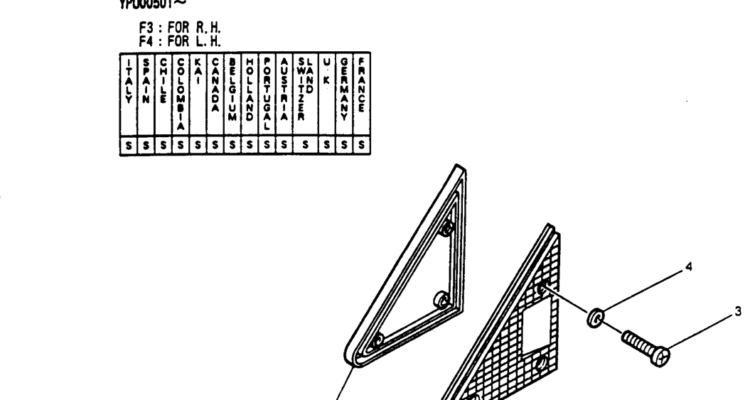

06-008 LAMP ASSY P/N 2456U110F3, F4-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 6 1 2456U110S6 LENS (F4 ONLY) 5 1 2456U110S5 LENS (F3 ONLY) 4 3 2456U104S19 WASHER AR 2456U110F4 LIGHT AR 2456U110F3 LAMP 3 3…

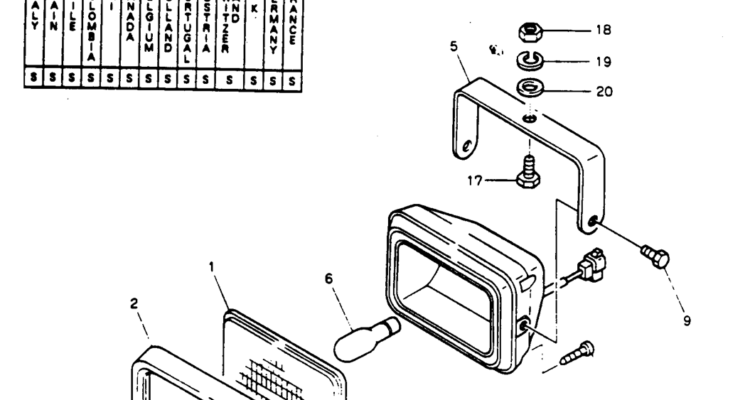

06-007 LIGHT ASSY, WORKING P/N 2456U81F2-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 20 1 2456U81S20 WASHER 19 1 2456U81S19 LOCK WASHER 18 1 2456U81S18 NUT 15 4 2456U81S15 SCREW CAPSCREW 9 2 2456U81S9 CAPSCREW 6 1…

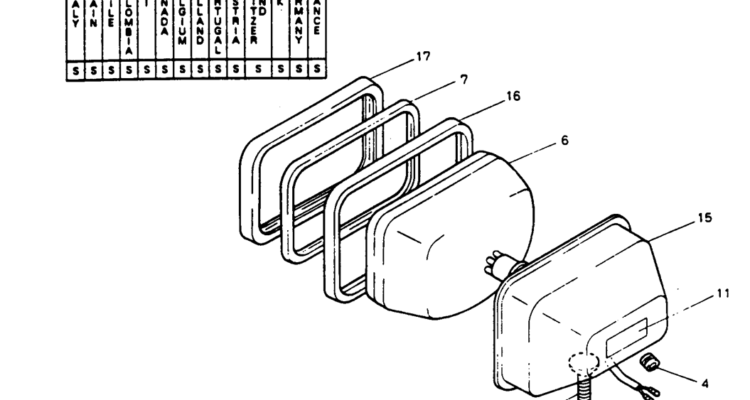

06-006 LIGHT ASSY, WORKING P/N 2456U74F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 2456U74S17 RING 16 1 2456U74S16 RING 15 1 2456U74S15 11 1 2456U74S11 NAME PLATE 10 1 2456U74S10 SHEET 7 1 2156U74S7 CUSHION…

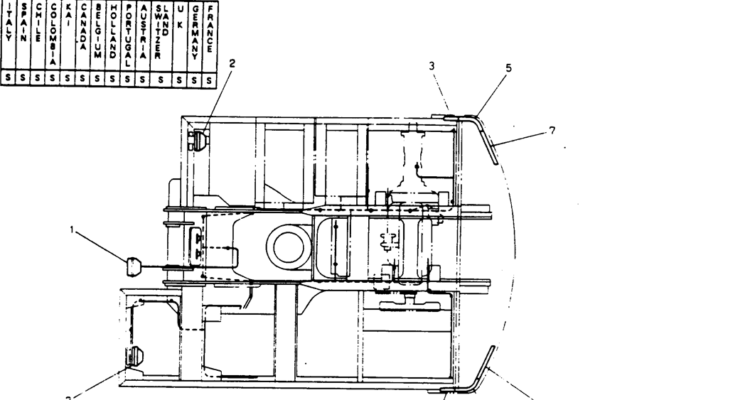

06-005 LAMP ASSY P/N 24100P3749F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 9 1 2456R442F1 LIGHT , ASN LQU00013- 9 1 2456R442F1 LIGHT , ASN YNU00054- 9 1 2456R442F1 LIGHT , ASN LLU00642- 8 1 2456U105F4 LIGHT…

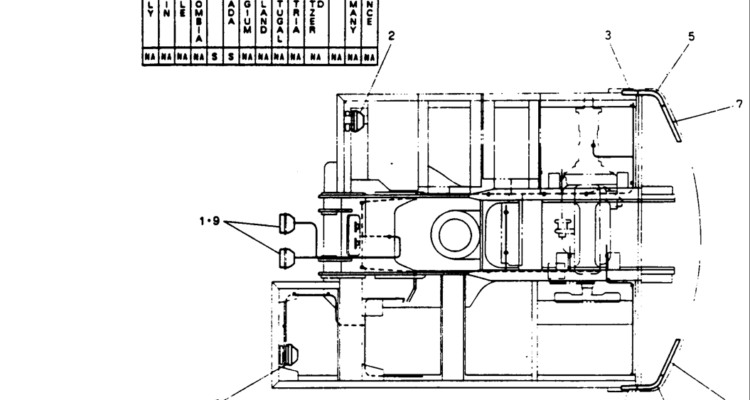

06-004 LAMP ASSY P/N 24100P3749F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 9 2 2456R442F1 LIGHT , ASN LQU00013- 9 2 2456R442F1 LIGHT , ASN LLU00642- 8 1 2456U105F4 LIGHT , SEE FIGURE 428-01 7 1 2456U105F3…

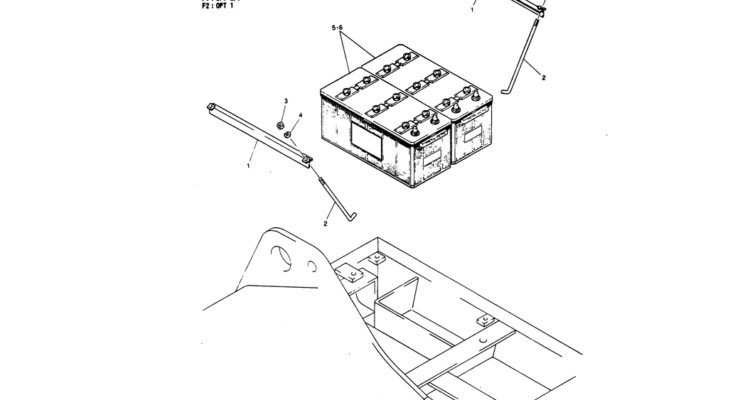

06-003 BATTERY ASSY-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 6 2 2411U22 BATTERY BATTERY 3 4 ZN18C08007 NUT M08x1.25mm 2 4 2420T7352 ROD 1 2 2416P15563 U-BRACKET AR 24100P3067F2 BATTERY ASSY 5 2 2411U16 BATTERY 4…

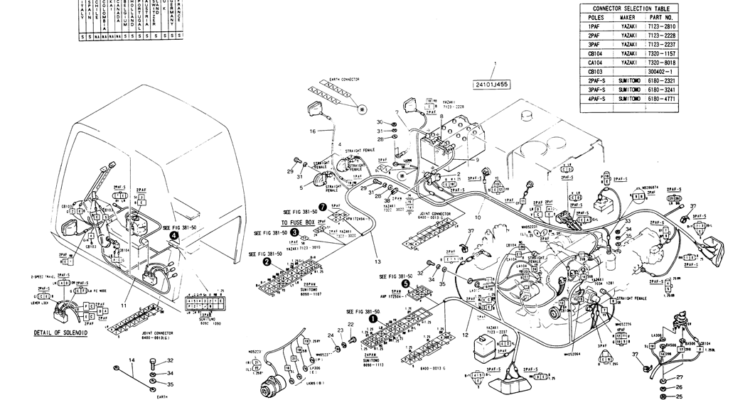

06-002 WIRING ASSY, ELEC P/N 24100J15155F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 38 1 2432R233D3 CLIP 50x16x60mm 37 10 2432Z290 CLIP Wire Ties -- 185mm Long 35 4 ZW16K10000 WASHER ID 10.5 x OD 18 x…

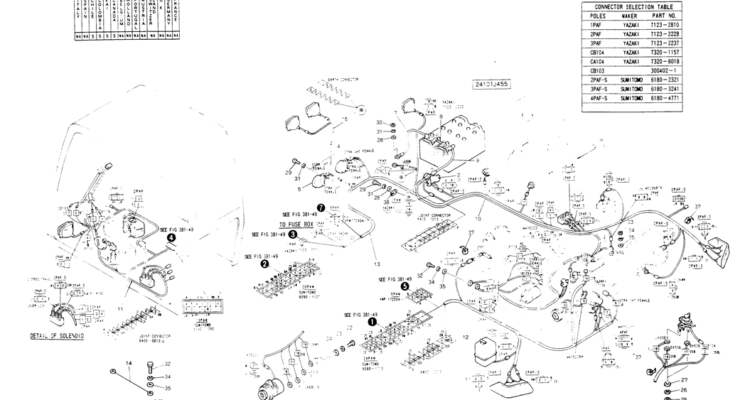

06-001 WIRING ASSY, ELEC P/N 24100J15155F1-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 38 1 2432R233D3 CLIP 50x16x60mm 37 10 2432Z290 CLIP Wire Ties -- 185mm Long 35 4 ZW16K10000 WASHER ID 10.5 x OD 18 x…

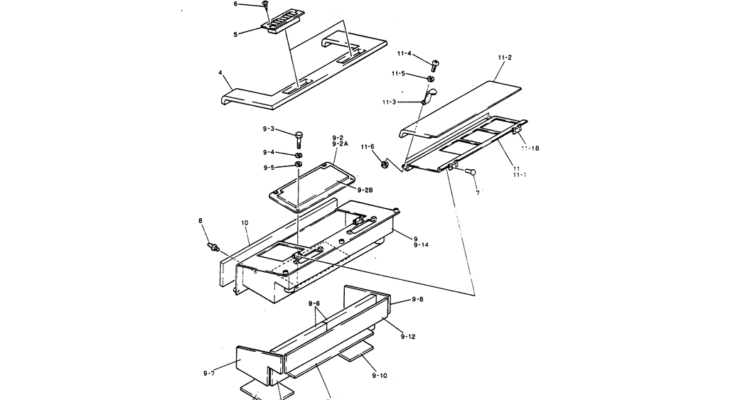

05-021 BOX ASSY P/N 24100N6782F2-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 11-6 4 ZN18C05004 NUT M05x0.8mm 11-5 4 ZW26X05000 WASHER Lock -- ID 05 x OD 09 x Th 1.3mm 11-4 4 ZS31C05010 BOLT M05x0.8x10mm 11-3…
