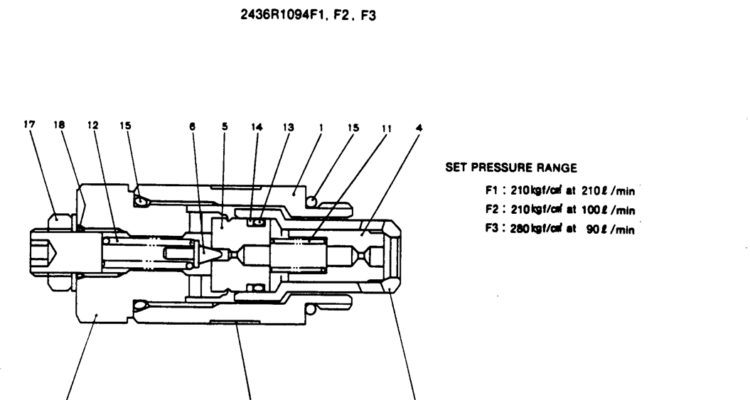

12-007 VALVE ASSY, MAIN RELIEF-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 18 1 ZD12P01000 O-RING ID 09.80 ± 0.17 x OD 13mm 17 1 2436R1094S17 NUT, ADJUSTING 16 1 2436R1094S16 NAME PLATE 14 1 2438U283S4 RING…

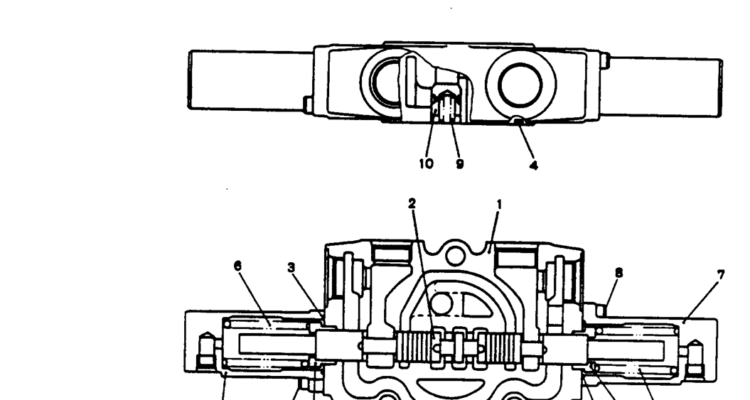

12-006 SPOOL ASSY-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 10 1 B36K0019E227 POPPET 9 1 B36K0019E226 SPRING 8 4 ZS23C06022 SCREW M06x1.0x22mm 7 2 2436R807S7 CAP 5 2 2436R461S7 SPRING SEAT 4 1 B36K0019E212 O-RING 3…

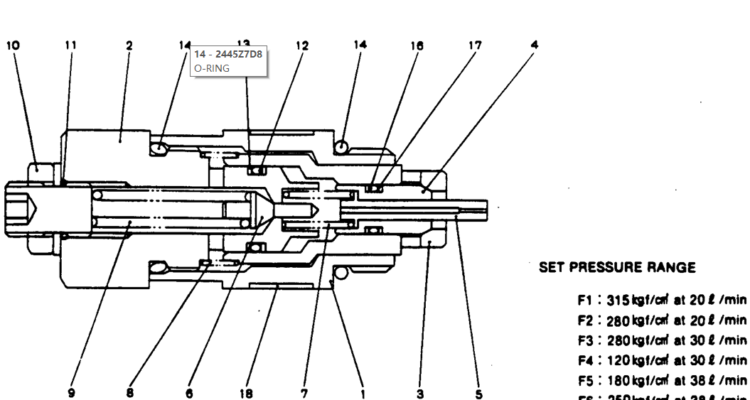

12-005 VALVE ASSY, OVERLOAD RELIEF-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 18 1 NSS NOT SERVICED SEPARATELY NAME PLATE 17 2 2436R378S14 BACK-UP RING 16 1 2436R378S13 O-RING 13 2 2436R721S13 BACK-UP RING 12 1 2436R1095S4…

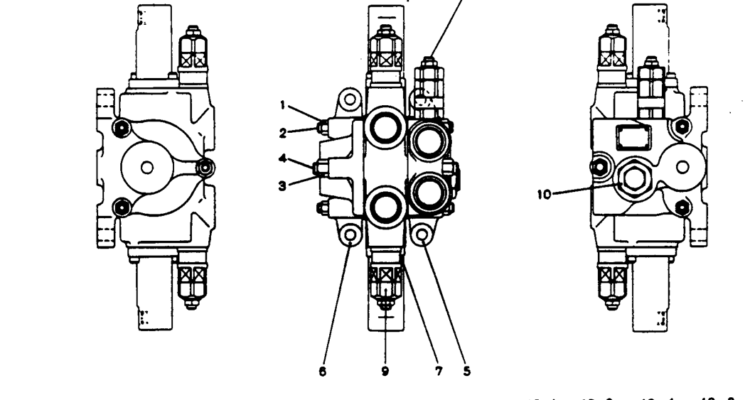

12-004 VALVE, CONTROL ( EXTRA & BREAKER)-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 10-4 1 2420Z1266S4 PLUG 10-3 1 2483U283S9 O-RING 10-2 1 2436U618S28 O-RING 10-1 1 2420Z1266S1 PLUG 10 1 2420Z1266F1 PLUG 9 2 2436R721F3…

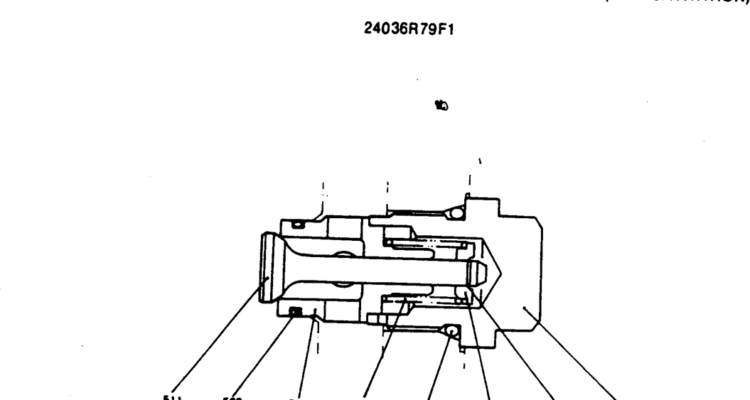

-12-003 VALVE ASSY, CHECK (ANTI-CAVITATION)Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manual-12-003 VALVE ASSY, CHECK (ANTI-CAVITATION)Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manual 562 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm…

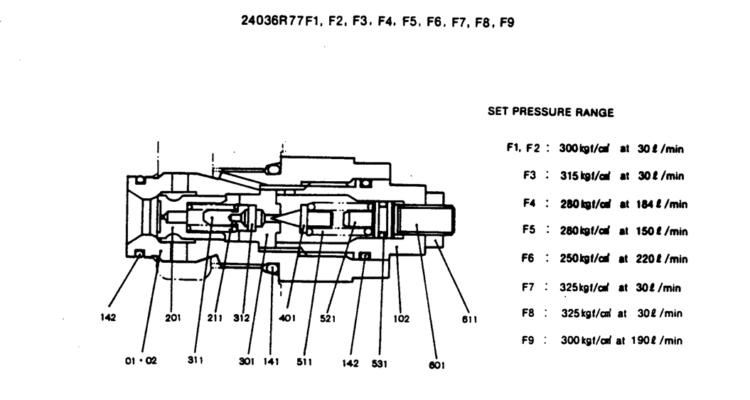

12-002 VALVE ASSY, PORT RELIEF-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 611 1 ZN11C08005 NUT M08x1.25mm 601 1 24036R75S601 SPECIAL BOLT 531 1 ZD12P00700 GASKET O-Ring -- ID 06.80 ± 0.16 x OD 10mm 521 1…

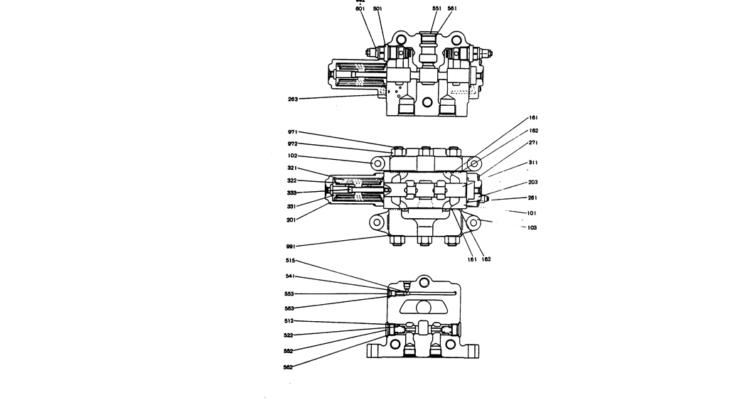

12-001 VALVE ASSY,CONTROL (NIBBLER AND BREAKER, L.M.N.)-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 1 2436U1198R200 REPAIR KIT, CONSISTS OF ITEM 103, 161, 162, 512, 515, 522, 541 1 2436U1198R110 SPOOL CONSISTS OF ITEM 311, 321, 322,…

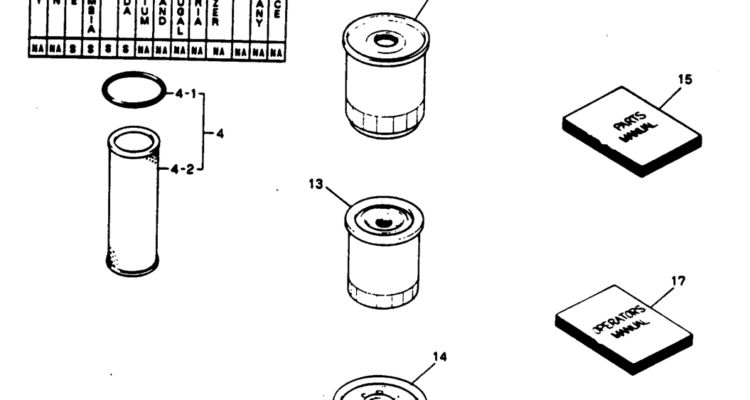

11-008 ELEMENT KIT P/N 24046R38F3-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 17 1 2421R381D5 MANUAL, OPERATORS 15 1 2421R382D5 MANUAL, PARTS 14 1 2446R332D1 ELEMENT 13 1 2446R332D4 12 4 2445Z888 O-RING 4-2 1 2446R331F1 ELEMENT…

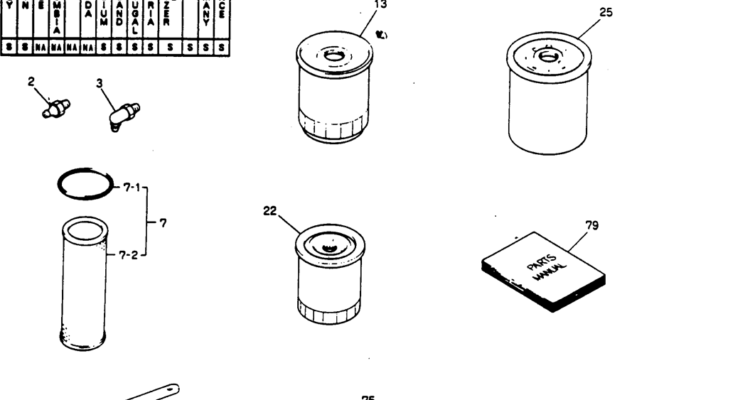

11-007 ELEMENT KIT P/N 24046U1F34-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 79 2 2421R183D36 MANUAL, PARTS 75 2 2421R182D34 MANUAL, OPERATORS 25 1 2446R332D11 ENGINE OIL FILTER 22 1 2446R332D4 16 2 2421Z302 BRUSH, PAINT 13…

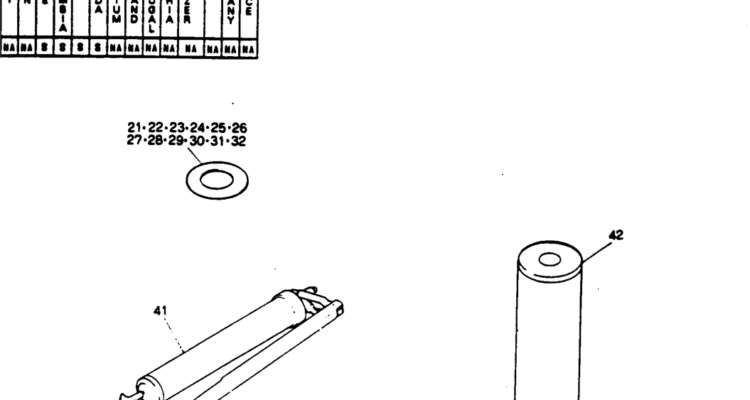

11-006 TOOL ASSY P/N 24100P3370F2-Kobelco SK220LC-3 SK250LC SK220-3 Excavator Parts Number Electronic Catalog EPC Manuals 42 1 2421Z499 GREASE 41 1 2421R380 GREASE GUN 32 1 2420T2747D14 SHIM ID 102 x OD 170 x Th 2.0mm 31 1 2420T2747D4 SHIM…
