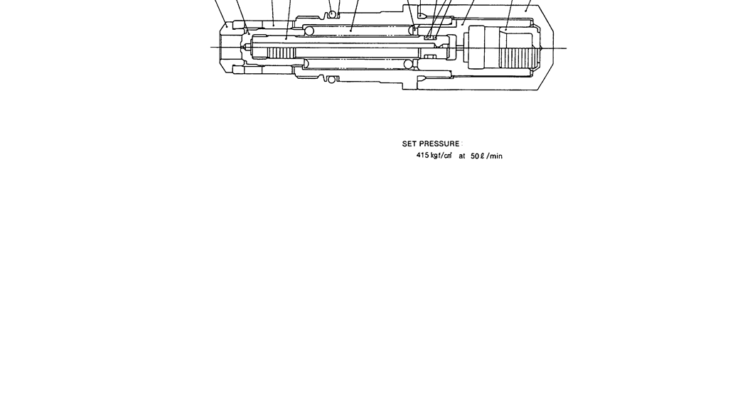

07-020 OVERLOAD RELIEF VALVE ASSEMBLY (YN22V00013F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 13 1 ZD85G02500 WASHER Ring, Back-Up -- ID 25 x OD 30 x Th 1.25mm 12 2 ZD12G02500 O-RING ID 24.4 ± 0.25…

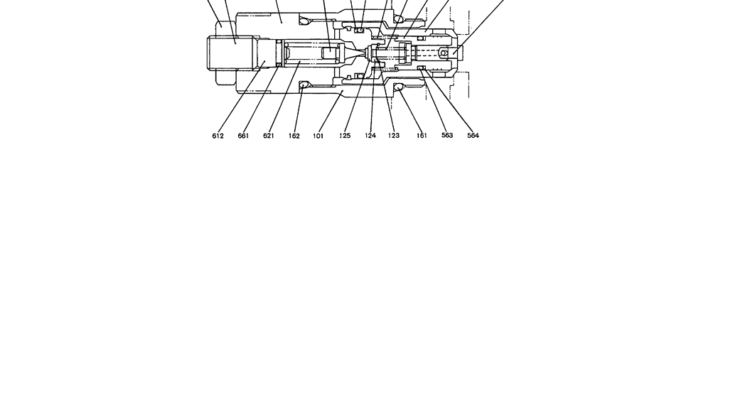

07-019 OVERLOAD RELIEF VALVE ASSEMBLY (YN22V00002F1 - F9)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 671 YN22V00001S671 LOCK NUT M14x1.50mm, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1, QTY-F5: 1, QTY-F6: 1, QTY-F7: 1, QTY-F8: 1…

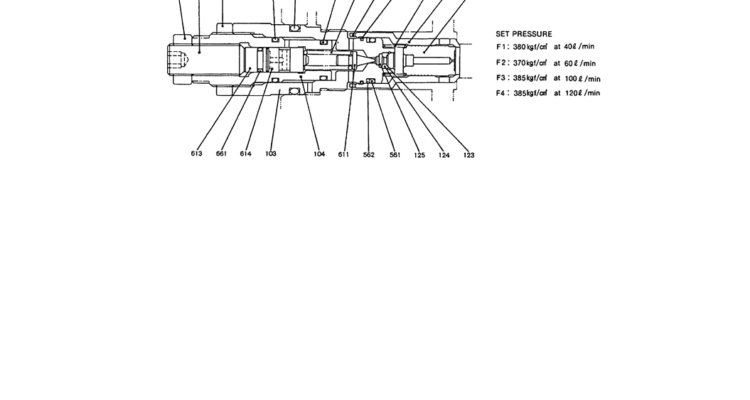

07-018 RELIEF VALVE ASSEMBLY (MAIN) (YN22V00001F1, F2, F3 & F4)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 673 2436U1281S612 NUT NUT, QTY-F1: 1, QTY-F2: 1, QTY-F3: 1, QTY-F4: 1 671 YN22V00001S671 LOCK NUT M14x1.50mm, QTY-F1: 1,…

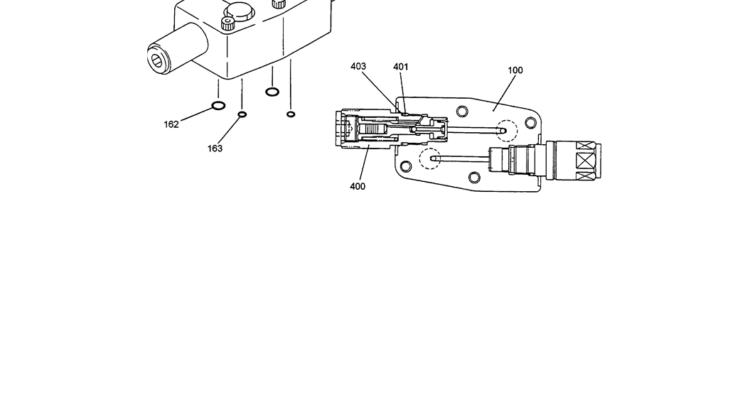

07-017 VALVE ASSEMBLY (SWING MOTOR) (YN20V00004F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 401 2 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm 400 2 YN20V00004S400 VALVE ASSY 171 4 ZS23C08055 SCREW M08x1.25x55mm 163 2…
07-016 SWING MOTOR ASSEMBLY (YN15V00025F3)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 YN15V00025R300 SEAL ASSY. (OIL SEAL & O-RING) Contains Items 472, 488, 491, 706 & 707 K 1 YN15V00025R200 REPAIR KIT (CASE &…

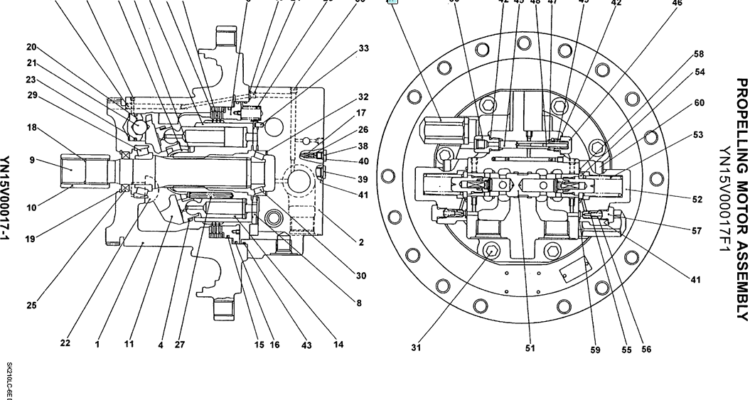

07-015 PROPELLING MOTOR ASSEMBLY (YN15V00017F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals K 1 YN15V00017R300 REPAIR KIT REPAIR KIT CONSISTS OF ITEM 4 & 12 K 1 YN15V00017R200 REPAIR KIT REPAIR KIT CONSISTS OF ITEM 11…

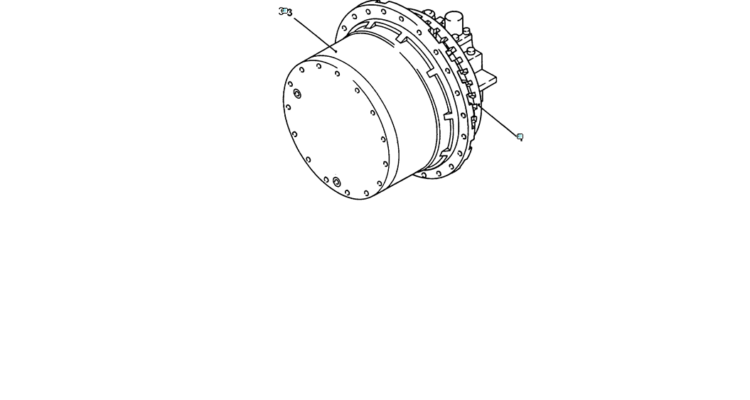

07-014 PROPELLING MOTOR ASSEMBLY (YN15V00011F2)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 1 1 YN15V00017F1 MOTOR MOTOR ASSY, Remarks: (See YN15V1500017-1) YN15V00011F2 MOTOR MOTOR ASSY, PROPEL 3 1 YN53D00008F2 REDUCER REDUCT ASSY, PROPEL, Remarks: (See YN53D00008-1)…

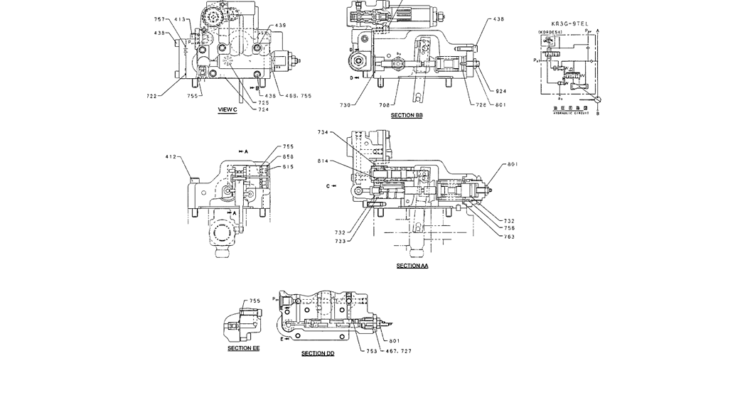

07-013 REGULATOR ASSEMBLY (YN10V01006F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 924 1 2441U722S924 SCREW SETSCREW 858 2 ZR26X01500 RING Retaining -- ID 15 x OD 16.2 x Th 1.0mm 814 1 2436U2455S814 RING RING 801…

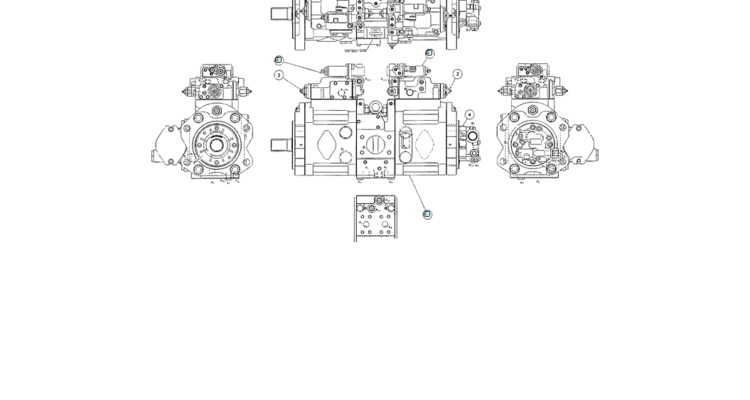

07-012 PUMP ASSEMBLY (LOGGER) (YN10V00029F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 4 1 YN10V00014F2 PUMP PUMP ASSY, GEAR, Remarks: SEE P-YN10V00014-1 3 2 YN35V00041F1 SOLENOID VALVE VALVE, SOLENOID, Remarks: SEE P-YN35V00041-1 2 2 YN10V01006F1 REGULATOR…
07-011 PUMP ASSEMBLY (YN10V00023F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 6 4 ZS23C10016 SCREW M10x1.50x16mm -- Not Shown 5 1 YN10V00018S005 COVER Remarks: (not illustrated) 4 1 YN10V00014F2 PUMP Assembly, GEAR, Remarks: SEE P-YN10V00014-1 2…
