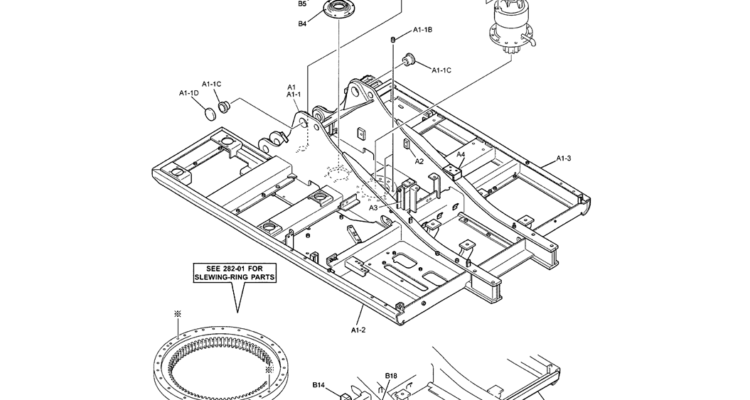

01-001 UPPER FRAME ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B18 1 YN52F01381P1 FOAM INSULATION INSULATION B17 8 YN52F01157P1 SEAL SEAL B16 1 YN32W01038D1 TUBE TUBE 15 1 2420R561D1 DIPSTICK DIPSTICK B14 1 YN52F01395P1…

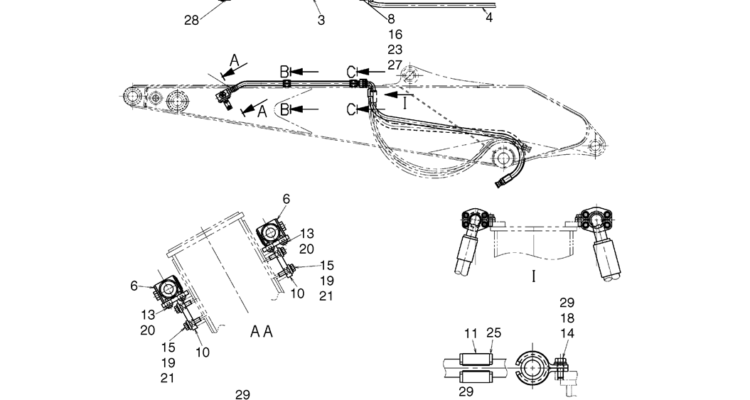

09-020 LONG ARM 1 WAY PIPING ONLY (YN43H00117F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 29 8 ZW16P10000 WASHER ID 10.5 x OD 21 x Th 2.0mm 28 2 ZD12A02100 O-RING ID 23.52 ± 0.15 x…

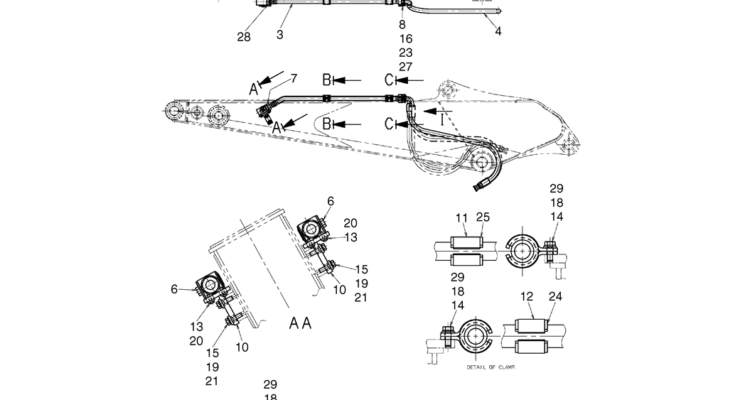

09-019 STD ARM 2 WAY / 1 WAY PIPING ONLY (YN43H00101F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 29 8 ZW16P10000 WASHER ID 10.5 x OD 21 x Th 2.0mm 28 2 ZD12A02100 O-RING ID 23.52…

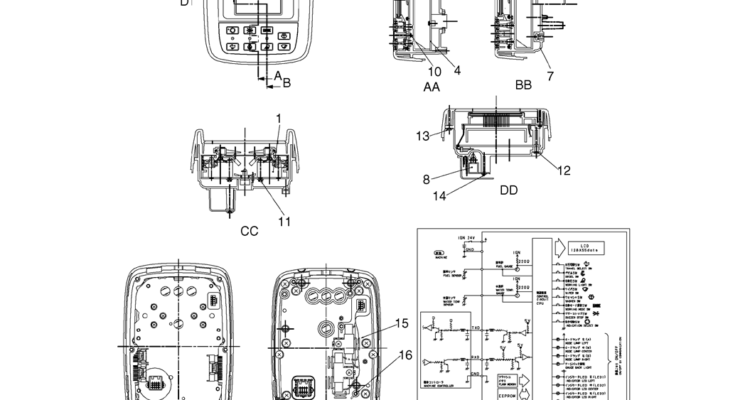

01-051-01(00) GAUGE ASSEMBLY, CLUSTER (YN59S00014F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 16 2 YN59S00011S016 Screw 15 1 YN59S00012S015 Cover 14 2 YN59S00012S014 Screw 13 6 YN59S00012S013 Screw 12 6 YN59S00012S012 Screw 11 6 YN59S00012S011 Screw…

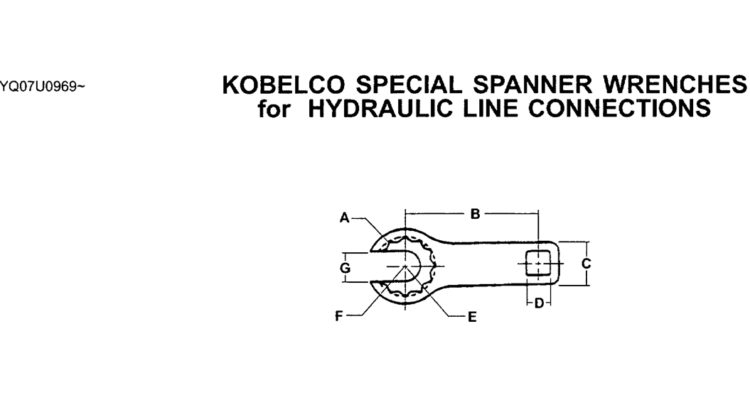

00-010 KOBELCO SPECIAL SPANNER WRENCHES FOR HYDRAULIC LINE CONNECTIONS-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals AR 2421T314 BOX SPANNER KOBELCO SPECIAL SPANNER WRENCHES for HYDRAULIC LINE CONNECTIONS, TUBE DIA.: 35 (1.38), A: 55 (2.17), B:…

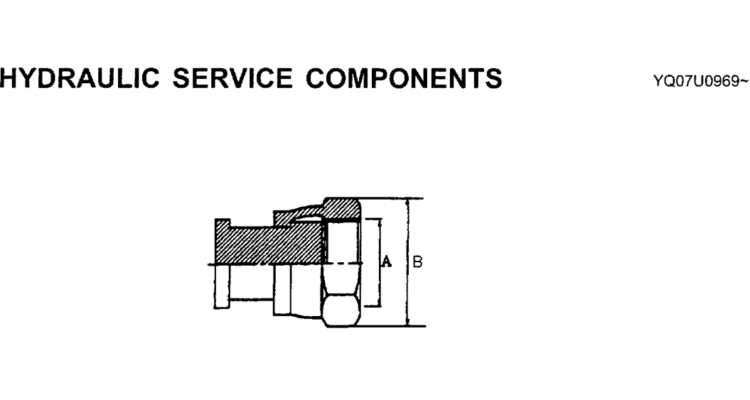

00-009 HYDRAULIC SERVICE COMPONENTS--O-RINGS-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals AR YN01H01004P1 PLUG O-RING, A-SIZE: 3/4" (13/16-12UN), I.D. (mm): 27.2, B-NUT (mm): 36 AR YN01H01004P1 PLUG O-RING, A-SIZE: 5/8" (1-14UNS), I.D. (mm): 21.7, B-NUT (mm):…

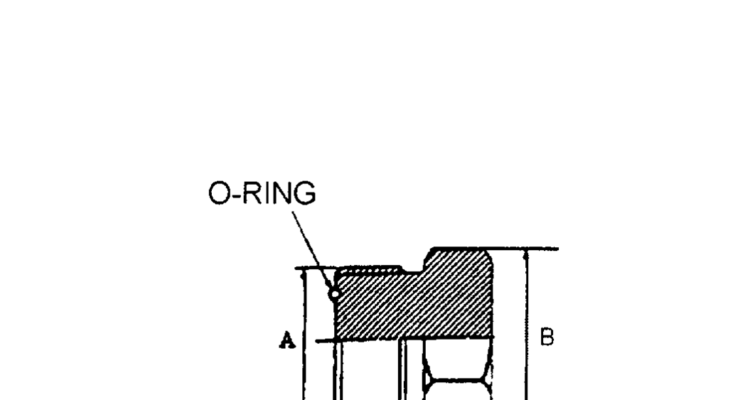

00-008 HYDRAULIC SERVICE COMPONENTS--O-RINGS-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals AR ZD12A02100 O-RING A-Size: 1" (1 7/16-12UN), O.D. (mm): 34, B-NUT (mm): 42 AR ZD12A01800 O-RING ID 18.77 ± 0.12 x OD 22.33mm, A-Size: 3/4",…

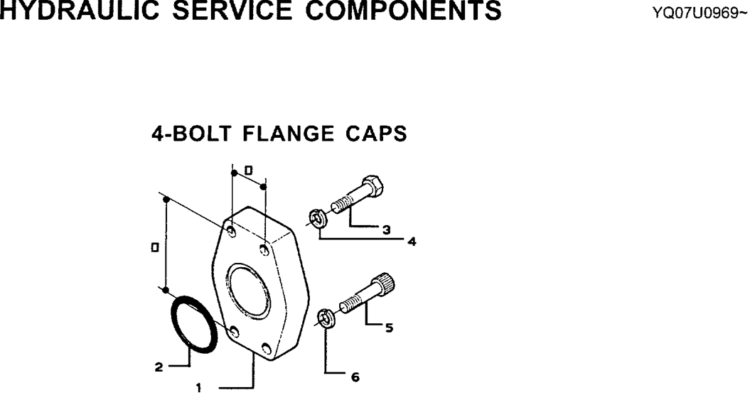

00-007 HYDRAULIC SERVICE COMPONENTS--4-BOLT FLANGE CAPS-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals AR ZW26K20000 WASHER 4-BOLT FLANGE CAPS, (NOM. SIZE): 44.45 (1.75"), DIM A: 96.82 (3.81") AR ZW26K16000 LOCK WASHER 4-BOLT FLANGE CAPS, (NOM. SIZE):…

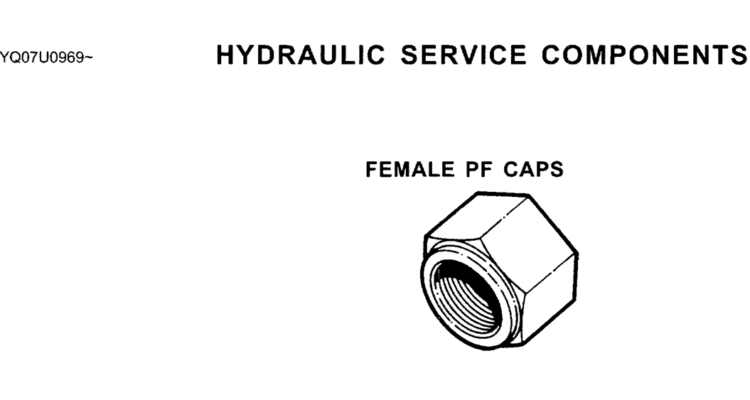

00-006 HYDRAULIC SERVICE COMPONENTS--FEMALE PF CAPS-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals AR 2444Z2729D5 PLUG 1"PFx37mm Long AR 2444Z2729D4 PLUG PF 3/4 AR 2444Z2729D2 PLUG PF 3/8 AR 2444Z2729D1 PLUG PF 1/4 AR 2444Z2729D3 PLUG…

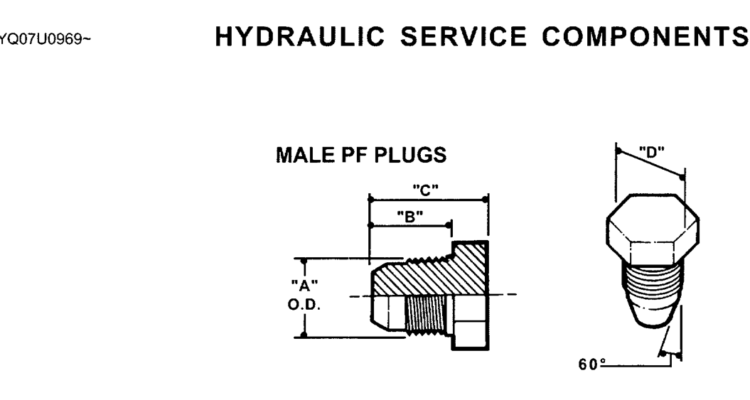

00-005 HYDRAULIC SERVICE COMPONENTS--MALE PF PLUGS-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals AR 2444Z2728D5 PLUG MALE PF PLUGS, PLUG SIZE: PF 1, "A" O.D.: 33.3, "B" LENGTH: 23.5, "C" LENGTH: 36.0, "D" FLATS: 36 AR…
