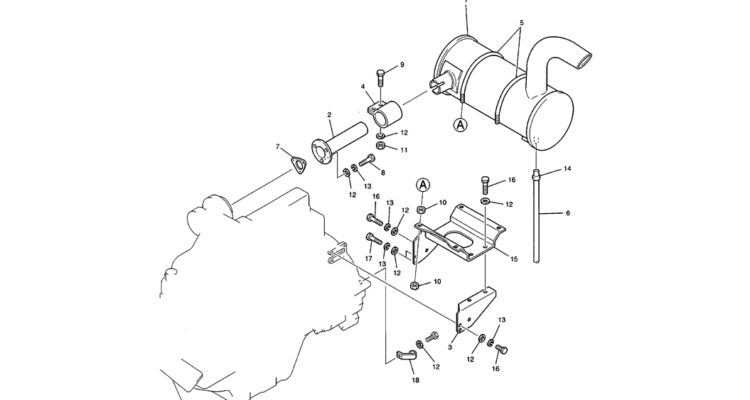

01-010 MUFFLER ASSEMBLY (YN12P00025F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 18 1 YN12P01083P1 PLATE PLATE 17 2 ZS18C10030 SCREW M10x1.50x30mm 16 6 ZS18C10025 SCREW M10x1.50x25mm 15 1 YN12P01049P1 BRACKET BRACKET 14 1 ZC16X01200 CLIP Clamp,…

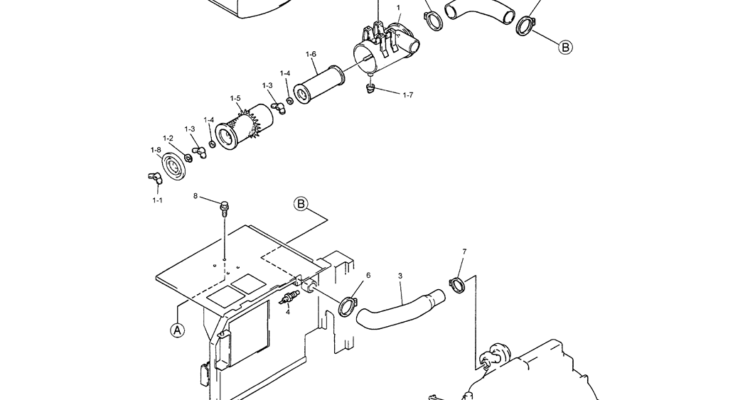

01-009 AIR CLEANER ASSEMBLY (YN11P00015F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 8 4 ZM22C10025 BOLT M10x1.50x25mm (Incls. Washer & Lockwasher) 7 1 ZC16X06700 CLIP Clamp, Hose -- Min 58 x Max 76mm 6 2 ZC16X10000…

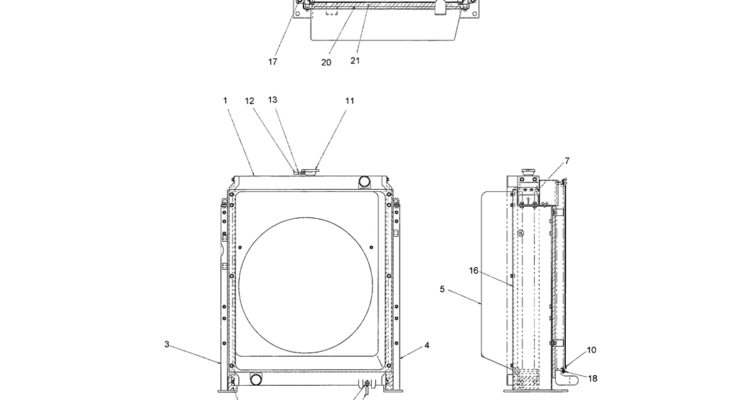

01-008 RADIATOR ASSEMBLY (YN05P00035F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 23 2 YN05P00035S023 FOAM INSULATION INSULATION 22 2 YB05P00001S022 INSULATING PANEL INSULATION 21 2 YN05P00035S021 FOAM INSULATION INSULATION 20 2 YM05P00003S017 PACKING PACKING 19 4…

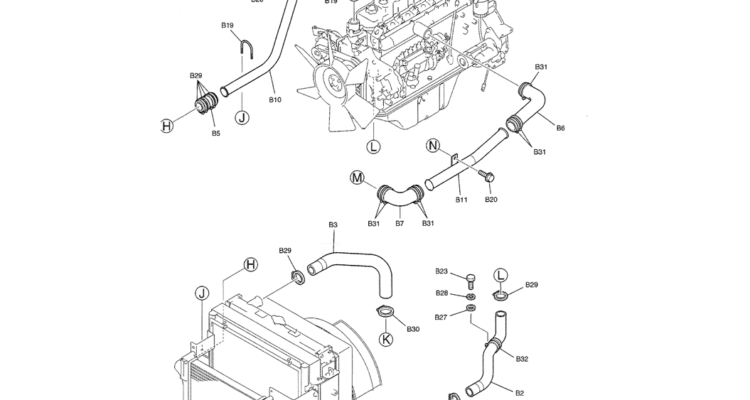

01-007(02) RADIATOR INSTALLATION-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals C1 1 YN05P00035F1 RADIATOR RADIATOR ASSY, Remarks: See p. 038-01-1 B41 1 YN05P01160P1 BRACKET BRACKET B40 1 YN05P01159P1 BRACKET BRACKET B39 3 ZM22C08020 BOLT M08x1.25x20mm (Incls.…

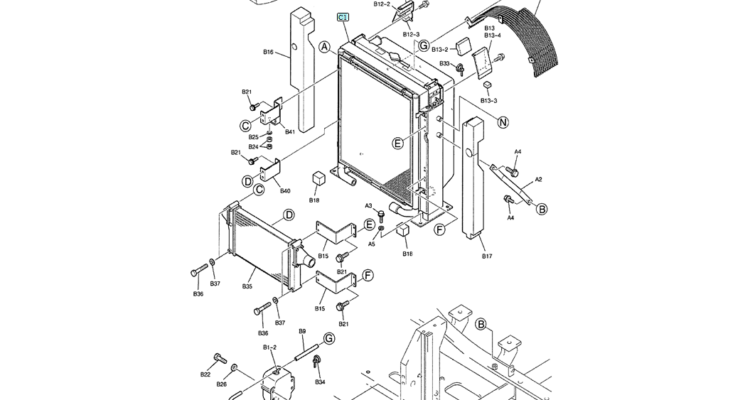

01-007(01) RADIATOR INSTALLATION-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals C1 1 YN05P00035F1 RADIATOR RADIATOR ASSY, Remarks: See p. 038-01-1 B41 1 YN05P01160P1 BRACKET BRACKET B40 1 YN05P01159P1 BRACKET BRACKET B39 3 ZM22C08020 BOLT M08x1.25x20mm (Incls.…

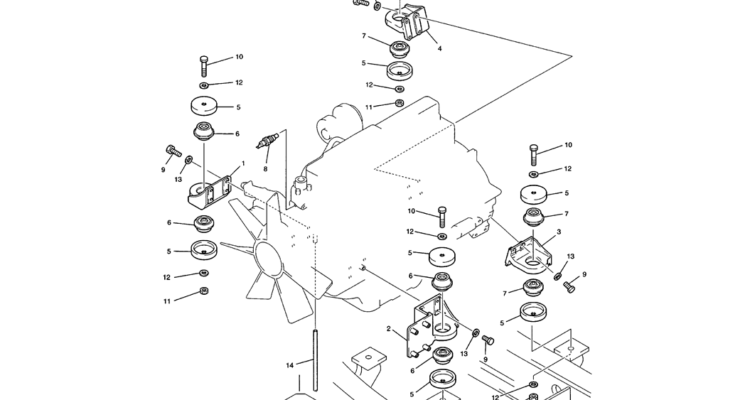

01-006 ENGINE INSTALLATION (YN02P00025F1)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 14 1 VAME219070 HOSE BREATHER, Remarks: 25.4 X 550 13 16 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm 12 8 ZW16H18000 WASHER…

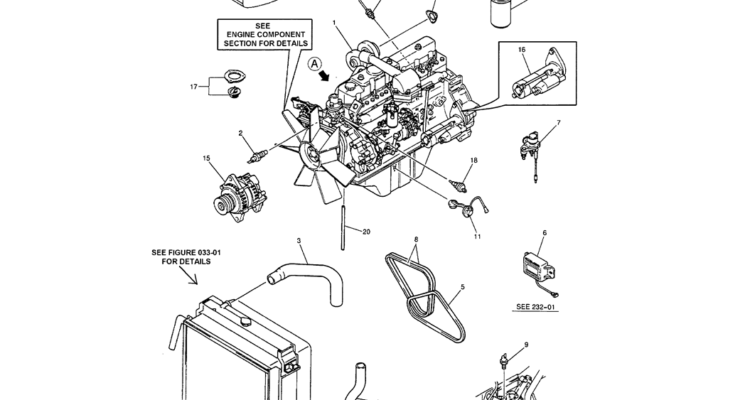

01-005 ENGINE ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 20 1 VAME219070 HOSE HOSE, BREATHER 25.4 X 550 19 1 VAME084614 VALVE VALVE, OIL COOLER BY-PASS 18 1 VAME039860 SWITCH SWITCH, THERMO (SW-6 Water) 105°C…

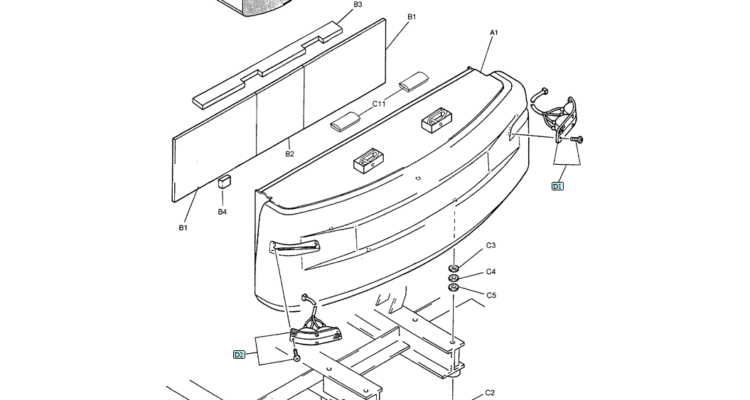

01-004 COUNTERWEIGHT ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals D2 1 YN80S00015F4 LAMP LAMP, FLASHER (LH), Remarks: See 268-01-1 D1 1 YN80S00015F3 LAMP LAMP, FLASHER (RH), Remarks: See 268-01-1 YN80E00030F1 LAMP LAMP INSTAL C11 2420Z2315…

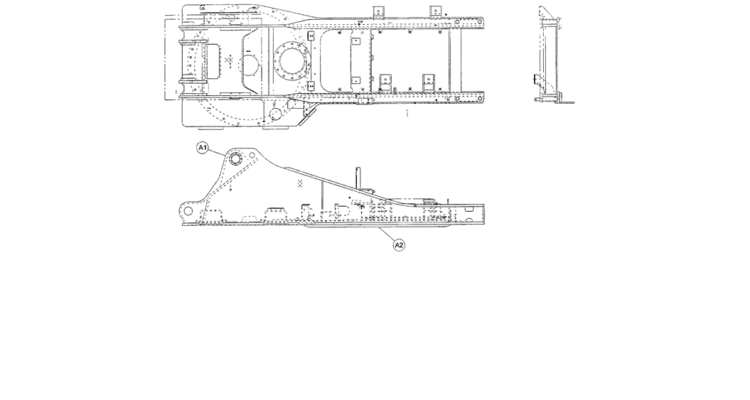

01-003 UPPER FRAME (REWORK) (LOGGER)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals A1 1 YN52F00162P1 FRAME ASSY UPPER FRAME ASSY YN52FU00009F1 UPPER FRAME REWORK (Logger) A2 2 YN53FU1009P1 PLATE PLATE Kobelco Part…

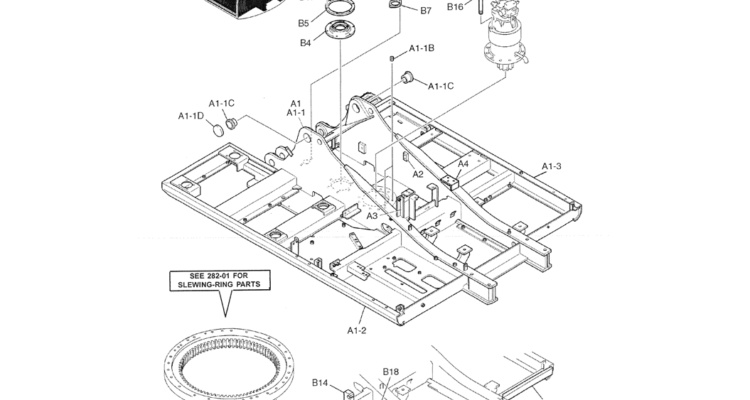

01-002 UPPER FRAME ASSEMBLY, HIGH AND WIDE.-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals B28 31 YN40FU1001P1 SPACER SPACER B27 31 ZW11X18000 WASHER ID 18 x OD 34 x Th 3.2mm B18 1 YN52F01381P1 FOAM INSULATION…
